OPEL ZAFIRA TOURER 2016 User Guide

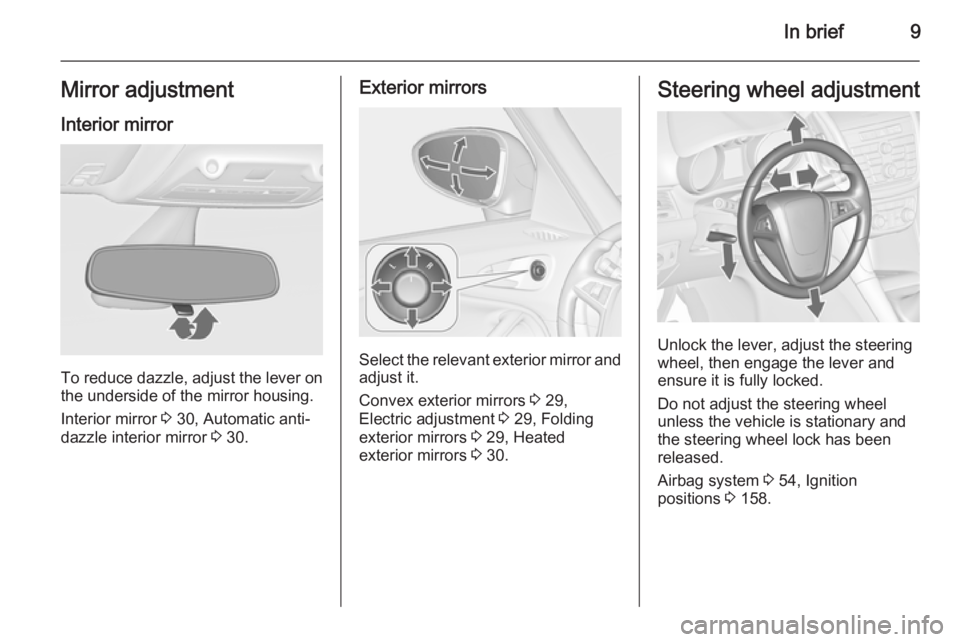

In brief9Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 30, Automatic anti-
dazzle interior mirror 3 30.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 29,
Electric adjustment 3 29, Folding
exterior mirrors 3 29, Heated
exterior mirrors 3 30.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 54, Ignition
positions 3 158.

10In briefInstrument panel overview

In brief11

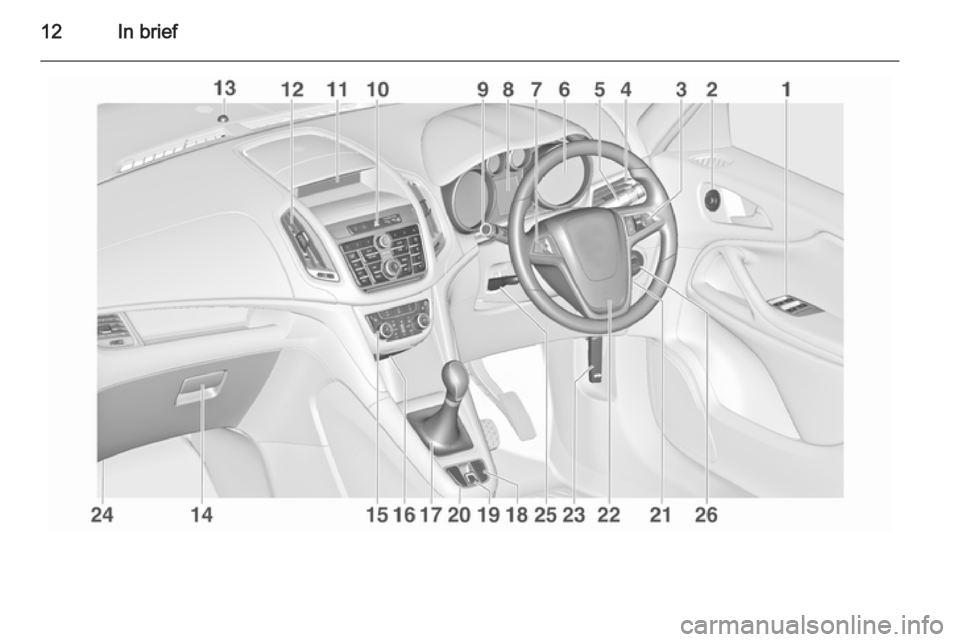

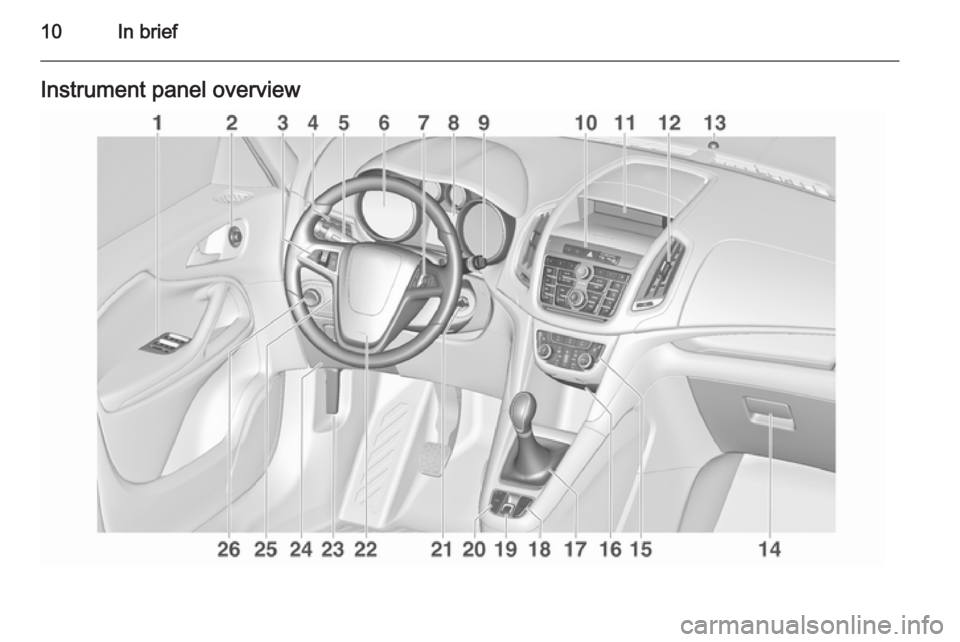

1Power windows .....................31
2 Exterior mirrors .....................29
3 Cruise control .....................177
Speed limiter ....................... 179
Adaptive cruise control .......180
Forward collision alert .........187
4 Side air vents ...................... 154
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist ................143
Exit lighting ......................... 146
Parking lights ...................... 144
Buttons for Driver
Information Centre ..............118
6 Instruments ........................ 105
7 Steering wheel controls .......97
8 Driver Information Centre .... 118
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................9910Central locking system ..........22
Hazard warning flashers ....143
Sport mode ........................ 175
Tour mode .......................... 175
Fuel selector ....................... 106
Control indicator for airbag
deactivation ........................ 112
Control indicator for front
passenger seat belt ...........111
11 Info-Display ........................ 122
12 Centre air vents .................. 154
13 Anti-theft alarm system
status LED ........................... 26
14 Glovebox .............................. 66
15 Climate control system ........ 148
16 AUX input, USB input, SD
card slot ................................ 10
Power outlet ........................ 103
17 Selector lever, manual
transmission ....................... 170
Automatic transmission ......16718Traction Control system .....174
Electronic Stability Control . 175
Lane departure warning .....206
19 Electric parking brake .........172
20 Parking assist systems .......193
Eco button for stop-start
system ................................. 160
21 Ignition switch with
steering wheel lock ............158
22 Horn ..................................... 98
Driver airbag ........................ 58
23 Bonnet release lever ..........223
24 Fuse box ............................ 242
Storage compartment ...........68
25 Steering wheel adjustment ..97
26 Light switch ........................ 136
Headlight range
adjustment ......................... 138
Front fog lights ...................143
Rear fog light ...................... 144
Instrument illumination .......145

12In brief

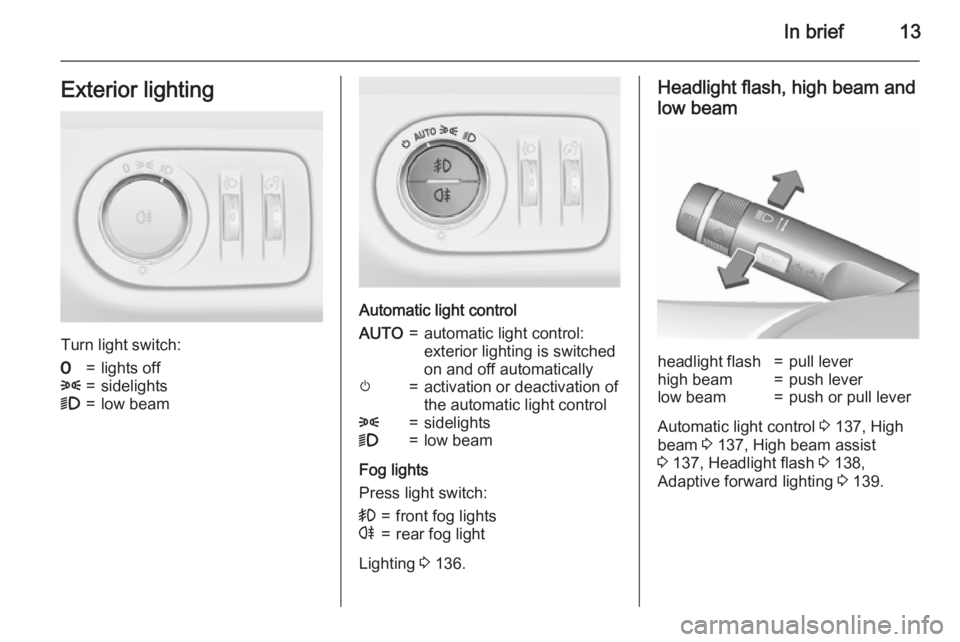

In brief13Exterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=low beam
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 136.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 137, High
beam 3 137, High beam assist
3 137, Headlight flash 3 138,
Adaptive forward lighting 3 139.

14In brief

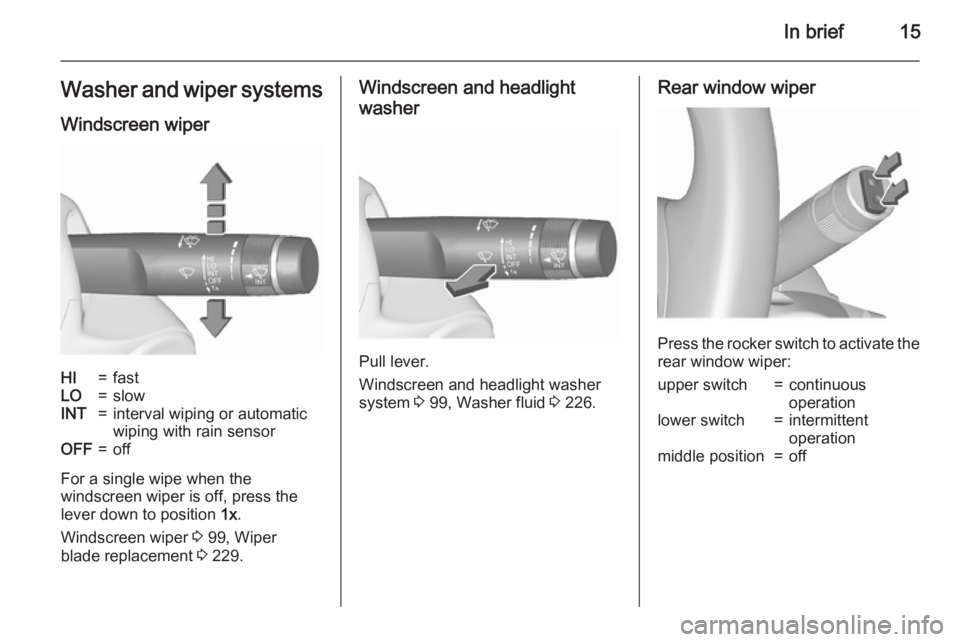

Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 143, Parking lights 3 144.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 143.
Horn
Press j.

In brief15Washer and wiper systemsWindscreen wiperHI=fastLO=slowINT=interval wiping or automatic
wiping with rain sensorOFF=off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 99, Wiper
blade replacement 3 229.
Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 99, Washer fluid 3 226.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch=continuous
operationlower switch=intermittent
operationmiddle position=off

16In brief
Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 101.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 33.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 148.

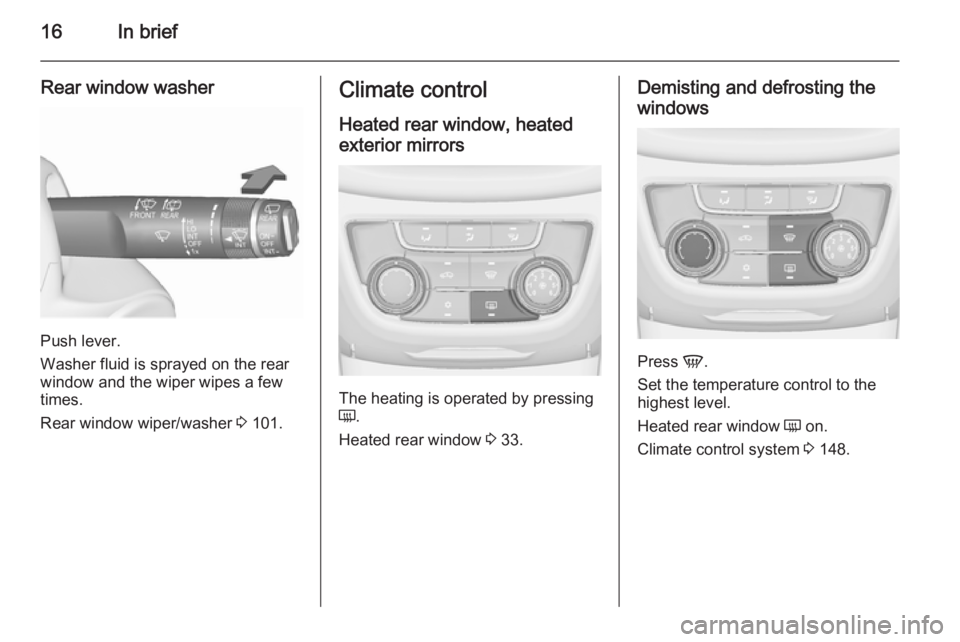

In brief17TransmissionManual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 170.
Automatic transmissionP=parkR=reverseN=neutralD=drive
Manual mode: move selector lever
from D to the left.
<=higher gear]=lower gear
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 167.
Starting off
Check before starting off â–  Tyre pressure and condition 3 246,
3 286.
â–  Engine oil level and fluid levels 3 223.
â–  All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
â–  Proper position of mirrors, seats, and seat belts 3 29, 3 38,
3 51.
â–  Brake function at low speed, particularly if the brakes are wet.

18In brief

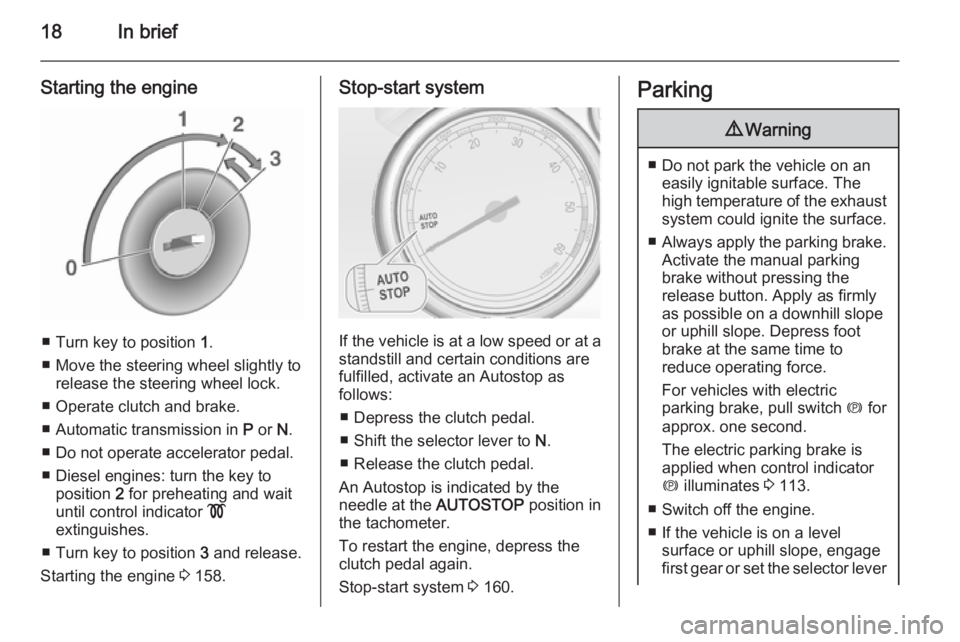

Starting the engine
â–  Turn key to position 1.
â–  Move the steering wheel slightly to release the steering wheel lock.
â–  Operate clutch and brake.
â–  Automatic transmission in P or N.
â–  Do not operate accelerator pedal.
â–  Diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes.
â–  Turn key to position 3 and release.
Starting the engine 3 158.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
â–  Depress the clutch pedal.
â–  Shift the selector lever to N.
â–  Release the clutch pedal.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 160.
Parking9 Warning
â–  Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust system could ignite the surface.
â–  Always apply the parking brake.
Activate the manual parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress foot
brake at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 113.
â–  Switch off the engine. â–  If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector lever
