Seats, restraints399Warning
Never store any subjects under
the seats.

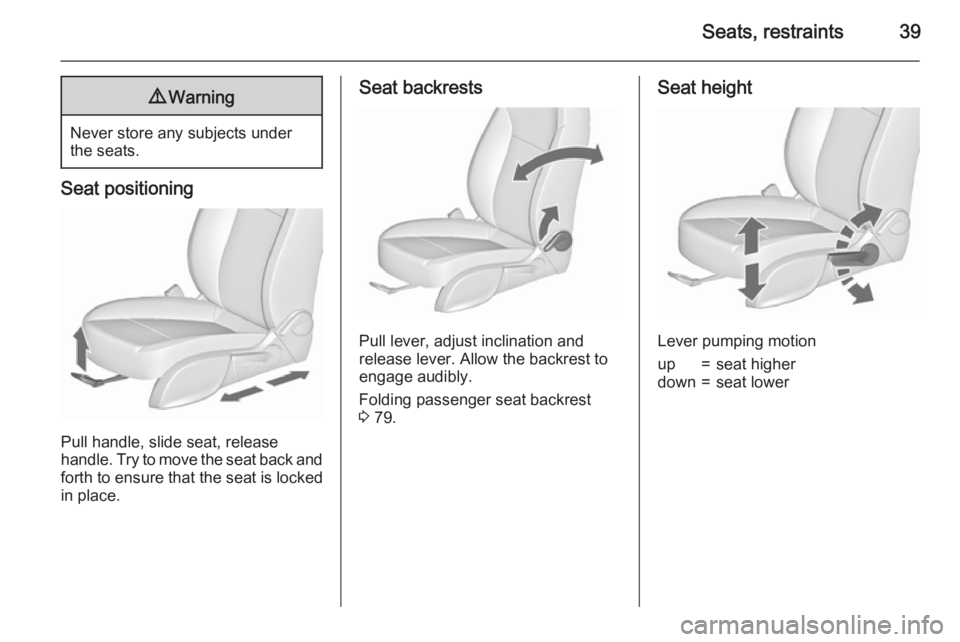

Seat positioning
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.
Folding passenger seat backrest
3 79.
Seat height
Lever pumping motion
up=seat higherdown=seat lower

40Seats, restraints

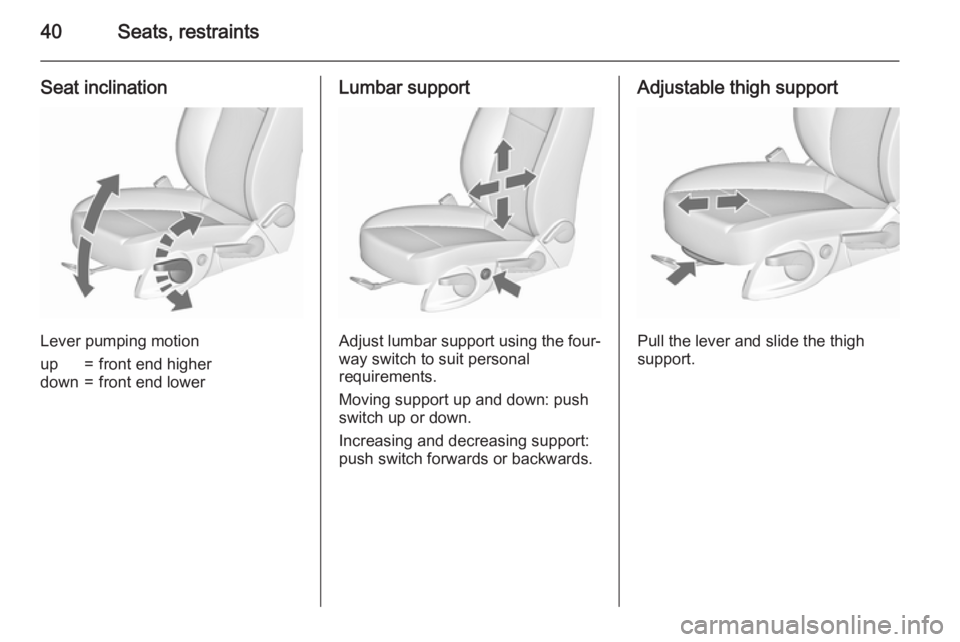

Seat inclination
Lever pumping motion
up=front end higherdown=front end lowerLumbar support
Adjust lumbar support using the four-way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.
Adjustable thigh support
Pull the lever and slide the thigh
support.

Seats, restraints41Power seat adjustment9Warning
Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Objects could become
trapped.
Keep a close watch on the seats
when adjusting them. Vehicle
passengers should be informed
accordingly.

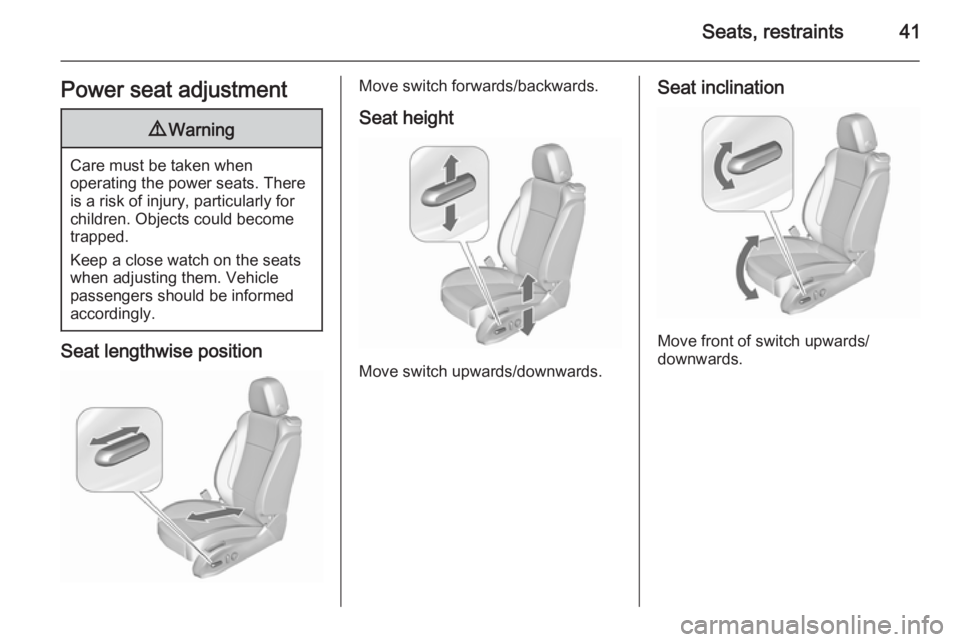

Seat lengthwise position
Move switch forwards/backwards.
Seat height
Move switch upwards/downwards.
Seat inclination
Move front of switch upwards/
downwards.

42Seats, restraints

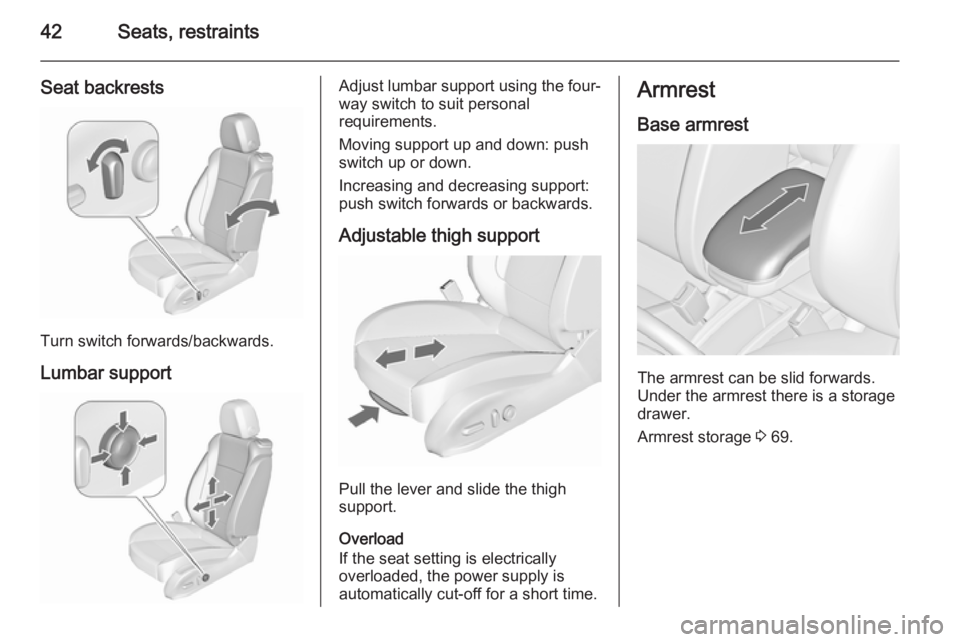

Seat backrests
Turn switch forwards/backwards.Lumbar support
Adjust lumbar support using the four- way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.
Adjustable thigh support
Pull the lever and slide the thigh
support.
Overload
If the seat setting is electrically
overloaded, the power supply is
automatically cut-off for a short time.
Armrest
Base armrest
The armrest can be slid forwards.
Under the armrest there is a storage
drawer.
Armrest storage 3 69.

Seats, restraints43

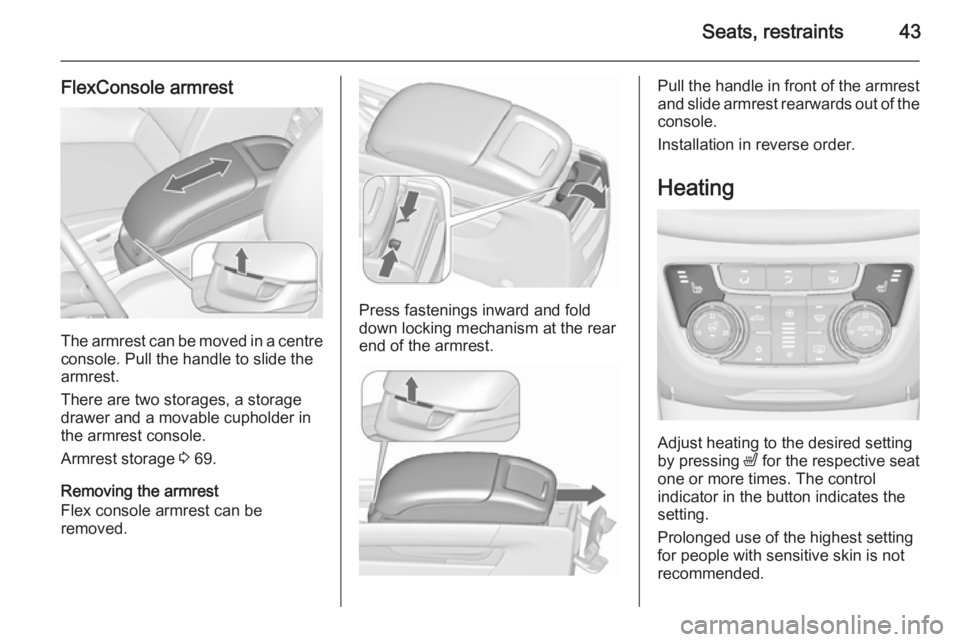

FlexConsole armrest
The armrest can be moved in a centre
console. Pull the handle to slide the
armrest.
There are two storages, a storage
drawer and a movable cupholder in
the armrest console.
Armrest storage 3 69.
Removing the armrest
Flex console armrest can be
removed.
Press fastenings inward and fold down locking mechanism at the rear
end of the armrest.
Pull the handle in front of the armrest
and slide armrest rearwards out of the
console.
Installation in reverse order.
Heating
Adjust heating to the desired setting
by pressing ß for the respective seat
one or more times. The control
indicator in the button indicates the
setting.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.

44Seats, restraints
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system 3 160.Rear seats
Second row seats9 Warning
When seats or backrests of
second and third seat row are
being adjusted or folded, keep
hands and feet away from the
moving area.
Never store objects under the
seats.
Never adjust seats while driving as they could move uncontrollably.
Drive only with engaged seats and
backrests.

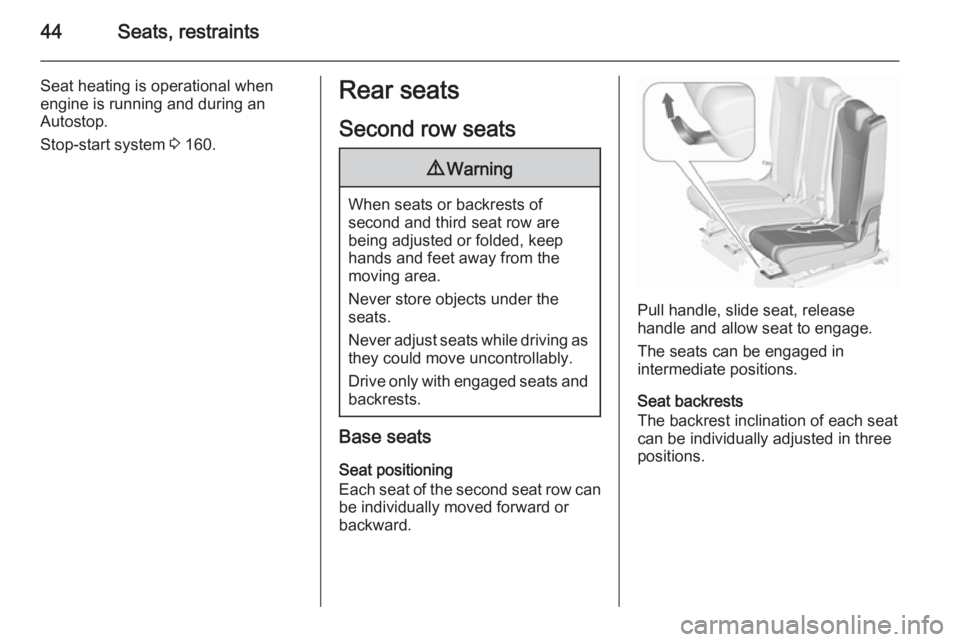

Base seats
Seat positioning
Each seat of the second seat row can be individually moved forward or
backward.
Pull handle, slide seat, release
handle and allow seat to engage.
The seats can be engaged in
intermediate positions.
Seat backrests
The backrest inclination of each seat can be individually adjusted in three
positions.

Seats, restraints45

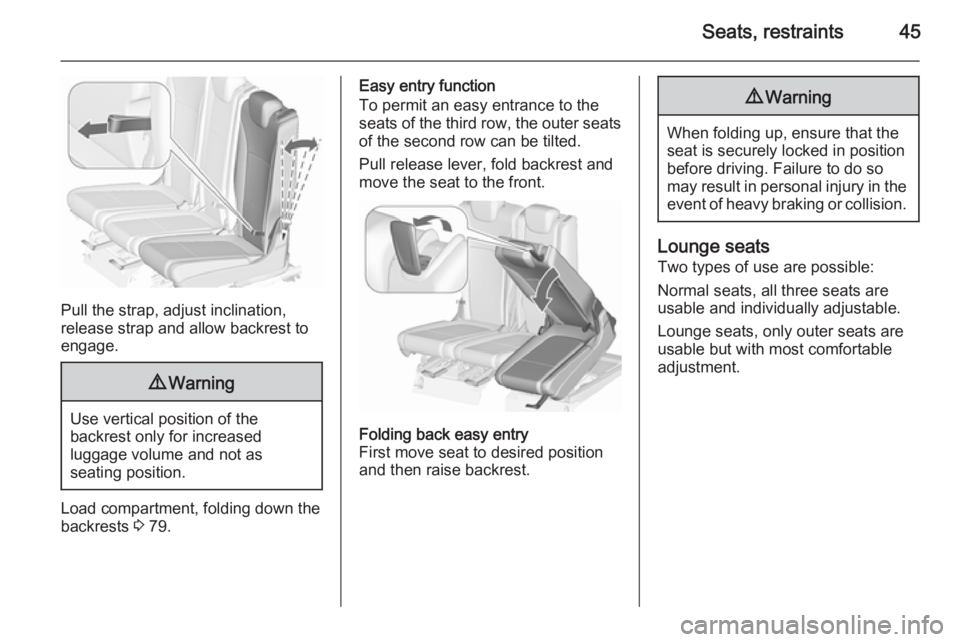

Pull the strap, adjust inclination,
release strap and allow backrest to
engage.
9 Warning
Use vertical position of the
backrest only for increased
luggage volume and not as
seating position.
Load compartment, folding down the
backrests 3 79.
Easy entry function
To permit an easy entrance to the
seats of the third row, the outer seats
of the second row can be tilted.
Pull release lever, fold backrest and
move the seat to the front.Folding back easy entry
First move seat to desired position
and then raise backrest.9 Warning
When folding up, ensure that the
seat is securely locked in position
before driving. Failure to do so
may result in personal injury in the event of heavy braking or collision.
Lounge seats
Two types of use are possible:
Normal seats, all three seats are
usable and individually adjustable.
Lounge seats, only outer seats are
usable but with most comfortable
adjustment.

46Seats, restraints

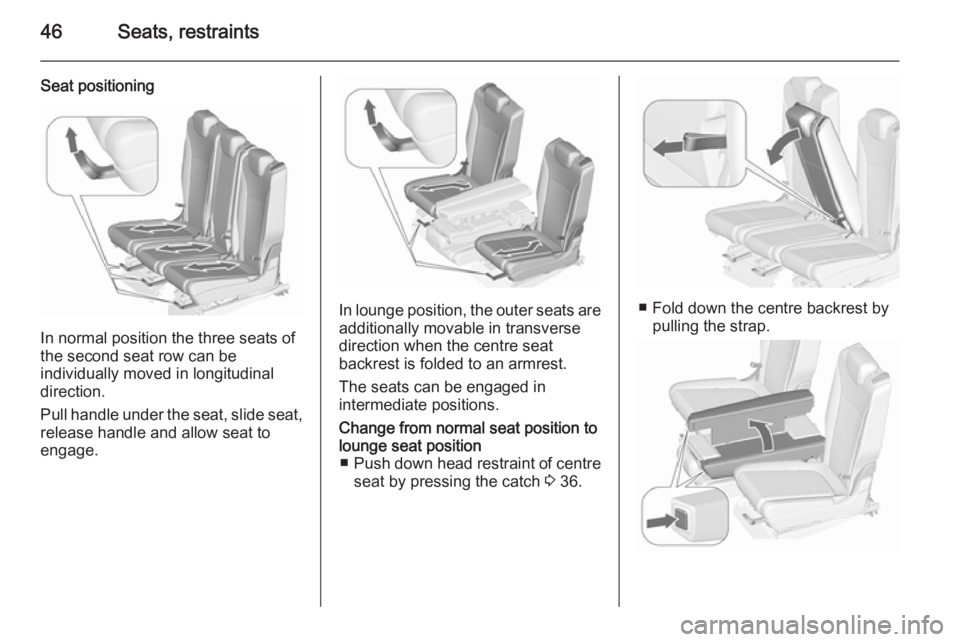

Seat positioning
In normal position the three seats of
the second seat row can be
individually moved in longitudinal
direction.
Pull handle under the seat, slide seat, release handle and allow seat to
engage.
In lounge position, the outer seats are
additionally movable in transverse
direction when the centre seat
backrest is folded to an armrest.
The seats can be engaged in
intermediate positions.
Change from normal seat position to
lounge seat position ■ Push down head restraint of centre
seat by pressing the catch 3 36.
■ Fold down the centre backrest by
pulling the strap.

Seats, restraints47

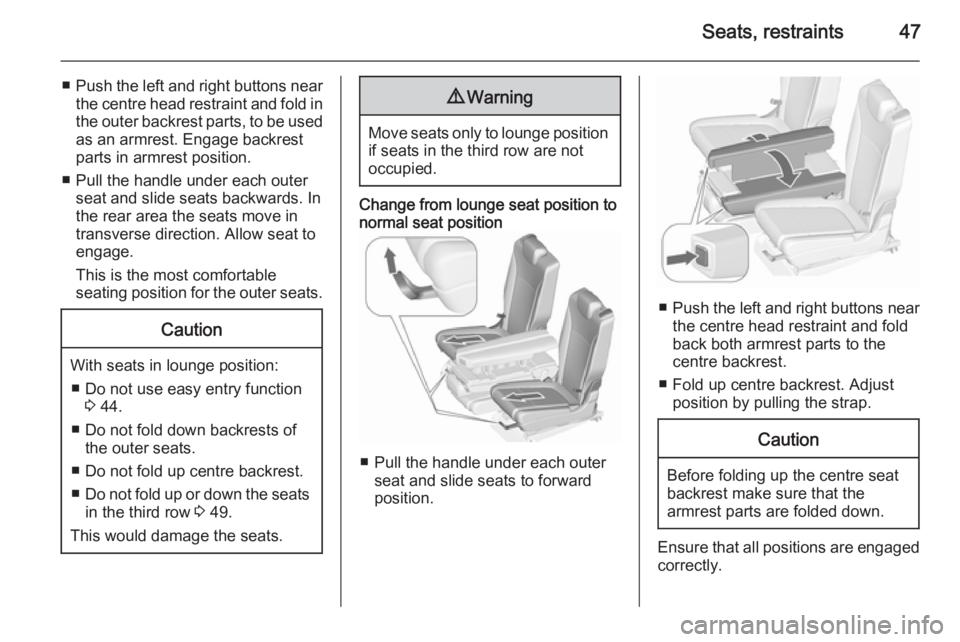

■Push the left and right buttons near
the centre head restraint and fold in
the outer backrest parts, to be used as an armrest. Engage backrestparts in armrest position.
■ Pull the handle under each outer seat and slide seats backwards. In
the rear area the seats move in
transverse direction. Allow seat to
engage.
This is the most comfortable
seating position for the outer seats.Caution
With seats in lounge position:
■ Do not use easy entry function 3 44.
■ Do not fold down backrests of the outer seats.
■ Do not fold up centre backrest.
■ Do not fold up or down the seats
in the third row 3 49.
This would damage the seats.
9 Warning
Move seats only to lounge position
if seats in the third row are not
occupied.
Change from lounge seat position to normal seat position
■ Pull the handle under each outer seat and slide seats to forward
position.
■ Push the left and right buttons near
the centre head restraint and fold
back both armrest parts to the
centre backrest.
■ Fold up centre backrest. Adjust position by pulling the strap.
Caution
Before folding up the centre seat
backrest make sure that the
armrest parts are folded down.
Ensure that all positions are engaged
correctly.

48Seats, restraints

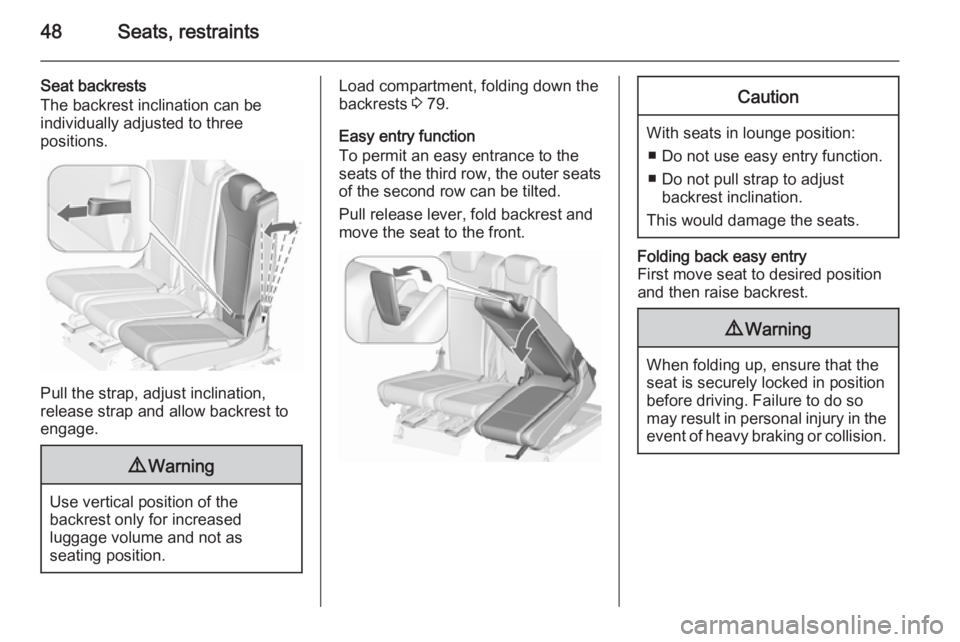

Seat backrests
The backrest inclination can be
individually adjusted to three
positions.
Pull the strap, adjust inclination,
release strap and allow backrest to
engage.
9 Warning
Use vertical position of the
backrest only for increased
luggage volume and not as
seating position.
Load compartment, folding down the
backrests 3 79.
Easy entry function
To permit an easy entrance to the
seats of the third row, the outer seats
of the second row can be tilted.
Pull release lever, fold backrest and
move the seat to the front.Caution
With seats in lounge position:
■ Do not use easy entry function.
■ Do not pull strap to adjust backrest inclination.
This would damage the seats.
Folding back easy entry
First move seat to desired position
and then raise backrest.9 Warning
When folding up, ensure that the
seat is securely locked in position
before driving. Failure to do so
may result in personal injury in the event of heavy braking or collision.
