OPEL ZAFIRA TOURER 2017 Owners Manual

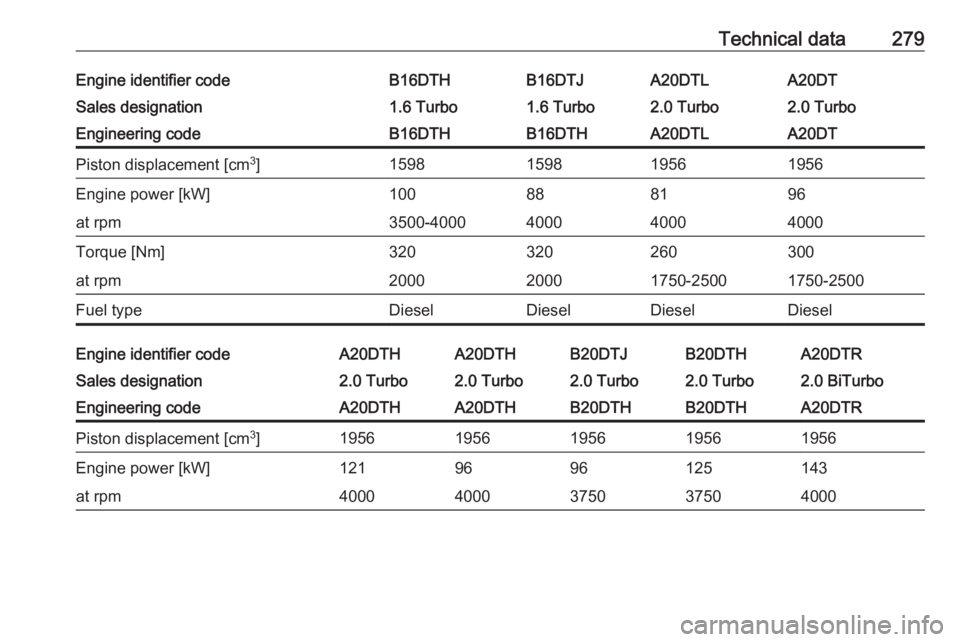

Technical data279Engine identifier codeB16DTHB16DTJA20DTLA20DTSales designation1.6 Turbo1.6 Turbo2.0 Turbo2.0 TurboEngineering codeB16DTHB16DTHA20DTLA20DTPiston displacement [cm3
]1598159819561956Engine power [kW]100888196at rpm3500-4000400040004000Torque [Nm]320320260300at rpm200020001750-25001750-2500Fuel typeDieselDieselDieselDieselEngine identifier codeA20DTHA20DTHB20DTJB20DTHA20DTRSales designation2.0 Turbo2.0 Turbo2.0 Turbo2.0 Turbo2.0 BiTurboEngineering codeA20DTHA20DTHB20DTHB20DTHA20DTRPiston displacement [cm 3
]19561956195619561956Engine power [kW]1219696125143at rpm40004000375037504000

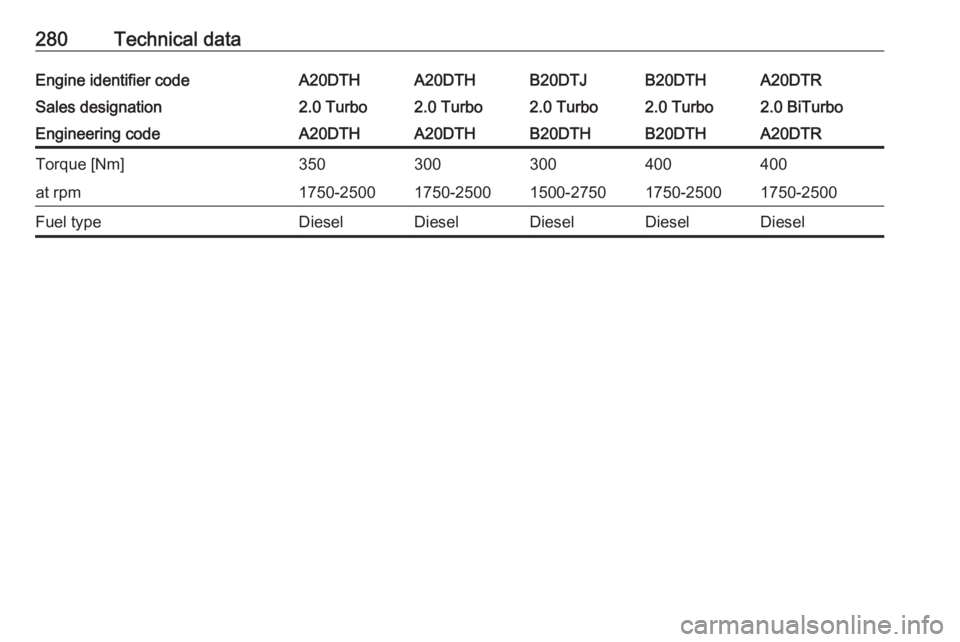

280Technical dataEngine identifier codeA20DTHA20DTHB20DTJB20DTHA20DTRSales designation2.0 Turbo2.0 Turbo2.0 Turbo2.0 Turbo2.0 BiTurboEngineering codeA20DTHA20DTHB20DTHB20DTHA20DTRTorque [Nm]350300300400400at rpm1750-25001750-25001500-27501750-25001750-2500Fuel typeDieselDieselDieselDieselDiesel

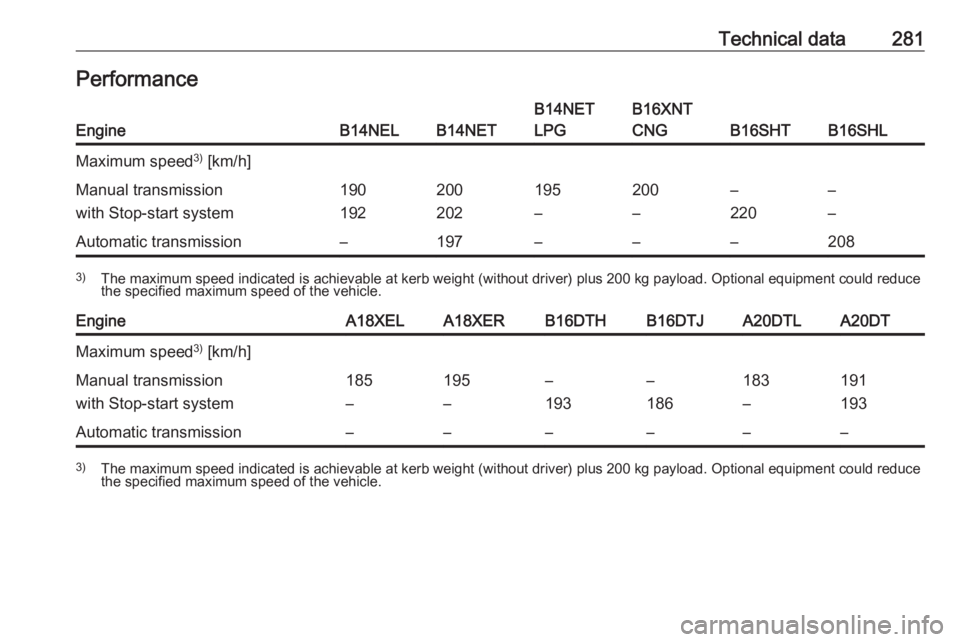

Technical data281PerformanceEngineB14NELB14NET
B14NET
LPGB16XNT
CNG
B16SHTB16SHL
Maximum speed 3)
[km/h]Manual transmission
with Stop-start system190
192200
202195
–200
––
220–
–Automatic transmission–197–––2083) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce
the specified maximum speed of the vehicle.EngineA18XELA18XERB16DTHB16DTJA20DTLA20DTMaximum speed 3)
[km/h]Manual transmission
with Stop-start system185
–195
––
193–
186183
–191
193Automatic transmission––––––3) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce
the specified maximum speed of the vehicle.

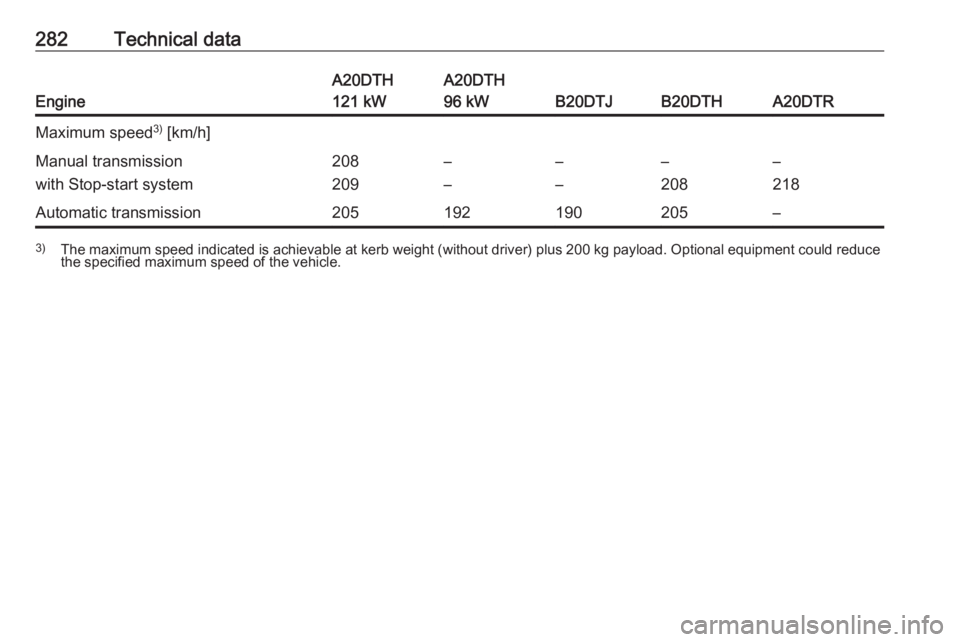

282Technical data
Engine
A20DTH
121 kWA20DTH
96 kW
B20DTJB20DTHA20DTR
Maximum speed 3)
[km/h]Manual transmission
with Stop-start system208
209–
––
––
208–
218Automatic transmission205192190205–3) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce
the specified maximum speed of the vehicle.

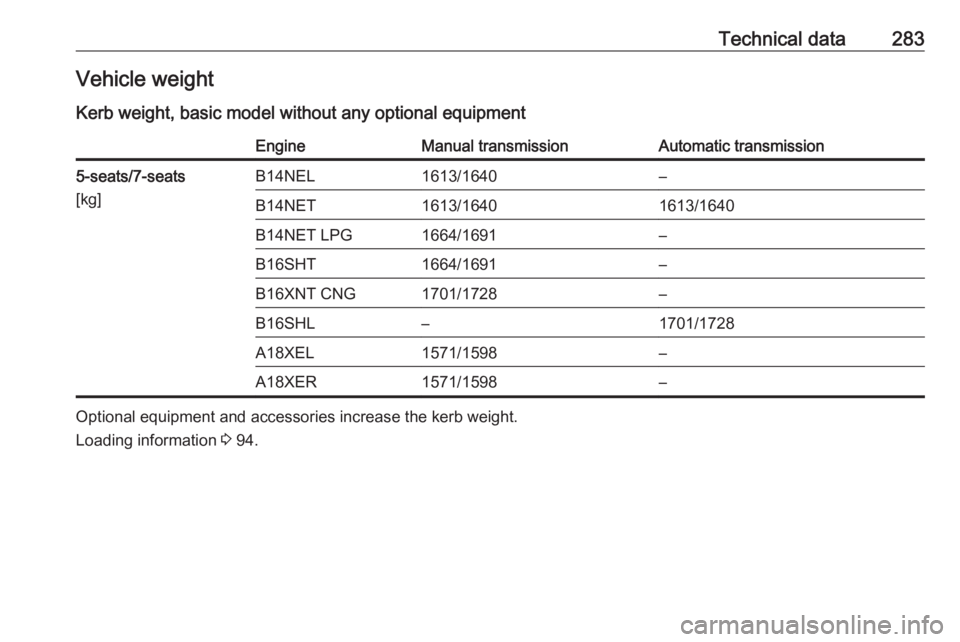

Technical data283Vehicle weightKerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B14NEL1613/1640–B14NET1613/16401613/1640B14NET LPG1664/1691–B16SHT1664/1691–B16XNT CNG1701/1728–B16SHL–1701/1728A18XEL1571/1598–A18XER1571/1598–
Optional equipment and accessories increase the kerb weight.
Loading information 3 94.

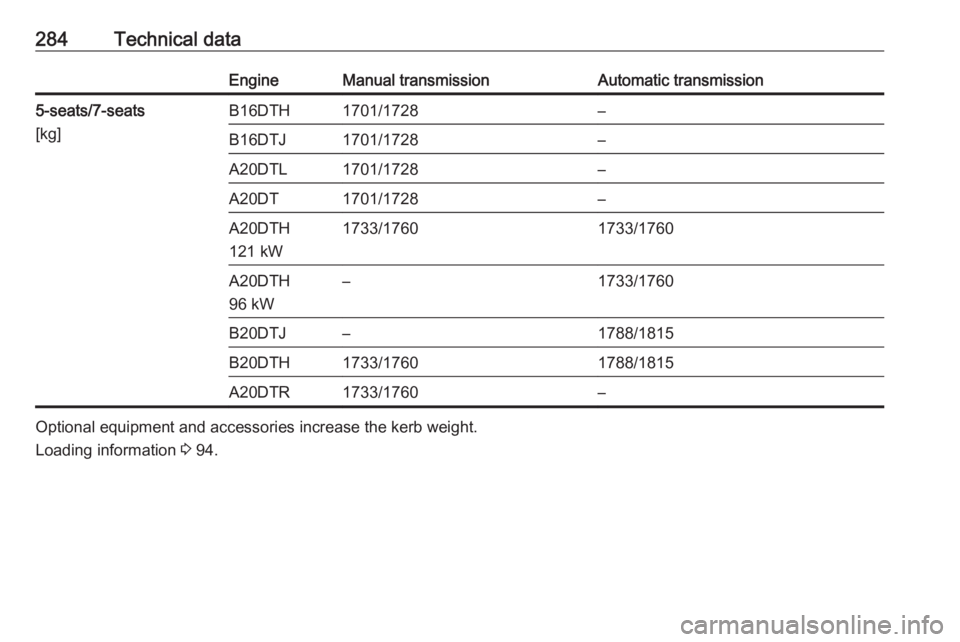

284Technical dataEngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B16DTH1701/1728–B16DTJ1701/1728–A20DTL1701/1728–A20DT1701/1728–A20DTH
121 kW1733/17601733/1760A20DTH
96 kW–1733/1760B20DTJ–1788/1815B20DTH1733/17601788/1815A20DTR1733/1760–
Optional equipment and accessories increase the kerb weight.
Loading information 3 94.

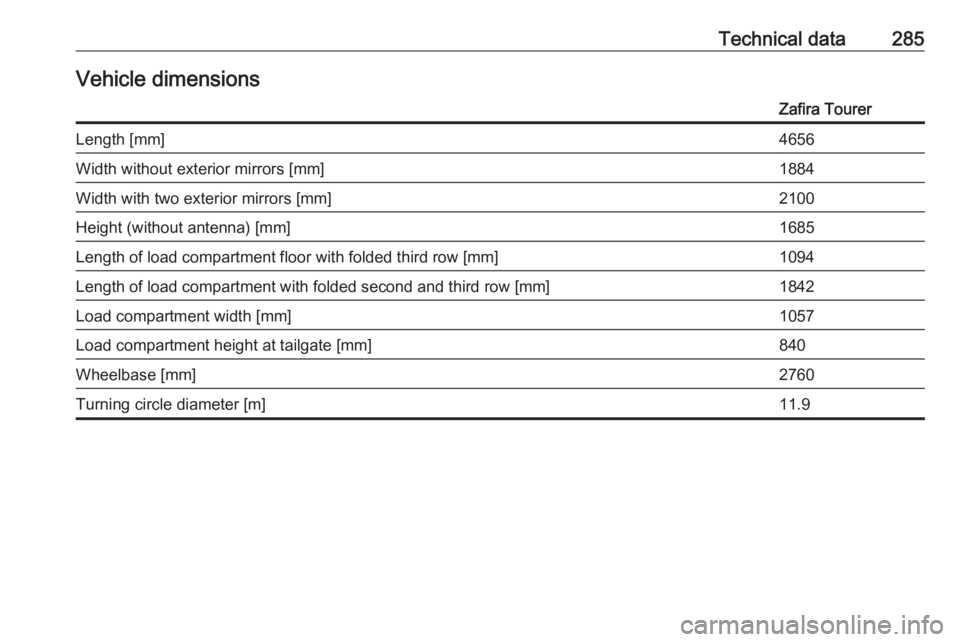

Technical data285Vehicle dimensionsZafira TourerLength [mm]4656Width without exterior mirrors [mm]1884Width with two exterior mirrors [mm]2100Height (without antenna) [mm]1685Length of load compartment floor with folded third row [mm]1094Length of load compartment with folded second and third row [mm]1842Load compartment width [mm]1057Load compartment height at tailgate [mm]840Wheelbase [mm]2760Turning circle diameter [m]11.9

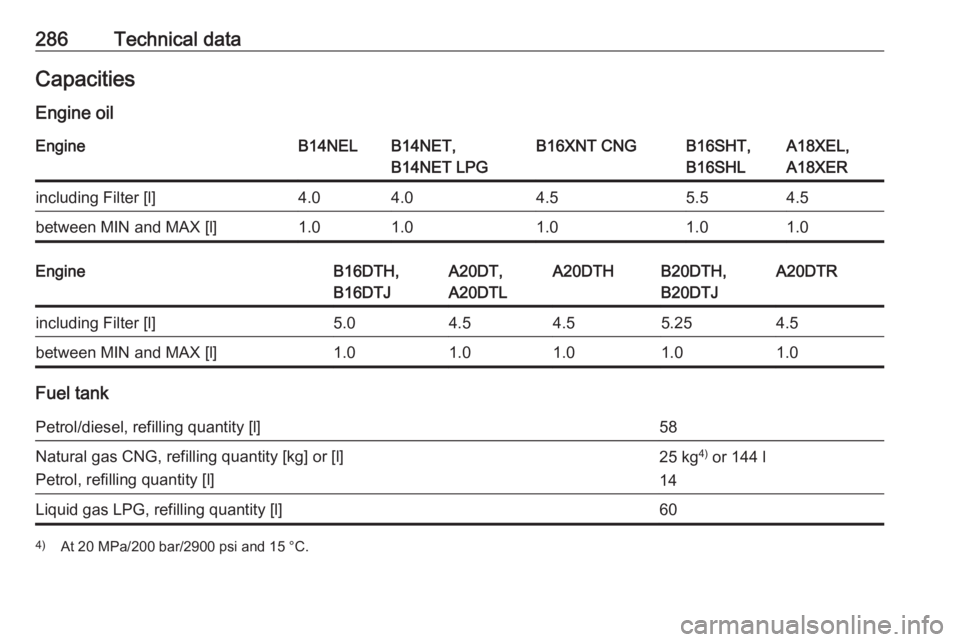

286Technical dataCapacities
Engine oilEngineB14NELB14NET,
B14NET LPGB16XNT CNGB16SHT,
B16SHLA18XEL,
A18XERincluding Filter [l]4.04.04.55.54.5between MIN and MAX [l]1.01.01.01.01.0EngineB16DTH,
B16DTJA20DT,
A20DTLA20DTHB20DTH,
B20DTJA20DTRincluding Filter [l]5.04.54.55.254.5between MIN and MAX [l]1.01.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity [l]25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15 °C.

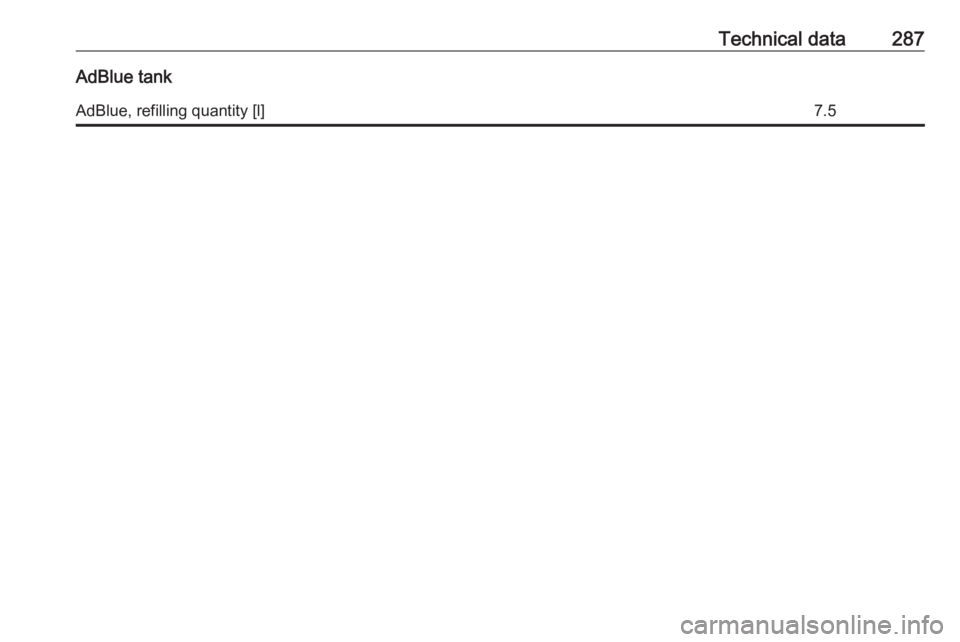

Technical data287AdBlue tankAdBlue, refilling quantity [l]7.5

288Technical dataTyre pressuresComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)235/45 R18,235/40 R19B16XNT CNG225/50 R17220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)
