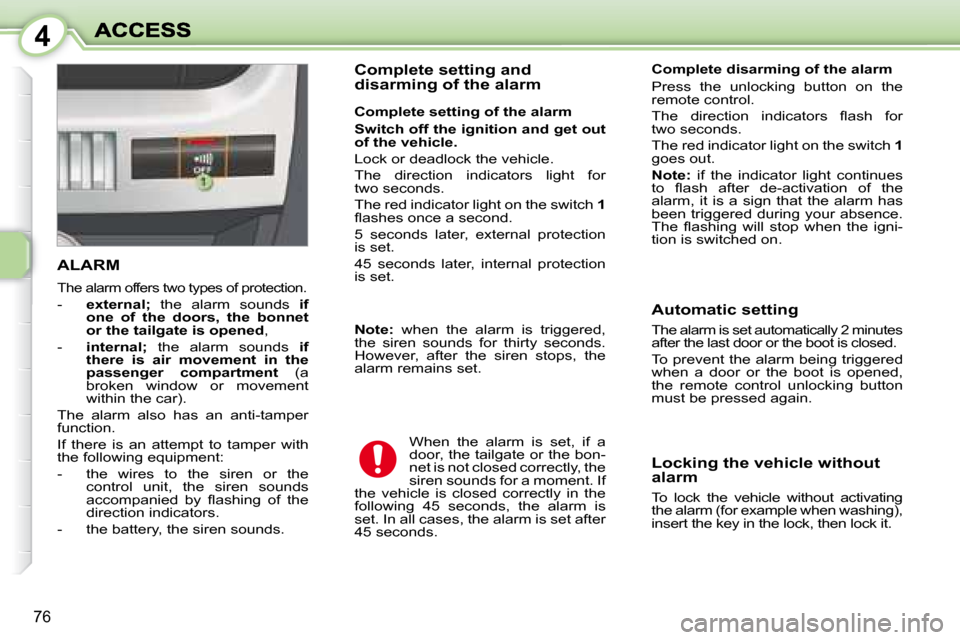

ALARM
The alarm offers two types of protection.
- external; the alarm sounds if
one of the doors, the bonnet
or the tailgate is opened ,
- internal; the alarm sounds if
there is air movement in the
passenger compartment (a
broken window or movement
within the car).
The alarm also has an anti-tamper
function.
If there is an attempt to tamper with
the following equipment:
- the wires to the siren or the control unit, the siren sounds
accompanied by fl ashing of the
direction indicators.
- the battery, the siren sounds. Complete setting and
disarming of the alarm
Complete disarming of the alarm
Press the unlocking button on the
remote control.
The direction indicators fl ash for
two seconds.
The red indicator light on the switch
1
goes out.

Note: if the indicator light continues
to fl ash after de-activation of the
alarm, it is a sign that the alarm has
been triggered during your absence.
The fl ashing will stop when the igni-
tion is switched on.
When the alarm is set, if a
door, the tailgate or the bon-
net is not closed correctly, the
siren sounds for a moment. If
the vehicle is closed correctly in the
following 45 seconds, the alarm is
set. In all cases, the alarm is set after
45 seconds. Automatic setting
The alarm is set automatically 2 minutes
after the last door or the boot is closed.
To prevent the alarm being triggered
when a door or the boot is opened,
the remote control unlocking button
must be pressed again.
Locking the vehicle without
alarm
To lock the vehicle without activating
the alarm (for example when washing),
insert the key in the lock, then lock it.
Complete setting of the alarm

Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle.
The direction indicators light for
two seconds.
The red indicator light on the switch 1
fl ashes once a second.
5 seconds later, external protection
is set.
45 seconds later, internal protection
is set.

Note: when the alarm is triggered,
the siren sounds for thirty seconds.
However, after the siren stops, the
alarm remains set.

4
77

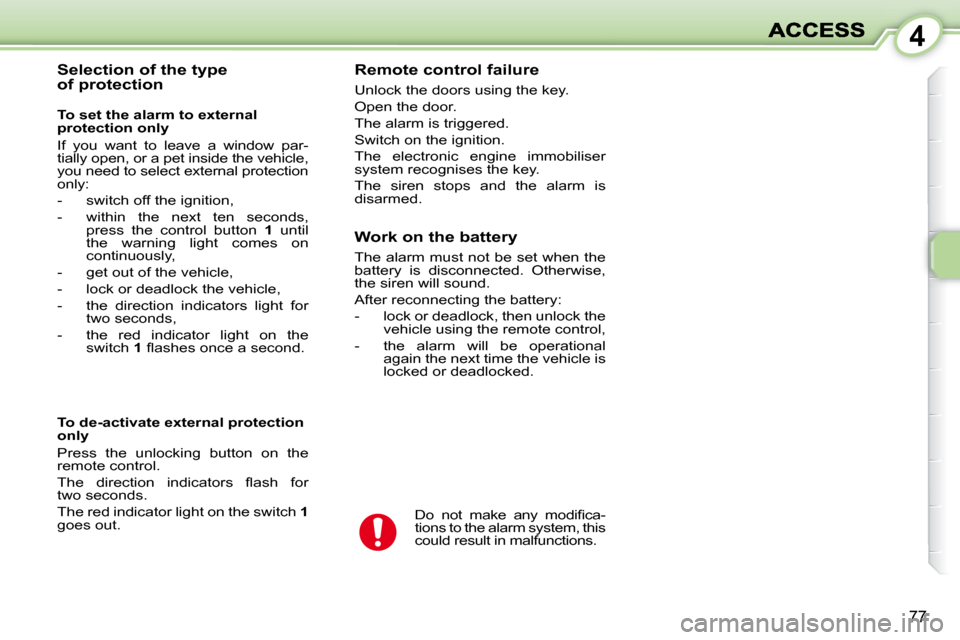

Selection of the type
of protection Remote control failure
Unlock the doors using the key.
Open the door.
The alarm is triggered.
Switch on the ignition.
The electronic engine immobiliser
system recognises the key.
The siren stops and the alarm is
disarmed.
Do not make any modifi ca-
tions to the alarm system, this
could result in malfunctions.
To de-activate external protection
only
Press the unlocking button on the
remote control.
The direction indicators fl ash for
two seconds.
The red indicator light on the switch
1
goes out. Work on the battery
The alarm must not be set when the
battery is disconnected. Otherwise,
the siren will sound.
After reconnecting the battery:
- lock or deadlock, then unlock the
vehicle using the remote control,
- the alarm will be operational again the next time the vehicle is
locked or deadlocked.
To set the alarm to external
protection only
If you want to leave a window par-
tially open, or a pet inside the vehicle,
you need to select external protection
only:
- switch off the ignition,
- within the next ten seconds,
press the control button 1 until
the warning light comes on
continuously,
- get out of the vehicle,
- lock or deadlock the vehicle,
- the direction indicators light for two seconds,
- the red indicator light on the switch 1 fl ashes once a second.

9
124

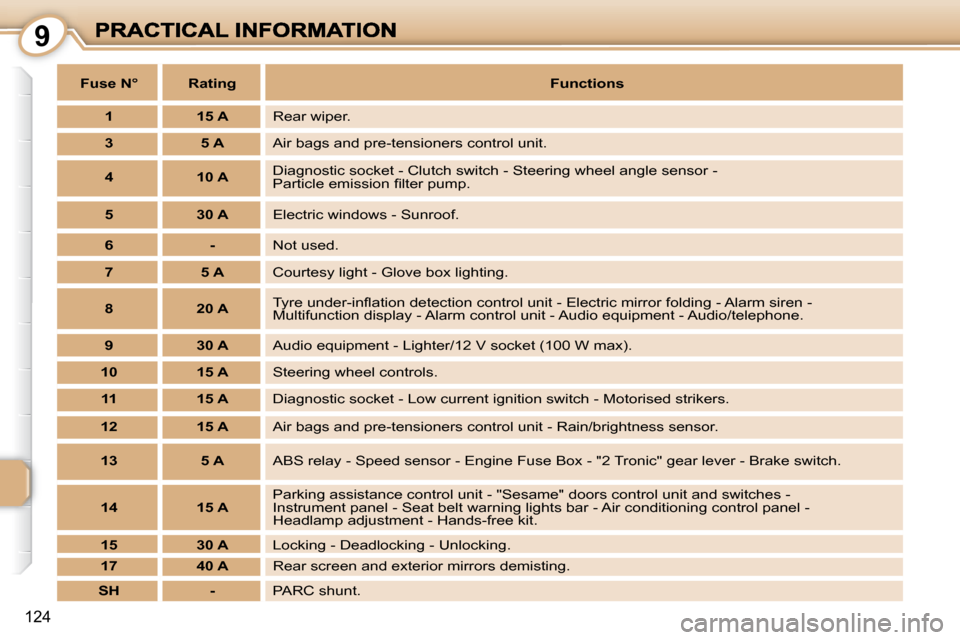

Fuse N°RatingFunctions
115 ARear wiper.
35 AAir bags and pre-tensioners control unit.
410 ADiagnostic socket - Clutch switch - Steering wheel angle sensor - Particle emission fi lter pump.
530 AElectric windows - Sunroof.
6-Not used.
75 ACourtesy light - Glove box lighting.
820 ATyre under-infl ation detection control unit - Electric mirror folding - Alarm siren - Multifunction display - Alarm control unit - Audio equipment - Aud io/telephone.
930 AAudio equipment - Lighter/12 V socket (100 W max).
1015 ASteering wheel controls.
1115 ADiagnostic socket - Low current ignition switch - Motorised strikers.
1215 AAir bags and pre-tensioners control unit - Rain/brightness sensor.
135 AABS relay - Speed sensor - Engine Fuse Box - "2 Tronic" gear lever - Brake swit ch.
1415 AParking assistance control unit - "Sesame" doors control unit and switches - Instrument panel - Seat belt warning lights bar - Air conditioning control panel - Headlamp adjustment - Hands-free kit.
1530 ALocking - Deadlocking - Unlocking.
1740 ARear screen and exterior mirrors demisting.
SH-PARC shunt.

9
131
ACCESSORIES FOR YOUR 1007
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the Network.
They all benefi t from PEUGEOT's
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle. The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's electronic
system.
Please note this specifi c warning.
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning trian-
gle and spare bulbs available in the
vehicle.

"Protection": anti-theft
alarm , engraved windows,
wheel anti-theft devices,
system which assists with
the identifi cation of a stolen
vehicle, fi rst aid kit, warn-
ing triangle, high visibility
safety jacket, fog lamps kit,
snow chains, non-skid cov-
ers, audible rear parking
assistance.

"Touring": central arm-
rest, storage under the rear
shelf, mats * , boot tray, sun
blinds.
For leisure pursuits: roof
bars, transportation ac-
cessories (bicycle carrier,
ski carrier), roof box, child
seats and booster cushions, audio/
telephone console, cool box.

"In-Car Technology": hands-
free kits, satellite navigation
systems, CD changer, DVD
player, multimedia, audio
equipment, speakers, auxil-
iary audio socket permitting
the connection of a portable
MP3 player (compatible with
WIP Sound), USB socket.

"Styling": seat covers, al-
loy wheels, wheel trims,
spoiler, styling strips, door
spoilers, sill protectors,
aluminium footrest, rear si-
lencer, exhaust tail pipe.

"Universal": windscreen
wash fl uid, interior and ex-
terior cleaning and mainte-
nance products.
You can obtain "Van" conver-
sion kits for conversion from
a private vehicle to a van.
You can obtain other
"Cameleo" customising kits
from PEUGEOT dealers.
You will be offered either a
complete kit, like the original kit, or a
partial kit consisting of the vent trims
only.
Should you need to change one or
more elements of the Cameleo kit of
your vehicle, due to damage..., you
will be offered replacement elements
from the exchange kits available at
that time.
This product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
* To prevent jamming under the
pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of an- other.
Trailer towbar which must be fi tted by
the PEUGEOT network.
