Page 69 of 194
4
72

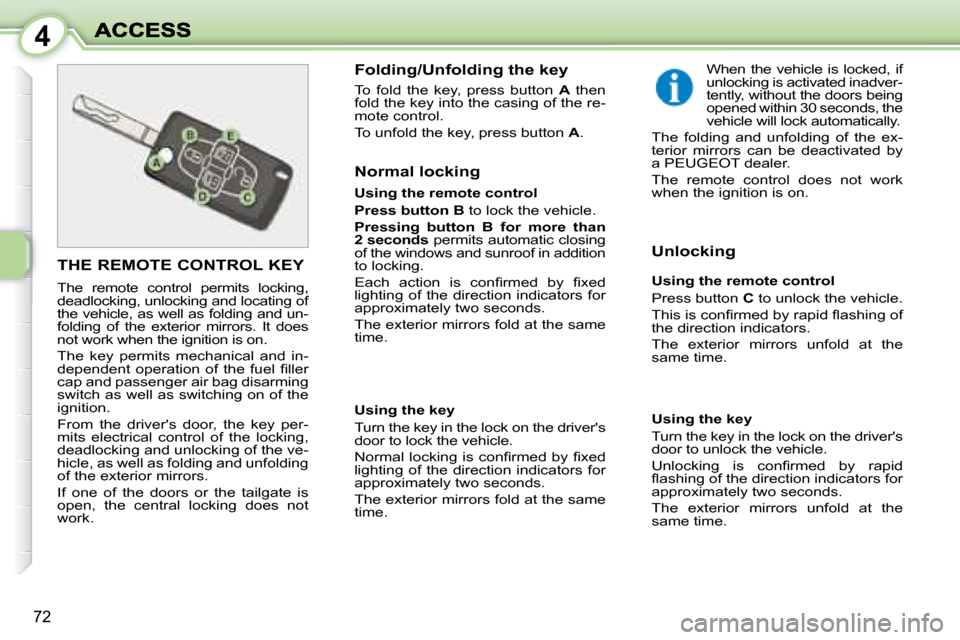

THE REMOTE CONTROL KEY
The remote control permits locking,
deadlocking, unlocking and locating of
the vehicle, as well as folding and un-
folding of the exterior mirrors. It does
not work when the ignition is on.
The key permits mechanical and in-
d e p e n d e n t o p e r a t i o n o f t h e f u e l fi l l e r
cap and passenger air bag disarming
switch as well as switching on of the
ignition.
From the driver's door, the key per-
mits electrical control of the locking,
deadlocking and unlocking of the ve-
hicle, as well as folding and unfolding
of the exterior mirrors.
If one of the doors or the tailgate is
open, the central locking does not
work. Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
N o r m a l l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time.
Using the key
Turn the key in the lock on the driver's
door to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
The exterior mirrors unfold at the
same time.
Folding/Unfolding the key
To fold the key, press button
A then
fold the key into the casing of the re-
mote control.
To unfold the key, press button A .
Unlocking
Normal locking When the vehicle is locked, if
unlocking is activated inadver-
tently, without the doors being
opened within 30 seconds, the
vehicle will lock automatically.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
The remote control does not work
when the ignition is on.
Using the remote control
Press button B to lock the vehicle.
Pressing button B for more than
2 seconds permits automatic closing
of the windows and sunroof in addition
to locking.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time. Using the remote control
Press button
C to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators.
The exterior mirrors unfold at the
same time.
Page 70 of 194
4
73

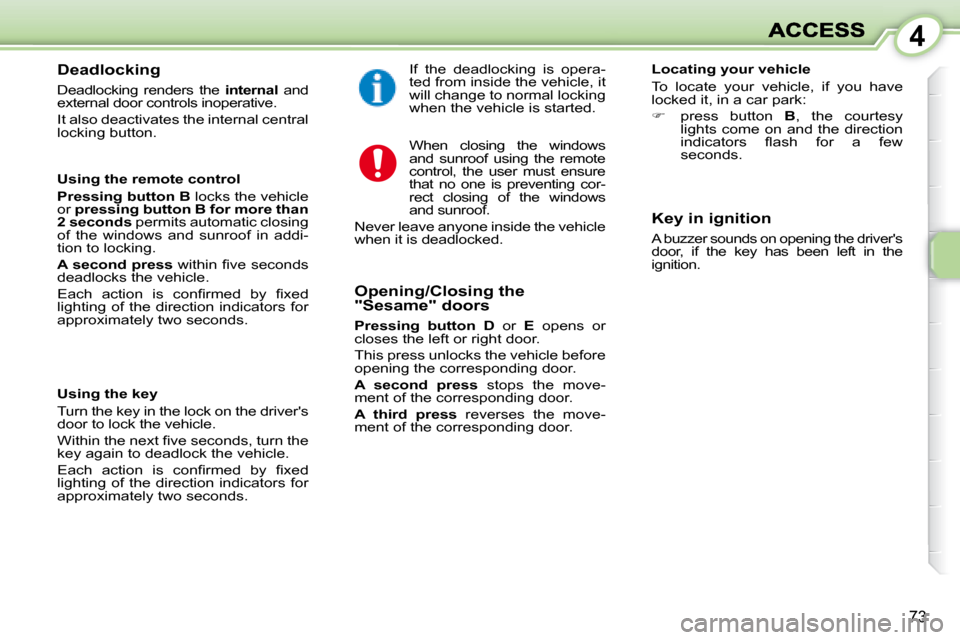

Deadlocking
Deadlocking renders the internal and
external door controls inoperative.
It also deactivates the internal central
locking button.
Using the remote control
Pressing button B locks the vehicle
or pressing button B for more than
2 seconds permits automatic closing
of the windows and sunroof in addi-
tion to locking.
A second press w i t h i n fi v e s e c o n d s
deadlocks the vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds. Opening/Closing the
"Sesame" doors
Pressing button D or E opens or
closes the left or right door.
This press unlocks the vehicle before
opening the corresponding door.
A second press stops the move-
ment of the corresponding door.
A third press reverses the move-
ment of the corresponding door.
Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
W i t h i n t h e n e x t fi v e s e c o n d s , t u r n t h e
key again to deadlock the vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds. Key in ignition
A buzzer sounds on opening the driver's
door, if the key has been left in the
ignition.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button B , the courtesy
lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w
seconds.
If the deadlocking is opera-
ted from inside the vehicle, it
will change to normal locking
when the vehicle is started.
When closing the windows
and sunroof using the remote
control, the user must ensure
that no one is preventing cor-
rect closing of the windows
and sunroof.
Never leave anyone inside the vehicle
when it is deadlocked.
Page 84 of 194
4
84

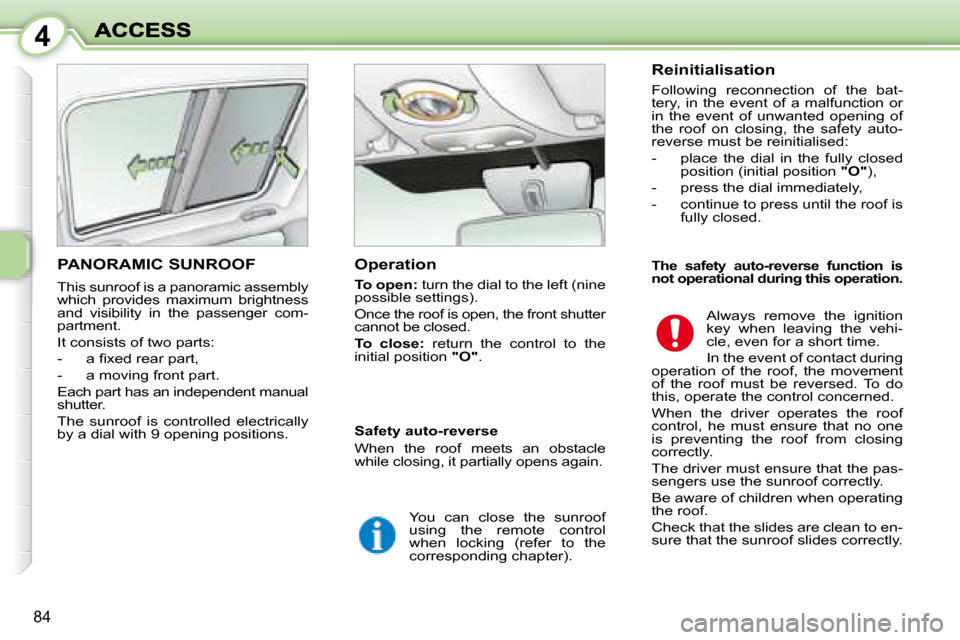

PANORAMIC SUNROOF
This sunroof is a panoramic assembly
which provides maximum brightness
and visibility in the passenger com-
partment.
It consists of two parts:
- a fi x e d r e a r p a r t ,
- a moving front part.
Each part has an independent manual
shutter.
The sunroof is controlled electrically
by a dial with 9 opening positions. Operation
To open: turn the dial to the left (nine
possible settings).
Once the roof is open, the front shutter
cannot be closed.
To close: return the control to the
initial position "O" . Reinitialisation
Following reconnection of the bat-
tery, in the event of a malfunction or
in the event of unwanted opening of
the roof on closing, the safety auto-
reverse must be reinitialised:
- place the dial in the fully closed
position (initial position "O" ),
- press the dial immediately,
- continue to press until the roof is fully closed.
Always remove the ignition
key when leaving the vehi-
cle, even for a short time.
In the event of contact during
operation of the roof, the movement
of the roof must be reversed. To do
this, operate the control concerned.
When the driver operates the roof
control, he must ensure that no one
is preventing the roof from closing
correctly.
The driver must ensure that the pas-
sengers use the sunroof correctly.
Be aware of children when operating
the roof.
Check that the slides are clean to en-
sure that the sunroof slides correctly.
Safety auto-reverse
When the roof meets an obstacle
while closing, it partially opens again.
You can close the sunroof
using the remote control
when locking (refer to the
corresponding chapter).
The safety auto-reverse function is
not operational during this operation.
Page 105 of 194
6
1 0 1
If this warning light comes on, accompanied by a mes-sage on the multifunction display, it indicates a mal-function of at least one of these air bags.
C o n t a c t a P E U G E O T d e a l e r t o h a v e the system checked. The air bags may no longer be triggered in the e v e n t o f a s e r i o u s i m p a c t .
Air bags malfunction
Side air bags
O n l y p u t a p p r o v e d c o v e r s o n t h e
seats, these will not hamper the
i n fl a t i o n o f t h e s i d e a i r b a g s . C o n s u l t
a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e f r o n t
seat backs. This could cause injury
to the chest or arms when the side
a i r b a g i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Steering column air bag
Do not sit with your knees any
nearer to the steering wheel than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e
pillars or the roof. This could cause
injury to the head when the curtain
a i r b a g i n fl a t e s .
The triggering of an air bag or air bags
is accompanied by a slight emission
of harmless smoke and a noise due
t o t h e a c t i v a t i o n o f t h e p y r o t e c h n i c
cartridge incorporated in the sys-
tem. This smoke is not harmful but
s e n s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
some irritation.
The detonation noise may result in
a slight loss of hearing for a short
time.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
t i o n e d a r e o b s e r v e d , i n j u r y o r s l i g h t
burns to the head, chest or arms when
the air bag is triggered cannot be ruled
o u t . I n d e e d , t h e b a g i n fl a t e s a l m o s t
i n s t a n t l y ( a p p r o x i m a t e l y 3 0 m i l l i s e c -
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
t i m e d i s c h a r g i n g h o t g a s v i a t h e o p e n -
i n g s p r o v i d e d f o r t h i s p u r p o s e .
This equipment will only operate
once. If a second impact occurs
( during the same or a subsequent
a c c i d e n t ) , t h e a i r b a g w i l l n o t i n fl a t e .
Front air bags
D o n o t d r i v e h o l d i n g t h e s t e e r i n g
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible; deploy-
ment of the air bags can cause burns
or the risk of injury from a cigarette
or pipe.
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g
w h e e l o r h i t i t v i o l e n t l y .
For the front, steering column,
side and curtain air bags to be fully
effective, observe the following
safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
D o n o t l e a v e a n y t h i n g b e t w e e n t h e
occupants and the air bags (child,
animal, object...). This could hamper
the operation of the air bags or injure
the occupants.
All work on the air bag systems is
strictly prohibited unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f t h e
PEUGEOT network.
A f t e r a n a c c i d e n t o r i f t h e v e h i c l e h a s
b e e n s t o l e n o r b r o k e n i n t o , h a v e t h e
air bag systems checked.
Page 107 of 194
6
1 0 1
If this warning light comes on, accompanied by a mes-sage on the multifunction display, it indicates a mal-function of at least one of these air bags.
C o n t a c t a P E U G E O T d e a l e r t o h a v e the system checked. The air bags may no longer be triggered in the e v e n t o f a s e r i o u s i m p a c t .
Air bags malfunction
Side air bags
O n l y p u t a p p r o v e d c o v e r s o n t h e
seats, these will not hamper the
i n fl a t i o n o f t h e s i d e a i r b a g s . C o n s u l t
a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e f r o n t
seat backs. This could cause injury
to the chest or arms when the side
a i r b a g i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Steering column air bag
Do not sit with your knees any
nearer to the steering wheel than
necessary. Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e
pillars or the roof. This could cause
injury to the head when the curtain
a i r b a g i n fl a t e s .
The triggering of an air bag or air bags
is accompanied by a slight emission
of harmless smoke and a noise due
t o t h e a c t i v a t i o n o f t h e p y r o t e c h n i c
cartridge incorporated in the sys-
tem. This smoke is not harmful but
s e n s i t i v e i n d i v i d u a l s m a y e x p e r i e n c e
some irritation.
The detonation noise may result in
a slight loss of hearing for a short
time.
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
t i o n e d a r e o b s e r v e d , i n j u r y o r s l i g h t
burns to the head, chest or arms when
the air bag is triggered cannot be ruled
o u t . I n d e e d , t h e b a g i n fl a t e s a l m o s t
i n s t a n t l y ( a p p r o x i m a t e l y 3 0 m i l l i s e c -
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
t i m e d i s c h a r g i n g h o t g a s v i a t h e o p e n -
i n g s p r o v i d e d f o r t h i s p u r p o s e .
This equipment will only operate
once. If a second impact occurs
( during the same or a subsequent
a c c i d e n t ) , t h e a i r b a g w i l l n o t i n fl a t e .
Front air bags
D o n o t d r i v e h o l d i n g t h e s t e e r i n g
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the fascia.
Smoke as little as possible; deploy-
ment of the air bags can cause burns
or the risk of injury from a cigarette
or pipe.
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g
w h e e l o r h i t i t v i o l e n t l y .
For the front, steering column,
side and curtain air bags to be fully
effective, observe the following
safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
D o n o t l e a v e a n y t h i n g b e t w e e n t h e
occupants and the air bags (child,
animal, object...). This could hamper
the operation of the air bags or injure
the occupants.
All work on the air bag systems is
strictly prohibited unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f t h e
PEUGEOT network.
A f t e r a n a c c i d e n t o r i f t h e v e h i c l e h a s
b e e n s t o l e n o r b r o k e n i n t o , h a v e t h e
air bag systems checked.
Page 131 of 194
9
124
Fuse N°RatingFunctions
115 ARear wiper.
35 AAir bags and pre-tensioners control unit.
410 ADiagnostic socket - Clutch switch - Steering wheel angle sensor - P a r t i c l e e m i s s i o n fi l t e r p u m p .
530 AElectric windows - Sunroof.
6-Not used.
75 ACourtesy light - Glove box lighting.
820 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t - E l e c t r i c m i r r o r f o l d i n g - A l a r m s i r e n - Multifunction display - Alarm control unit - Audio equipment - Aud io/telephone.
930 AAudio equipment - Lighter/12 V socket (100 W max).
1015 ASteering wheel controls.
1115 ADiagnostic socket - Low current ignition switch - Motorised strikers.
1215 AAir bags and pre-tensioners control unit - Rain/brightness sensor.
135 AABS relay - Speed sensor - Engine Fuse Box - "2 Tronic" gear lever - Brake swit ch.
1415 AParking assistance control unit - "Sesame" doors control unit and switches - Instrument panel - Seat belt warning lights bar - Air conditioning control panel - Headlamp adjustment - Hands-free kit.
1530 ALocking - Deadlocking - Unlocking.
1740 ARear screen and exterior mirrors demisting.
SH-PARC shunt.
Page 135 of 194
9
128

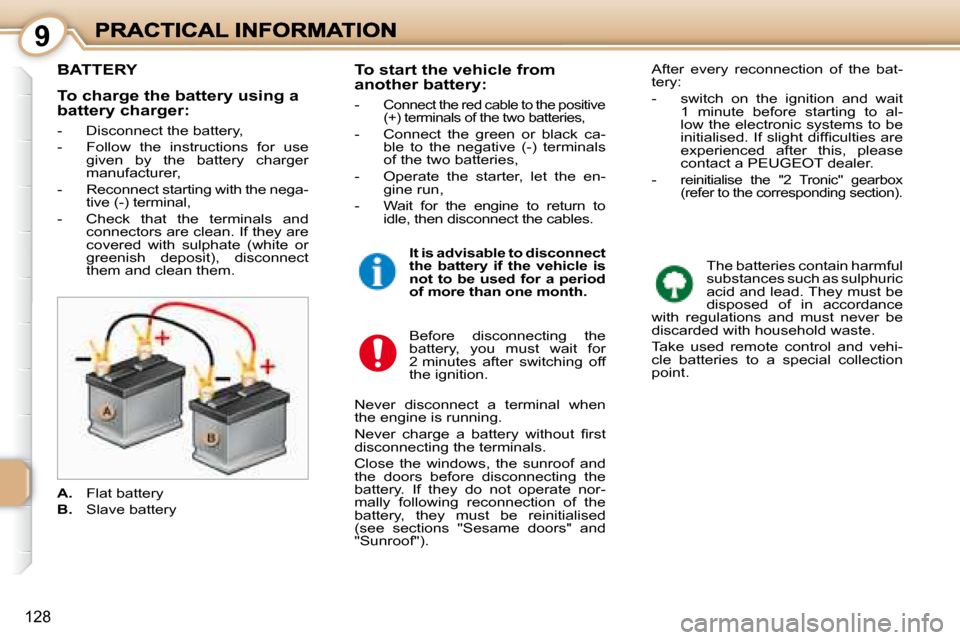

BATTERY
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance
with regulations and must never be
discarded with household waste.
Take used remote control and vehi-
cle batteries to a special collection
point.
To start the vehicle from
another battery:
-
Connect the red cable to the positive
(+) terminals of the two batteries,
- Connect the green or black ca- ble to the negative (-) terminals
of the two batteries,
- Operate the starter, let the en- gine run,
- Wait for the engine to return to idle, then disconnect the cables.
Before disconnecting the
battery, you must wait for
2 minutes after switching off
the ignition.
Never disconnect a terminal when
the engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the windows, the sunroof and
the doors before disconnecting the
battery. If they do not operate nor-
mally following reconnection of the
battery, they must be reinitialised
(see sections "Sesame doors" and
"Sunroof"). After every reconnection of the bat-
tery:
- switch on the ignition and wait
1 minute before starting to al-
low the electronic systems to be
i n i t i a l i s e d . I f s l i g h t d i f fi c u l t i e s a r e
experienced after this, please
contact a PEUGEOT dealer.
-
reinitialise the "2 Tronic" gearbox
(refer to the corresponding section).
A. Flat battery
B. Slave battery
It is advisable to disconnect
the battery if the vehicle is
not to be used for a period
of more than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the nega- tive (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.
Page 137 of 194
9
130

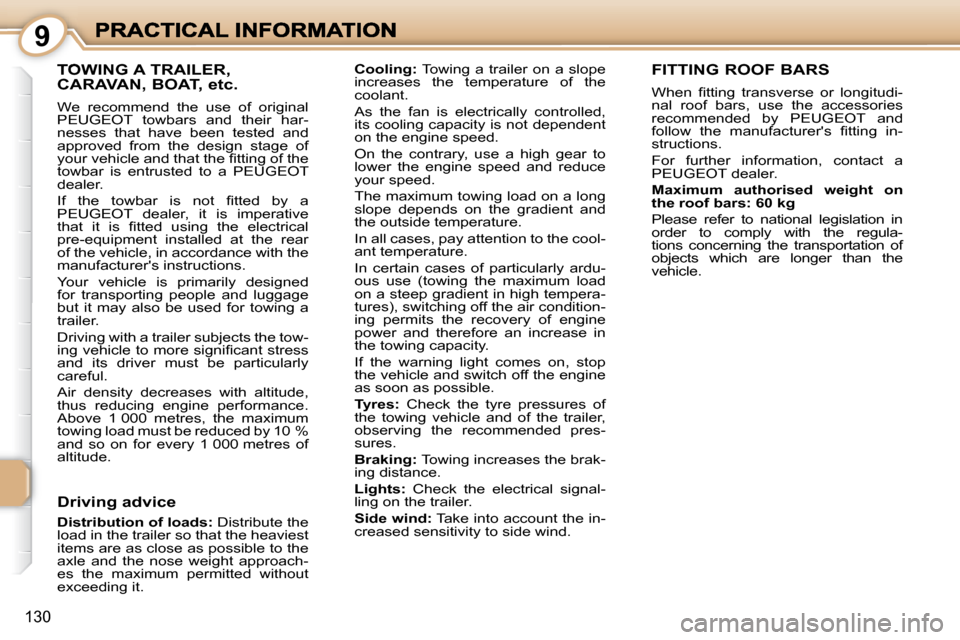

TOWING A TRAILER, CARAVAN, BOAT, etc.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
y o u r v e h i c l e a n d t h a t t h e fi t t i n g o f t h e
towbar is entrusted to a PEUGEOT
dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with the
manufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-
i n g v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s
and its driver must be particularly
careful.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.
Cooling: Towing a trailer on a slope
increases the temperature of the
coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and
the outside temperature.
In all cases, pay attention to the cool-
ant temperature.
In certain cases of particularly ardu-
ous use (towing the maximum load
on a steep gradient in high tempera-
tures), switching off the air condition-
ing permits the recovery of engine
power and therefore an increase in
the towing capacity.
If the warning light comes on, stop
the vehicle and switch off the engine
as soon as possible.
Tyres: Check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pres-
sures.
Braking: Towing increases the brak-
ing distance.
Lights: Check the electrical signal-
ling on the trailer.
Side wind: Take into account the in-
creased sensitivity to side wind.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e o r l o n g i t u d i -
nal roof bars, use the accessories
recommended by PEUGEOT and
f o l l o w t h e m a n u f a c t u r e r ' s fi t t i n g i n -
structions.
For further information, contact a
PEUGEOT dealer.
Maximum authorised weight on
the roof bars: 60 kg
Please refer to national legislation in
order to comply with the regula-
tions concerning the transportation of
objects which are longer than the
vehicle.
Driving advice
Distribution of loads: Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.
Page 138 of 194
9
131
ACCESSORIES FOR YOUR 1007
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the Network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle. T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's electronic
system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning trian-
gle and spare bulbs available in the
vehicle.
"Protection": anti-theft
alarm , engraved windows,
wheel anti-theft devices,
system which assists with
t h e i d e n t i fi c a t i o n o f a s t o l e n
v e h i c l e , fi r s t a i d k i t , w a r n -
ing triangle, high visibility
safety jacket, fog lamps kit,
snow chains, non-skid cov-
ers, audible rear parking
assistance.
"Touring": central arm-
rest, storage under the rear
shelf, mats * , boot tray, sun
blinds.
For leisure pursuits: roof
bars, transportation ac-
cessories (bicycle carrier,
ski carrier), roof box, child
seats and booster cushions, audio/
telephone console, cool box.
"In-Car Technology": hands-
free kits, satellite navigation
systems, CD changer, DVD
player, multimedia, audio
equipment, speakers, auxil-
iary audio socket permitting
the connection of a portable
MP3 player (compatible with
WIP Sound), USB socket.
"Styling": seat covers, al-
loy wheels, wheel trims,
spoiler, styling strips, door
spoilers, sill protectors,
aluminium footrest, rear si-
lencer, exhaust tail pipe.
"Universal": windscreen
w a s h fl u i d , i n t e r i o r a n d e x -
terior cleaning and mainte-
nance products.
You can obtain "Van" conver-
sion kits for conversion from
a private vehicle to a van.
You can obtain other
"Cameleo" customising kits
from PEUGEOT dealers.
You will be offered either a
complete kit, like the original kit, or a
partial kit consisting of the vent trims
only.
Should you need to change one or
more elements of the Cameleo kit of
your vehicle, due to damage..., you
will be offered replacement elements
from the exchange kits available at
that time.
This product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
* To prevent jamming under the
pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
