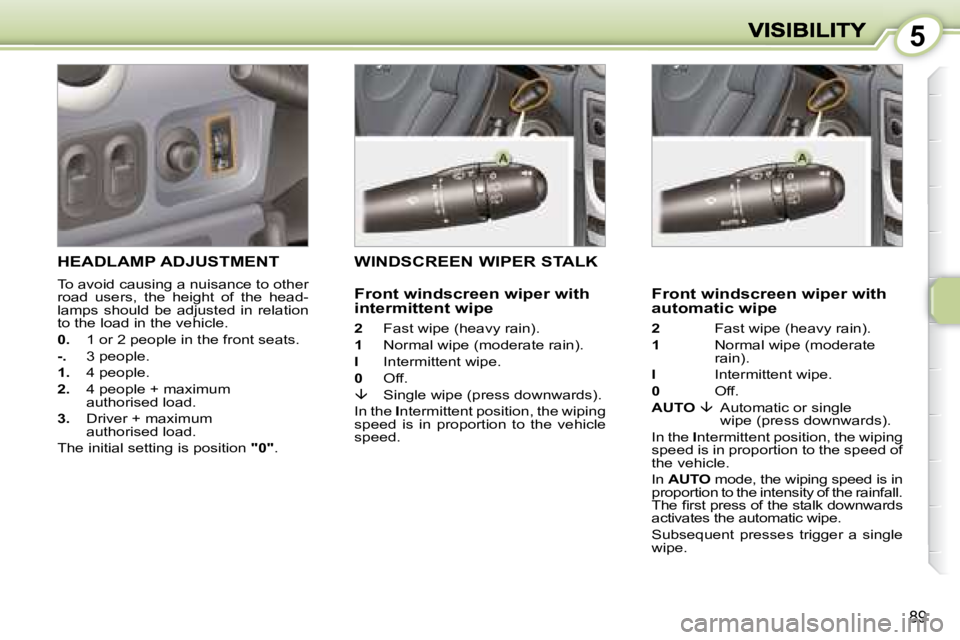

HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.
0. 1 or 2 people in the front seats.
- . 3 people.
1. 4 people.
2. 4 people + maximum
authorised load.
3. Driver + maximum
authorised load.
The initial setting is position "0" .
WINDSCREEN WIPER STALK
F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
I Intermittent wipe.
0 Off.
AUTO Automatic or single
wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is in
proportion to the intensity of the rainfall.
T h e fi r s t p r e s s o f t h e s t a l k d o w n w a r d s
activates the automatic wipe.
Subsequent presses trigger a single
wipe.
F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed.
Page 92 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 93 of 194
5
90
W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
L o w w a s h - w i p e / h e a d l a m p w a s h
fl u i d l e v e l
O n v e h i c l e s fi t t e d w i t h h e a d l a m p
washers, this is indicated by an audible
signal or a message on the multifunction
display.
This information is given each time
the front or rear wash-wipe control is
o p e r a t e d , u n t i l t h e r e s e r v o i r i s fi l l e d .
W h e n y o u s t o p , fi l l t h e w a s h - w i p e /
headlamp wash reservoir or have it
fi l l e d .
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.
R e a r w i n d s c r e e n w i p e r
Turn ring A t o t h e fi r s t n o t c h
for intermittent wiping.
When reverse gear is engaged, if the
windscreen wipers are in operation,
the rear wiper will start wiping.
Turn ring A p a s t t h e fi r s t
notch; the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d p e r i o d .
A u t o m a t i c w i n d s c r e e n w i p e r s
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall .
Activation
Activation of the function is accom-panied by a message on the multi-function display.
T h e a u t o m a t i c w i n d s c r e e n w i p e r s function must be reactivated if the i g n i t i o n h a s b e e n s w i t c h e d o f f f o r m o r e t h a n o n e m i n u t e , b y p r e s - s i n g t h e s t a l k d o w n w a r d s .
Deactivation
Deactivation of the function is ac-companied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I , 1 or 2 .
In the event of event ofofmalfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.
R e a r w i n d s c r e e n w a s h
To activate or deactivate
this function, go to the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
I f t h e r e i s a s i g n i fi c a n t a c -
cumulation of snow or ice
and when using a bicycle
carrier on the tailgate, deactivate the
automatic rear wiping by going to the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu.
Special position of the front
w i n d s c r e e n w i p e r
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See corre-
sponding section).
To park the wipers after this has been
done, switch on the ignition and ope-
rate the stalk.
Page 94 of 194
5
91

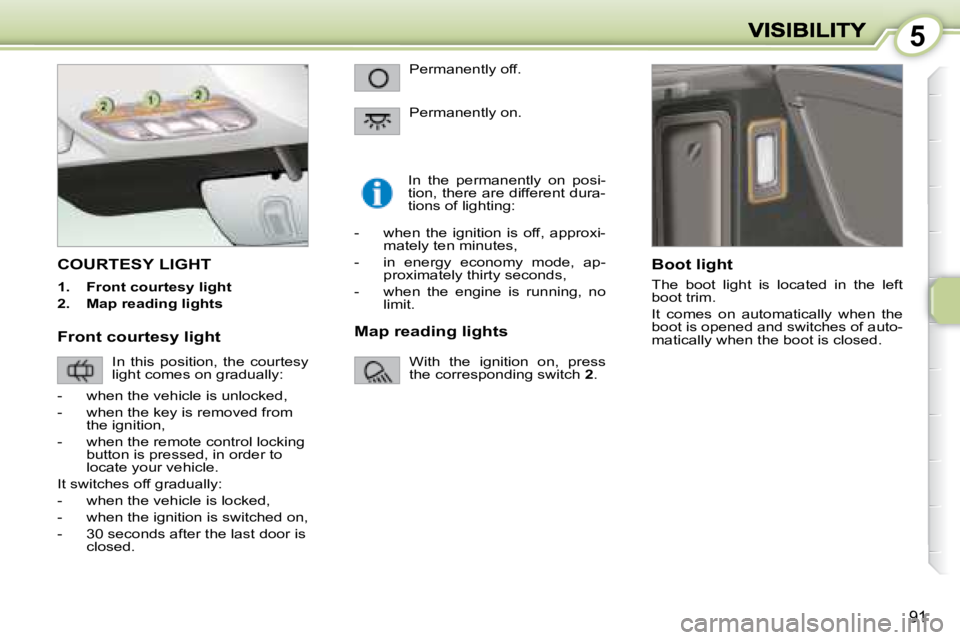

COURTESY LIGHT
1. Front courtesy light
2. Map reading lights In the permanently on posi-
tion, there are different dura-
tions of lighting:
Boot light
The boot light is located in the left
boot trim.
It comes on automatically when the
boot is opened and switches of auto-
matically when the boot is closed.
Front courtesy light Permanently off.
Permanently on.
In this position, the courtesy
light comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed. Map reading lights
With the ignition on, press
the corresponding switch 2 .
- when the ignition is off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
Page 95 of 194
6
92

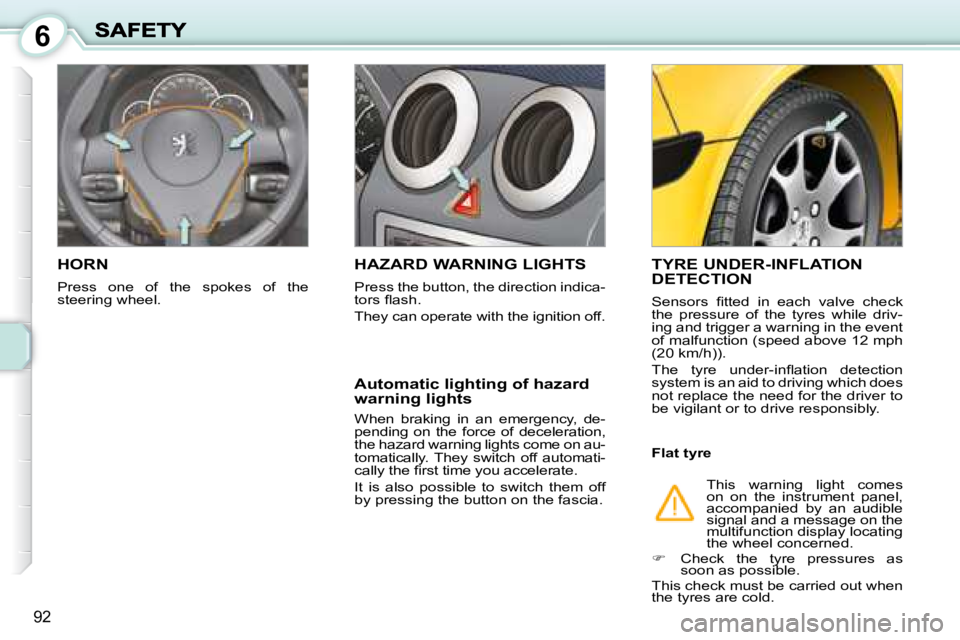

HORN
Press one of the spokes of the
steering wheel.
HAZARD WARNING LIGHTS
Press the button, the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, de-
pending on the force of deceleration,
the hazard warning lights come on au-
tomatically. They switch off automati-
c a l l y t h e fi r s t t i m e y o u a c c e l e r a t e .
It is also possible to switch them off
by pressing the button on the fascia.
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
t h e p r e s s u r e o f t h e t y r e s w h i l e d r i v -
i n g a n d t r i g g e r a w a r n i n g i n t h e e v e n t
o f m a l f u n c t i o n ( s p e e d a b o v e 1 2 m p h
(20 km/h)).
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m i s a n a i d t o d r i v i n g w h i c h d o e s
n o t r e p l a c e t h e n e e d f o r t h e d r i v e r t o
b e v i g i l a n t o r t o d r i v e r e s p o n s i b l y .
Flat tyre This warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
multifunction display locating
the wheel concerned.
Check the tyre pressures as
soon as possible.
This check must be carried out when
the tyres are cold.
Page 96 of 194
6
92
HORN
Press one of the spokes of the
steering wheel.
HAZARD WARNING LIGHTS
Press the button, the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, de-
pending on the force of deceleration,
the hazard warning lights come on au-
tomatically. They switch off automati-
c a l l y t h e fi r s t t i m e y o u a c c e l e r a t e .
It is also possible to switch them off
by pressing the button on the fascia.
TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
t h e p r e s s u r e o f t h e t y r e s w h i l e d r i v -
i n g a n d t r i g g e r a w a r n i n g i n t h e e v e n t
o f m a l f u n c t i o n ( s p e e d a b o v e 1 2 m p h
(20 km/h)).
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m i s a n a i d t o d r i v i n g w h i c h d o e s
n o t r e p l a c e t h e n e e d f o r t h e d r i v e r t o
b e v i g i l a n t o r t o d r i v e r e s p o n s i b l y .
Flat tyre This warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
multifunction display locating
the wheel concerned.
Check the tyre pressures as
soon as possible.
This check must be carried out when
the tyres are cold.
Page 97 of 194
6
93

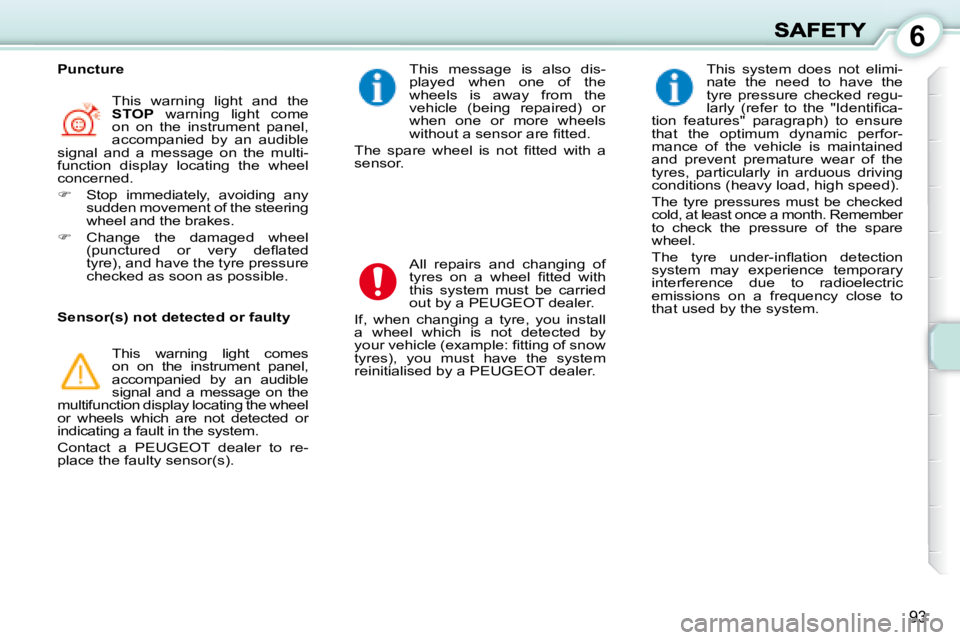

This message is also dis-
played when one of the
wheels is away from the
v e h i c l e ( b e i n g r e p a i r e d ) o r
when one or more wheels
w i t h o u t a s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h
this system must be carried
out by a PEUGEOT dealer.
If, when changing a tyre, you install
a wheel which is not detected by
y o u r v e h i c l e ( e x a m p l e : fi t t i n g o f s n o w
t y r e s ) , y o u m u s t h a v e t h e s y s t e m
reinitialised by a PEUGEOT dealer.
Puncture
This warning light and the
STOP warning light come
on on the instrument panel,
accompanied by an audible
signal and a message on the multi-
function display locating the wheel
concerned.
S t o p i m m e d i a t e l y , a v o i d i n g a n y
s u d d e n m o v e m e n t o f t h e s t e e r i n g
wheel and the brakes.
Change the damaged wheel
( p u n c t u r e d o r v e r y d e fl a t e d
t y r e ) , a n d h a v e t h e t y r e p r e s s u r e
checked as soon as possible.
Sensor(s) not detected or faulty This warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
multifunction display locating the wheel
or wheels which are not detected or
indicating a fault in the system.
Contact a PEUGEOT dealer to re-
place the faulty sensor(s). This system does not elimi-
n a t e t h e n e e d t o h a v e t h e
tyre pressure checked regu-
l a r l y ( r e f e r t o t h e " I d e n t i fi c a -
tion features" paragraph) to ensure
that the optimum dynamic perfor-
m a n c e o f t h e v e h i c l e i s m a i n t a i n e d
a n d p r e v e n t p r e m a t u r e w e a r o f t h e
t y r e s , p a r t i c u l a r l y i n a r d u o u s d r i v i n g
c o n d i t i o n s ( h e a v y l o a d , h i g h s p e e d ) .
The tyre pressures must be checked
cold, at least once a month. Remember
to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radioelectric
emissions on a frequency close to
that used by the system.
Page 98 of 194
6
94

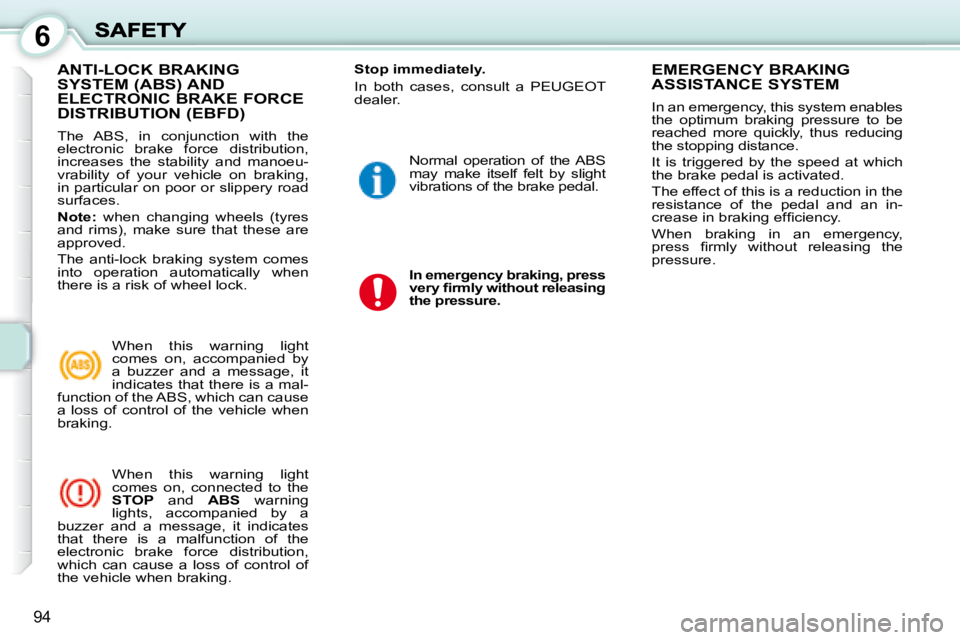

ANTI-LOCK BRAKING SYSTEM (ABS) AND ELECTRONIC BRAKE FORCE DISTRIBUTION (EBFD)
The ABS, in conjunction with the
electronic brake force distribution,
increases the stability and manoeu-
v r a b i l i t y o f y o u r v e h i c l e o n b r a k i n g ,
in particular on poor or slippery road
surfaces.
Note: when changing wheels (tyres
and rims), make sure that these are
a p p r o v e d .
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
When this warning light
comes on, accompanied by
a buzzer and a message, it
indicates that there is a mal-
function of the ABS, which can cause
a l o s s o f c o n t r o l o f t h e v e h i c l e w h e n
braking.
When this warning light
comes on, connected to the
STOP and ABS warning
lights, accompanied by a
buzzer and a message, it indicates
that there is a malfunction of the
electronic brake force distribution,
which can cause a loss of control of
t h e v e h i c l e w h e n b r a k i n g . Stop immediately.
In both cases, consult a PEUGEOT
dealer.
EMERGENCY BRAKING ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
t h e b r a k e p e d a l i s a c t i v a t e d .
The effect of this is a reduction in the
resistance of the pedal and an in-
c r e a s e i n b r a k i n g e f fi c i e n c y .
When braking in an emergency,
p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e
pressure.
Normal operation of the ABS
may make itself felt by slight
v i b r a t i o n s o f t h e b r a k e p e d a l .
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Page 99 of 194
6
95
If this warning light comes on
on the instrument panel and
the indicator light on the but-
ton comes on, this indicates
that the ASR and ESP sys-
tems are disarmed.

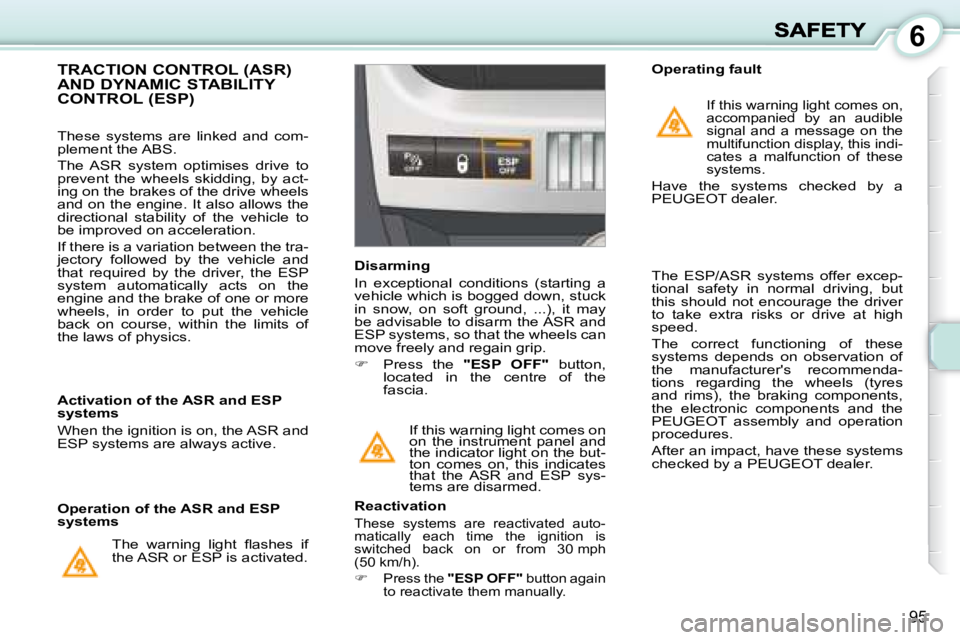

TRACTION CONTROL (ASR) AND DYNAMIC STABILITY CONTROL (ESP)
Operation of the ASR and ESP
systems T h e w a r n i n g l i g h t fl a s h e s i f
t h e A S R o r E S P i s a c t i v a t e d . Disarming
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a
v e h i c l e w h i c h i s b o g g e d d o w n , s t u c k
in snow, on soft ground, ...), it may
b e a d v i s a b l e t o d i s a r m t h e A S R a n d
ESP systems, so that the wheels can
m o v e f r e e l y a n d r e g a i n g r i p .
Press the "ESP OFF" button,
located in the centre of the
fascia.
Reactivation T h e s e s y s t e m s a r e r e a c t i v a t e d a u t o -
matically each time the ignition is
switched back on or from 30 mph
(50 km/h).
Press the "ESP OFF" button again
t o r e a c t i v a t e t h e m m a n u a l l y .
Operating fault
If this warning light comes on,
accompanied by an audible
signal and a message on the
multifunction display, this indi-
cates a malfunction of these
systems.
H a v e t h e s y s t e m s c h e c k e d b y a
PEUGEOT dealer.
T h e E S P / A S R s y s t e m s o f f e r e x c e p -
t i o n a l s a f e t y i n n o r m a l d r i v i n g , b u t
t h i s s h o u l d n o t e n c o u r a g e t h e d r i v e r
t o t a k e e x t r a r i s k s o r d r i v e a t h i g h
speed.
The correct functioning of these
s y s t e m s d e p e n d s o n o b s e r v a t i o n o f
the manufacturer's recommenda-
tions regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and operation
procedures.
A f t e r a n i m p a c t , h a v e t h e s e s y s t e m s
checked by a PEUGEOT dealer.
Activation of the ASR and ESP
systems
When the ignition is on, the ASR and
E S P s y s t e m s a r e a l w a y s a c t i v e .
These systems are linked and com-
plement the ABS.
T h e A S R s y s t e m o p t i m i s e s d r i v e t o
p r e v e n t t h e w h e e l s s k i d d i n g , b y a c t -
i n g o n t h e b r a k e s o f t h e d r i v e w h e e l s
and on the engine. It also allows the
d i r e c t i o n a l s t a b i l i t y o f t h e v e h i c l e t o
b e i m p r o v e d o n a c c e l e r a t i o n .
I f t h e r e i s a v a r i a t i o n b e t w e e n t h e t r a -
j e c t o r y f o l l o w e d b y t h e v e h i c l e a n d
t h a t r e q u i r e d b y t h e d r i v e r , t h e E S P
system automatically acts on the
engine and the brake of one or more
w h e e l s , i n o r d e r t o p u t t h e v e h i c l e
back on course, within the limits of
the laws of physics.
Page 100 of 194
6
96

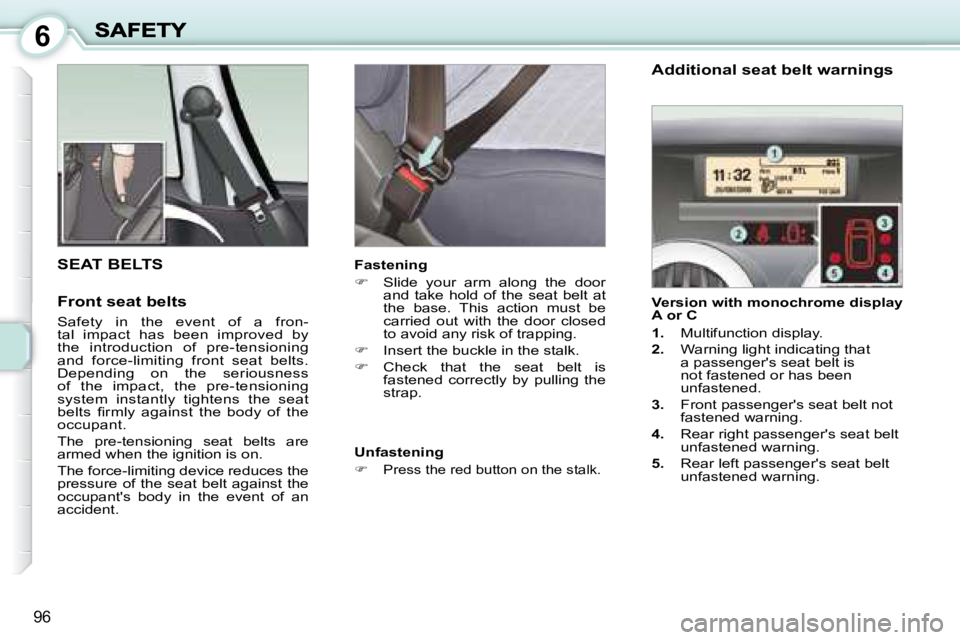

SEAT BELTS
Additional seat belt warnings
Version with monochrome display
A or C
1. Multifunction display.
2. Warning light indicating that
a passenger's seat belt is
not fastened or has been
unfastened.
3. Front passenger's seat belt not
fastened warning.
4. Rear right passenger's seat belt
unfastened warning.
5. Rear left passenger's seat belt
unfastened warning.
Fastening
Slide your arm along the door
and take hold of the seat belt at
the base. This action must be
carried out with the door closed
t o a v o i d a n y r i s k o f t r a p p i n g .
Insert the buckle in the stalk.
Check that the seat belt is
fastened correctly by pulling the
strap.
Unfastening
Press the red button on the stalk.
Front seat belts
S a f e t y i n t h e e v e n t o f a f r o n -
t a l i m p a c t h a s b e e n i m p r o v e d b y
the introduction of pre-tensioning
and force-limiting front seat belts.
Depending on the seriousness
of the impact, the pre-tensioning
system instantly tightens the seat
b e l t s fi r m l y a g a i n s t t h e b o d y o f t h e
occupant.
The pre-tensioning seat belts are
armed when the ignition is on.
T h e f o r c e - l i m i t i n g d e v i c e r e d u c e s t h e
pressure of the seat belt against the
o c c u p a n t ' s b o d y i n t h e e v e n t o f a n
accident.
