PEUGEOT 1007 DAG 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 1007 DAG, Model: PEUGEOT 1007 DAG 2008Pages: 194, PDF Size: 11.23 MB
Page 131 of 194
9
124

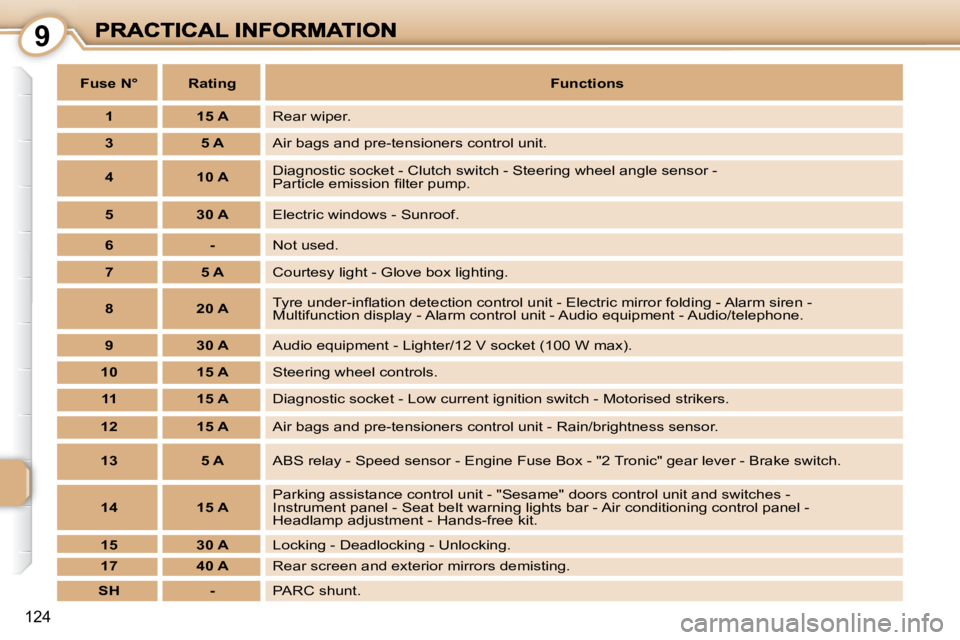

Fuse N°RatingFunctions
115 ARear wiper.
35 AAir bags and pre-tensioners control unit.
410 ADiagnostic socket - Clutch switch - Steering wheel angle sensor - P a r t i c l e e m i s s i o n fi l t e r p u m p .
530 AElectric windows - Sunroof.
6-Not used.
75 ACourtesy light - Glove box lighting.
820 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t - E l e c t r i c m i r r o r f o l d i n g - A l a r m s i r e n - Multifunction display - Alarm control unit - Audio equipment - Aud io/telephone.
930 AAudio equipment - Lighter/12 V socket (100 W max).
1015 ASteering wheel controls.
1115 ADiagnostic socket - Low current ignition switch - Motorised strikers.
1215 AAir bags and pre-tensioners control unit - Rain/brightness sensor.
135 AABS relay - Speed sensor - Engine Fuse Box - "2 Tronic" gear lever - Brake swit ch.
1415 AParking assistance control unit - "Sesame" doors control unit and switches - Instrument panel - Seat belt warning lights bar - Air conditioning control panel - Headlamp adjustment - Hands-free kit.
1530 ALocking - Deadlocking - Unlocking.
1740 ARear screen and exterior mirrors demisting.
SH-PARC shunt.
Page 132 of 194
9
125

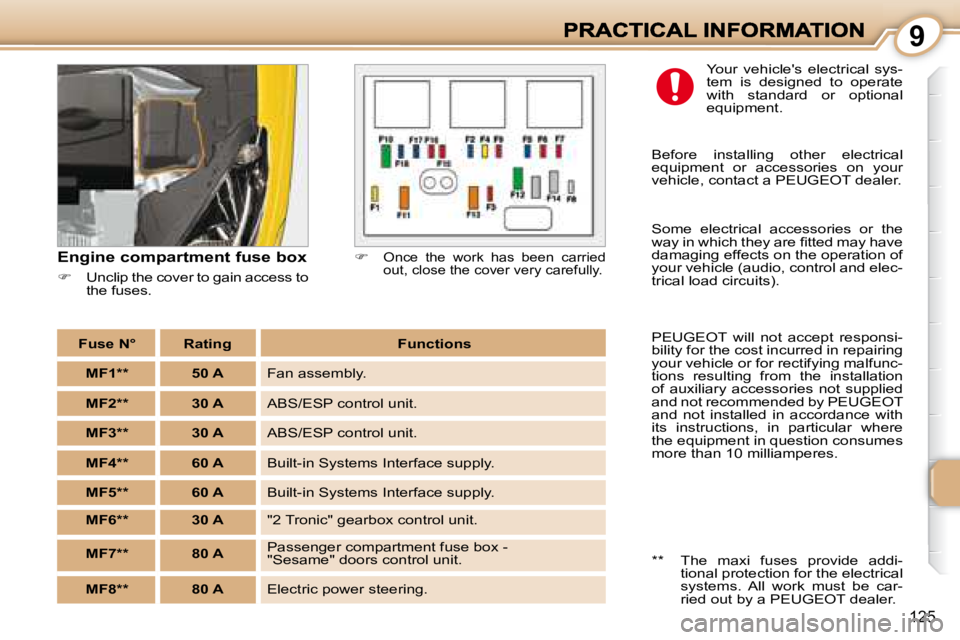

Engine compartment fuse box
Unclip the cover to gain access to
the fuses.
Once the work has been carried
out, close the cover very carefully.
Fuse N°RatingFunctions
MF1**50 AFan assembly.
MF2**30 AABS/ESP control unit.
MF3**30 AABS/ESP control unit.
MF4**60 ABuilt-in Systems Interface supply.
MF5**60 ABuilt-in Systems Interface supply.
MF6**30 A"2 Tronic" gearbox control unit.
MF7**80 APassenger compartment fuse box - "Sesame" doors control unit.
MF8**80 AElectric power steering.
Your vehicle's electrical sys-tem is designed to operate with standard or optional equipment.
** The maxi fuses provide addi-tional protection for the electrical systems. All work must be car-ried out by a PEUGEOT dealer.
Before installing other electrical equipment or accessories on your vehicle, contact a PEUGEOT dealer.
Some electrical accessories or the w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e damaging effects on the operation of your vehicle (audio, control and elec-trical load circuits).
PEUGEOT will not accept responsi-bility for the cost incurred in repairing your vehicle or for rectifying malfunc-tions resulting from the installation of auxiliary accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular where the equipment in question consumes more than 10 milliamperes.
Page 133 of 194
9
126

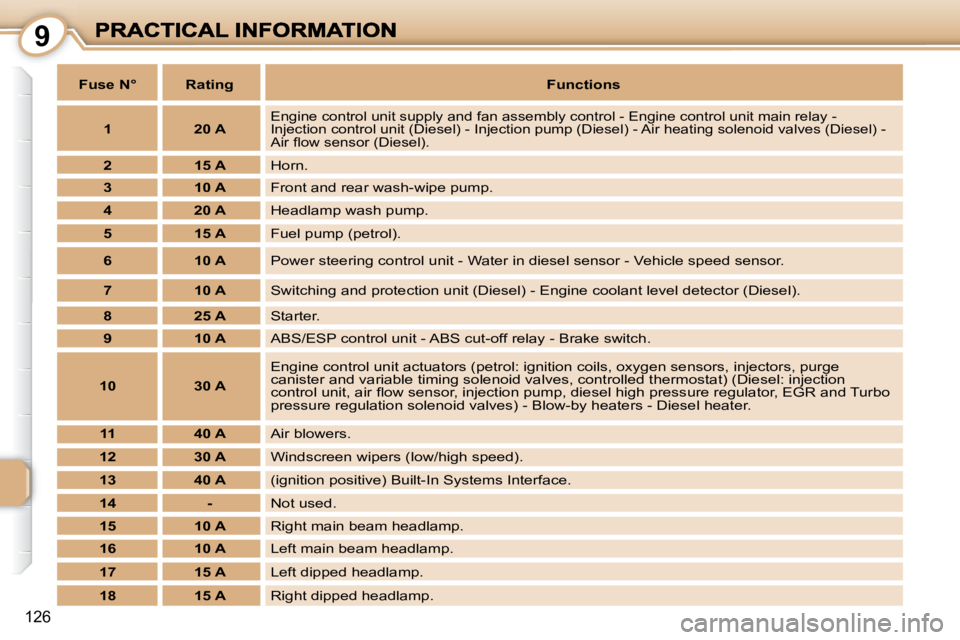

Fuse N°RatingFunctions
120 AEngine control unit supply and fan assembly control - Engine control unit main relay - Injection control unit (Diesel) - Injection pump (Diesel) - Air heating solenoid valves (Diesel) - A i r fl o w s e n s o r ( D i e s e l ) .
215 AHorn.
310 AFront and rear wash-wipe pump.
420 AHeadlamp wash pump.
515 AFuel pump (petrol).
610 APower steering control unit - Water in diesel sensor - Vehicle spe ed sensor.
710 ASwitching and protection unit (Diesel) - Engine coolant level detector (Diesel).
825 AStarter.
910 AABS/ESP control unit - ABS cut-off relay - Brake switch.
1030 A
Engine control unit actuators (petrol: ignition coils, oxygen se nsors, injectors, purge canister and variable timing solenoid valves, controlled thermosta t) (Diesel: injection c o n t r o l u n i t , a i r fl o w s e n s o r , i n j e c t i o n p u m p , d i e s e l h i g h p r e s s u r e r e g u l a t o r , E G R a n d T u r b o pressure regulation solenoid valves) - Blow-by heaters - Diesel heate r.
1140 AAir blowers.
1230 AWindscreen wipers (low/high speed).
1340 A(ignition positive) Built-In Systems Interface.
14-Not used.
1510 ARight main beam headlamp.
1610 ALeft main beam headlamp.
1715 ALeft dipped headlamp.
1815 ARight dipped headlamp.
Page 134 of 194
9
127

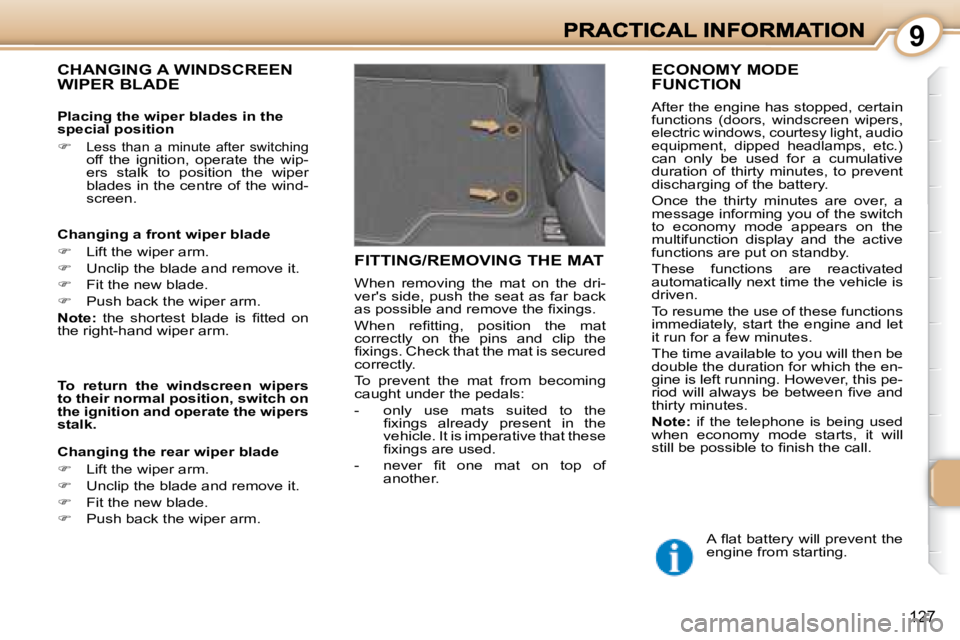

CHANGING A WINDSCREEN WIPER BLADE
Changing a front wiper blade
Lift the wiper arm.
Unclip the blade and remove it.
Fit the new blade.
Push back the wiper arm.
Note: t h e s h o r t e s t b l a d e i s fi t t e d o n
the right-hand wiper arm.
Changing the rear wiper blade
Lift the wiper arm.
Unclip the blade and remove it.
Fit the new blade.
Push back the wiper arm.
ECONOMY MODE FUNCTION
After the engine has stopped, certain
functions (doors, windscreen wipers,
electric windows, courtesy light, audio
equipment, dipped headlamps, etc.)
can only be used for a cumulative
duration of thirty minutes, to prevent
discharging of the battery.
Once the thirty minutes are over, a
message informing you of the switch
to economy mode appears on the
multifunction display and the active
functions are put on standby.
These functions are reactivated
automatically next time the vehicle is
driven.
To resume the use of these functions
immediately, start the engine and let
it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this pe-
r i o d w i l l a l w a y s b e b e t w e e n fi v e a n d
thirty minutes.
Note: if the telephone is being used
when economy mode starts, it will
s t i l l b e p o s s i b l e t o fi n i s h t h e c a l l .
A fl a t b a t t e r y w i l l p r e v e n t t h e
engine from starting.
FITTING/REMOVING THE MAT
When removing the mat on the dri-
ver's side, push the seat as far back
a s p o s s i b l e a n d r e m o v e t h e fi x i n g s .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t
correctly on the pins and clip the
fi x i n g s . C h e c k t h a t t h e m a t i s s e c u r e d
correctly.
To prevent the mat from becoming
caught under the pedals:
- only use mats suited to the fi x i n g s a l r e a d y p r e s e n t i n t h e
vehicle. It is imperative that these
fi x i n g s a r e u s e d .
- n e v e r fi t o n e m a t o n t o p o f another.
Placing the wiper blades in the
special position
Less than a minute after switching
off the ignition, operate the wip-
ers stalk to position the wiper
blades in the centre of the wind-
screen.
To return the windscreen wipers
to their normal position, switch on
the ignition and operate the wipers
stalk.
Page 135 of 194
9
128

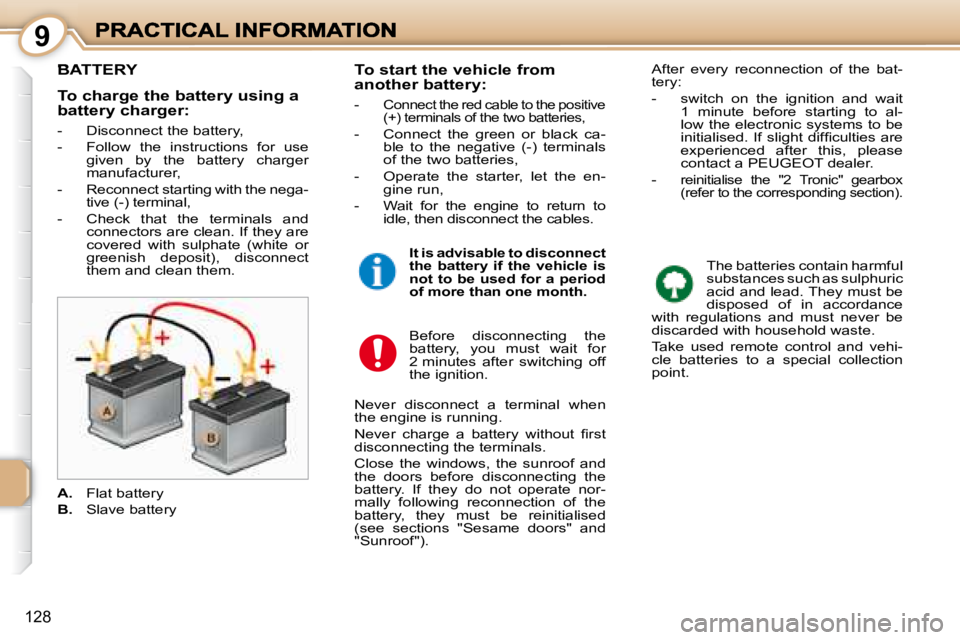

BATTERY
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance
with regulations and must never be
discarded with household waste.
Take used remote control and vehi-
cle batteries to a special collection
point.
To start the vehicle from
another battery:
-
Connect the red cable to the positive
(+) terminals of the two batteries,
- Connect the green or black ca- ble to the negative (-) terminals
of the two batteries,
- Operate the starter, let the en- gine run,
- Wait for the engine to return to idle, then disconnect the cables.
Before disconnecting the
battery, you must wait for
2 minutes after switching off
the ignition.
Never disconnect a terminal when
the engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the windows, the sunroof and
the doors before disconnecting the
battery. If they do not operate nor-
mally following reconnection of the
battery, they must be reinitialised
(see sections "Sesame doors" and
"Sunroof"). After every reconnection of the bat-
tery:
- switch on the ignition and wait
1 minute before starting to al-
low the electronic systems to be
i n i t i a l i s e d . I f s l i g h t d i f fi c u l t i e s a r e
experienced after this, please
contact a PEUGEOT dealer.
-
reinitialise the "2 Tronic" gearbox
(refer to the corresponding section).
A. Flat battery
B. Slave battery
It is advisable to disconnect
the battery if the vehicle is
not to be used for a period
of more than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the nega- tive (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.
Page 136 of 194
9
129

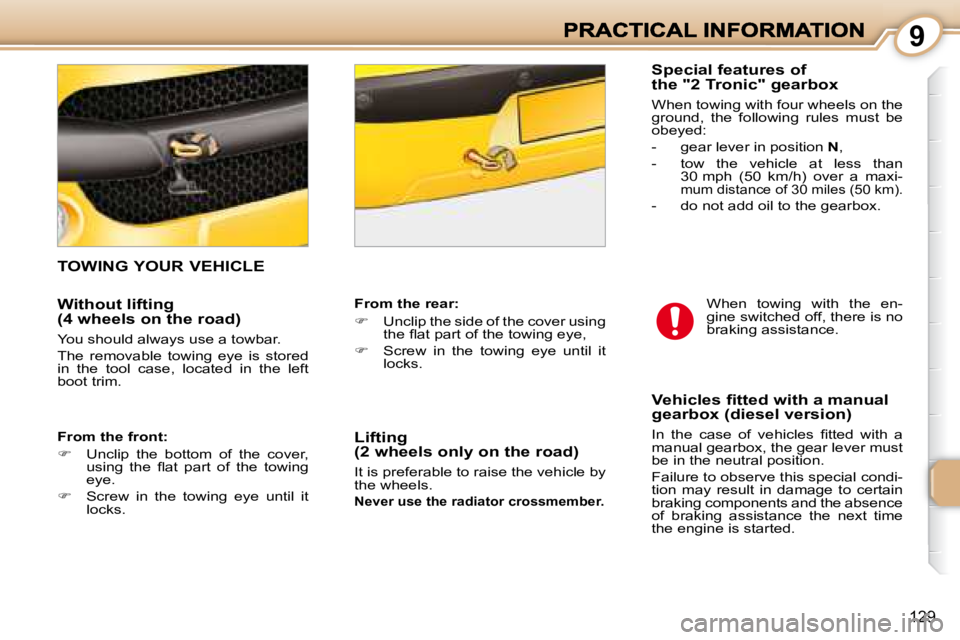

TOWING YOUR VEHICLE
From the rear:
Unclip the side of the cover using
t h e fl a t p a r t o f t h e t o w i n g e y e ,
Screw in the towing eye until it
locks. When towing with the en-
gine switched off, there is no
braking assistance.
Special features of
the "2 Tronic" gearbox
When towing with four wheels on the
ground, the following rules must be
obeyed:
- gear lever in position
N ,
- tow the vehicle at less than 30 mph (50 km/h) over a maxi-
mum distance of 30 miles (50 km).
- do not add oil to the gearbox.
From the front:
Unclip the bottom of the cover,
u s i n g t h e fl a t p a r t o f t h e t o w i n g
eye.
Screw in the towing eye until it
locks. Lifting
(2 wheels only on the road)
It is preferable to raise the vehicle by
the wheels.
Never use the radiator crossmember.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is stored
in the tool case, located in the left
boot trim.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the absence
of braking assistance the next time
the engine is started.
Page 137 of 194
9
130
TOWING A TRAILER, CARAVAN, BOAT, etc.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
y o u r v e h i c l e a n d t h a t t h e fi t t i n g o f t h e
towbar is entrusted to a PEUGEOT
dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with the
manufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-
i n g v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s
and its driver must be particularly
careful.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.
Cooling: Towing a trailer on a slope
increases the temperature of the
coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and
the outside temperature.
In all cases, pay attention to the cool-
ant temperature.
In certain cases of particularly ardu-
ous use (towing the maximum load
on a steep gradient in high tempera-
tures), switching off the air condition-
ing permits the recovery of engine
power and therefore an increase in
the towing capacity.
If the warning light comes on, stop
the vehicle and switch off the engine
as soon as possible.
Tyres: Check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pres-
sures.
Braking: Towing increases the brak-
ing distance.
Lights: Check the electrical signal-
ling on the trailer.
Side wind: Take into account the in-
creased sensitivity to side wind.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e o r l o n g i t u d i -
nal roof bars, use the accessories
recommended by PEUGEOT and
f o l l o w t h e m a n u f a c t u r e r ' s fi t t i n g i n -
structions.
For further information, contact a
PEUGEOT dealer.
Maximum authorised weight on
the roof bars: 60 kg
Please refer to national legislation in
order to comply with the regula-
tions concerning the transportation of
objects which are longer than the
vehicle.
Driving advice
Distribution of loads: Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.
Page 138 of 194
9
131
ACCESSORIES FOR YOUR 1007
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the Network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle. T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's electronic
system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning trian-
gle and spare bulbs available in the
vehicle.
"Protection": anti-theft
alarm , engraved windows,
wheel anti-theft devices,
system which assists with
t h e i d e n t i fi c a t i o n o f a s t o l e n
v e h i c l e , fi r s t a i d k i t , w a r n -
ing triangle, high visibility
safety jacket, fog lamps kit,
snow chains, non-skid cov-
ers, audible rear parking
assistance.
"Touring": central arm-
rest, storage under the rear
shelf, mats * , boot tray, sun
blinds.
For leisure pursuits: roof
bars, transportation ac-
cessories (bicycle carrier,
ski carrier), roof box, child
seats and booster cushions, audio/
telephone console, cool box.
"In-Car Technology": hands-
free kits, satellite navigation
systems, CD changer, DVD
player, multimedia, audio
equipment, speakers, auxil-
iary audio socket permitting
the connection of a portable
MP3 player (compatible with
WIP Sound), USB socket.
"Styling": seat covers, al-
loy wheels, wheel trims,
spoiler, styling strips, door
spoilers, sill protectors,
aluminium footrest, rear si-
lencer, exhaust tail pipe.
"Universal": windscreen
w a s h fl u i d , i n t e r i o r a n d e x -
terior cleaning and mainte-
nance products.
You can obtain "Van" conver-
sion kits for conversion from
a private vehicle to a van.
You can obtain other
"Cameleo" customising kits
from PEUGEOT dealers.
You will be offered either a
complete kit, like the original kit, or a
partial kit consisting of the vent trims
only.
Should you need to change one or
more elements of the Cameleo kit of
your vehicle, due to damage..., you
will be offered replacement elements
from the exchange kits available at
that time.
This product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
* To prevent jamming under the
pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n - other.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
Page 139 of 194
1010
132
* D r a i n i n g b y g r a v i t y w i t h o i l fi l l e r c a p o p e n .

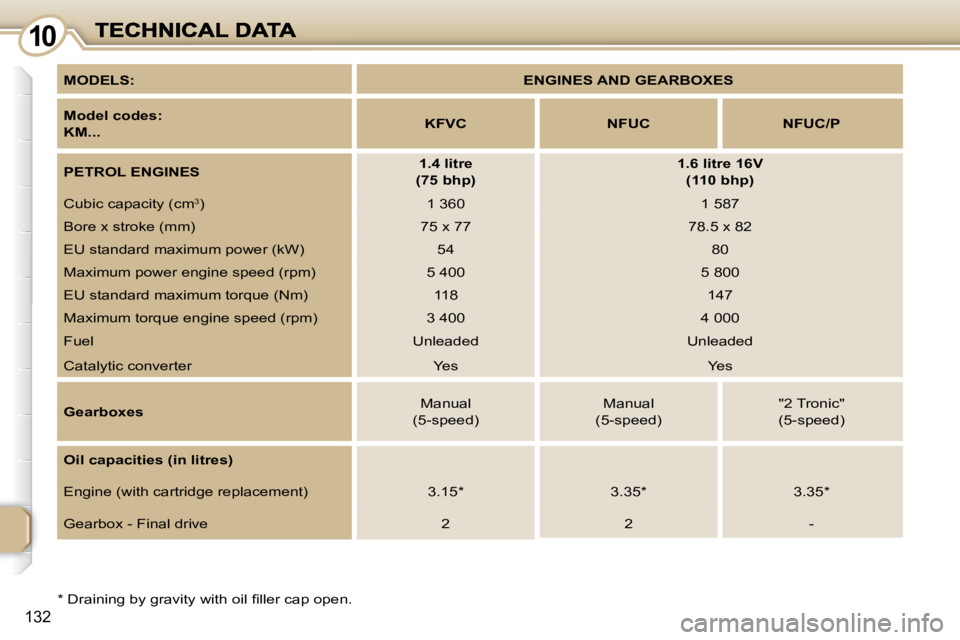

MODELS:
ENGINES AND GEARBOXES
Model codes:
KM...
KFVC NFUC NFUC/P
PETROL ENGINES
1.4 litre
(75 bhp)
1.6 litre 16V
(110 bhp)
C u b i c c a p a c i t y ( c m 3
) 1 360 1 587
B o r e x s t r o k e ( m m ) 7 5 x 7 7 7 8 . 5 x 8 2
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 54 80
M a x i m u m p o w e r e n g i n e s p e e d ( r p m ) 5 400 5 800
E U s t a n d a r d m a x i m u m t o r q u e ( N m ) 118 147
M a x i m u m t o r q u e e n g i n e s p e e d ( r p m ) 3 400 4 000
F u e l U n l e a d e d U n l e a d e d
C a t a l y t i c c o n v e r t e r Y e s Y e s
Gearboxes Manual
( 5 - s p e e d ) Manual
( 5 - s p e e d ) " 2 T r o n i c "
( 5 - s p e e d )
Oil capacities (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t ) 3 . 1 5 * 3 . 3 5 * 3 . 3 5 *
G e a r b o x - F i n a l d r i v e 2 2 -
Page 140 of 194
1010
133

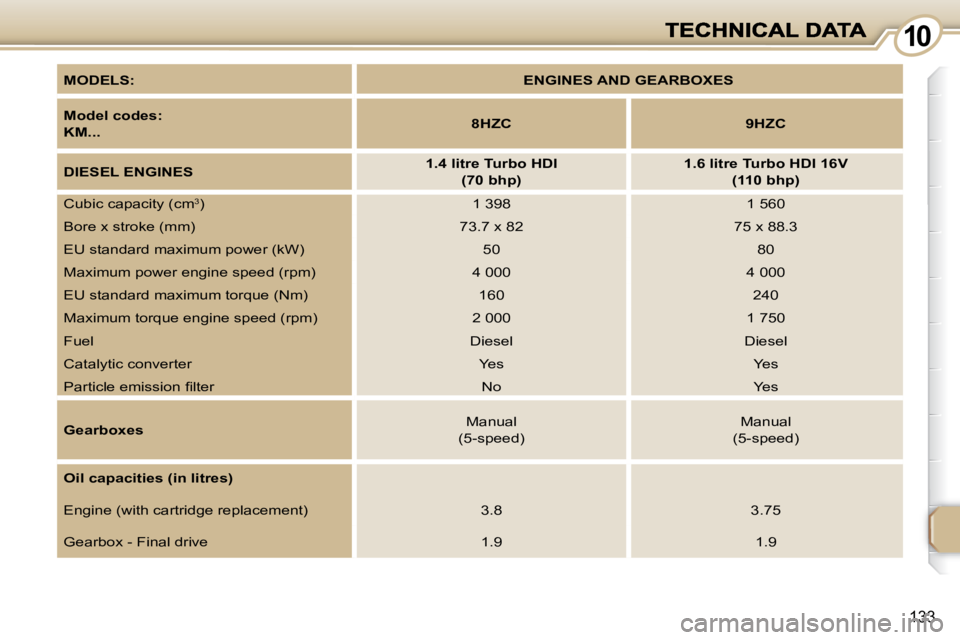

MODELS:
ENGINES AND GEARBOXES
Model codes:
KM...
8HZC 9HZC
DIESEL ENGINES
1.4 litre Turbo HDI
(70 bhp)
1.6 litre Turbo HDI 16V
(110 bhp)
C u b i c c a p a c i t y ( c m 3
) 1 398 1 560
B o r e x s t r o k e ( m m ) 7 3 . 7 x 8 2 7 5 x 8 8 . 3
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 50 80
M a x i m u m p o w e r e n g i n e s p e e d ( r p m ) 4 000 4 000
E U s t a n d a r d m a x i m u m t o r q u e ( N m ) 160 240
M a x i m u m t o r q u e e n g i n e s p e e d ( r p m ) 2 000 1 750
F u e l D i e s e l D i e s e l
C a t a l y t i c c o n v e r t e r Y e s Y e s
P a r t i c l e e m i s s i o n fi l t e r N o Y e s
Gearboxes Manual
( 5 - s p e e d ) Manual
( 5 - s p e e d )
Oil capacities (in litres)
E n g i n e ( w i t h c a r t r i d g e r e p l a c e m e n t ) 3 . 8 3 . 7 5
G e a r b o x - F i n a l d r i v e 1 . 9 1 . 9
