Off Intermittent or continuous wipe Windscreen wash
Fog lamps off Front fog lamps on Front/rear fog lamps on
LIGHTING - HORN
Ring A Lighting controls Lights off Side lights
Rear fog lamp off Rear fog lamp onDipped/ main beam lights
Ring B Rear fog lamp control
Front/rear fog lamps control
FRONT AND REAR WINDSCREEN WIPER
Front 3 - High speed wipe
2 - Normal speed wipe
1 - Intermittent wipe
0 - Stop
4 - Single wipe
Pulling the stalk towards you washes the windscreen with timedsweep, and headlamp wash ifheadlamps are on. Rear
Y O U R 1 0 6 AT A G L A N C E7
A
B
6263
3
2
1
0
4
06-05-2002

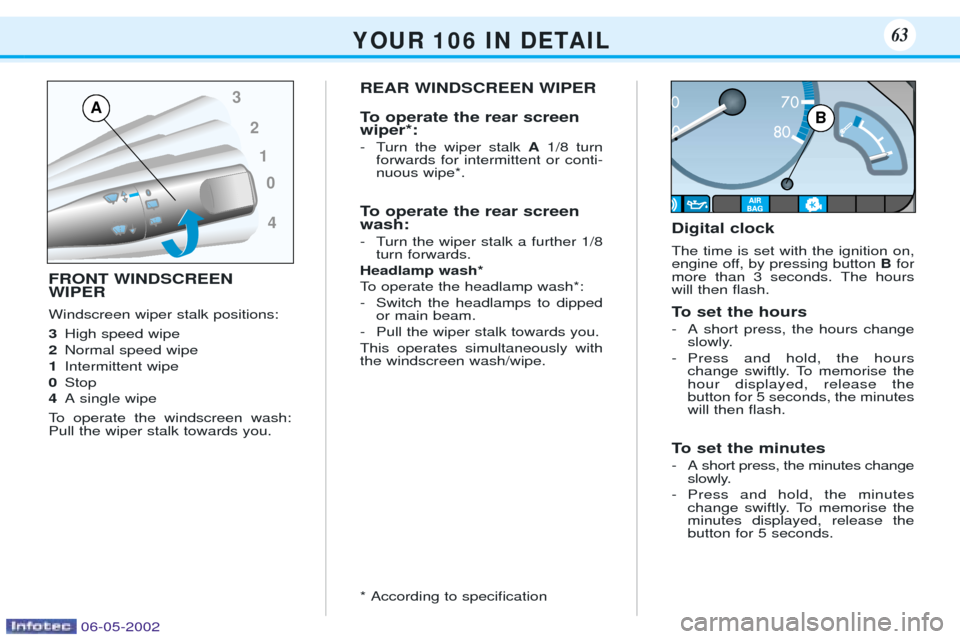

FRONT WINDSCREEN WIPER Windscreen wiper stalk positions: 3High speed wipe
2 Normal speed wipe
1 Intermittent wipe
0 Stop
4 A single wipe
To operate the windscreen wash: Pull the wiper stalk towards you. REAR WINDSCREEN WIPER
To operate the rear screen wiper*:
- Turn the wiper stalk
A1/8 turn
forwards for intermittent or conti- nuous wipe*.
To operate the rear screenwash:
- Turn the wiper stalk a further 1/8 turn forwards.
Headlamp wash*
To operate the headlamp wash*:
- Switch the headlamps to dipped or main beam.
- Pull the wiper stalk towards you.This operates simultaneously with the windscreen wash/wipe. * According to speciÞcation Digital clock The time is set with the ignition on,
engine off, by pressing button
Bfor
more than 3 seconds. The hourswill then ßash.
To set the hours
- A short press, the hours change slowly.
- Press and hold, the hours change swiftly. To memorise the hour displayed, release thebutton for 5 seconds, the minuteswill then ßash.
To set the minutes
- A short press, the minutes change slowly.
- Press and hold, the minutes change swiftly. To memorise the minutes displayed, release thebutton for 5 seconds.
Y O U R 1 0 6 I N D E TA I L63
0
4
1
2
3
AB
06-05-2002
