Y O U R 1 0 6 AT A G L A N C E2
19
06-05-2002
Page 2 of 107
Y O U R 1 0 6 AT A G L A N C E3
1-Electric mirrors switch
2- Storage compartment
3- Lights, fog lamps and horn stalk
4- Steering wheel with AIR BAG
5- Ignition,ignition lock and engine immobilser
6- Windscreen wash/wipe stalk
7- Instrument panel lighting rheostat
8- Headlamp height adjustment
9- Radio cassette player or spare
10 - Adjustable centre vents
11 - Controls for:
¥ Air conditioning or left-hand heated seat
¥ Lighter
¥ Hazard warning lights
¥ Rear screen and mirrors demisting
¥ Air recirculation or right-hand heated
seat12 - Windscreen demisting vents
13 - Side windows demisting vents
14 - Adjustable side vent
15 - Glove box
16 - Passenger airbag
17 - Ash tray
18 - Passenger airbag disarming switch
19 - Electric window
switches
20 - Gear lever
21 - Handbrake
22 - Bonnet opening control
23 - Fuse box
06-05-2002
Page 3 of 107
The remote control
A single press on button A locks the doors and boot or tailgate.
A single press on button B unlocks the vehicle.Key The key switches on the ignition, locks and unlocks the doors, tailga-te, fuel filler flap and disarms thepassenger airbag.

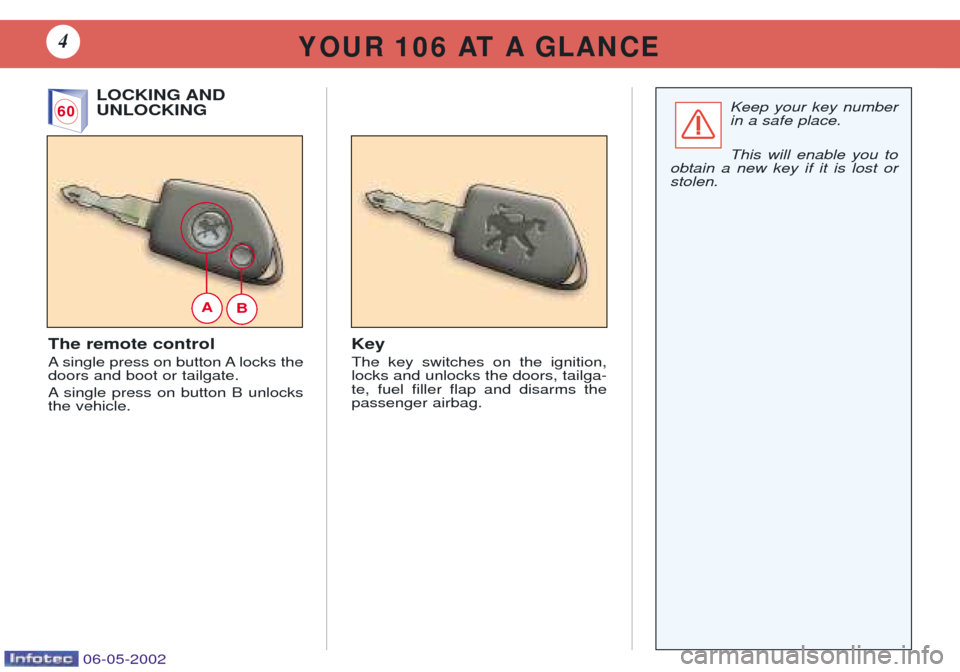

LOCKING AND UNLOCKING
Y O U R 1 0 6 AT A G L A N C E4
Keep your key number in a safe place. This will enable you to
obtain a new key if it is lost or stolen.60
AB
06-05-2002
Page 4 of 107

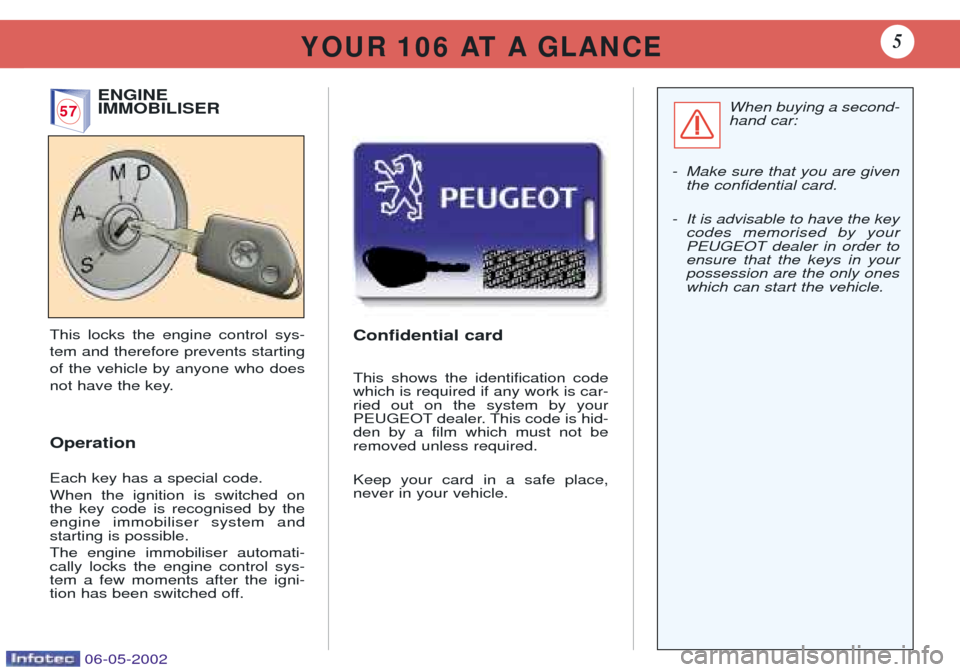

ENGINE IMMOBILISER
This locks the engine control sys- tem and therefore prevents startingof the vehicle by anyone who does
not have the key. Operation Each key has a special code. When the ignition is switched on the key code is recognised by theengine immobiliser system andstarting is possible. The engine immobiliser automati- cally locks the engine control sys-tem a few moments after the igni-
tion has been switched off. Confidential card This shows the identification code which is required if any work is car-ried out on the system by your
PEUGEOT dealer. This code is hid-den by a film which must not beremoved unless required. Keep your card in a safe place, never in your vehicle.
Y O U R 1 0 6 AT A G L A N C E5
When buying a second- hand car:
- Make sure that you are given the confidential card.
- It is advisable to have the key codes memorised by yourPEUGEOT dealer in order toensure that the keys in yourpossession are the only oneswhich can start the vehicle.57
06-05-2002
Page 5 of 107

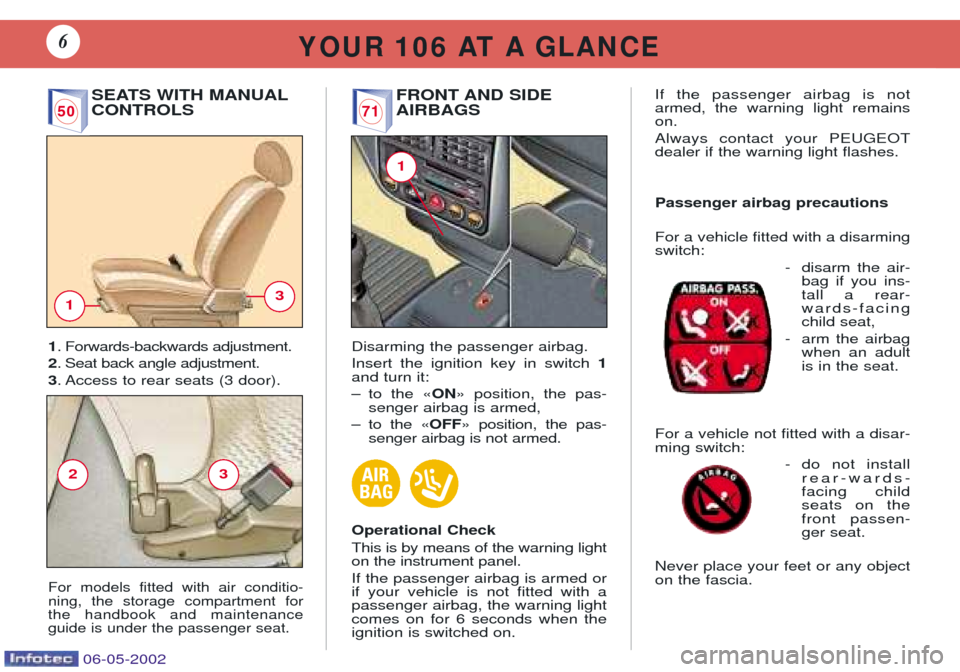

SEATS WITH MANUAL CONTROLS
1 . Forwards-backwards adjustment.
2 . Seat back angle adjustment.
3 . Access to rear seats (3 door).
For models fitted with air conditio- ning, the storage compartment forthe handbook and maintenanceguide is under the passenger seat.
FRONT AND SIDE AIRBAGS
Disarming the passenger airbag. Insert the ignition key in switch 1
and turn it:
Ð to the Ç ONÈ position, the pas-
senger airbag is armed,
Ð to the Ç OFFÈ position, the pas-
senger airbag is not armed.
Operational Check This is by means of the warning light on the instrument panel. If the passenger airbag is armed or if your vehicle is not fitted with apassenger airbag, the warning lightcomes on for 6 seconds when theignition is switched on. If the passenger airbag is notarmed, the warning light remainson. Always contact your PEUGEOT dealer if the warning light flashes. Passenger airbag precautions For a vehicle fitted with a disarming switch:
- disarm the air-bag if you ins-tall a rear-wards-facingchild seat,
- arm the airbag when an adultis in the seat.
For a vehicle not fitted with a disar-ming switch: - do not installrear-wards-facing childseats on thefront passen-ger seat.
Never place your feet or any objecton the fascia.
Y O U R 1 0 6 AT A G L A N C E6
50
23
13
1
71
06-05-2002
Page 6 of 107
Off Intermittent or continuous wipe Windscreen wash
Fog lamps off Front fog lamps on Front/rear fog lamps on

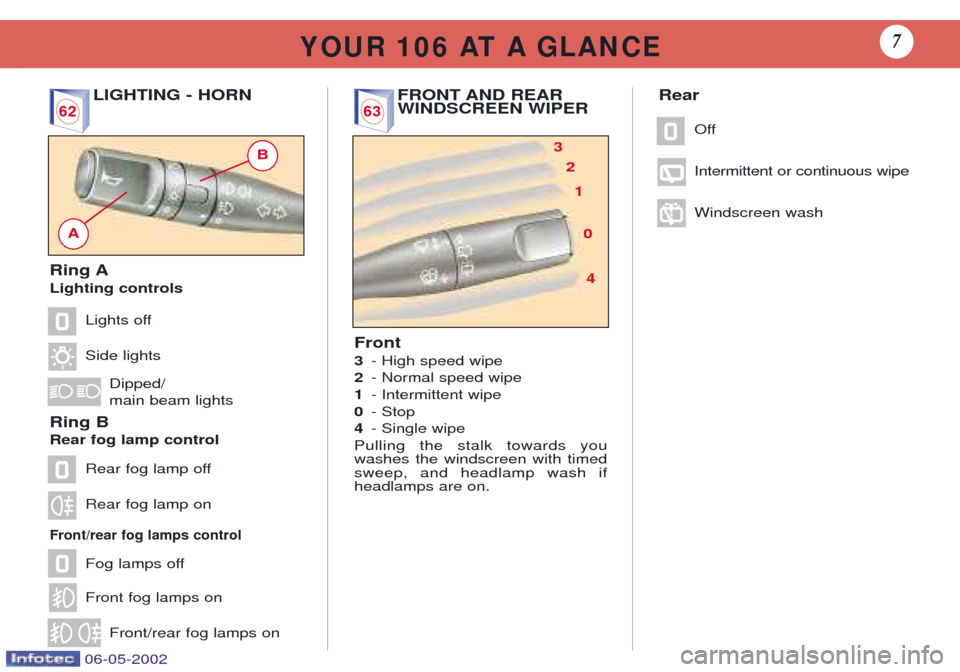

LIGHTING - HORN
Ring A Lighting controls Lights off Side lights
Rear fog lamp off Rear fog lamp onDipped/ main beam lights
Ring B Rear fog lamp control
Front/rear fog lamps control
FRONT AND REAR WINDSCREEN WIPER
Front 3 - High speed wipe
2 - Normal speed wipe
1 - Intermittent wipe
0 - Stop
4 - Single wipe
Pulling the stalk towards you washes the windscreen with timedsweep, and headlamp wash ifheadlamps are on. Rear
Y O U R 1 0 6 AT A G L A N C E7
A
B
6263
3
2
1
0
4
06-05-2002
Page 7 of 107
1 - Air flow adjustment
2 - Air distribution
To the central and side ventsFootwells
Windscreens, side screensand footwells Windscreen and side windows 3 -Temperature control
4 - Air conditioning on/off
5 - Interior air recirculation

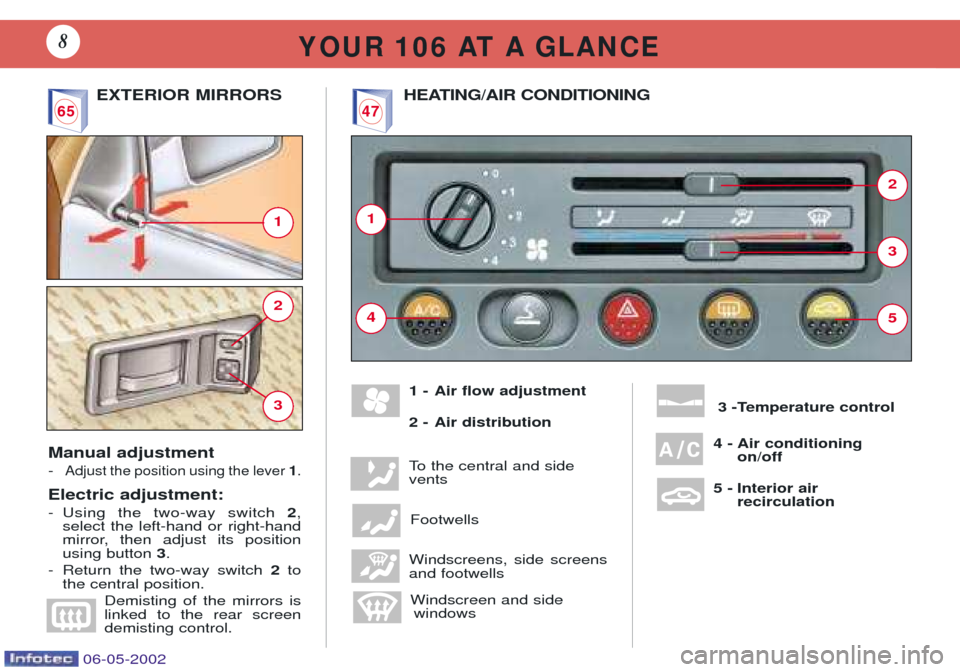

EXTERIOR MIRRORS
Manual adjustment -
Adjust the position using the lever 1.
Electric adjustment:
- Using the two-way switch 2,
select the left-hand or right-hand
mirror, then adjust its positionusing button 3.
- Return the two-way switch 2to
the central position.
Demisting of the mirrors islinked to the rear screendemisting control. HEATING/AIR CONDITIONING
Y O U R 1 0 6 AT A G L A N C E8
6547
3
24
11
2
3
5
06-05-2002
Page 8 of 107
Y O U R 1 0 6 AT A G L A N C E9

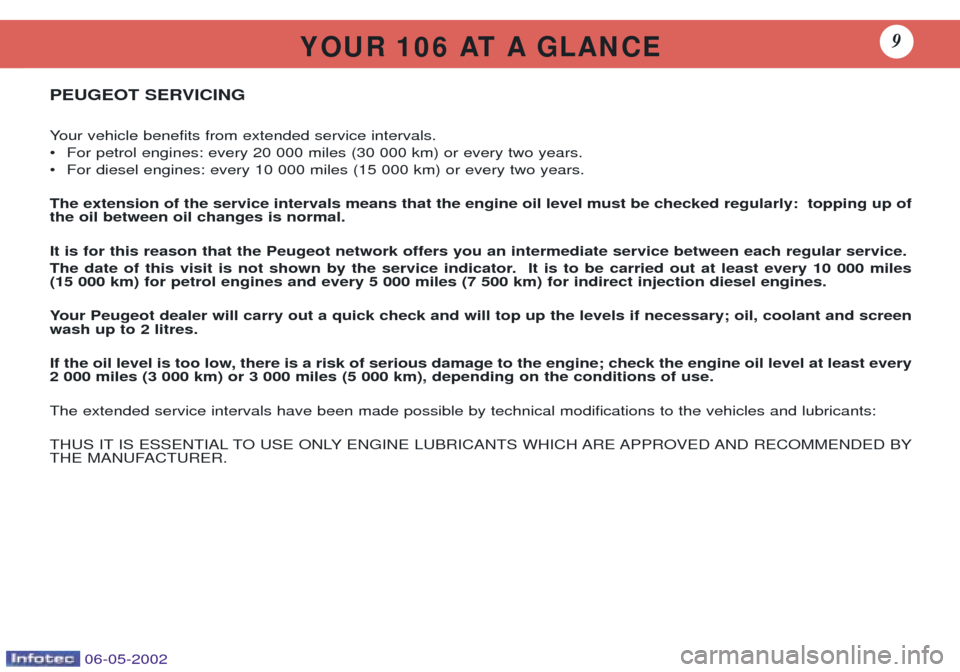

PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20 000 miles (30 000 km) or every two years.
¥ For diesel engines: every 10 000 miles (15 000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason that the Peugeot network offers you an intermediate service between each regular service.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles
(15 000 km) for petrol engines and every 5 000 miles (7 500 km) for indirect injection diesel engines.
Your Peugeot dealer will carry out a quick check and will top up the levels if necessary; oil, coolant and screen wash up to 2 litres.
If the oil level is too low, there is a risk of serious damage to the engine; check the engine oil level at least every 2 000 miles (3 000 km) or 3 000 miles (5 000 km), depending on the conditions of use. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO USE ONLY ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY
THE MANUFACTURER.
06-05-2002
Page 9 of 107
P E U G E O T M A I N T E N A N C E10

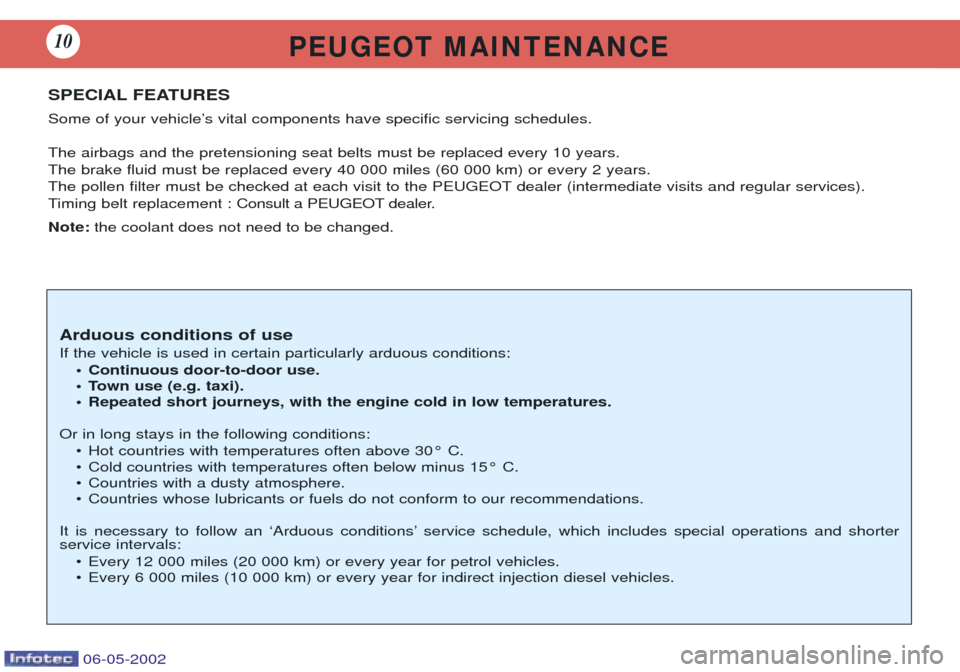

SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40 000 miles (60 000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
Timing belt replacement : Consult a PEUGEOT dealer.
Note: the coolant does not need to be changed.
Arduous conditions of use If the vehicle is used in certain particularly arduous conditions: ¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions: ¥ Hot countries with temperatures often above 30¡ C.
¥ Cold countries with temperatures often below minus 15¡ C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÔArduous conditionsÕ service schedule, which includes special operations and shorter service intervals: ¥ Every 12 000 miles (20 000 km) or every year for petrol vehicles.
¥ Every 6 000 miles (10 000 km) or every year for indirect injection diesel vehicles.
06-05-2002
Page 10 of 107
P E U G E O T M A I N T E N A N C E11
AACC
20 000 (30 000)/ 40 000 (60 000)/ 60 000 (90 000)/ 80 000 (120 000)/
100 000 (150 000) 120 000 (180 000) 140 000 (210 000) 160 000 (240 000)

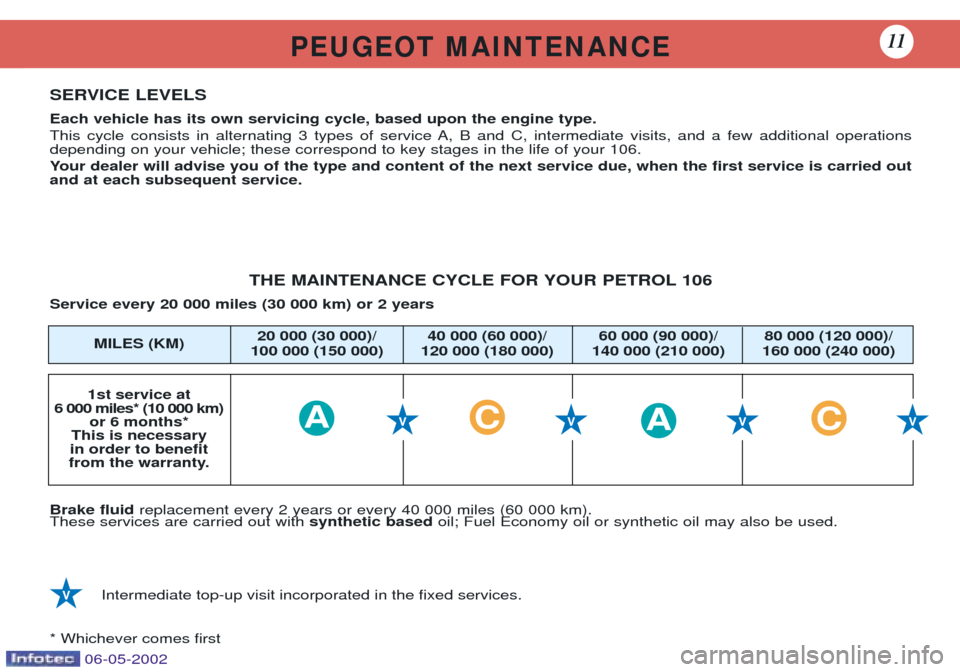

SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists in alternating 3 types of service A, B and C, intermediate visits, and a few additional operations depending on your vehicle; these correspond to key stages in the life of your 106.
Your dealer will advise you of the type and content of the next service due, when the first service is carried out and at each subsequent service.
1st service at
6 000 miles* (10 000 km) or 6 months*
This is necessary
in order to benefit
from the warranty. THE MAINTENANCE CYCLE FOR YOUR PETROL 106
Service every 20 000 miles (30 000 km) or 2 years
Intermediate top-up visit incorporated in the fixed services.
* Whichever comes first
Brake fluid
replacement every 2 years or every 40 000 miles (60 000 km).
These services are carried out with synthetic basedoil; Fuel Economy oil or synthetic oil may also be used.
MILES (KM)
06-05-2002
