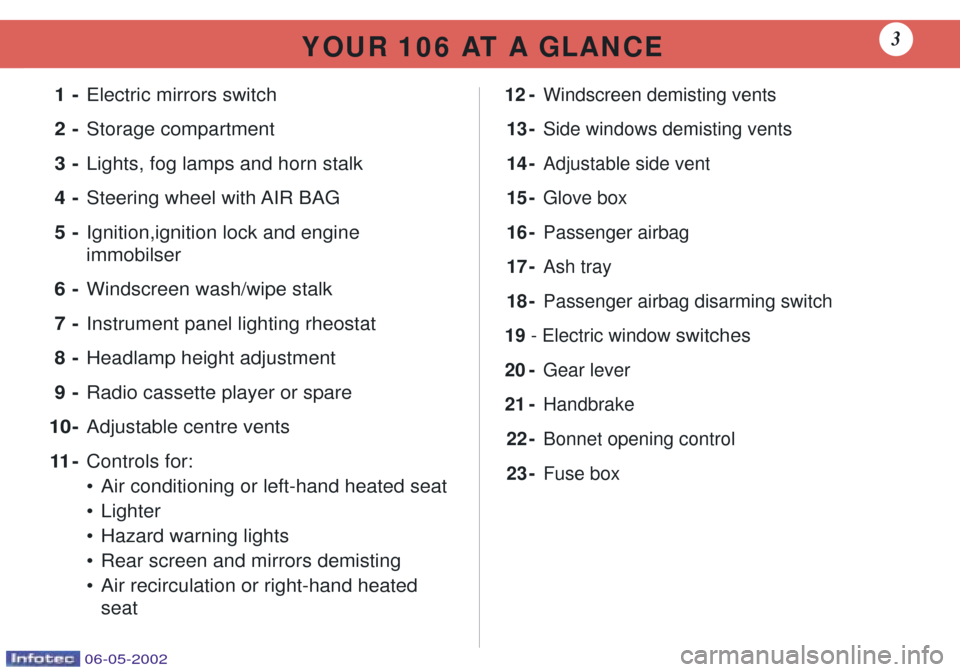

Y O U R 1 0 6 AT A G L A N C E3
1-Electric mirrors switch
2- Storage compartment
3- Lights, fog lamps and horn stalk
4- Steering wheel with AIR BAG
5- Ignition,ignition lock and engine immobilser
6- Windscreen wash/wipe stalk
7- Instrument panel lighting rheostat
8- Headlamp height adjustment
9- Radio cassette player or spare
10 - Adjustable centre vents
11 - Controls for:
¥ Air conditioning or left-hand heated seat
¥ Lighter
¥ Hazard warning lights
¥ Rear screen and mirrors demisting
¥ Air recirculation or right-hand heated
seat12 - Windscreen demisting vents
13 - Side windows demisting vents
14 - Adjustable side vent
15 - Glove box
16 - Passenger airbag
17 - Ash tray
18 - Passenger airbag disarming switch
19 - Electric window
switches
20 - Gear lever
21 - Handbrake
22 - Bonnet opening control
23 - Fuse box
06-05-2002

Y O U R 1 0 6 I N D E TA I L66
4
1
2 5
3
6AUDIO
RD S TA
2
12
11
10
9
8
7
5
6
31
4

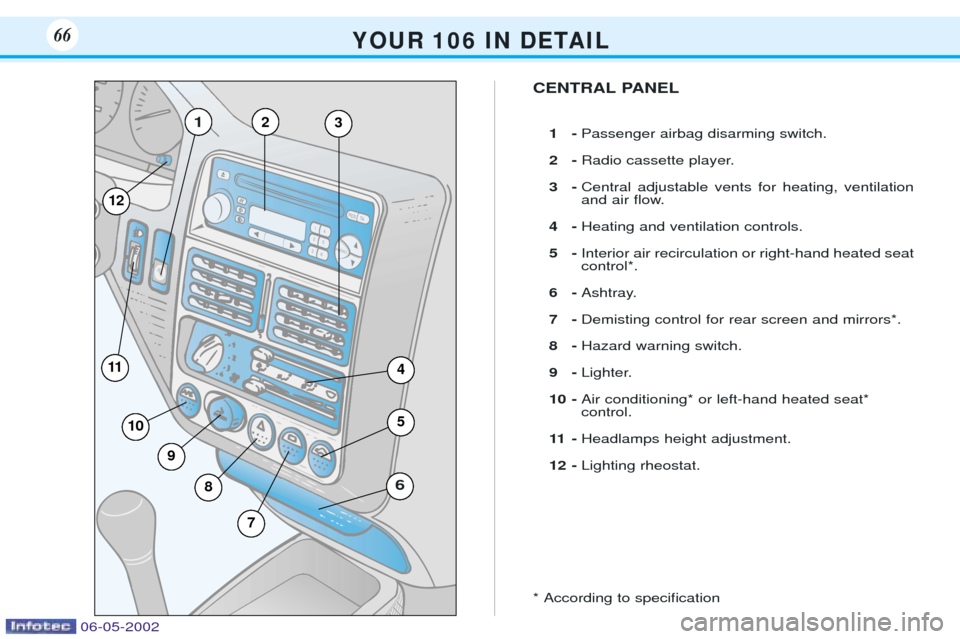

CENTRAL PANEL
1- Passenger airbag disarming switch.
2- Radio cassette player.
3- Central adjustable vents for heating, ventilation
and air ßow.
4- Heating and ventilation controls.
5- Interior air recirculation or right-hand heated seat control*.
6- Ashtray.
7- Demisting control for rear screen and mirrors*.
8- Hazard warning switch.
9- Lighter.
10 - Air conditioning* or left-hand heated seat*control.
11 - Headlamps height adjustment.
12 - Lighting rheostat.
* According to speciÞcation
06-05-2002

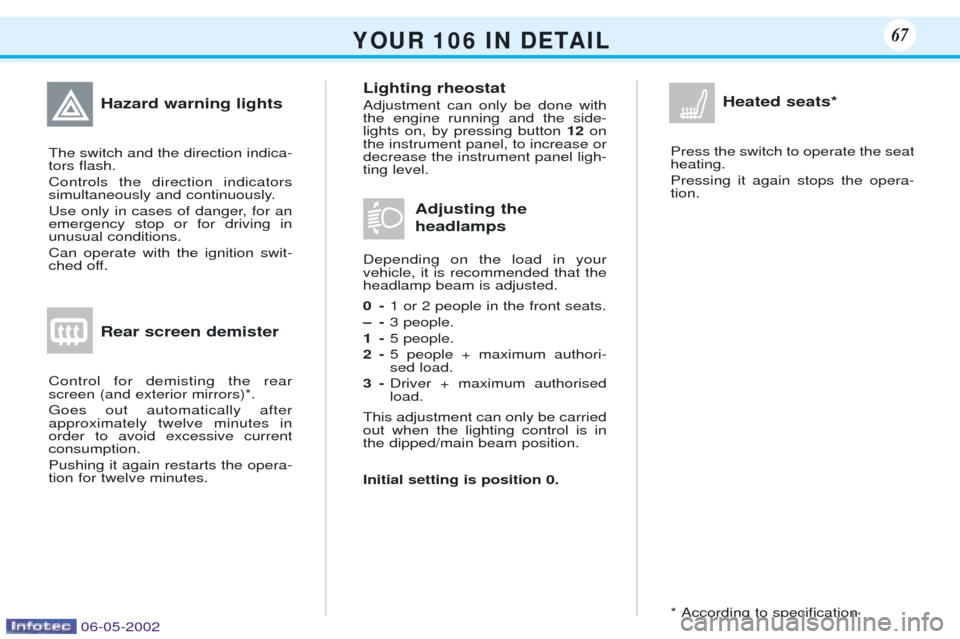

Heated seats*
Press the switch to operate the seat heating. Pressing it again stops the opera- tion. * According to speciÞcation
Lighting rheostat Adjustment can only be done with the engine running and the side-lights on, by pressing button
12on
the instrument panel, to increase ordecrease the instrument panel ligh-ting level.
Adjusting the headlamps
Depending on the load in your vehicle, it is recommended that theheadlamp beam is adjusted. 0- 1 or 2 people in the front seats.
Ð- 3 people.
1- 5 people.
2- 5 people + maximum authori- sed load.
3- Driver + maximum authorised load.
This adjustment can only be carriedout when the lighting control is inthe dipped/main beam position. Initial setting is position 0.
Hazard warning lights
The switch and the direction indica- tors ßash. Controls the direction indicators
simultaneously and continuously.
Use only in cases of danger, for an emergency stop or for driving inunusual conditions. Can operate with the ignition swit-
ched off.
Rear screen demister
Control for demisting the rearscreen (and exterior mirrors)*. Goes out automatically after approximately twelve minutes inorder to avoid excessive currentconsumption. Pushing it again restarts the opera- tion for twelve minutes.
Y O U R 1 0 6 I N D E TA I L67
