change wheel PEUGEOT 107 2010 Owners Manual

PEUGEOT 107 2010 Owners Manual 107 2010 PEUGEOT PEUGEOT https://www.carmanualsonline.info/img/29/58256/w960_58256-0.png PEUGEOT 107 2010 Owners Manual

Page 35 of 97

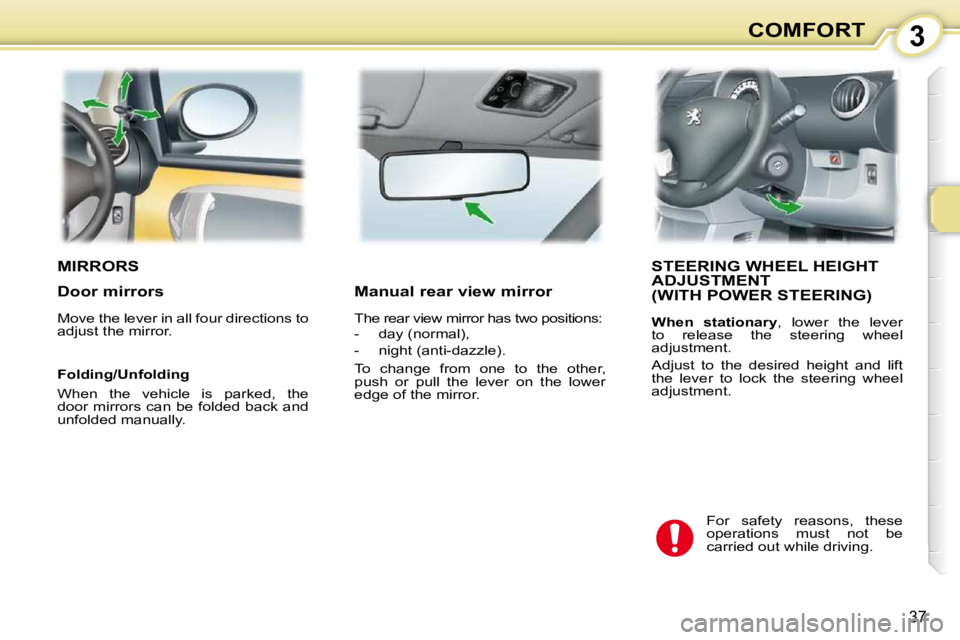

PEUGEOT 107 2010  Owners Manual 3
37
COMFORT
MIRRORS STEERING WHEEL HEIGHT ADJUSTMENT  (WITH POWER STEERING)

When  stationary  ,  lower  the  lever
to  release  the  steering  wheel
adjustment.
 Adjust  to  the  desired  he

Page 76 of 97

PEUGEOT 107 2010  Owners Manual 9
72
PRACTICAL INFORMATION
  Parking the vehicle

�    As  far  as  possible,  immobilise
the  vehicle  on  level,  stable,  non-
slippery ground.

�    Apply  the  parking  brake,  sw

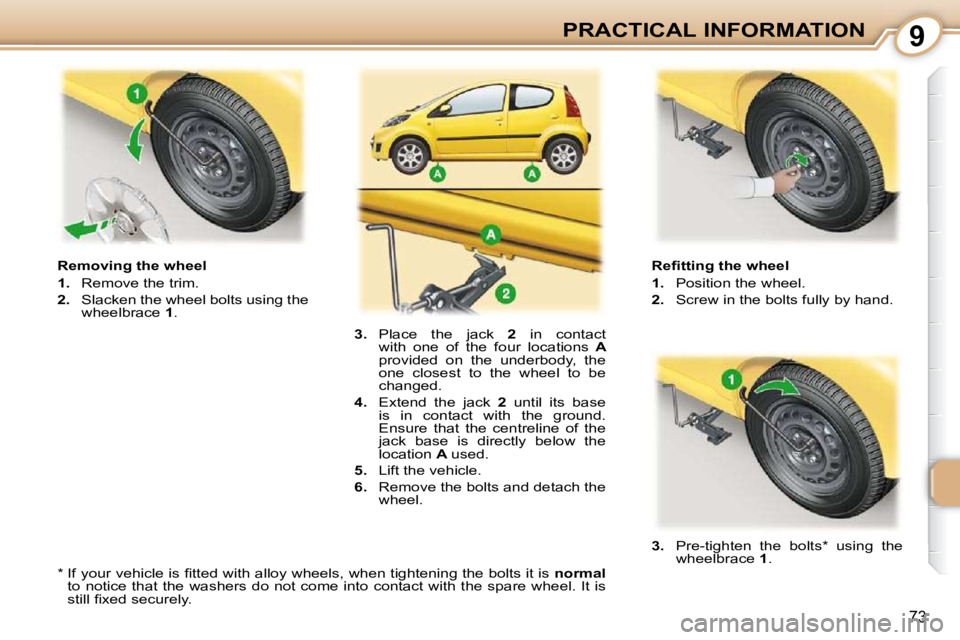

Page 77 of 97

PEUGEOT 107 2010  Owners Manual 9
73
PRACTICAL INFORMATION� � �R�e�fi� �t�t�i�n�g� �t�h�e� �w�h�e�e�l�

1.    Position the wheel.

2.    Screw in the bolts fully by hand.
  Removing the wheel

1.    Remove the trim.

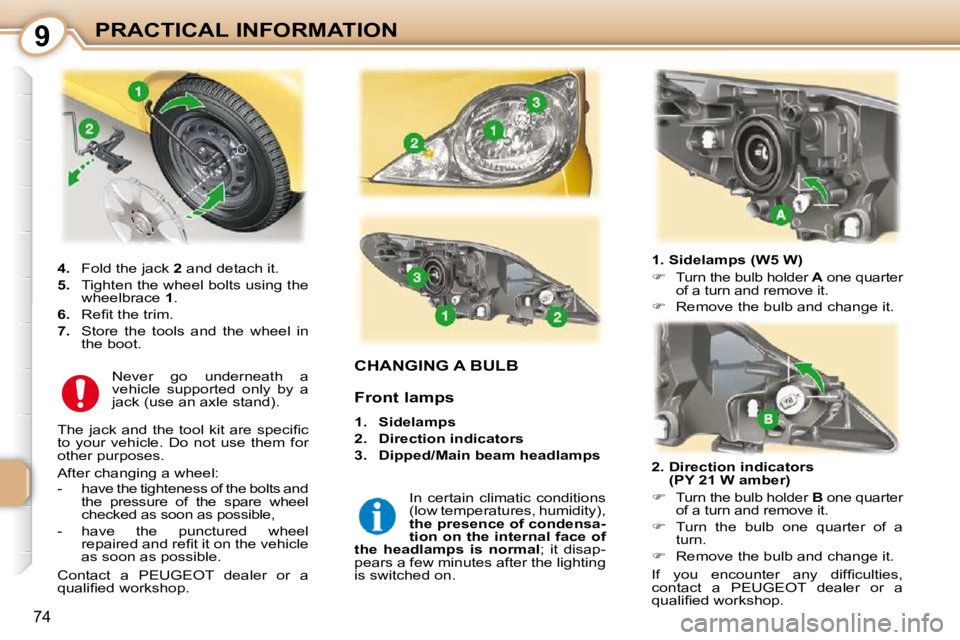

Page 78 of 97

PEUGEOT 107 2010  Owners Manual 9
74
PRACTICAL INFORMATION
CHANGING A BULB
  1. Sidelamps (W5 W)

�
Turn the bulb holder   A  one quarter
of a turn and remove it.

�    Remove the bulb and change it.
  2.  Dire

Page 79 of 97

PEUGEOT 107 2010  Owners Manual 9
74
PRACTICAL INFORMATION
CHANGING A BULB
  1. Sidelamps (W5 W)

�
Turn the bulb holder   A  one quarter
of a turn and remove it.

�    Remove the bulb and change it.
  2.  Dire

Page 81 of 97

PEUGEOT 107 2010  Owners Manual 9
77
PRACTICAL INFORMATION
 DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

��    Push  the  repeater  forwards  or
rearwards and detach it by pulling
towards you.

��    Disconnect

Page 84 of 97

PEUGEOT 107 2010  Owners Manual 9
77
PRACTICAL INFORMATION
 DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

��    Push  the  repeater  forwards  or
rearwards and detach it by pulling
towards you.

��    Disconnect

Page 85 of 97

PEUGEOT 107 2010  Owners Manual 9
77
PRACTICAL INFORMATION
 DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)

��    Push  the  repeater  forwards  or
rearwards and detach it by pulling
towards you.

��    Disconnect
