9
80
PRACTICAL INFORMATION

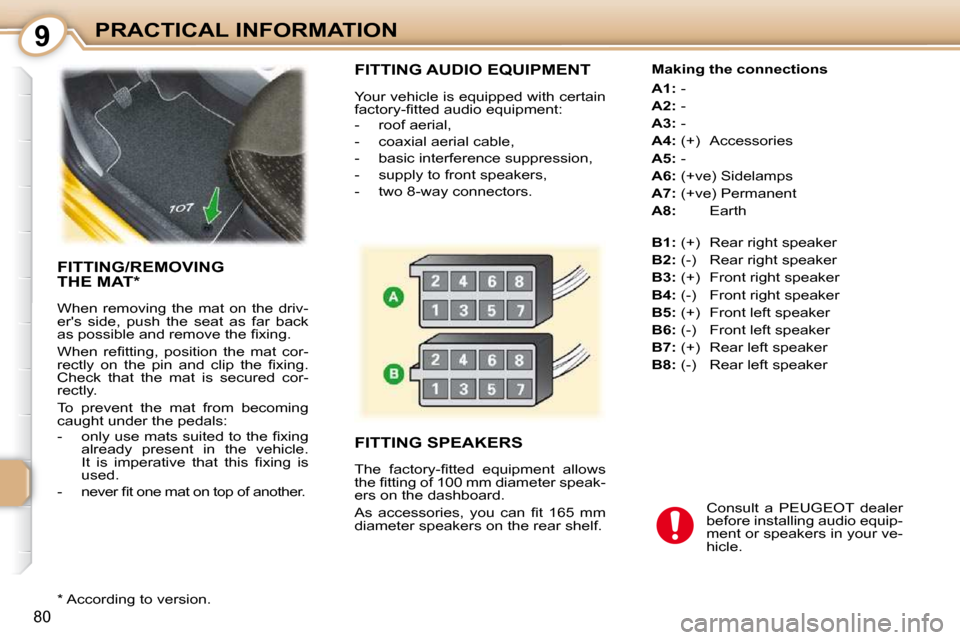

FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
f a c t o r y - fi t t e d a u d i o e q u i p m e n t :
- roof aerial,
- coaxial aerial cable,
- basic interference suppression,
- supply to front speakers,
- two 8-way connectors.
FITTING SPEAKERS
T h e f a c t o r y - fi t t e d e q u i p m e n t a l l o w s
t h e fi t t i n g o f 1 0 0 m m d i a m e t e r s p e a k -
ers on the dashboard.
A s a c c e s s o r i e s , y o u c a n fi t 1 6 5 m m
diameter speakers on the rear shelf. Making the connections
A1: -
A2: -
A3: -
A4: (+) Accessories
A5: -
A6: (+ve) Sidelamps
A7: (+ve) Permanent
A8: Earth
Consult a PEUGEOT dealer
before installing audio equip-
ment or speakers in your ve-
hicle.
FITTING/REMOVING THE MAT *
When removing the mat on the driv-
er's side, push the seat as far back
a s p o s s i b l e a n d r e m o v e t h e fi x i n g .
W h e n r e fi t t i n g , p o s i t i o n t h e m a t c o r -
r e c t l y o n t h e p i n a n d c l i p t h e fi x i n g .
Check that the mat is secured cor-
rectly.
To prevent the mat from becoming
caught under the pedals:
- o n l y u s e m a t s s u i t e d t o t h e fi x i n g already present in the vehicle.
I t i s i m p e r a t i v e t h a t t h i s fi x i n g i s
used.
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
* According to version.
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker
B4: (-) Front right speaker
B5: (+) Front left speaker
B6: (-) Front left speaker
B7: (+) Rear left speaker
B8: (-) Rear left speaker
Page 92 of 99
9
81
PRACTICAL INFORMATION

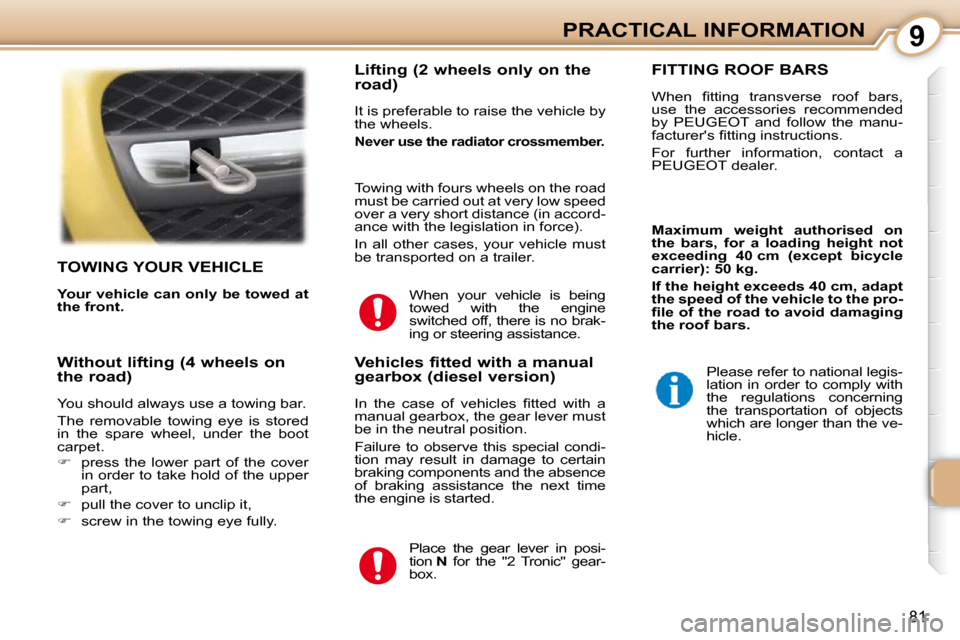

TOWING YOUR VEHICLE
Your vehicle can only be towed at
the front. Lifting (2 wheels only on the
road)
It is preferable to raise the vehicle by
the wheels.
Never use the radiator crossmember.
When your vehicle is being
towed with the engine
switched off, there is no brak-
ing or steering assistance.
Without lifting (4 wheels on
the road)
You should always use a towing bar.
The removable towing eye is stored
in the spare wheel, under the boot
carpet.
press the lower part of the cover
in order to take hold of the upper
part,
pull the cover to unclip it,
screw in the towing eye fully.
Place the gear lever in posi-
tion N for the "2 Tronic" gear-
box.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
use the accessories recommended
by PEUGEOT and follow the manu-
f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
For further information, contact a
PEUGEOT dealer.
Please refer to national legis-
lation in order to comply with
the regulations concerning
the transportation of objects
which are longer than the ve-
hicle.
Towing with fours wheels on the road
must be carried out at very low speed
over a very short distance (in accord-
ance with the legislation in force).
In all other cases, your vehicle must
be transported on a trailer.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condi-
tion may result in damage to certain
braking components and the absence
of braking assistance the next time
the engine is started.
Maximum weight authorised on
the bars, for a loading height not
exceeding 40 cm (except bicycle
carrier): 50 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
the roof bars.
Page 93 of 99
9
82
PRACTICAL INFORMATION

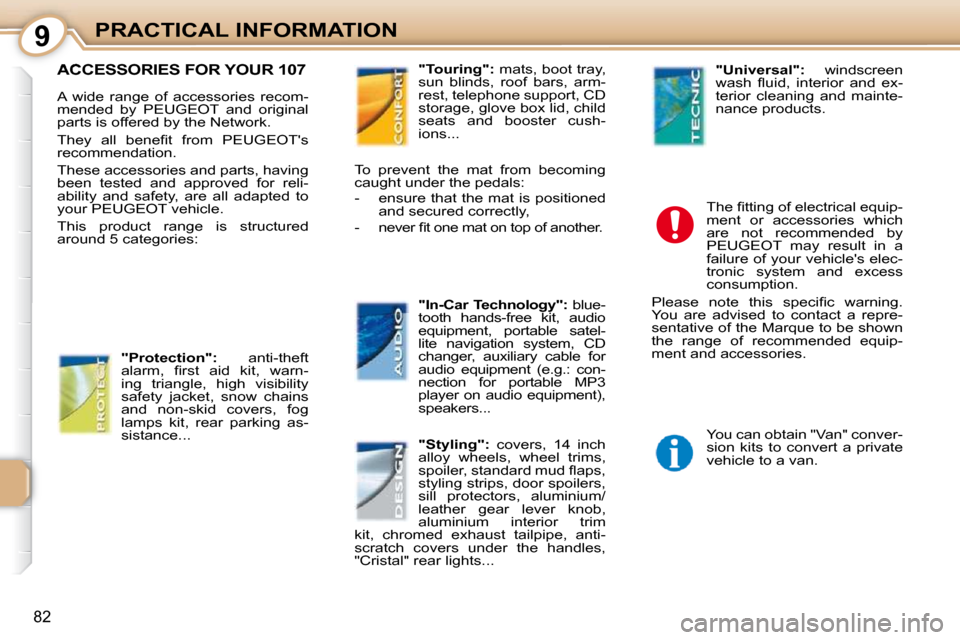

ACCESSORIES FOR YOUR 107
A wide range of accessories recom-
mended by PEUGEOT and original
parts is offered by the Network.
T h e y a l l b e n e fi t f r o m P E U G E O T ' s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle.
This product range is structured
around 5 categories: T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle's elec-
tronic system and excess
consumption.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
"Protection": anti-theft
a l a r m , fi r s t a i d k i t , w a r n -
ing triangle, high visibility
safety jacket, snow chains
and non-skid covers, fog
lamps kit, rear parking as-
sistance...
"Touring": mats, boot tray,
sun blinds, roof bars, arm-
rest, telephone support, CD
storage, glove box lid, child
seats and booster cush-
ions...
"In-Car Technology": blue-
tooth hands-free kit, audio
equipment, portable satel-
lite navigation system, CD
changer, auxiliary cable for
audio equipment (e.g.: con-
nection for portable MP3
player on audio equipment),
speakers...
"Styling": covers, 14 inch
alloy wheels, wheel trims,
s p o i l e r , s t a n d a r d m u d fl a p s ,
styling strips, door spoilers,
sill protectors, aluminium/
leather gear lever knob,
aluminium interior trim
kit, chromed exhaust tailpipe, anti-
scratch covers under the handles,
"Cristal" rear lights...
"Universal": windscreen
w a s h fl u i d , i n t e r i o r a n d e x -
terior cleaning and mainte-
nance products.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
You can obtain "Van" conver-
sion kits to convert a private
vehicle to a van.
Page 94 of 99
1010
83
TECHNICAL DATA

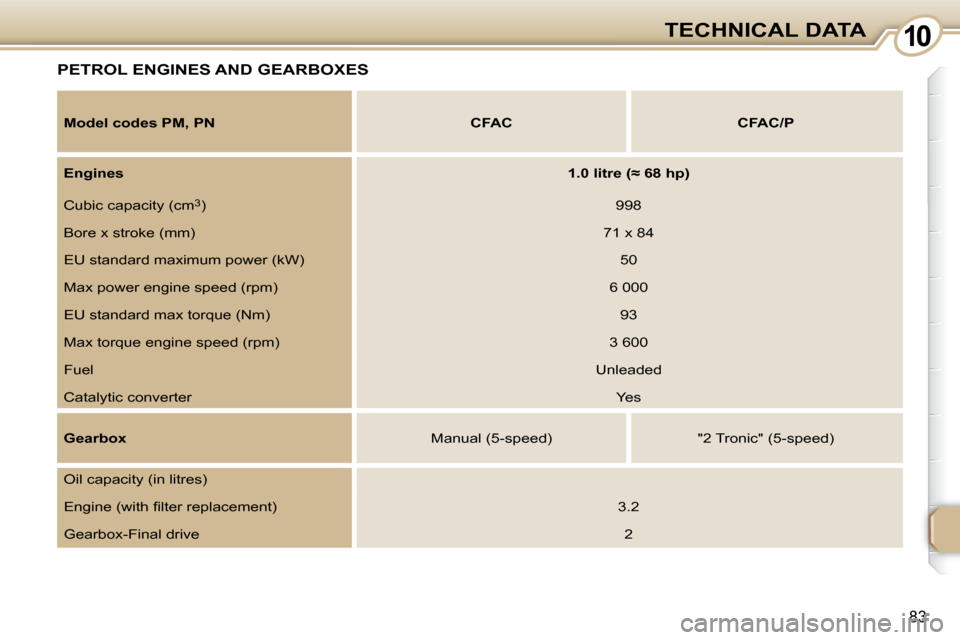

PETROL ENGINES AND GEARBOXES
Model codes PM, PN CFAC CFAC/P
Engines
1 . 0 l i t r e ( ≈ 6 8
hp
)
Cubic capacity (cm 3
) 998
Bore x stroke (mm) 71 x 84
EU standard maximum power (kW) 50
Max power engine speed (rpm) 6 000
EU standard max torque (Nm) 93
Max torque engine speed (rpm) 3 600
Fuel Unleaded
Catalytic converter Yes
Gearbox Manual (5-speed) "2 Tronic" (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.2
Gearbox-Final drive 2
Page 95 of 99
1010
85
TECHNICAL DATA

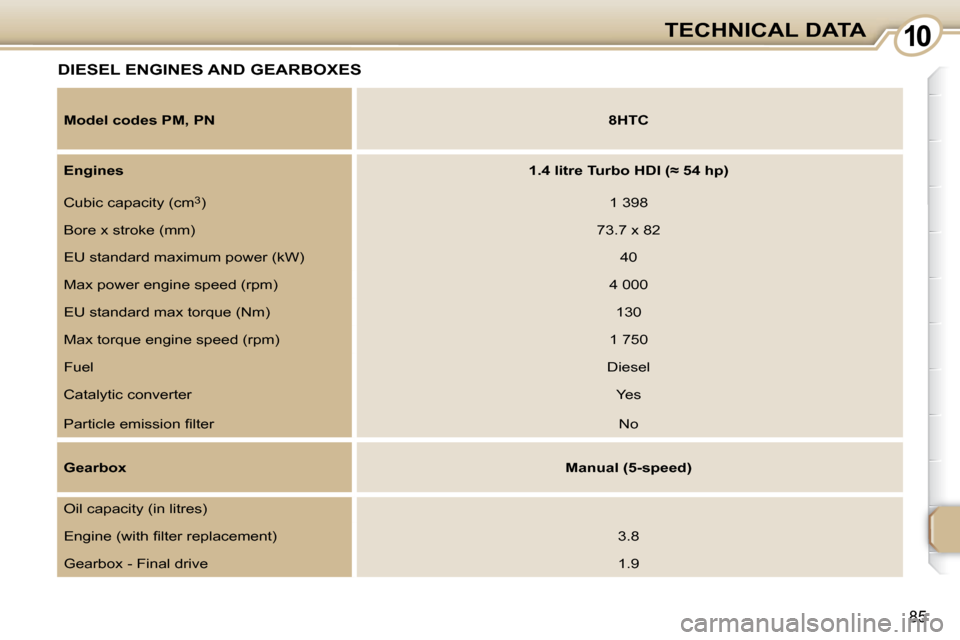

DIESEL ENGINES AND GEARBOXES
Model codes PM, PN
8 H T C
Engines
1 . 4 l i t r e T u r b o H D I ( ≈ 5 4
hp
)
Cubic capacity (cm 3
) 1 398
Bore x stroke (mm) 73.7 x 82
EU standard maximum power (kW) 40
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 130
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
P a r t i c l e e m i s s i o n fi l t e r No
Gearbox
Manual (5-speed)
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.8
Gearbox - Final drive 1.9
Page 96 of 99
1010
84
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.

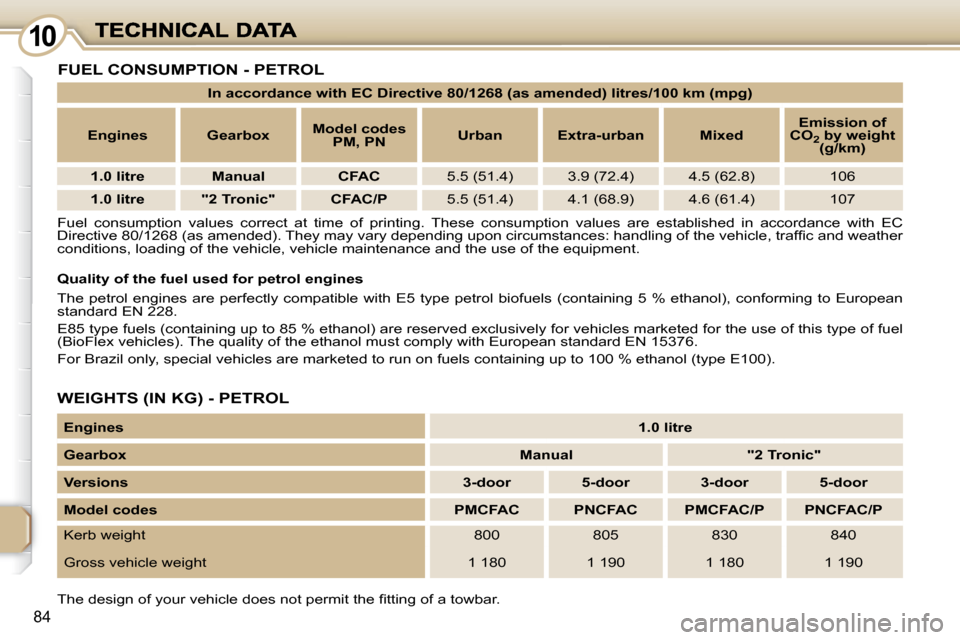

FUEL CONSUMPTION - PETROL
WEIGHTS (IN KG) - PETROL
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d )
l i t r e s / 1 0 0 k m
(
m p g
)
Engines Gearbox
Model codes
PM, PN
Urban Extra
-urban Mixed
E m i s s i o n o f
CO 2 by weight
( g / k m )
1.0 litre Manual CFAC 5.5 (51.4) 3.9 (72.4) 4.5 (62.8) 106
1.0 litre " 2 T r o n i c "
CFAC/P 5.5 (51.4) 4.1 (68.9) 4.6 (61.4) 107
Engines
1.0 litre
Gearbox
Manual " 2 T r o n i c "
Versions
3-door 5-door 3-door 5-door
Model codes
PMCFAC PNCFAC PMCFAC/P PNCFAC/P
Kerb weight 800 805 830 840
Gross vehicle weight 1 180 1 190 1 180 1 190
Q u a l i t y o f t h e f u e l u s e d f o r p e t r o l e n g i n e s
The petrol engines are perfectly compatible with E5 type pet
rol biofuels (containing 5 % ethanol), conforming to European
standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved e xclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels co ntaining up to 100 % ethanol (type E100).
Page 97 of 99
1010
86

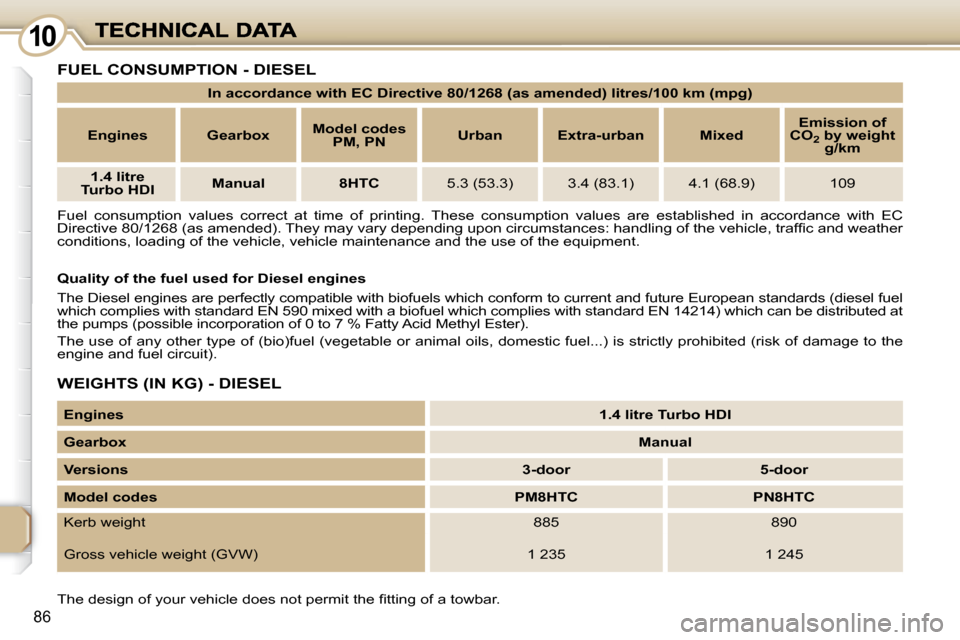

FUEL CONSUMPTION - DIESEL
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d )
l i t r e s / 1 0 0 k m
(
m p g
)
Engines Gearbox
Model codes
PM, PN
Urban Extra
-urban Mixed
E m i s s i o n o f
CO 2 by weight
g / k m
1.4 litre
Turbo HDI
Manual 8 H T C 5.3 (53.3) 3.4 (83.1) 4.1 (68.9) 109
Q u a l i t y o f t h e f u e l u s e d f o r D i e s e l e n g i n e s
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel
which complies with standard EN 590 mixed with a bi ofuel which complies with standard EN 14214) which can be distributed at
the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).
WEIGHTS (IN KG) - DIESEL
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
Engines
1.4 litre Turbo HDI
Gearbox
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 98 of 99
1010
87
TECHNICAL DATA

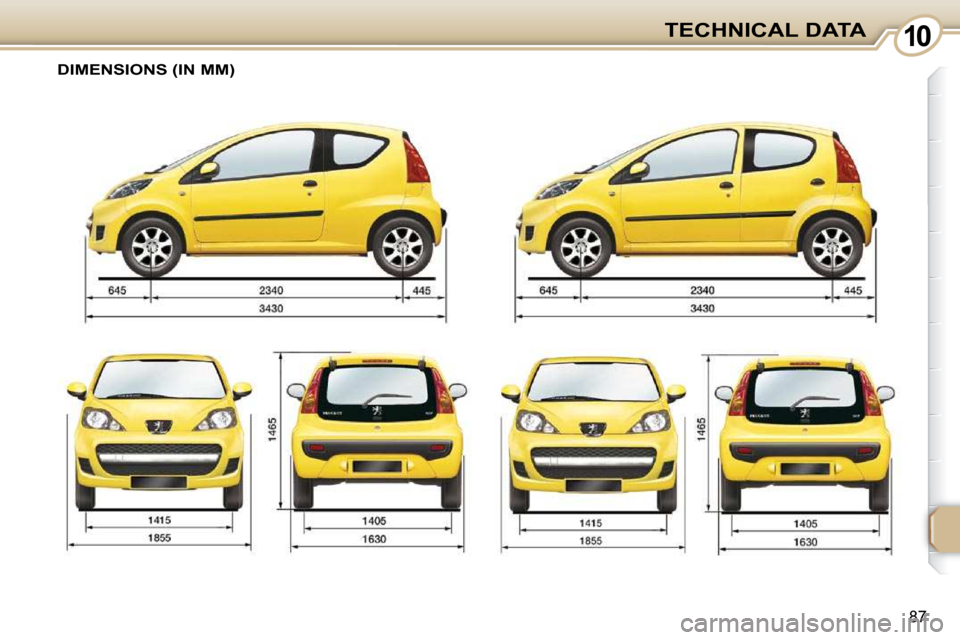

DIMENSIONS (IN MM)
Page 99 of 99
1010
88

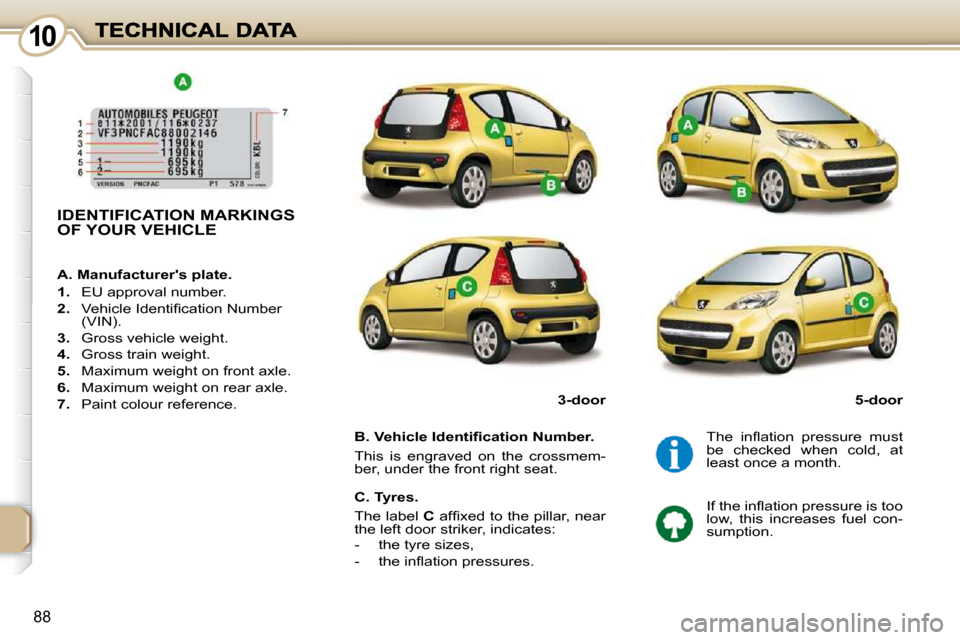

IDENTIFICATION MARKINGS OF YOUR VEHICLE
B . V e h i c l e I d e n t i fi c a t i o n N u m b e r .
This is engraved on the crossmem-
ber, under the front right seat. T h e i n fl a t i o n p r e s s u r e m u s t
be checked when cold, at
least once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2 . V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference. 5-door
3-door
I f t h e i n fl a t i o n p r e s s u r e i s t o o
low, this increases fuel con-
sumption.
C. Tyres.
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- t h e i n fl a t i o n p r e s s u r e s .
