Peugeot 107 Dag 2009 Workshop Manual

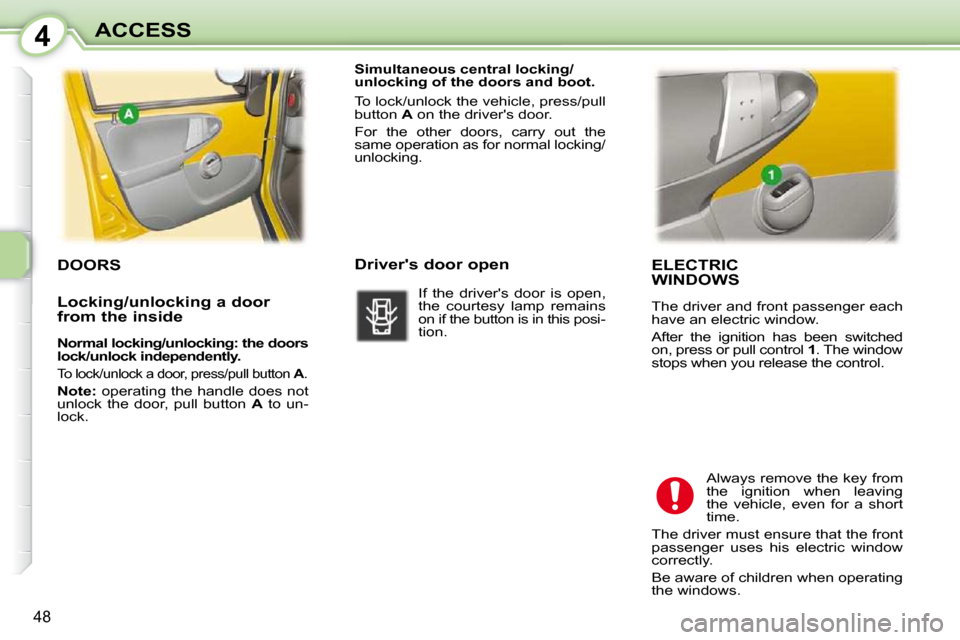

4
48
ACCESS ELECTRIC
WINDOWS
The driver and front passenger each
have an electric window.
After the ignition has been switched
on, press or pull control 1 . The window
stops when you release the control.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
The driver must ensure that the front
passenger uses his electric window
correctly.
Be aware of children when operating
the windows.
DOORS
Simultaneous central locking/unlocking of the doors and boot.
To lock/unlock the vehicle, press/pull button A on the driver's door.
For the other doors, carry out the same operation as for normal locking/unlocking.
Driver's door open
If the driver's door is open,
the courtesy lamp remains
on if the button is in this posi-
tion.
Locking/unlocking a door
from the inside

Normal locking/unlocking: the doors
lock/unlock independently.

To lock/unlock a door, press/pull button A .

Note: operating the handle does not
unlock the door, pull button A to un-
lock.

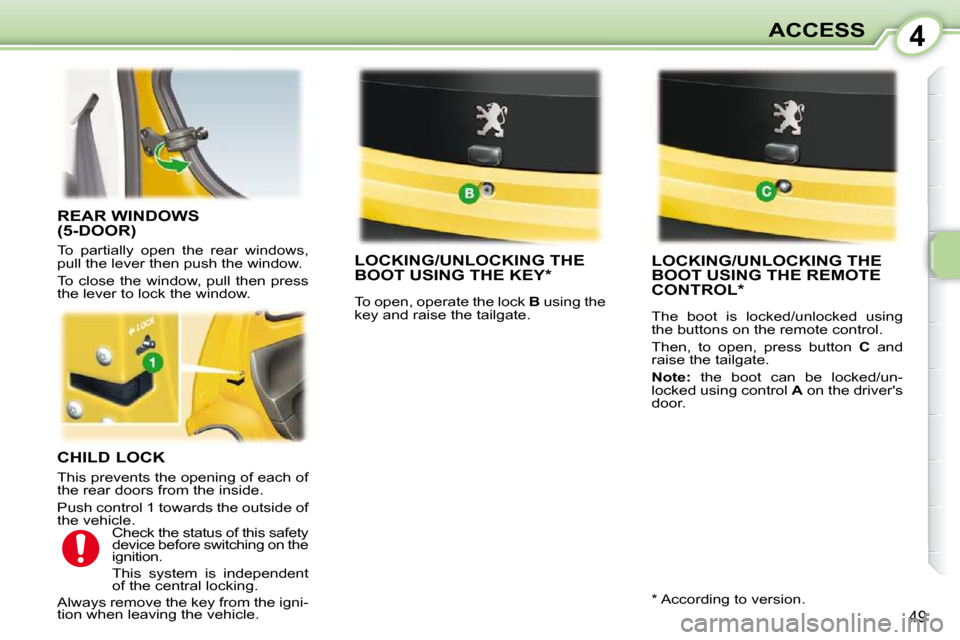

4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.

Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the igni-
tion when leaving the vehicle. * According to version.

4
49
ACCESS
CHILD LOCK
This prevents the opening of each of
the rear doors from the inside.
Push control 1 towards the outside of
the vehicle.
LOCKING/UNLOCKING THE BOOT USING THE KEY*
To open, operate the lock B using the
key and raise the tailgate.
LOCKING/UNLOCKING THE BOOT USING THE REMOTE CONTROL *
The boot is locked/unlocked using
the buttons on the remote control.
Then, to open, press button C and
raise the tailgate.

Note: the boot can be locked/un-
locked using control A on the driver's
door.
REAR WINDOWS(5-DOOR)
To partially open the rear windows,
pull the lever then push the window.
To close the window, pull then press
the lever to lock the window.
Check the status of this safety
device before switching on the
ignition.
This system is independent
of the central locking.
Always remove the key from the igni-
tion when leaving the vehicle. * According to version.

4
50
ACCESS
BOOT
2. Spare wheel/Additional storage compartments
Located under the carpet and a plastic
cover, this contains the tools for wheel
changing and towing.
There are two shelf storage options:
- either behind the rear seats,
- or fl at in the boot.
1. Rear shelf
To remove the shelf:
- unhook the shelf from its fi xing
A ,
- pull upwards on each side to detach it from its fi xings,
- raise then tilt the shelf slightly to remove it. In order to obtain additional
space, the spare wheel can
be removed temporarily
(boot tray available as an ac-
cessory).

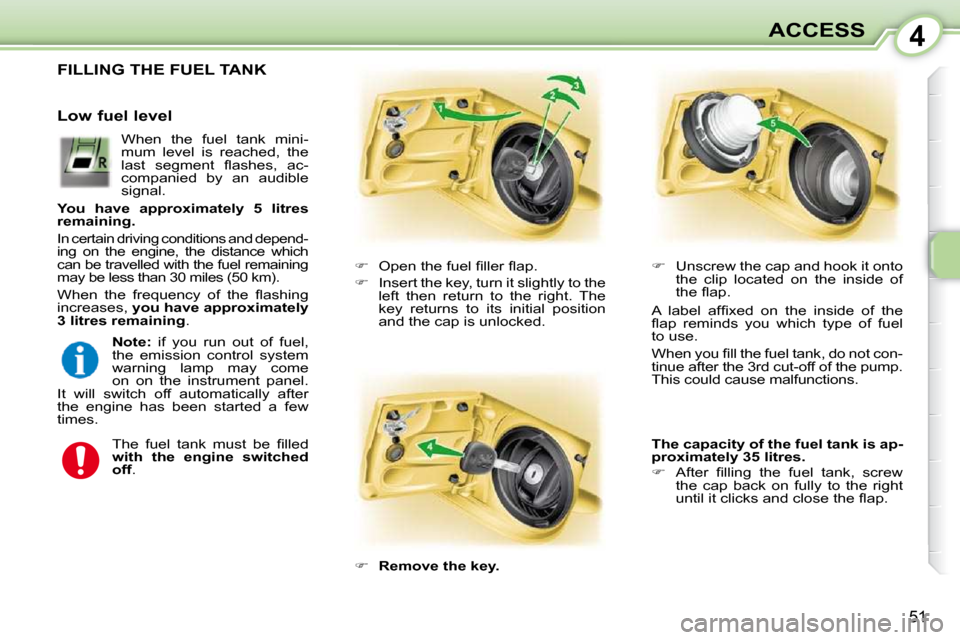

4
51
ACCESS
FILLING THE FUEL TANK

 Open the fuel fi ller fl ap.

 Insert the key, turn it slightly to the
left then return to the right. The
key returns to its initial position
and the cap is unlocked.
Low fuel level
When the fuel tank mini-
mum level is reached, the
last segment fl ashes, ac-
companied by an audible
signal.

You have approximately 5 litres
remaining.
In certain driving conditions and depend-
ing on the engine, the distance which
can be travelled with the fuel remaining
may be less than 30 miles (50 km).
When the frequency of the fl ashing
increases, you have approximately
3 litres remaining .
 Unscrew the cap and hook it onto
the clip located on the inside of
the fl ap.
A label affi xed on the inside of the
fl ap reminds you which type of fuel
to use.
When you fi ll the fuel tank, do not con-
tinue after the 3rd cut-off of the pump.
This could cause malfunctions.

 Remove the key.

Note
: if you run out of fuel,
the emission control system
warning lamp may come
on on the instrument panel.
It will switch off automatically after
the engine has been started a few
times.
The fuel tank must be fi lled

with the engine switched
off .
The capacity of the fuel tank is ap-
proximately 35 litres.

 After fi lling the fuel tank, screw
the cap back on fully to the right
until it clicks and close the fl ap.

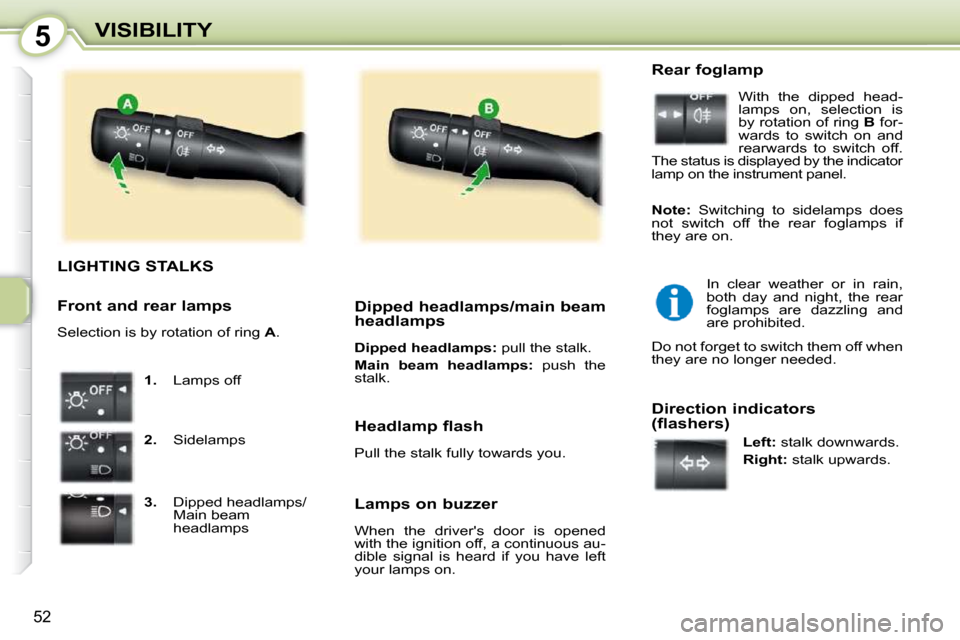

5
52
VISIBILITY
LIGHTING STALK S

1. Lamps off

2. Sidelamps

3. Dipped headlamps/
Main beam
headlamps Dipped headlamps/main beam
headlamps

Dipped headlamps: pull the stalk.

Main beam headlamps: push the
stalk.
Lamps on buzzer
When the driver's door is opened
with the ignition off, a continuous au-
dible signal is heard if you have left
your lamps on. Rear foglamp
With the dipped head-
lamps on, selection is
by rotation of ring B for-
wards to switch on and
rearwards to switch off.
The status is displayed by the indicator
lamp on the instrument panel.
In clear weather or in rain,
both day and night, the rear
foglamps are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.
Direction indicators
(flashers)
Left: stalk downwards.

Right: stalk upwards.
Headlamp flash
Pull the stalk fully towards you.
Front and rear lamps
Selection is by rotation of ring
A .
Note: Switching to sidelamps does
not switch off the rear foglamps if
they are on.

5
53
VISIBILITY
WINDSCREEN WIPER STALK
When using a car wash,
switch off the ignition and
ensure that the wiper blades
are in the low position.
In winter, you are advised to wait until
the windscreen has been defrosted
fully before operating the windscreen
wiper stalk. Windscreen wash
Pull the wipers stalk towards you.
Rear wiper and wash-wipe
Turn ring
A to "ON" for a steady
wipe.
Turn it forwards to trigger
the wash during wiping. Rear wash
Ring
A at "OFF" (wiper off).
Turn it towards you to trigger
a wash operation.
Windscreen wipers

MIST Single wipe.
For a single wipe of the wind- screen, push the control up-
wards then release it.

OFF Off.

INT Intermittent wipe.

LO Normal wipe
(moderate rain).

HI Fast wipe
(heavy rain).

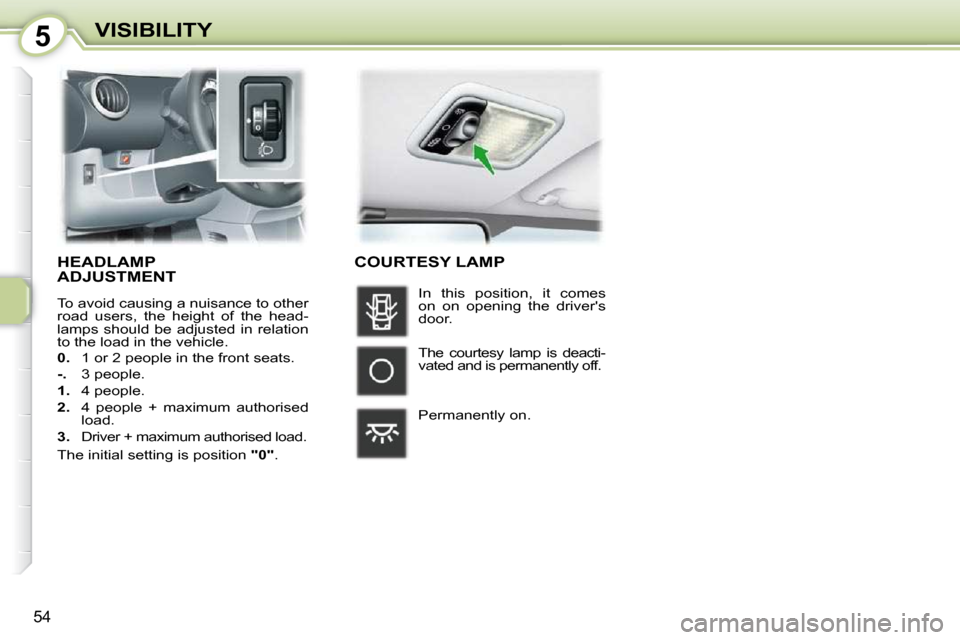

5
54
VISIBILITY
HEADLAMPADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

2. 4 people + maximum authorised
load.

3. Driver + maximum authorised load.
The initial setting is position "0" . In this position, it comes
on on opening the driver's
door.
The courtesy lamp is deacti-
vated and is permanently off.
COURTESY LAMP
Permanently on.

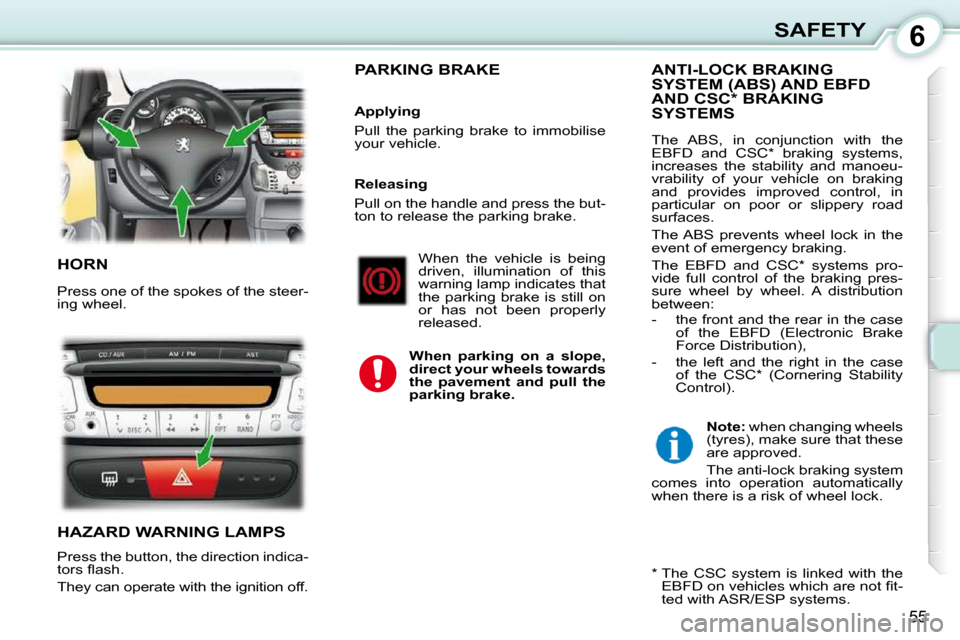

6
55
SAFETY
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).
When the vehicle is being
driven, illumination of this
warning lamp indicates that
the parking brake is still on
or has not been properly
released.

When parking on a slope,
direct your wheels towards
the pavement and pull the

parking brake
.
PARKING BRAKE
Applying
Pull the parking brake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the parking brake.

6
55
SAFETY
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).
When the vehicle is being
driven, illumination of this
warning lamp indicates that
the parking brake is still on
or has not been properly
released.

When parking on a slope,
direct your wheels towards
the pavement and pull the

parking brake
.
PARKING BRAKE
Applying
Pull the parking brake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the parking brake.
