PEUGEOT 2008 2013 Owners Manual

139
6
Safety













Locations for child seats secured with
the seat belt
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Weight of the child /indicative age /
SeatLess than 13 kg (groups 0 (b) and 0+) Up to 1 year approx
From 9 to 18 kg(group 1)From 1 to 3 years approx
From 15 to 25 kg
(group 2)From 3 to 6 years approx
From 22 to 36 kg(group 3) From 6 to 10 years approx

Front passenger seat (c)



- with height adjustment U(R)U(R)U(R)U(R)


-
without height adjustmenttUUUU
Outer rear seats UUUU
Centre rear seat XXXX
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from bir th to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or "for ward facing". U (R): as for U, the vehicle seat must be adjusted to the highest and furthest back position.
X
: seating position not suitable for the installation of a child seat of the weight group indicated.

140
Safety
The incorrect installation of a child seat in a vehicle compromises the child's protection in
the event of an accident. Ensure that there is no seat belt or seat belt buckle under the child seat, as this could destabilise it.

Remember to fasten the seat belts or the child seat harnesses keeping the slackrelative to the child's body to a minimum,even for shor t journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it securesthe child seat firmly on the seat of your vehicle. If your passenger seat is adjustable,move it for wards if necessary. At rear seating positions, always leavesufficient space between the front seat and:


- a "rear wards facing" child seat,

- the child's feet for a child seat fitted"forwards facing".

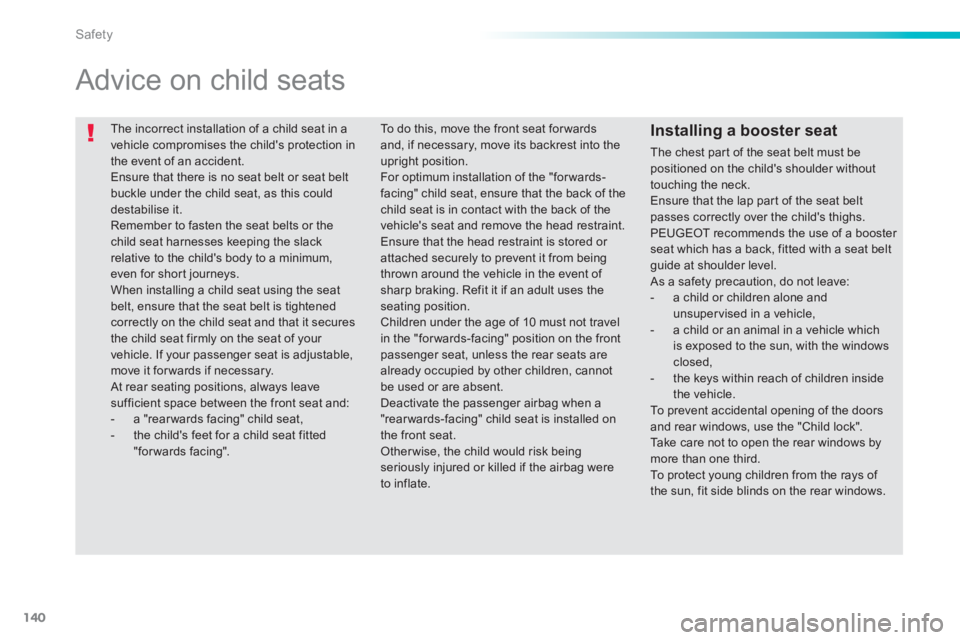

Advice on child seats
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt passes correctly over the child's thighs.PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat beltguide at shoulder level.
As a safety precaution, do not leave: - a child or children alone andunsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed, - the keys within reach of children insidethe vehicle.To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

To d o t h i s, move the front seat for wards and, if necessary, move its backrest into the
upright position.
For optimum installation of the "forwards-facing" child seat, ensure that the back of thechild seat is in contact with the back of the
vehicle's seat and remove the head restraint.
Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit it if an adult uses the seating position. Children under the age of 10 must not travel in the "forwards-facing" position on the frontpassenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.

141
6
Safety
Your vehicle has been approved in accordance
with the new
ISOFIX regulation
.
The seats, represented below, are fitted with
re
gulation ISOFIX mountings:

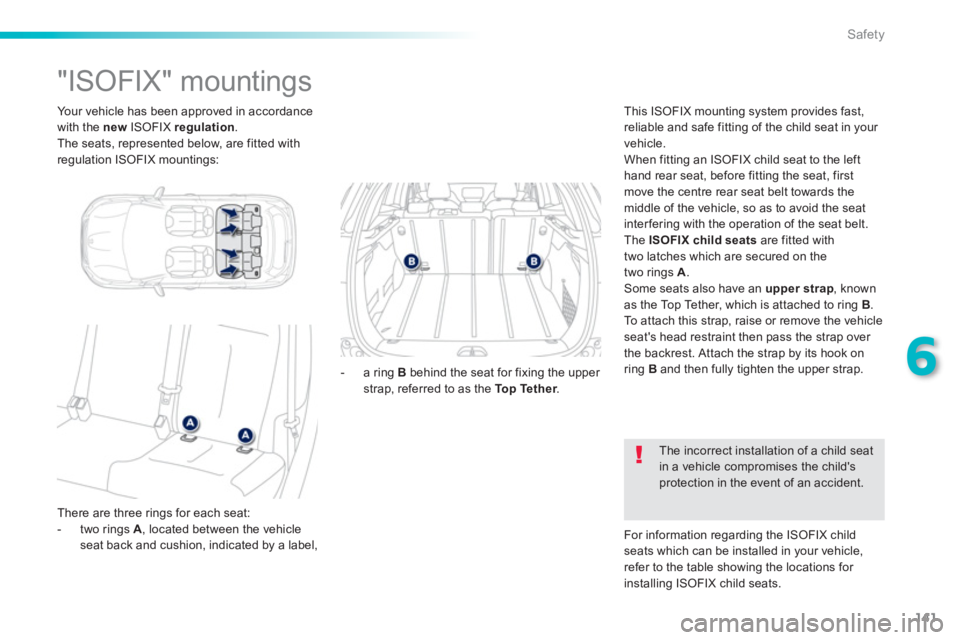

"ISOFIX" mountings

There are three rings for each seat:


- two rings A
, located between the vehicleseat back and cushion, indicated by a label, This I
SOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
When fitting an ISOFIX child seat to the left
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards themiddle of the vehicle, so as to avoid the seat
interfering with the operation of the seat belt.
The ISOFIX child seats
are fitted with
two latches which are secured on the
two rings A.
Some seats also have an upper strap, known
as the Top Tether, which is attached to ring B.
To attach this strap, raise or remove the vehicle
seat's head restraint then pass the strap over
the backrest. Attach the strap by its hook on
ring Band then fully tighten the upper strap.
The incorrect installation of a child seatin a vehicle compromises the child's protection in the event of an accident.
For information re
garding the ISOFIX child seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats. - a r
ing B
behind the seat for fixing the upper strap, referred to as the To p Te t h e r.r

142
Safety










ISOFIX child seats recommended by PEUGEOT and approved
for your vehicle
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
RÖMER Duo Plus ISOFIX(size category B1 )
Group 1: from 9 to 18 kg
Is installed in the for ward-facing position.
Is attached to the rings A and the upper ring B, referred to as the Top Tether, using an upper strap.
Three seat body angles: sitting, reclining, lying down.
Can be installed facing for ward, attached to the seat using a three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.

143
6
Safety

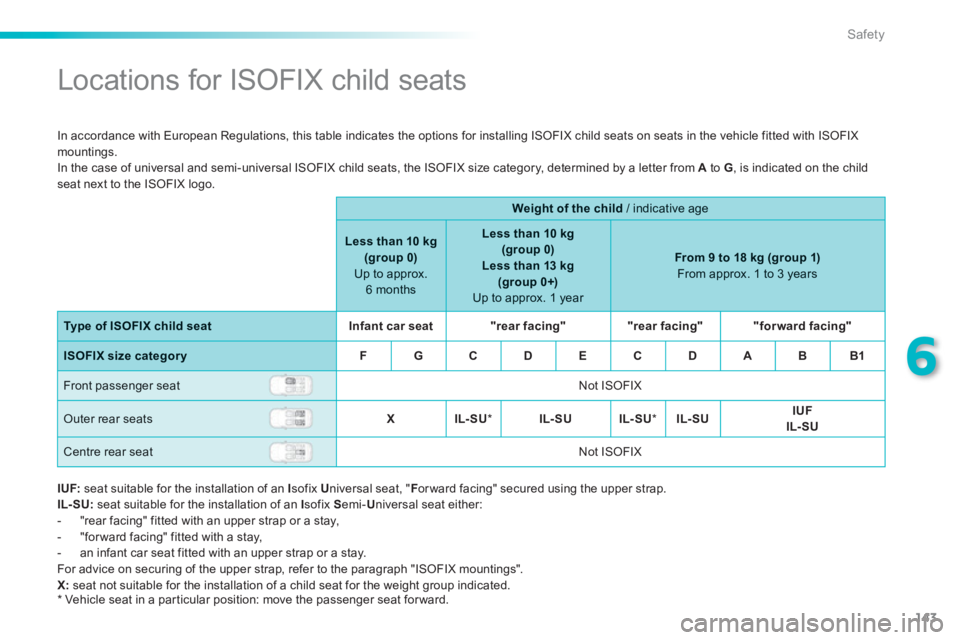

Locations for ISOFIX child seats

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
, is indicated on the childseat next to the ISOFIX logo.
Weight of the child
/ indicative age
Less than 10 kg
(group 0)Up to approx.6 months
Less than 10 kg(group 0)
Less than 13 kg(group 0+)Up to approx. 1 year
From 9 to 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatInfant car seat"rear facing""rear facing" "for ward facing"
ISOFIX size categoryFGCDECDABB1



Front passenger seatNot ISOFIX

Outer rear seats XIL-SU*IL-SUIL-SU*IL-SUIUF
IL-SU
Centre rear seat
Not ISOFIX
IUF:seat suitable for the installation of an Isofix U
niversal seat, "F
orward facing" secured using the upper strap. IL-SU:seat suitable for the installation of an I sofix S emi-U
niversal seat either:


- "rear facing" fitted with an upper strap or a stay,

- "forward facing" fitted with a stay,

- an infant car seat fitted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings". X:seat not suitable for the installation of a child seat for the weight group indicated.

*
Vehicle seat in a par ticular position: move the passenger seat forward.

144
Safety

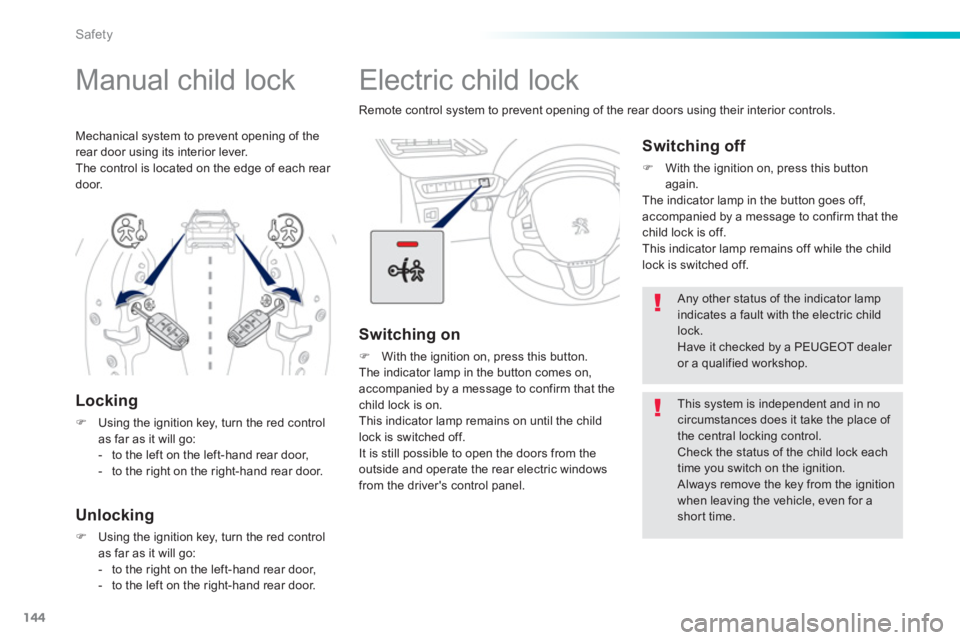

Electric child lock

Remote control system to prevent opening of the rear doors using their interior controls.


Switching on
)
With the ignition on, press this button.
The indicator lamp in the button comes on,
accompanied by a message to confirm that thechild lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outs
ide and operate the rear electric windowsfrom the driver's control panel.


Switching off
)With the ignition on, press this button again.
The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
l
ock is switched off.

Any other status of the indicator lampindicates a fault with the electric child lock.
Have it checked by a PEUGEOT dealer or a qualified workshop.


This system is independent and in nocircumstances does it take the place of
the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.








Manual child lock
Locking
)Using the ignition key, turn the red control
as far as it will go:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.


Unlocking
)Using the ignition key, turn the red control as far as it will go:
- to the right on the left-hand rear door,
- to the left on the right-hand rear door.


Mechanical s
ystem to prevent opening of the rear door using its interior lever.
The control is located on the edge of each rear door.

145
7
Practical information
This kit is installed in the storage box, under the boot floor.
Complete s
ystem consisting of a compressor
and a sealant car tridge which permits temporary repair of a tyre so that you can rdrive to the nearest garage.
It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.

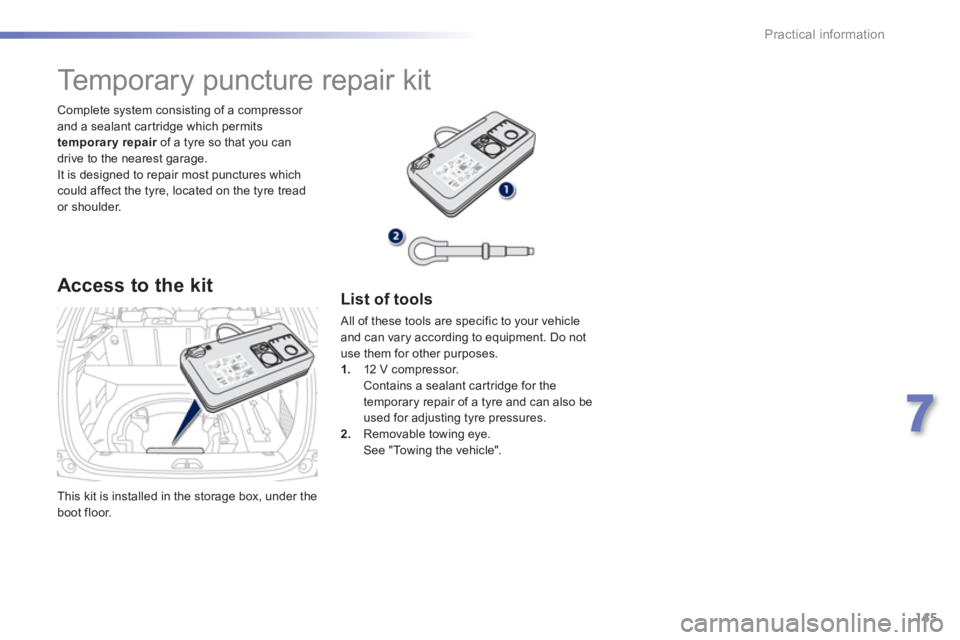

Temporary puncture repair kit

Access to the kit List of tools

All of these tools are specific to your vehicle and can vary according to equipment. Do not use them for other purposes.
1.12 V compressor.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be used for adjusting tyre pressures.
2. Removable towing eye.See "Towing the vehicle".

146
Practical information

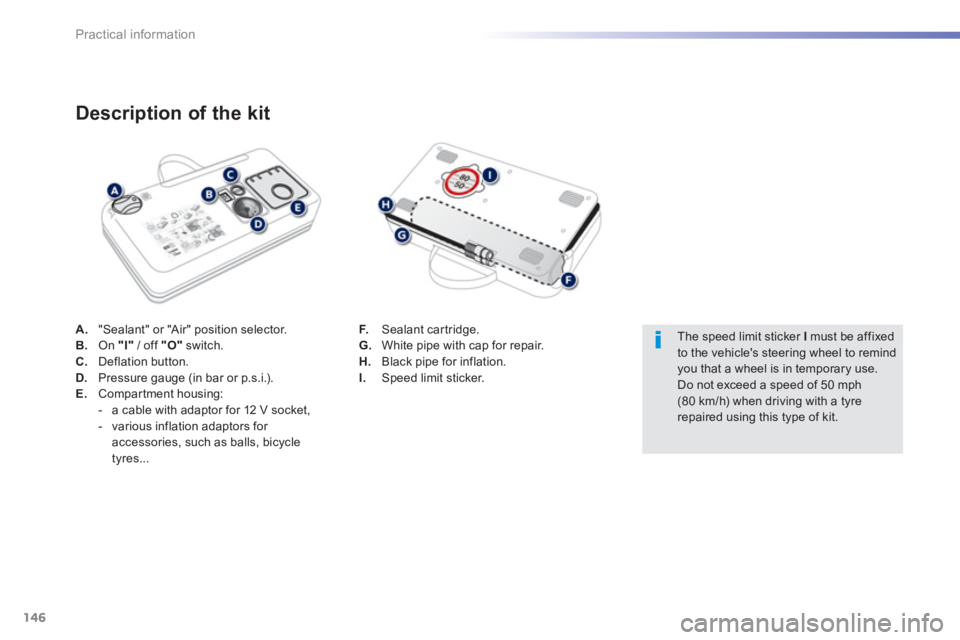

A. "Sealant" or "Air" position selector.B.On "I"/ off "O"
switch. C.Deflation button.D.
Pressure gauge (in bar or p.s.i.).E.
Compartment housing:
- a cable with adaptor for 12 V socket,
- various inflation adaptors for accessories, such as balls, bicycle
tyres...
Description of the kit
F.
Sealant car tridge.
G.White pipe with cap for repair. H.Black pipe for inflation. I. Speed limit sticker.


The speed limit sticker Imust be affixed to the vehicle's steering wheel to remind you that a wheel is in temporary use.
Do not exceed a speed of 50 mph (80 km/h) when driving with a tyre repaired using this type of kit.

147
7
Practical information

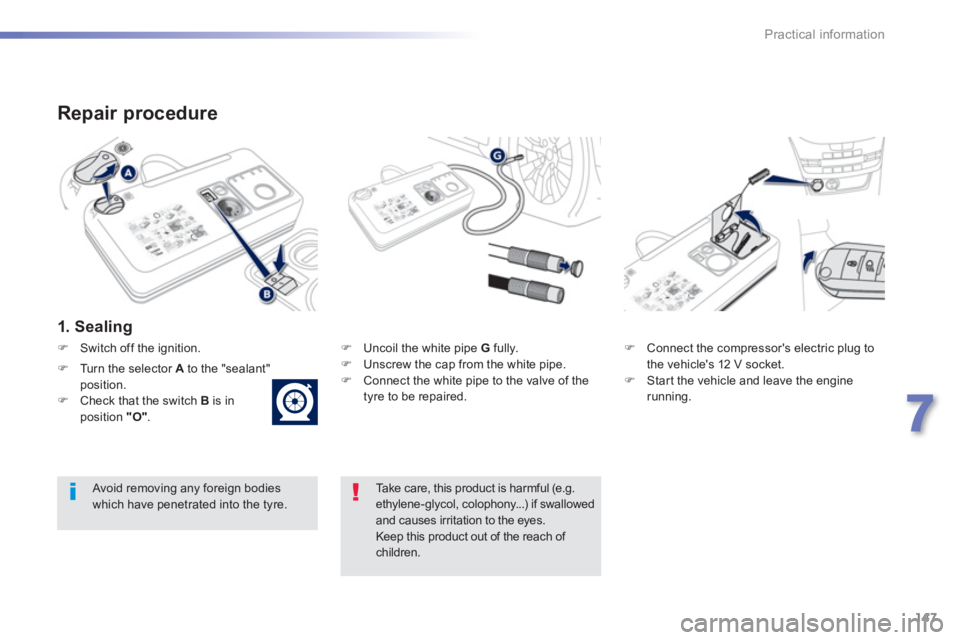

Repair procedure


1. Sealing
)
Uncoil the white pipe G
fully.)
Unscrew the cap from the white pipe.)
Connect the white pipe to the valve of the
tyre to be repaired.

)
Connect the compressor's electric plug to
the vehicle's 12 V socket. ) Star t the vehicle and leave the engine
running.
Take care, this product is harmful (e.g. ethylene-glycol, colophony...) if swallowedand causes irritation to the eyes.Keep this product out of the reach of children.

Avoid removing any foreign bodieswhich have penetrated into the tyre.
)Switch off the ignition.

)Turn the selector A
to the "sealant"position.)Check that the switch B
is in position "O".

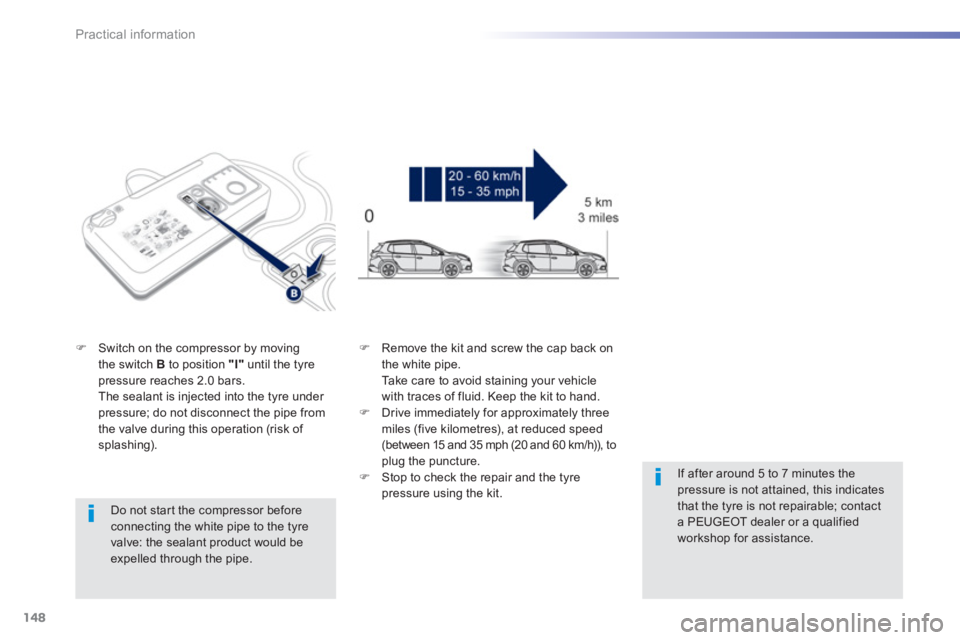

148
Practical information

Do not star t the compressor before connecting the white pipe to the tyre valve: the sealant product would be expelled through the pipe.
)Switch on the compressor by moving
the switch Bto position "I"
until the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre under pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing).

)
Remove the kit and screw the cap back on
the white pipe.
Take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.
) Drive immediately for approximately three
miles (five kilometres), at reduced speed(between 15 and 35 mph (20 and 60 km/h)), to
plug the puncture.) Stop to check the repair and the tyre
pressure using the kit.


If after around 5 to 7 minutes the pressure is not attained, this indicates that the tyre is not repairable; contacta PEUGEOT dealer or a qualifiedworkshop for assistance.
