PEUGEOT 2008 2013 Owners Manual

03

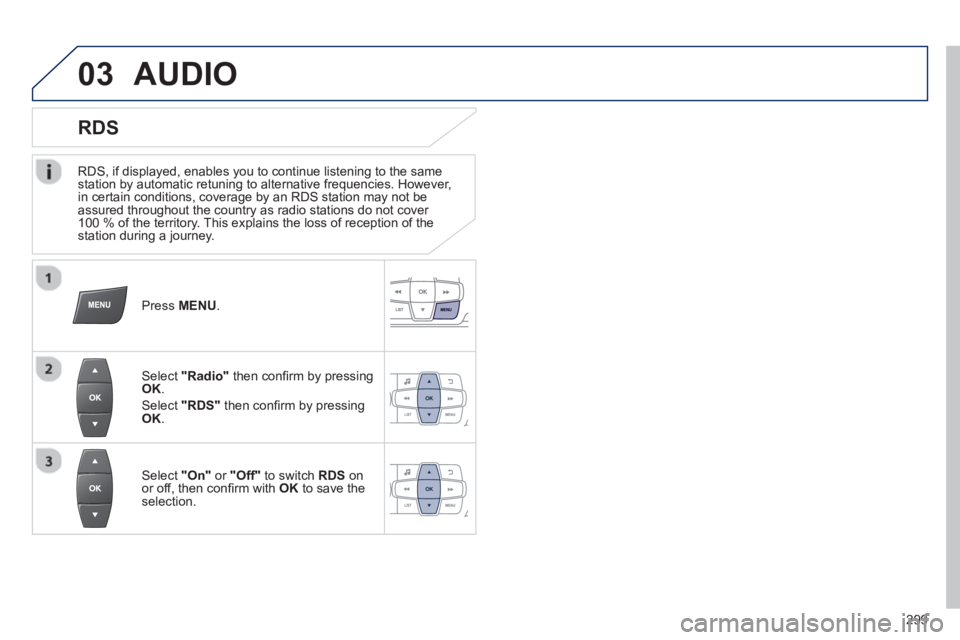

RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However,
in certain conditions, coverage by an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the station during a journey.
AUDIO


RDS
Press MENU .
Select "Radio"
then confi rm by pressing
OK.
Select "RDS"then confi rm by pressingOK
.
Select "On"
or "Off"
to switch RDSonor off, then confi rm with OK
to save the selection.

2
99

03AUDIO

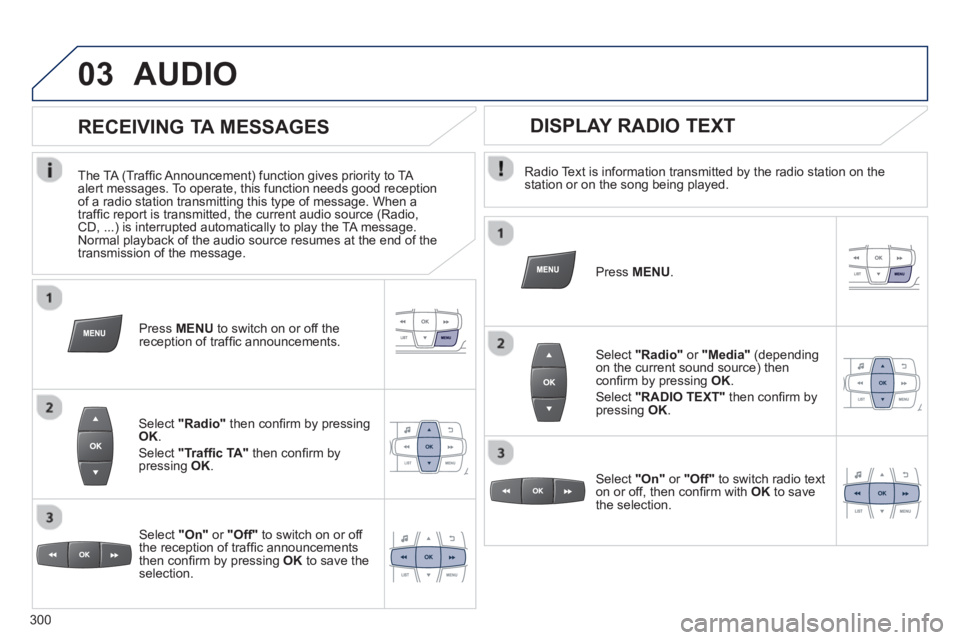

Radio Text is information transmitted by the radio station on thestation or on the song being played.

Pr
ess MENU.

Select "Radio"or "Media"(dependingon the current sound source) then confi rm by pressing OK.

Select "RADIO TEXT"
then confi rm by pressing OK.


DISPLAY RADIO TEXT

RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA
alert messages. To operate, this function needs good receptionof a radio station transmitting this type of message. When a
traffi c report is transmitted, the current audio source (Radio,CD, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.

Select "Radio"then confi rm by pressingOK.
Select "Traffi c TA"
then confi rm by pressing OK.
Select "On"or "Off"
to switch on or off
the reception of traffi c announcements
then confi rm by pressing OKto save theselection.
Press MENU
to switch on or off the reception of traffi c announcements.

Select "On"or "Off"
to switch radio text
on or off, then confi rm with OK
to savethe selection.
300

03

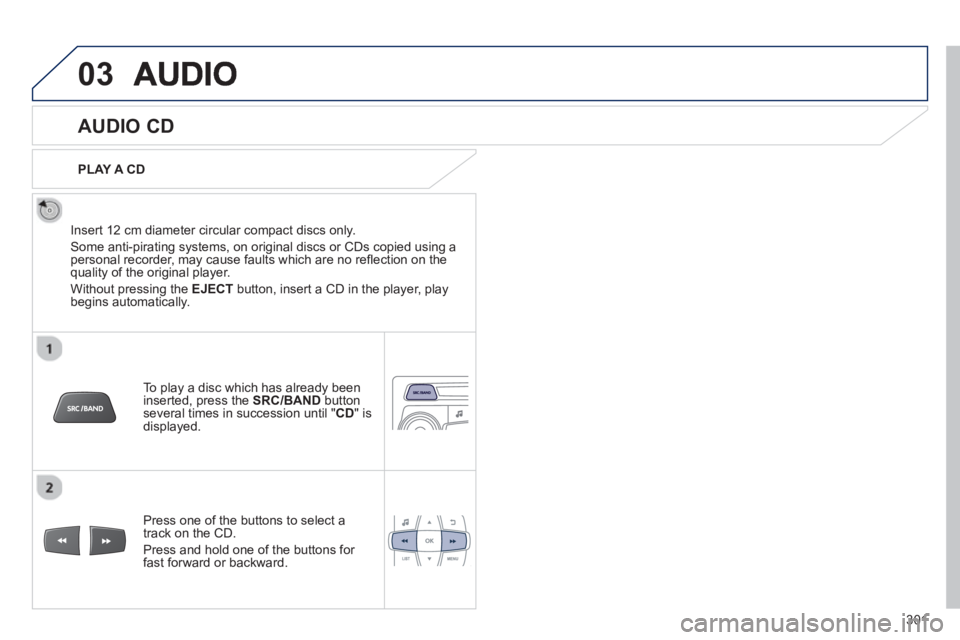

AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-piratin
g systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player.

Without pressing the EJECT
button, insert a CD in the player, playbegins automatically.

To play a disc which has already beeninserted, press the SRC/BAND
buttonseveral times in succession until "CD " is
displayed.

Pr
ess one of the buttons to select a
track on the CD.
Pr
ess and hold one of the buttons for fast forward or backward.
PLAY A
CD
301

03AUDIO

CD

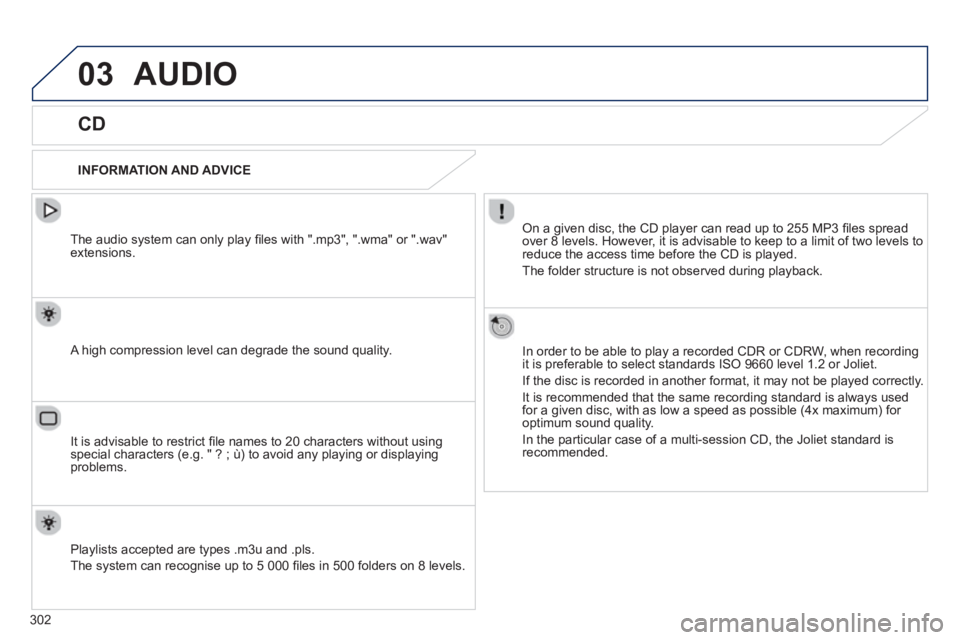

INFORMATION AND ADVICE
On a given disc, the CD player can read up to 255 MP3 fi les spread
over 8 levels. However, it is advisable to keep to a limit of two levels to
reduce the access time be
fore the CD is played.
The
folder structure is not observed during playback.
In order to be able to pla
y a recorded CDR or CDRW, when recordingit is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it ma
y not be played correctly.
It is recommended that the same recording standard is always usedfor a given disc, with as low a speed as possible (4x maximum) for
optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard is
recommended.
The audio s
ystem can only play fi les with ".mp3", ".wma" or ".wav"extensions.

A high compression level can degrade the sound quality.

Pla
ylists accepted are types .m3u and .pls.
The s
ystem can recognise up to 5 000 fi les in 500 folders on 8 levels.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.
302

03

CD
AUDIO

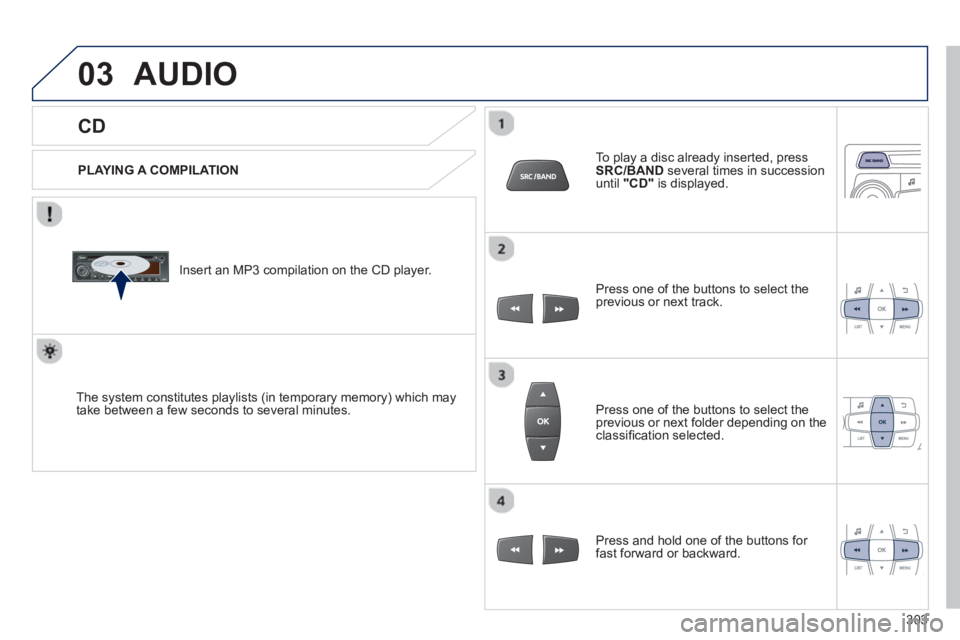

PLAYING A COMPILATION

Insert an MP3 compilation on the
CD player.
The s
ystem constitutes playlists (in temporary memory) which maytake between a few seconds to several minutes.
To play a disc already inserted, press
SRC/BAND several times in successionuntil "CD"
is displayed.

Pr
ess one of the buttons to select the previous or next track.

Pr
ess one of the buttons to select the previous or next folder depending on theclassifi cation selected.

Pr
ess and hold one of the buttons for
fast forward or backward.
303

03

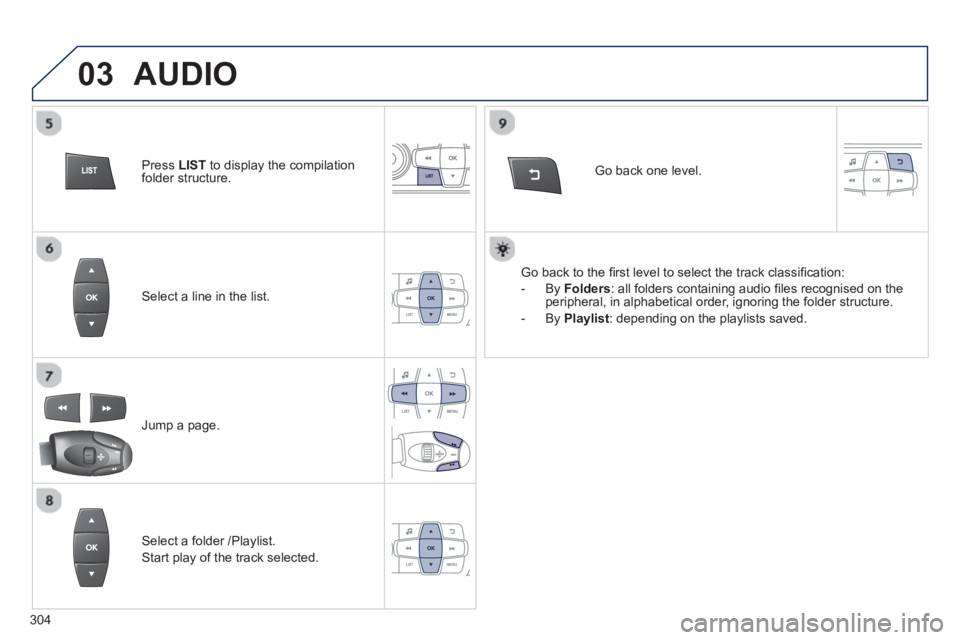

Select a line in the list.
Jump a page.
Go back one level.
Select a folder /Playlist.
Start play of the track selected.
AUDIO
Go back to the fi rst level to select the track classifi cation:
-
By Folders
: all folders containing audio fi les recognised on the peripheral, in alphabetical order, ignoring the folder structure.
- By Playlis
t
: depending on the playlists saved. Pr
ess LISTto display the compilation
folder structure.
304

03AUDIO

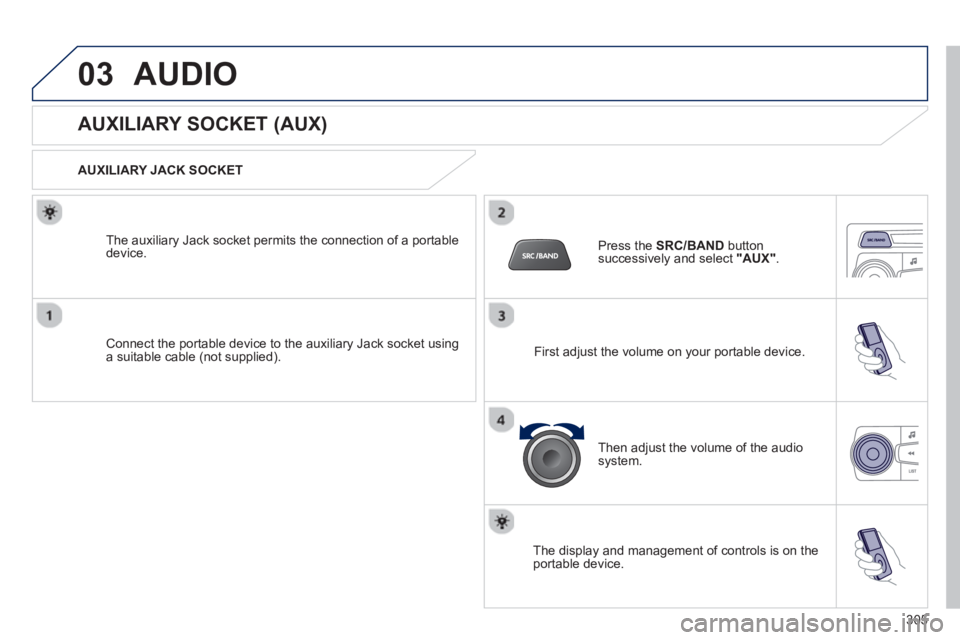

AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET
Connect the portable device to the auxiliary Jack socket using a suitable cable (not supplied). The auxiliar
y Jack socket permits the connection of a portabledevice.Press the SRC/BAND
button
successively and select "AUX".

First ad
just the volume on your portable device.
Then ad
just the volume of the audio
system.

The displa
y and management of controls is on theportable device.
305

03AUDIO

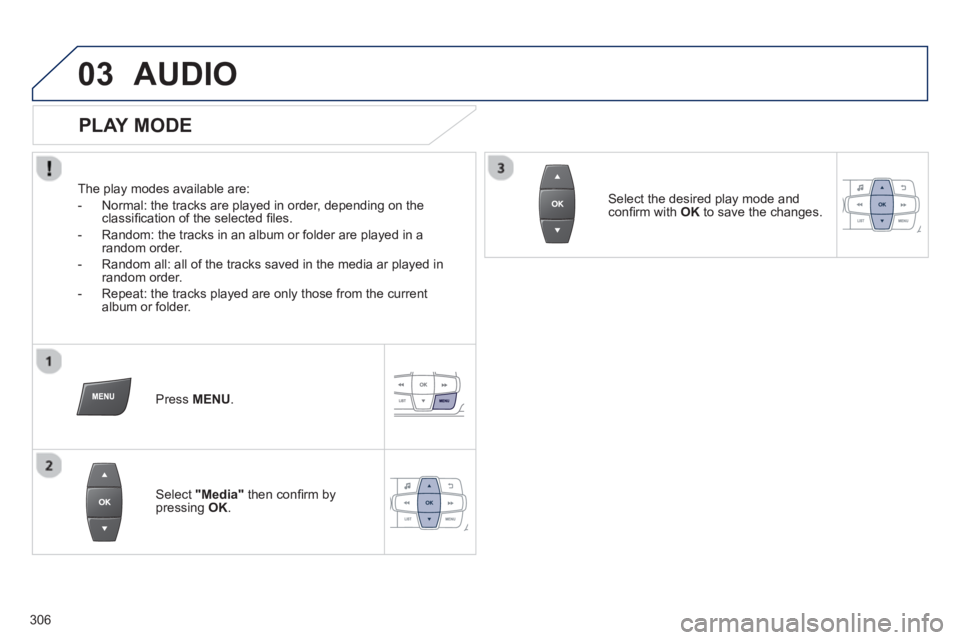

PLAY MODE


The play modes available are:


- Normal: the tracks are pla
yed in order, depending on theclassifi cation of the selected fi les.

- Random: the tracks in an album or
folder are played in arandom order.

- Random all: all o
f the tracks saved in the media ar played in random order.

- Repeat: the tracks pla
yed are only those from the currentalbum or folder.

Press MENU
.
Select "Media"
then confi rm by
pressing OK.
Select the desired play mode andconfi rm with OKto save the changes.

306

04

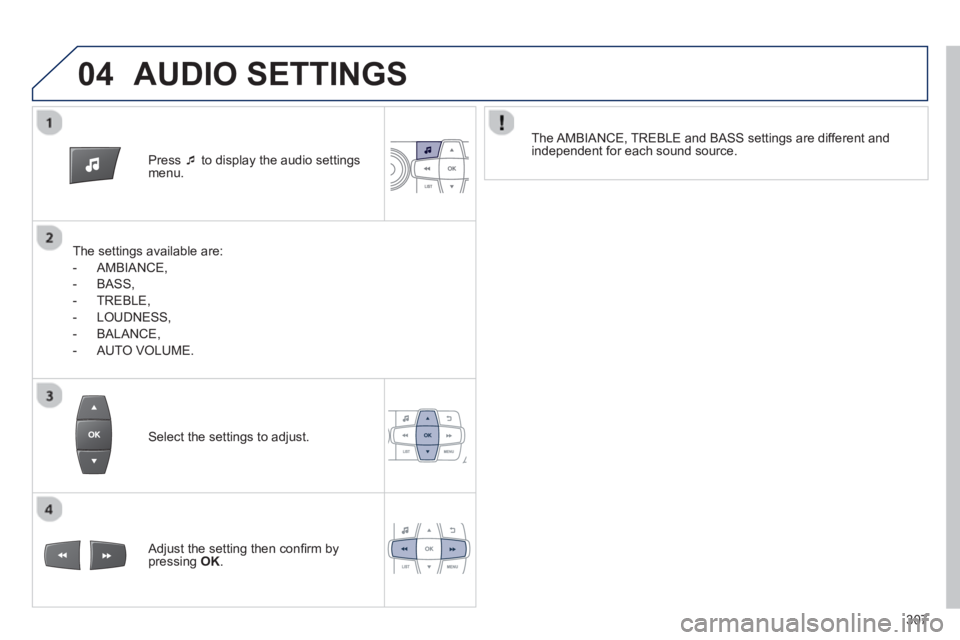

Press ‘to display the audio settings menu.

The settings available are:


- AMBIAN
CE,

- BA
SS,

- TREBLE,

- L
OUDNESS,

- BALANCE
,


- AUTO VOLUME.

The AMBIANCE, TREBLE and BASS settin
gs are different and
independent for each sound source.

Select the settin
gs to adjust.
Ad
just the setting then confi rm by
pressing OK.
AUDIO SETTINGS
307

05

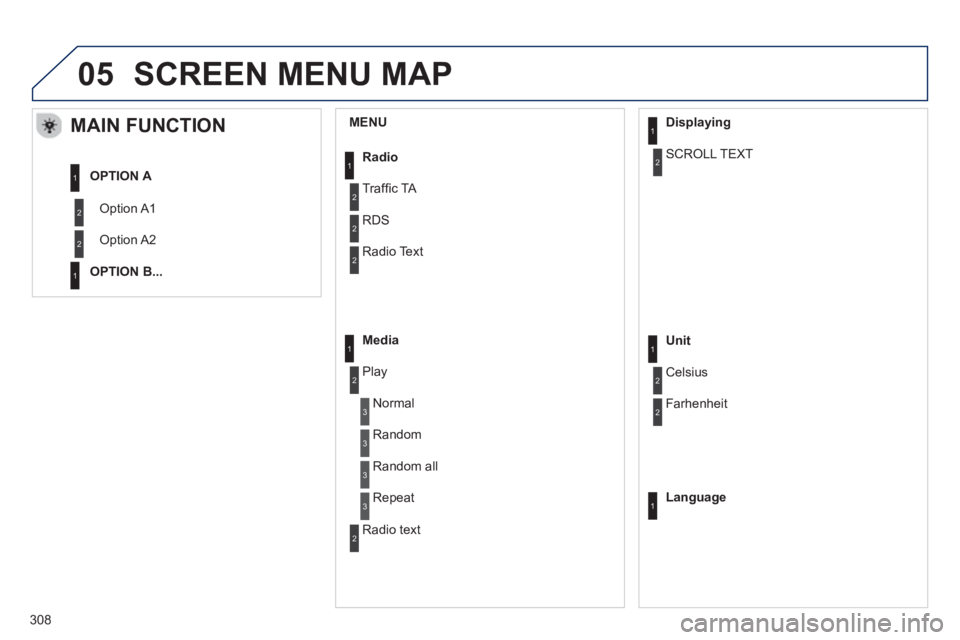

MENU






MAIN FUNCTION
Option A1

Option A2 OPTION
A
OPTION B ...
Radio
Traffi c TA
RD
S
R
adio Text
Media
Play
Normal
R
andom
Displaying
SCROLL TEXT 1
2
2
2
1
2
3
3
1
21
2
2
1

Random all
Re
peat
3
3
Unit
Celsius
F
arhenheit
1
2
2
SCREEN MENU MAP
Radio text2
Language1
