PEUGEOT 2008 2013 Owners Manual

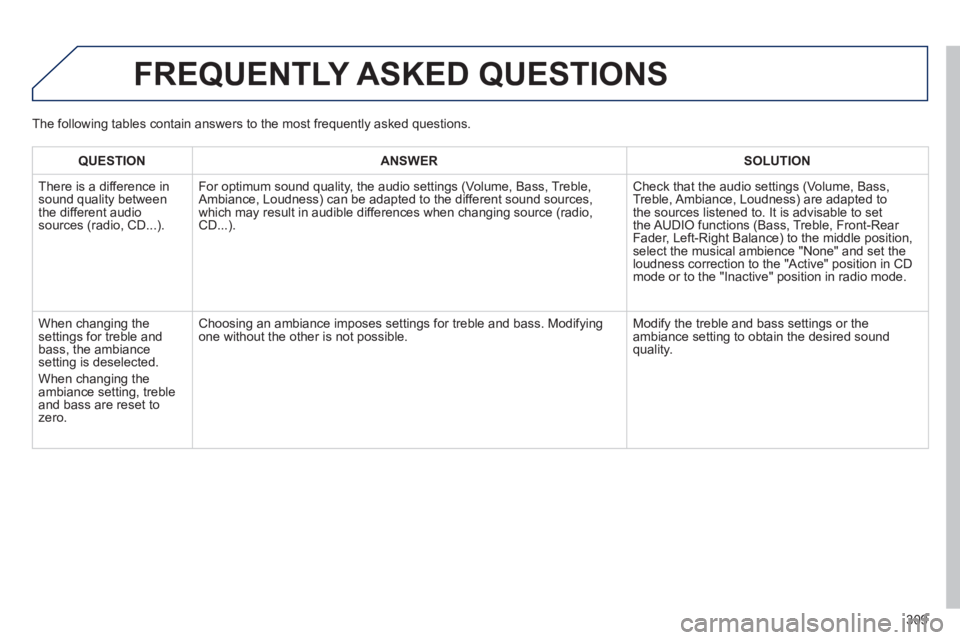

QUESTIONANSWER SOLUTION
There is a difference in sound quality between
the different audiosources (radio, CD...).
For optimum sound qualit
y, the audio settings (Volume, Bass, Treble,
Ambiance, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambiance, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear Fader, Left-Right Balance) to the middle position, select the musical ambience "None" and set theloudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambiance
setting is deselected.
When chan
ging the
ambiance setting, treble and bass are reset to zero.
Choosing an ambiance imposes settings for treble and bass. Modifying
one without the other is not possible. Modify the treble and bass settings or the
ambiance setting to obtain the desired sound quality. The followin
g tables contain answers to the most frequently asked questions.
FREQUENTLY ASKED QUESTIONS
309

FREQUENTLY ASKED QUESTIONS

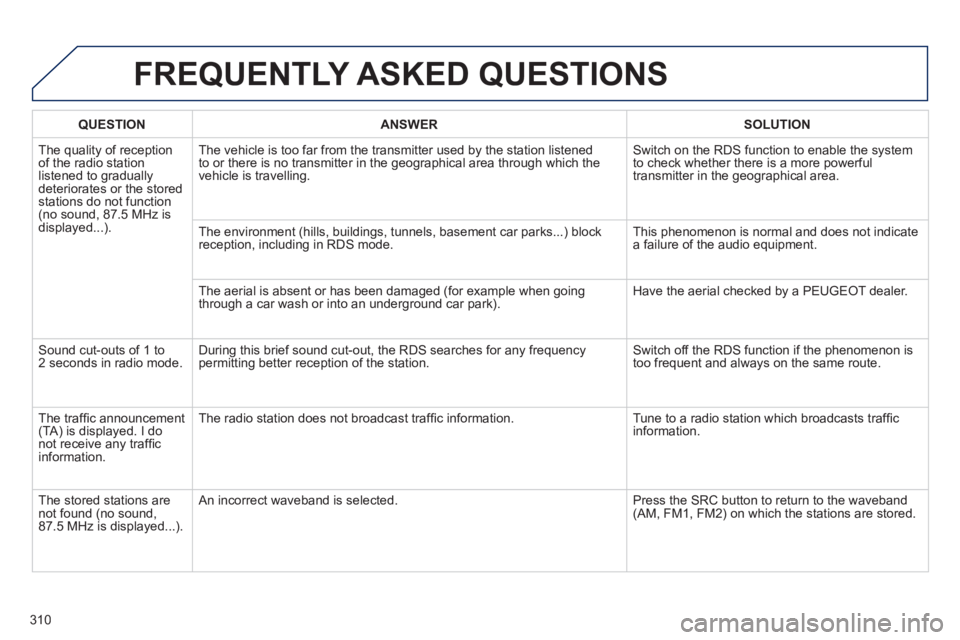

QUESTIONANSWER SOLUTION
The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 MHz is
displayed...). The vehicle is too far from the transmitter used b
y the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Switch on the RDS function to enable the s
ystem
to check whether there is a more powerful
transm
itter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Switch off the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement(TA) is displayed. I donot receive any traffi c
information.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
Th
e stored stations arenot found (no sound, 87.5 MHz is displayed...). An in
correct waveband is selected. Press the SRC button to return to the waveband (AM, FM1, FM2) on which the stations are stored.
310

FREQUENTLY ASKED QUESTIONS

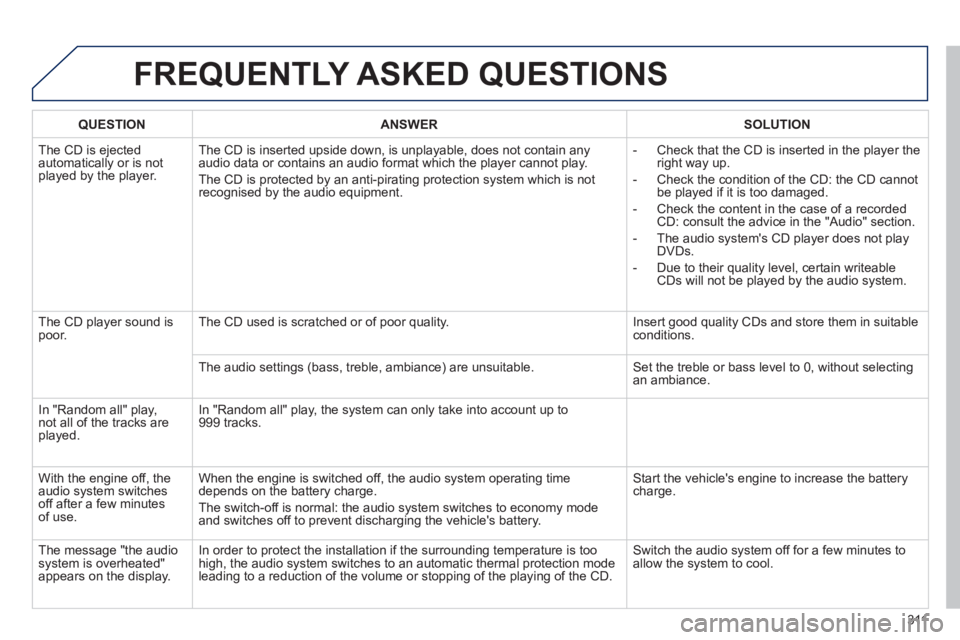

QUESTIONANSWER SOLUTION
The CD is ejected
automatically or is not played by the player. The CD is inserted upside down, is unpla
yable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected b
y an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the pla
yer the
right way up.

-
Check the condition of the CD: the CD cannot
be played if it is too damaged.

-
Check the content in the case of a recordedCD: consult the advice in the "Audio" section.

- The audio s
ystem's CD player does not play
DVDs.

- Due to their qualit
y level, certain writeableCDs will not be played by the audio system.
The CD pla
yer sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settin
gs (bass, treble, ambiance) are unsuitable. Set the treble or bass level to 0, without selectingan ambiance.

In "Random all" play,not all of the tracks areplayed.
In "Random all" play, the system can only take into account up to 999 tracks.
With the en
gine off, the
audio system switches
off after a few minutes of use. When the en
gine is switched off, the audio system operating time
depends on the battery charge.
The switch-o
ff is normal: the audio system switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.

The message "the audio system is overheated"
appears on the display. In order to protect the installation if the surroundin
g temperature is toohigh, the audio system switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio s
ystem off for a few minutes to
allow the system to cool.
311

312
Visual search

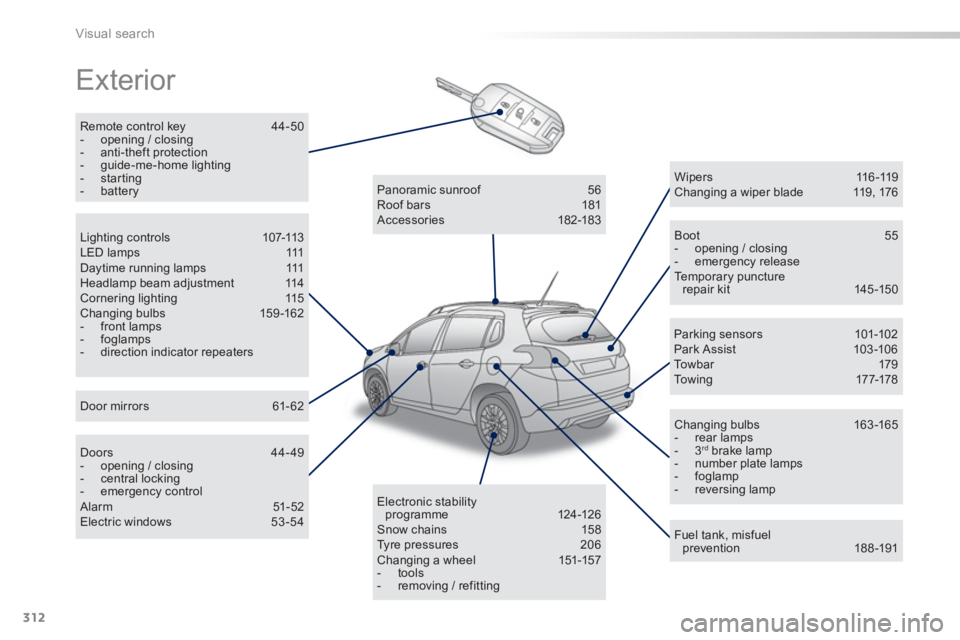

Exterior
Remote control key 44-50 - opening / closing - anti-theft protection - guide-me-home lighting- starting - battery
Boot 55 - opening / closing- emergency release Temporary puncture repair kit 145 -150
Wipe r s 11 6 -11 9 Changing a wiper blade 119, 176
Changing bulbs 163 -165 - rear lamps- 3 rd
brake lamp - number plate lamps - foglamp- reversing lamp
Fuel tank, misfuelprevention 188-191



Panoramic sunroof 56
Roof bars 181
Accessories 182-183

Electronic stabilityprogramme 124-126 Snow chains 158
Tyre pressures 206 Changing a wheel 151-157


- tools

- removing / refitting


Lighting controls 107-113 LED lamps 111 Daytime running lamps 111 Headlamp beam adjustment 114 Cornering lighting 115 Changing bulbs 159 -162 - front lamps - foglamps- direction indicator repeaters
Door mirrors 61-62
Doors 44-49 - opening / closing - central locking- emergency control Alarm 51-52 Electric windows 53-54


Parking sensors 101-102
Park Assist 103-10 6
To w b a r 179
To w i ng 17 7-178

.
313
Visual search

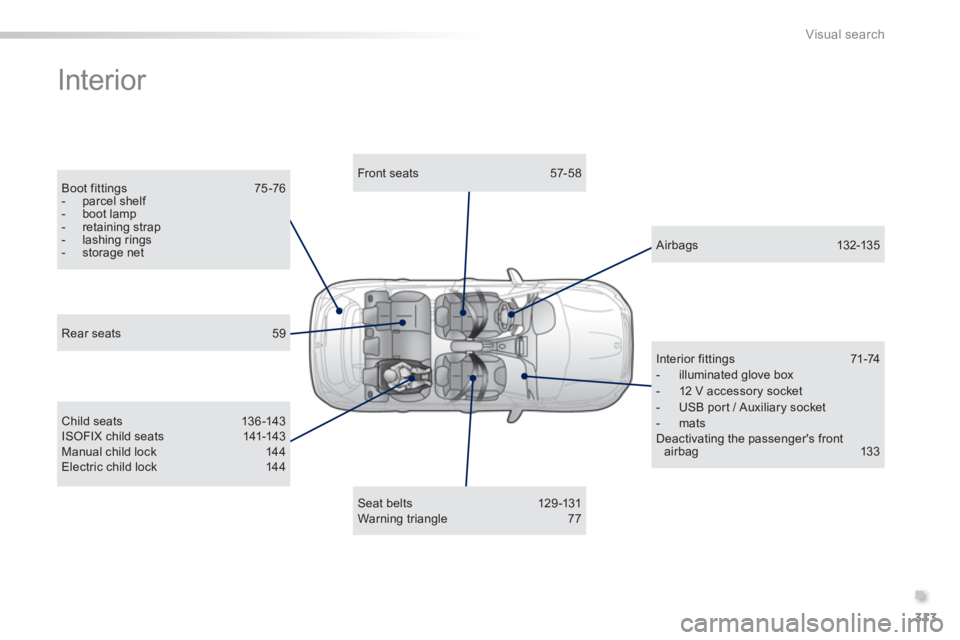

Interior
Boot fittings 75 -76- parcel shelf - boot lamp- retaining strap - lashing rings - storage net

Front seats 57-58

Child seats 136-143ISOFIX child seats 141-143Manual child lock 144 Electric child lock 144

Airbags 132-13 5
Interior fittings 71-74 - illuminated glove box - 12 V accessory socket- USB port / Auxiliary socket- mats
Deactivating the passenger's frontairbag 13 3
Seat belts 129-131Warning triangle 77

Rear seats 59

314
Visual search

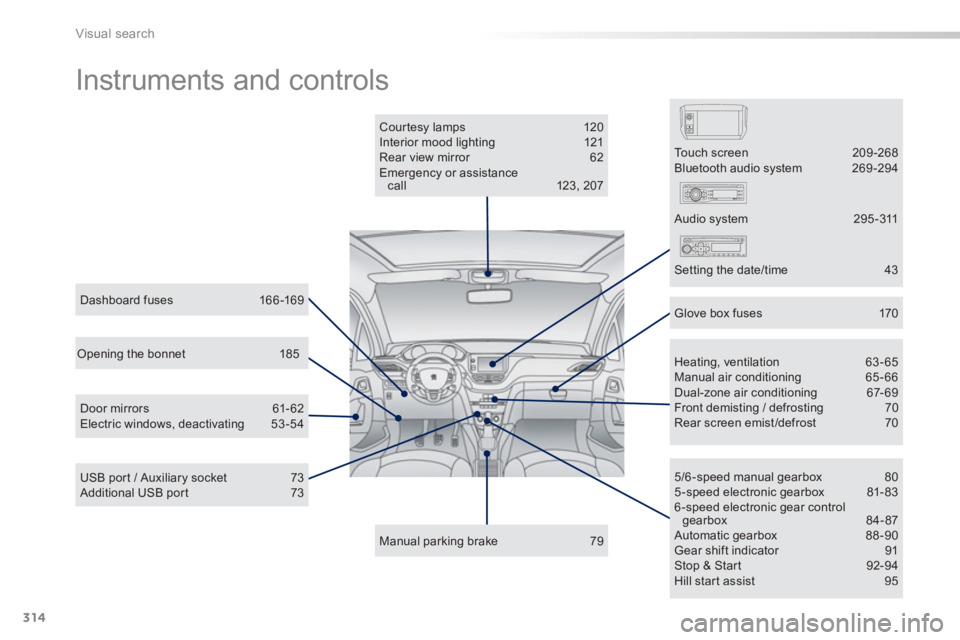

Instruments and controls
Courtesy lamps 120 Interior mood lighting 121 Rear view mirror 62 Emergency or assistancecall 123, 207
Opening the bonnet 185
Manual parking brake 79
5/6 -speed manual gearbox 80 5 -speed electronic gearbox 81-83 6 -speed electronic gear control gearbox 84-87
Automatic gearbox 88-90 Gear shift indicator 91 Stop & Start 92-94 Hill start assist 95


Dashboard fuses 166-169

USB por t / Auxiliary socket 73 Additional USB port 73
Heating, ventilation 63 - 65 Manual air conditioning 65-66 Dual-zone air conditioning 67- 69 Front demisting / defrosting 70 Rear screen emist/defrost 70

Touch screen 209-268 Bluetooth audio system 269-294
Door mirrors 61-62 Electric windows, deactivating 53-54

Audio system 295-311
Setting the date/time 43
Glove box fuses 170

.
315
Visual search
Stop & Star t 92-94 Alarm 51-52 Parking sensors 101-102 Park Assist 103-106
Instrument panels 21-22 Warning lamps 23 -32Indicators 33-37 Gear shift indicator 91
Lighting controls 107-113Direction indicators 12 2
Memorising speeds 100Speed limiter 96 -97Cruise control 98-99


Instruments and controls (cont.)
Trip computer with touch screen 40 - 42 Setting the date/time withthe touch screen 43

Headlamp beam adjustment 114
Wiper controls 116 -119 Tr i p c o m p u t e r 38-39, 42

Hazard warning lamps 12 2 Locking/unlocking from inside 48
Steering wheel adjustment 60 Horn 123

Grip control 127-128

316
Visual search

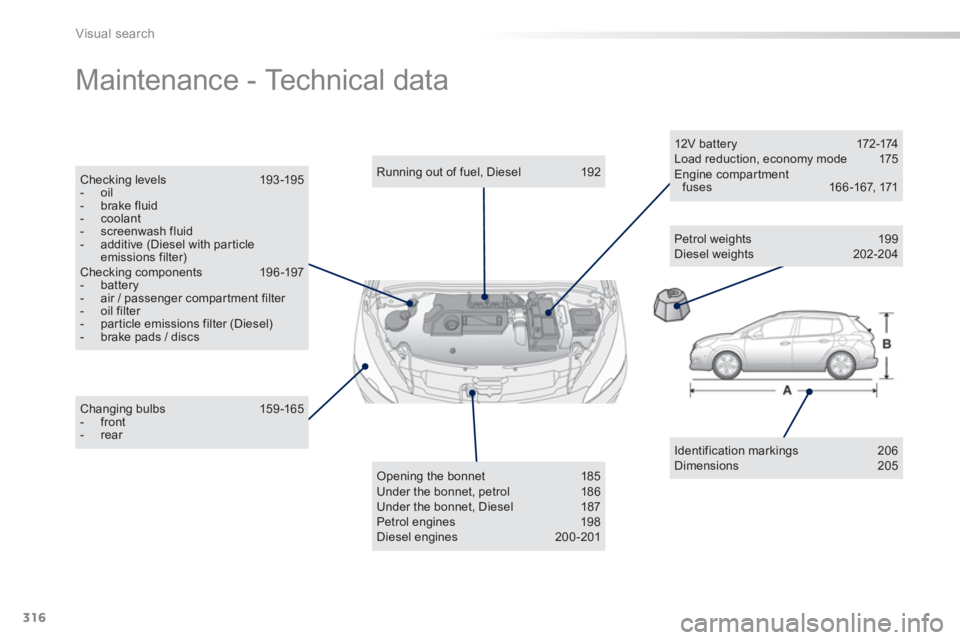

Maintenance - Technical data
Identification markings 206 Dimensions 205


Changing bulbs 159 -165 - front - rear


Running out of fuel, Diesel 192
Opening the bonnet 185 Under the bonnet, petrol 18 6 Under the bonnet, Diesel 187 Petrol engines 198 Diesel engines 200-201
12V bat tery 172-174 Load reduction, economy mode 175 Engine compartmentfuses 166 -167, 171
Petrol weights 199 Diesel weights 202-204
Checking levels 193 -195 - oil - brake fluid - coolant - screenwash fluid- additive (Diesel with particle emissions filter)Checking components 19 6 -197 - battery- air / passenger compar tment filter - oil filter - particle emissions filter (Diesel) - brake pads / discs

.
317
Alphabetical index
ABS ...............................................................124Accessories..................................................182Accessory socket, 12V...................................72Adjusting headlamps ....................................114Adjusting head restraints................................58Adjusting seat belt height..............................129Adjusting the steering wheel ...........................60Advice on care and maintenance.................181Airbags....................................................32, 132Airbags, curtain .....................................134,135Airbags, front.........................................132,135Airbags, lateral......................................134,135Air conditioning.........................................14,19Air conditioning, digital..................14, 64,67,70Air conditioning, manual...............14, 64,65,70Air distribution adjustment........................66, 69Air filter..........................................................r196Air flow............................................................19Air flow adjustment ...................................66, 69Air intake...................................................66, 69Air recirculation.........................................66, 69Air vents ..........................................................63Alarm...............................................................51Anti-lock braking system (ABS)....................124Anti-theft..........................................................47ASR...............................................................124Assistance, emergency braking...................124Assistance call ......................................123, 208Audible warning............................................123Audio cable..................................244, 279, 305Audio streaming (Bluetooth).................243, 280Audio system (radio)....................236, 272, 298Automatic illumination of headlamps....108,113Automatic operation of hazard warninglamps..........................................................122Automatic rain sensitive windscreen
wipers .................................................116, 118Auxiliary sockets............73, 240, 244, 279,305
Capacity, fuel tank ........................................188CD.................................................240, 275, 301CD MP3........................................240, 276, 302Central locking..........................................44, 45Changing a bulb.....................................159-165Changing a fuse.....................................166-171Changing a wheel ..................................151-159Changing a wiper blade........................119, 176Changing the date...........................................43Changing the remote control battery..............49Changing the time...........................................43Checking levels......................................193-195Checking the engine oil level ..................37, 193Checking tyre pressures (using the kit)........150Checks...................................................185-197Child lock .......................................................144Children..........................................131, 13 6 -14 4Child seats ............................................136-143Child seats, conventional ..............................138Cleaning (advice)..........................................181Closing the boot..............................................55Closing the doors ............................................45Colour screen................................................212Connectors, audio..........73, 240, 244, 279,305
AB
C
Coolant level ...........................................33,194Coolant temperature indicator........................r33Courtesy lamps.............................................120Cruise control..........................................98,100Cup holder.......................................................r71
Battery............................................172-174,196Battery, charging...................................173, 174Battery, remote control.............................49, 50Bluetooth (hands-free)..........................250,281Bluetooth (telephone)............................250, 281Bonnet...........................................................185Bonnet stay ...................................................185Boot.................................................................55Brake discs....................................................197Brake lamps ..........................................163, 164Brake pads....................................................197Date (setting)...................................................43Daytime running lamps.................................111Deactivating the passenger airbag ...............133Defrosting ........................................................70Demisting........................................................70Diesel additive level......................................195Dimensions ...................................................205Dipped beam.........................................107,160Dipstick ....................................................37,193Directional lighting ........................................115Direction indicators......................112, 122, 159,
160, 163,16 4
Door pockets ...................................................71Driving economically.......................................19Dynamic stability control (DSC) ...27,29, 124, 126
D
EBA (Emergency braking assistance) ..........124EBFD.............................................................124Eco-driving......................................................19Economy mode.............................................175Electric window controls.................................53Electronic brake force distribution (EBFD)...124Electronic engine immobiliser...................r47, 50Emergency boot release.................................55Emergency call.....................................123, 208
E

318
Alphabetical index
Jack...............................................151, 152,244Jack cable.....................................................244JACK socket ............................................73,244
Keepin
g children safe ....................131, 13 6-144
Key............................................................44-50Key in ignition warning....................................78Key with remote control .............................47-50
Labels, identification.....................................206Lamps, warning and indicator...................r23-32
LED daytime running lamps...........111, 159,161Level, brake fluid...........................................193Levels and checks..................................185 -197Lighting, guide-me home .................47, 112,113Lighting, interior....................................r120, 121Lighting bulbs (replacement) .................159-165Lighting control stalk..............................107,112Lighting on reminder.....................................r110Loading....................................................19,181Load reduction mode....................................175
L
Emergency starting ....................................... 173Emergency warning lamps .....................77,122Energy economy mode.................................175Engine, Diesel ............... 187,191, 192, 200, 201Engine, petrol ................................186,191, 198Engine compartment.............................186, 187Engine compar tment fusebox....................... 171Engine oil level indicator.........................r37, 193Environment..................19,49, 64, 70, 174, 195Equipment settings .......................................260
Filling with fuel..............................188, 190, 191Fitting a wheel...............................................156Fitting roof bars ............................................. 181Fittings, boot ...................................................75Flashing indicators................112, 122, 160, 16 4Foglamp, rear................................r109,163, 165Foglamps, front .....................109, 115,159,162Frequency (radio)..................................237, 239Front seats ......................................................57Fuel..........................................................19, 191Fuel consumption............................................19Fuel filler flap.........................................188, 190Fuel gauge ..............................................15, 188Fuel tank................................................188, 190Fusebox, dashboard..................................... 168Fuses .............................................................166
Halogen headlamps......................................159Hands-free kit........................................250,281Hazard warning lamps ............................77, 122Head restraints, front......................................58Head restraints, rear.......................................r60Heated seats...................................................58Heating................................................14, 19, 65Height and reach adjustment,steering wheel..............................................60Hill start assist.................................................95
Identification plates.......................................206Ignition .............................................................78Indicators, direction..............................122,160Inflating accessories (using the kit)..............................................145Inflating tyres..................................................19Inputs for audio system.................................305Instrument panels ...........................................21Instrument panel screen.................................91
Gearbox, manual..............................80, 92,197Gear lever, automatic gearbox .......................88Gear lever, electronic gear control gearbox...................................................81,84Gear lever, manual gearbox...........................80Gear shift indicator..........................................91Glove box........................................................72Grip control ...................................................127Guidance .......................................................214Guide-me-home...............................47, 112,113
Interior fittings...........................................71,72Interior mood lighting....................................121ISOFIX child seats.................................141-143ISOFIX mountings.........................................141
H
I
F
J
K
Gearbox, automatic........................88,174,197Gearbox, electronicgear control.......................81, 84, 92,174,197
G
