PEUGEOT 2008 2015 Owners Manual

189
2008_en_Chap09_info-pratiques_ed01-2015
1. Brake lamps (P21W).
2. Sidelamps (light emitting
diodes - LEDs).
3.
D

irection indicators (PY21W amber).

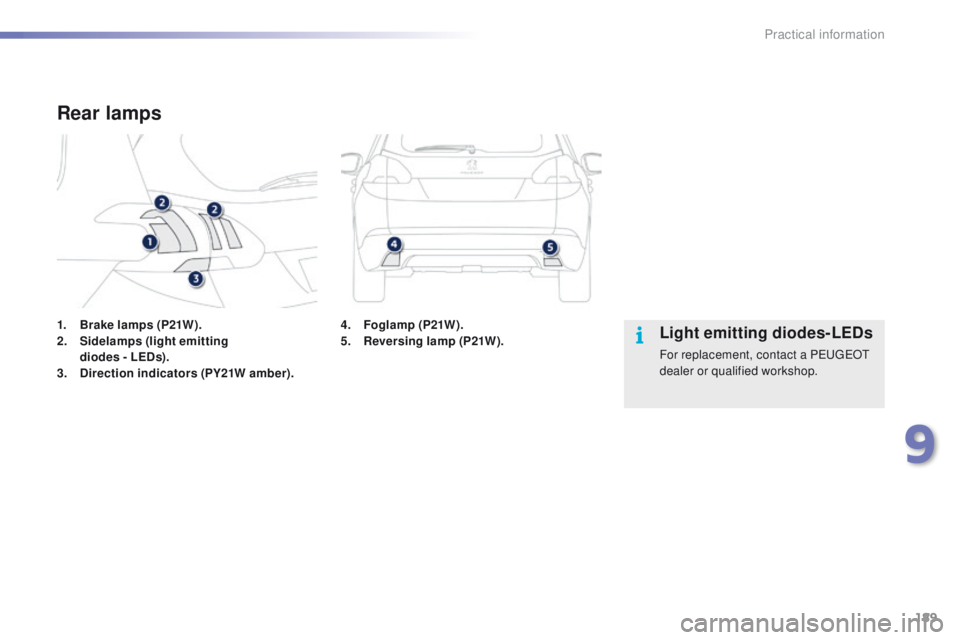

Rear lamps
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT
dealer or qualified workshop.
4.
F

oglamp (P21W).
5. R
eversing lamp (P21W).
9
Practical information

190
2008_en_Chap09_info-pratiques_ed01-2015

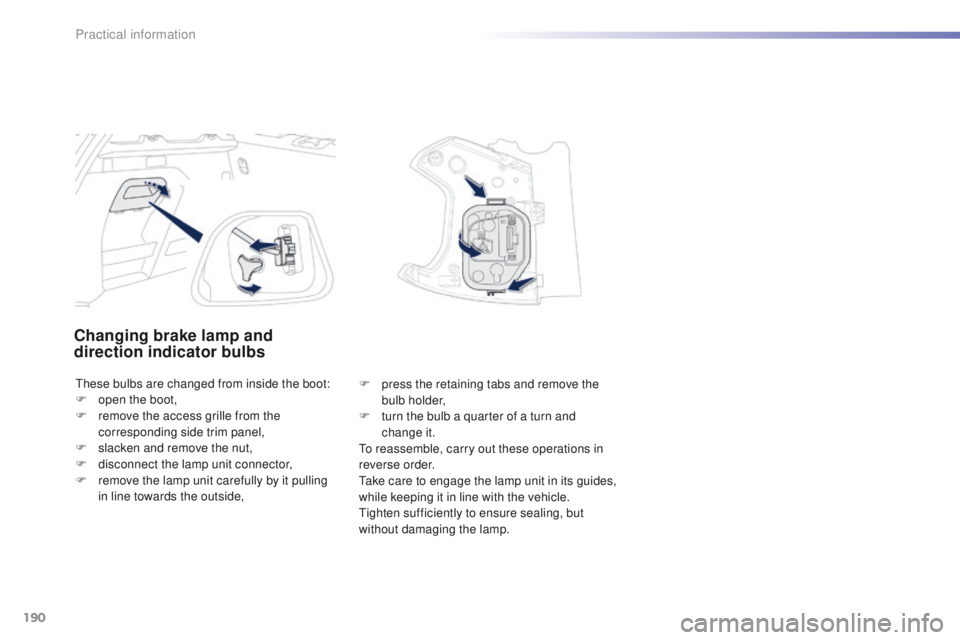

Changing brake lamp and
direction indicator bulbs
These bulbs are changed from inside the boot:
F o pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken and remove the nut,
F

d
isconnect the lamp unit connector,
F

r
emove the lamp unit carefully by it pulling
in line towards the outside, F
p ress the retaining tabs and remove the
bulb holder,
F

t
urn the bulb a quarter of a turn and
change


it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
Practical information

191
2008_en_Chap09_info-pratiques_ed01-2015
Changing the third brake lamp
(light emitting diodes - LEDs)
Contact a PEUGEOT dealer or a qualified
workshop.
Number plate lamps
To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F
I
nsert a thin screwdriver into the lens
cutout.
F

P
ush it outwards.
F

R
emove the lens.
F

C
hange the faulty bulb.
To refit, press on the lens to clip it in place. Access is by passing a hand under the bumper.
F
T urn the bulb holder an eighth of a turn and
pull it out.
F

C
hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing a foglamp or reversing
lamp bulb
On the left hand side, take care to not
touch the exhaust silencer; risk of burns
if changing a bulb after stopping the
engine.
9
Practical information

192
2008_en_Chap09_info-pratiques_ed01-2015

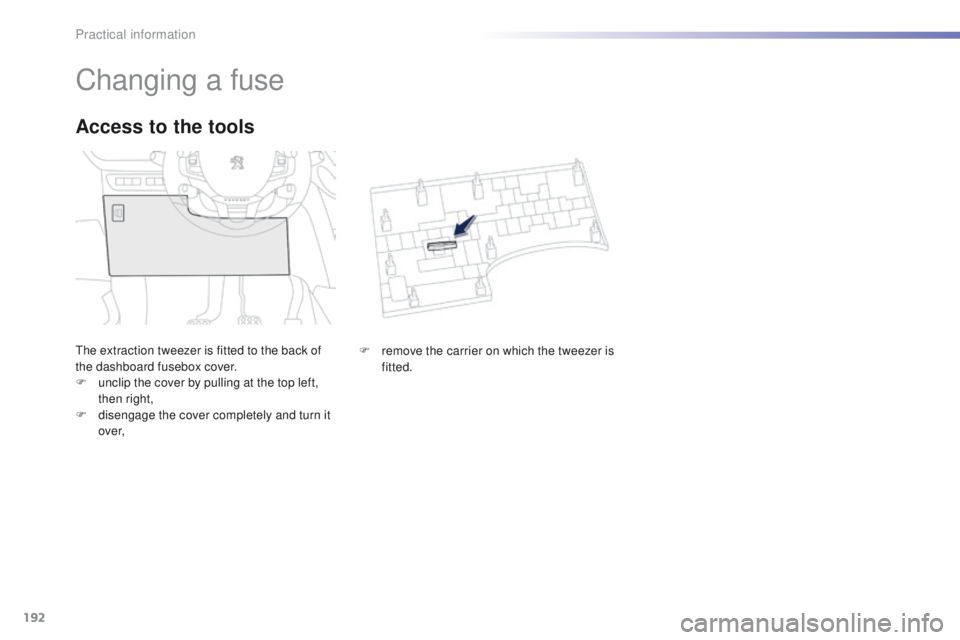

Changing a fuse
The extraction tweezer is fitted to the back of
the dashboard fusebox cover.
F
u
nclip the cover by pulling at the top left,
then right,
F

d
isengage the cover completely and turn it
ove r,
Access to the tools
F remove the carrier on which the tweezer is fitted.
Practical information

193
2008_en_Chap09_info-pratiques_ed01-2015
To replace a fuse, you must:
F u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a different rating could cause faults (risk
of


f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.

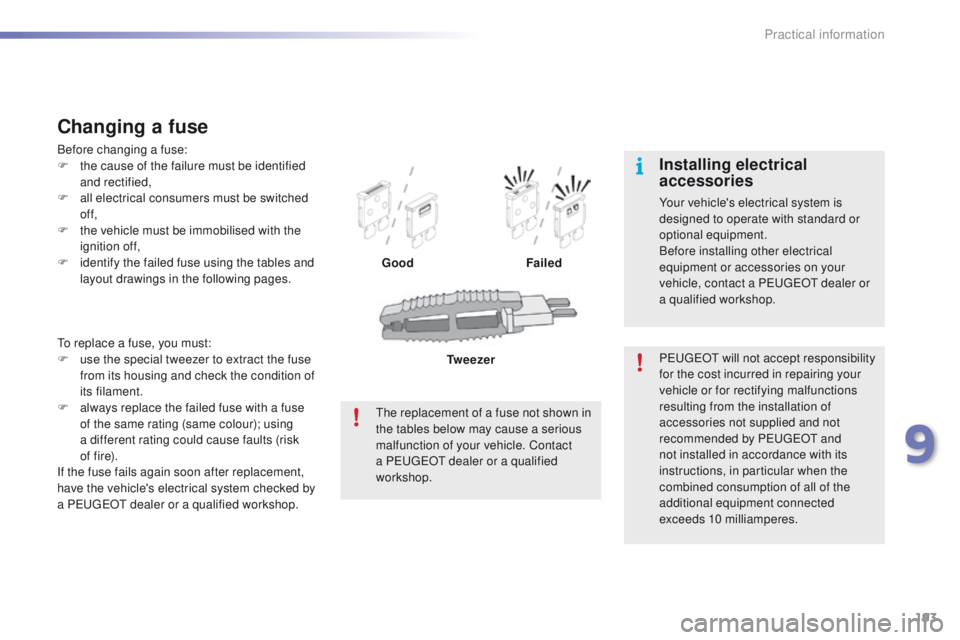

Changing a fuse
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must be switched
of f,
F

t
he vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages. Good
Failed
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEUGEOT dealer or a qualified
workshop. Tw e e z e r
9
Practical information

194
2008_en_Chap09_info-pratiques_ed01-2015

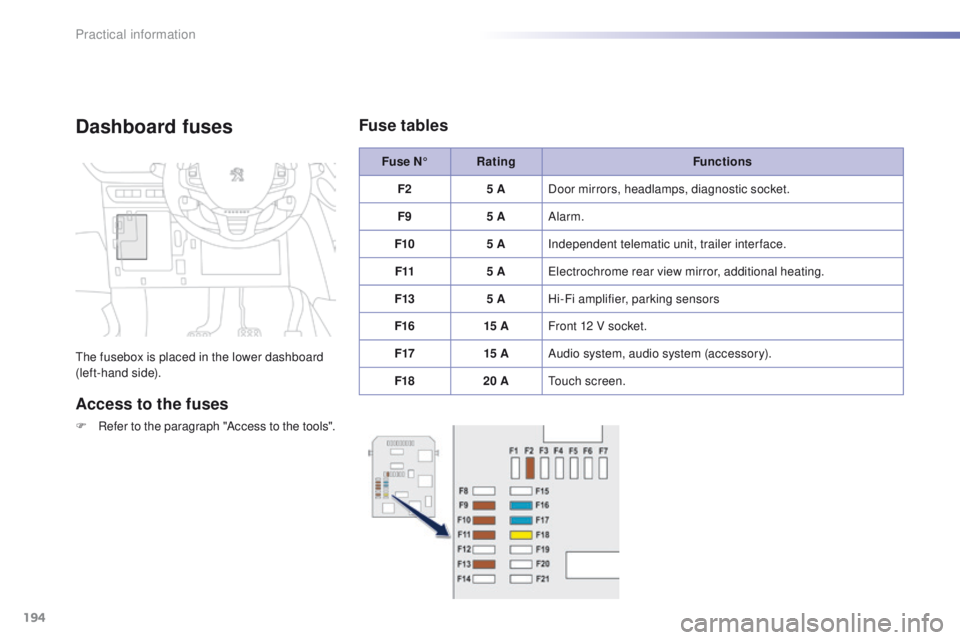

Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "Access to the tools".Fuse N°
Rating Functions
F2 5 ADoor mirrors, headlamps, diagnostic socket.
F9 5 AAlarm.
F10 5 AIndependent telematic unit, trailer interface.
F11 5 AElectrochrome rear view mirror, additional heating.
F13 5 AHi-Fi amplifier, parking sensors
F16 15 AFront 12 V socket.
F17 15 AAudio system, audio system (accessory).
F18 20 ATouch screen.
Fuse tables
Practical information

195
2008_en_Chap09_info-pratiques_ed01-2015
Fuse N°Rating Functions
F23 5 AGlove box lamp, courtesy mirror, map reading lamps.
F26 15 AHorn.
F27 15 AScreenwash pump.
F28 5 AAnti-theft.
F29 15 AAir conditioning compressor.
F30 15 ARear wiper.
9
Practical information

196
2008_en_Chap09_info-pratiques_ed01-2015
Fuse N°Rating Functions
F01 40 AHeated rear window.
F02 10 AHeated door mirrors.
F03 30 AFront one-touch windows.
F04 -Not used.
F05 30 ARear one-touch windows.
F06 10 AFolding door mirrors.
F07 10 AFolding door mirrors.
F08 -Not used.
F09 15 AFront heated seats.
F10 20 AHi-Fi amplifier.
F11 -Not used.
F12 -Not used.Fuses behind the glove
box
Practical information

197
2008_en_Chap09_info-pratiques_ed01-2015
Fuse N°Rating Functions
F16 15 AFront foglamps.
F18 10 ARight hand main beam headlamp.
F19 10 ALeft hand main beam headlamp.
F25 30 AHeadlamp wash relay (accessory).
F29 40 AFront wiper motor.
F30 80 APre-heater plugs (Diesel).

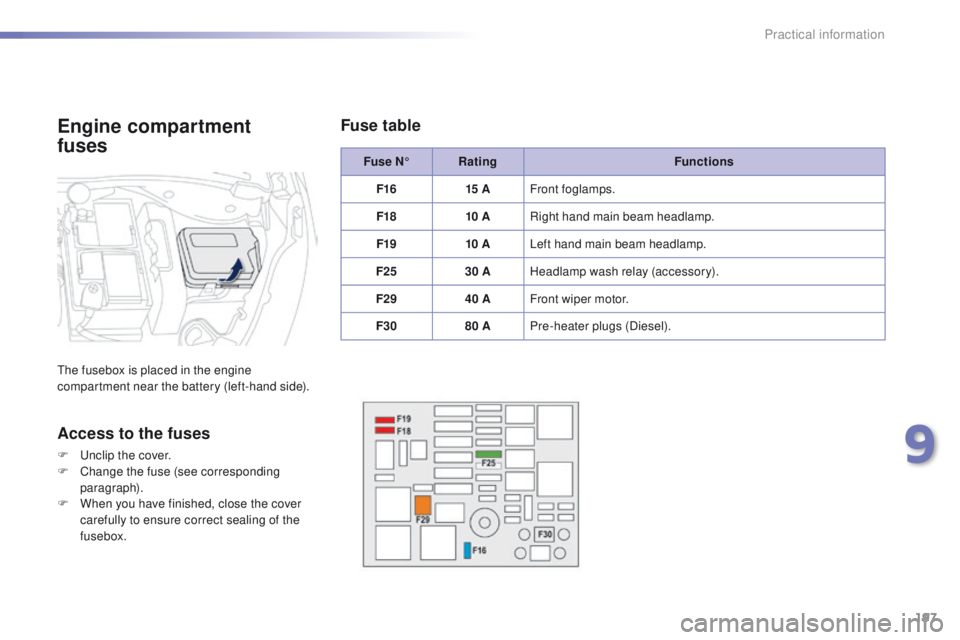

Engine compartment
fuses
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse table
9
Practical information

198
2008_en_Chap09_info-pratiques_ed01-2015

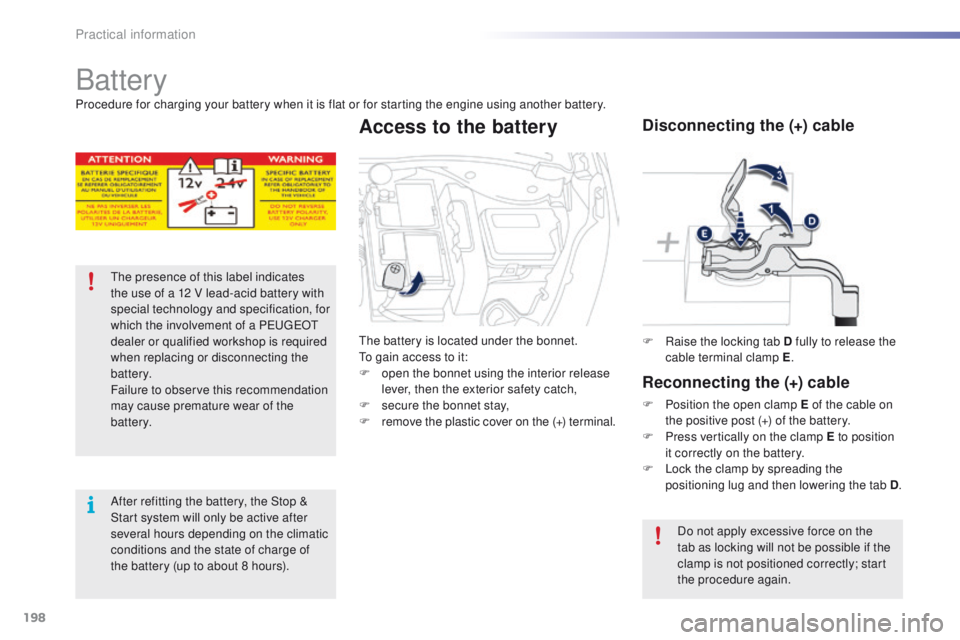

Battery
The presence of this label indicates
the use of a 12 V lead-acid battery with
special technology and specification, for
which the involvement of a PEUGEOT
dealer or qualified workshop is required
when replacing or disconnecting the
battery.
Failure to observe this recommendation
may cause premature wear of the
battery.
After refitting the battery, the Stop &
Start system will only be active after
several hours depending on the climatic
conditions and the state of charge of
the battery (up to about 8 hours).F

Ra
ise the locking tab D fully to release the
cable terminal clamp E .
Disconnecting the (+) cable
Reconnecting the (+) cable
F Position the open clamp E of the cable on
the positive post (+) of the battery.
F

P
ress vertically on the clamp E to position
it correctly on the battery.
F

L
ock the clamp by spreading the
positioning lug and then lowering the tab D .
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.
Procedure for charging your battery when it is flat or for starting the engine using another battery.
The battery is located under the bonnet.
To gain access to it:
F

o

pen the bonnet using the interior release
lever, then the exterior safety catch,
F
s
ecure the bonnet stay,
F

r

emove the plastic cover on the (+) terminal.
Access to the battery
