SPECIAL FEATURES
158
THE ALARM* Setting and deactivating the alarm system Switching off the siren The alarm completes the security
equipment for your vehicle. It offerstwo types of protection. Ð
external protection: when it is set,
the alarm sounds if one of the doors, the boot or the bonnet is opened;
Ð internal protection: when it is set,
the alarm sounds if the sensorsdetect air movement in the passen-ger compartment (a broken window)
or movement within the car.
The alarm also has an anti-tamperfunction. If there is an attempt to tamper with the wires to the siren, control unit or
the battery, the siren sounds and thedirection indicators light.
* According to destination. Setting the alarm (external and internal protection)
Switch the ignition off and get out of the vehicle. Deadlock the vehicle.The doors lock.The direction indicators light for two seconds. The red light on the switch flashes once a second.
5 seconds later, internal protection is set.
45 seconds later, external protection is set. Note:
when the alarm is triggered, the
siren sounds for thirty seconds. After the thirty seconds it stops, but thealarm remains set.
Warning
When the alarm is set, if a door, the tailgate or bonnet are not closed cor-
rectly, the siren sounds for a moment.If the vehicle is closed correctly in thefollowing 45 seconds, the alarm isactivated and the direction indicatorsremain on for two seconds. In all
cases, the alarm is activated after45 seconds. Disarming the alarm(internal and external protection) Press the release button of the remote
control key. The doors unlock.The direction indicators flash for two seconds. The red light on the switch goes out. Note:
if the warning light continues to
flash after de-activation of the alarm, it is a sign that the alarm has been
triggered. The flashing will stop whenthe ignition is switched ON.

26-05-2003
YOUR 206 IN DETAIL
94
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
"Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the
STOPposition,
Ð place the lights stalk in the 0 position,
Ð flash the headlamps,
Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

26-05-2003
YOUR 206 IN DETAIL
94
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
"Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the
STOPposition,
Ð place the lights stalk in the 0 position,
Ð flash the headlamps,
Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

26-05-2003
PRACTICAL INFORMATION139

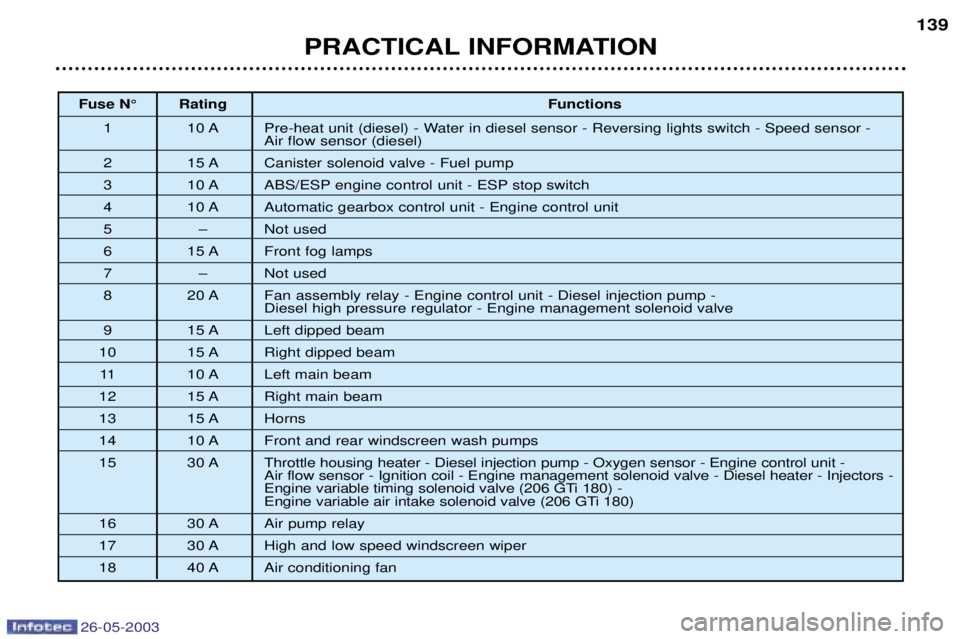

Fuse N¡ Rating
Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 Ð Not used
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left dipped beam
10 15 A Right dipped beam 11 10 A Left main beam
12 15 A Right main beam
13 15 A Horns
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors -
Engine variable timing solenoid valve (206 GTi 180) -
Engine variable air intake solenoid valve (206 GTi 180)
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan

26-05-2003
PRACTICAL INFORMATION137

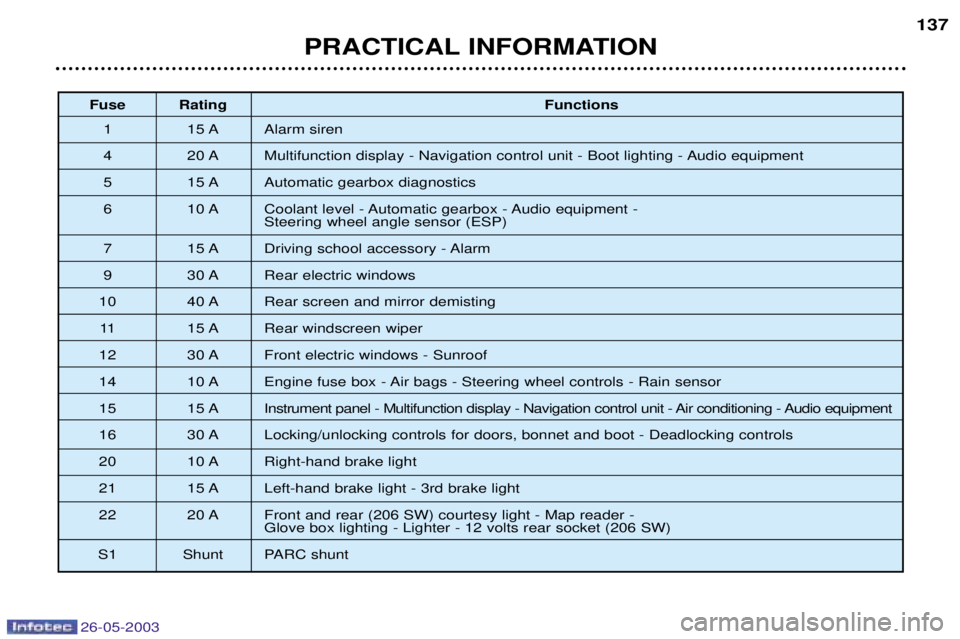

Fuse Rating
