The list of voice commands available is presented in th is table:
Level 1 Level 2 Level 3
RADIO PREVIOUS
NEXT
MEMORY 1 ... 6
AUTOSTORE
LIST
CD PLAYER PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER 1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGER PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER 1 ... 20
PREVIOUS DISC
NEXT DISC
DISC NUMBER 1 ... 6
RANDOM
SCAN
REPEAT
LISTLevel 1 Level 2 Level 3
TELEPHONE LAST NUMBER
DIRECTORY
DESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS/MESSAGE DISPLAY
READ
TRAFFIC INFO DISPLAY
READ
NAVIGATION/
GUIDANCE STOP
RESUME
DIRECTORY
DESCRIPTION
ZOOM IN
ZOOM OUT
SHOW
DESTINATION
VEHICLE
DISPLAY AUDIO
TELEPHONE
NAVIGATION
TRIP COMPUTER
GUIDANCE
CALL DESCRIPTION
GUIDE TO DESCRIPTION
Audio equipment and telematics

60 -
31-01-2005
61
-
31-01-2005
5 CD CHANGER*
This is located in the glove box. It
holds up to 5 discs.
To load the changer, insert the discs
with the printed side upwards.
To remove a disc, press and hold one
of the buttons "1" to "5" .
The use of copied com-
pact discs may cause
faults.
Insert circular compact discs
only.
* According to country.
RADIO RECEPTION
(aerial adjustment)
Notes on radio reception
Your radio will be subject to phenom-
ena which do not affect domestic
radio sets. Both MW/LW and FM re-
ception are subject to various forms
of interference, which are no relec-
tion on the quality of your equipment
but are due to the nature of the sig-
nals and the way in which they are
transmitted.
On MW/LW, interference may be no-
ticed when passing underneath high
voltage power lines, under bridges or
in tunnels. On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signal
by obstacles (mountains, hills, build-
ings, etc.), or of being in an area not
covered by a transmitter.
Saloon: recommended position for
the front aerial for best reception.
No particular position for the ixed
rear aerial (preset aerial).
Audio equipment and telematics

62 -
31-01-2005
206 AUDIO SYSTEM (RD3 and RT3)
Presentation
Your 206 is itted with a JBL audio
system, designed speciically for the
passenger compartment.
At the heart of the system, a
240 watt multi-function ampliier (1)
(integrated in the subwoofer in
the boot) independently controls
8 high acoustic deinition speakers

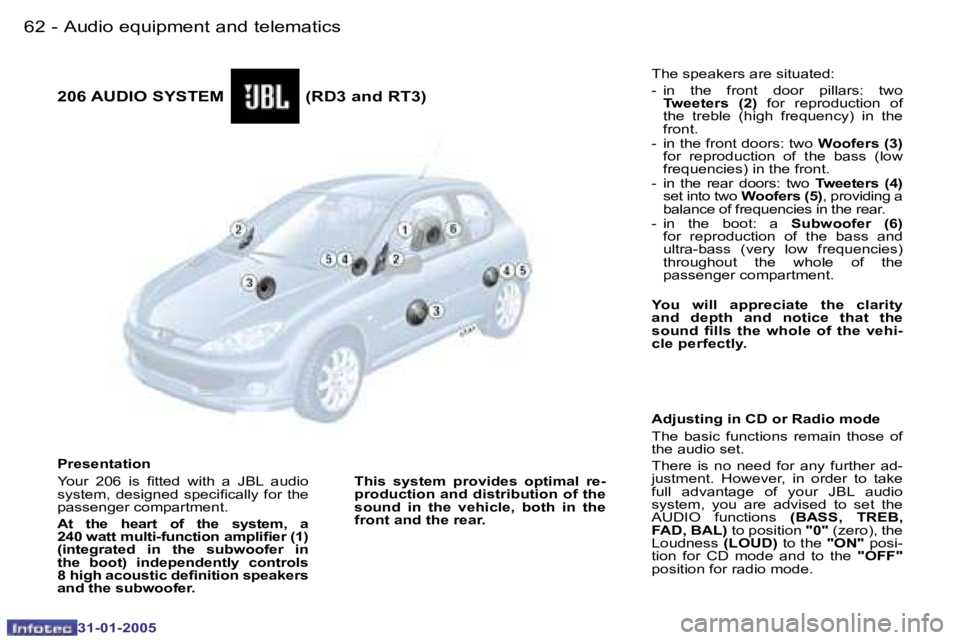

and the subwoofer.The speakers are situated:
- in the front door pillars: two
Tweeters (2) for reproduction of
the treble (high frequency) in the
front.
- in the front doors: two Woofers (3)
for reproduction of the bass (low
frequencies) in the front.
- in the rear doors: two Tweeters (4)
set into two Woofers (5) , providing a
balance of frequencies in the rear.
- in the boot: a Subwoofer (6)
for reproduction of the bass and
ultra-bass (very low frequencies)
throughout the whole of the
passenger compartment.
You will appreciate the clarity
and depth and notice that the
sound ills the whole of the vehi-
cle perfectly.
This system provides optimal re-
production and distribution of the
sound in the vehicle, both in the
front and the rear. Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further ad-
justment. However, in order to take
full advantage of your JBL audio
system, you are advised to set the
AUDIO functions
(BASS, TREB,
FAD, BAL) to position "0" (zero), the
Loudness (LOUD) to the "ON" posi-
tion for CD mode and to the "OFF"
position for radio mode.
Audio equipment and telematics

63
-
31-01-2005
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system guides
you, by means of vocal and visual
instructions (graphics), to your cho-
sen destination.
The heart of the system lies in the
use of a map data base and GPS
(Global Positioning System) . With
this system you can ix the position
of your vehicle by means of a satel-
lite network.
The system uses the following ele-
ments:
- the CD-Rom drive,
- the coniguration CD-Rom,
- the navigation CD-Rom,
- the last voice message recall control,
- the control keypad,
- the CT monochrome screen.
For safety reasons, the
inputting of navigation
information by the driver
must be carried out when
the vehicle is stationary.

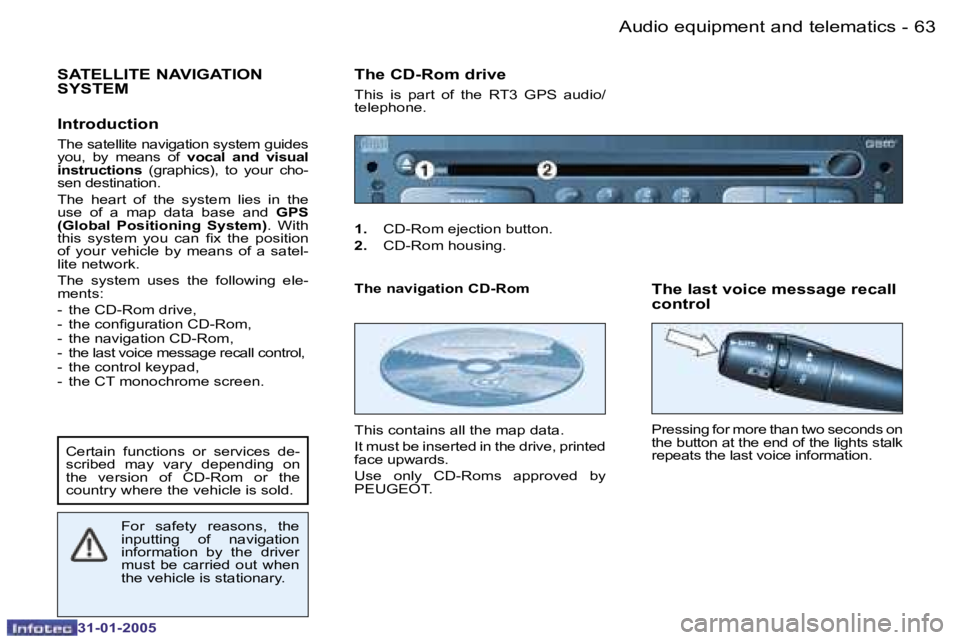

The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
1. CD-Rom ejection button.
2. CD-Rom housing.
The navigation CD-Rom
The last voice message recall
control
Pressing for more than two seconds on
the button at the end of the lights stalk
repeats the last voice information.
This contains all the map data.
It must be inserted in the drive, printed
face upwards.
Use only CD-Roms approved by
PEUGEOT.
Certain functions or services de-
scribed may vary depending on
the version of CD-Rom or the
country where the vehicle is sold.
Audio equipment and telematics

64 -
31-01-2005
65
-
31-01-2005

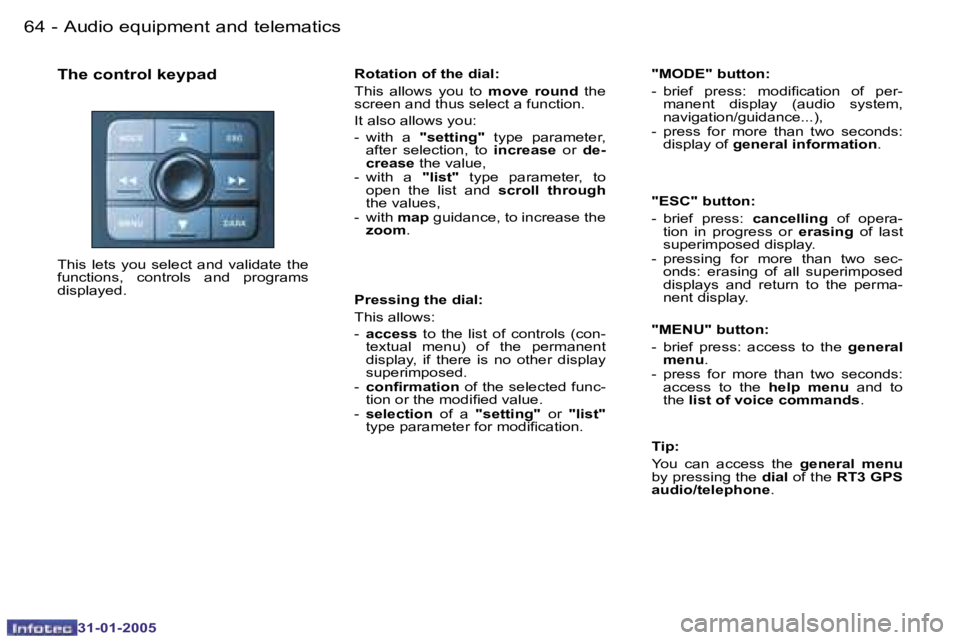

The control keypad
This lets you select and validate the
functions, controls and programs
displayed. Rotation of the dial:
This allows you to
move round the
screen and thus select a function.
It also allows you:
- with a "setting" type parameter,
after selection, to increase or de-
crease the value,
- with a "list" type parameter, to
open the list and scroll through
the values,
- with map guidance, to increase the
zoom . "MODE" button:
- brief press: modiication of per-
manent display (audio system,
navigation/guidance...),
- press for more than two seconds: display of general information .
Pressing the dial:
This allows:
- access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a "setting" or "list"
type parameter for modiication. "ESC" button:
- brief press:
cancelling of opera-
tion in progress or erasing of last
superimposed display.
- pressing for more than two sec- onds: erasing of all superimposed
displays and return to the perma-
nent display.
"MENU" button:
- brief press: access to the general
menu .
- press for more than two seconds: access to the help menu and to
the list of voice commands .
Tip:
You can access the general menu
by pressing the dial of the RT3 GPS
audio/telephone .
Audio equipment and telematics

64 -
31-01-2005
65
-
31-01-2005
General notes on the display
Monochrome screen CT General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the
"MENU" button to access
the general menu .
Select the Navigation/Guidance icon
using the dial G, then validate by
pressing the dial to access the main
"Navigation - Guidance" menu.
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depending
on the manoeuvres to be carried out.
Notes:
- depending on the situation of the vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3 GPS
audio/telephone.

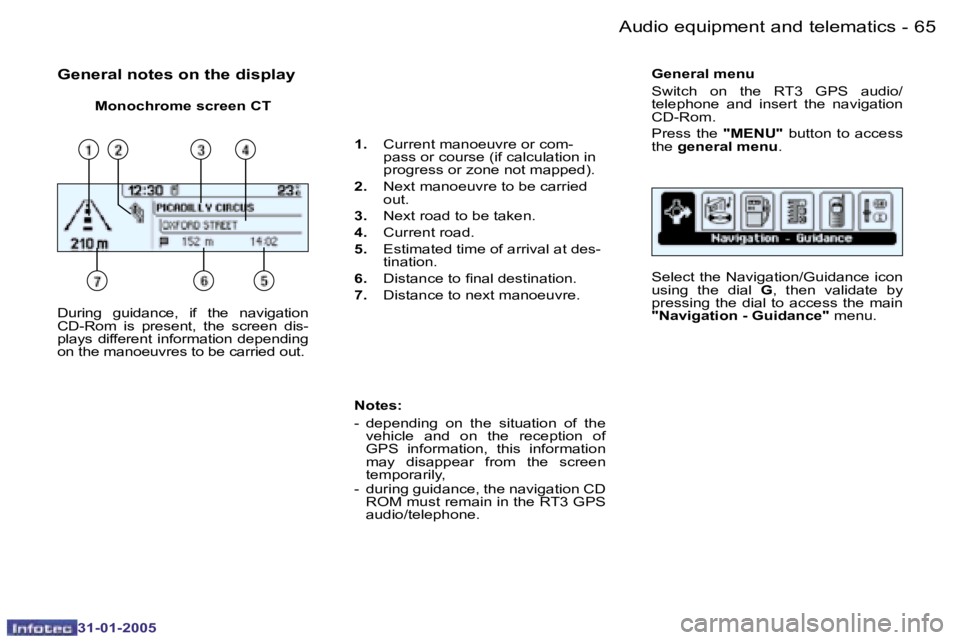

1. Current manoeuvre or com-
pass or course (if calculation in
progress or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at des-
tination.
6. Distance to inal destination.
7. Distance to next manoeuvre.
Audio equipment and telematics

66 -
31-01-2005
67
-
31-01-2005
Navigation - Guidance Selecting a destination Entering an add ress

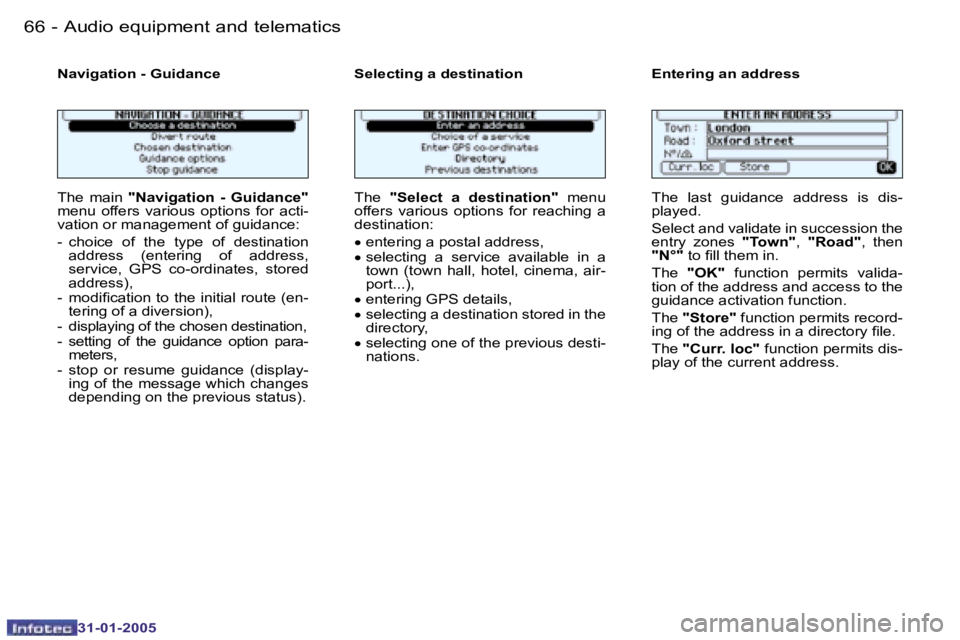

The main "Navigation - Guidance"
menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination
address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (en- tering of a diversion),
- displaying of the chosen destination,
- setting of the guidance option para- meters,
- stop or resume guidance (display- ing of the message which changes
depending on the previous status). The
"Select a destination" menu
offers various options for reaching a

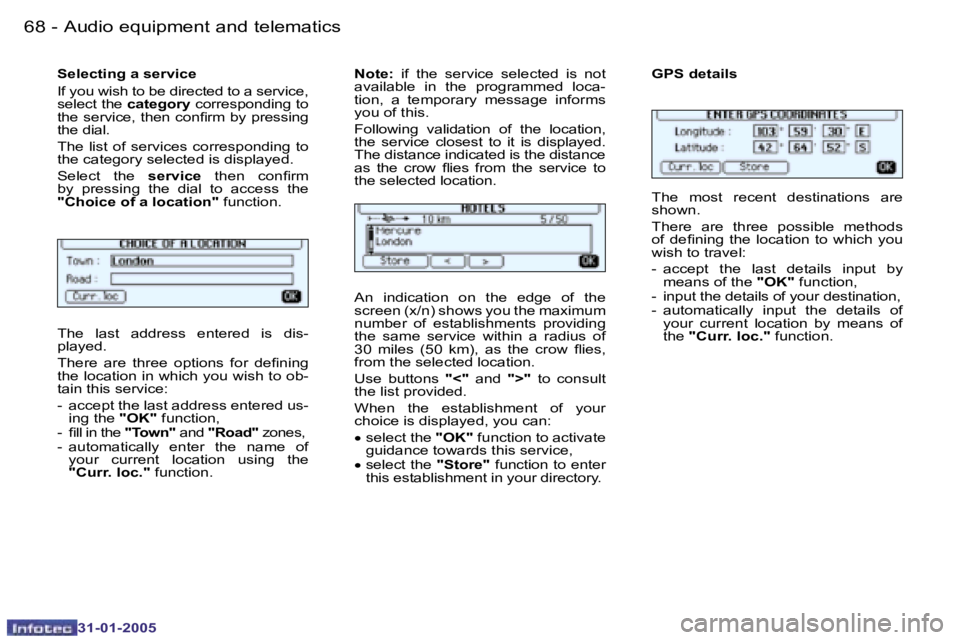

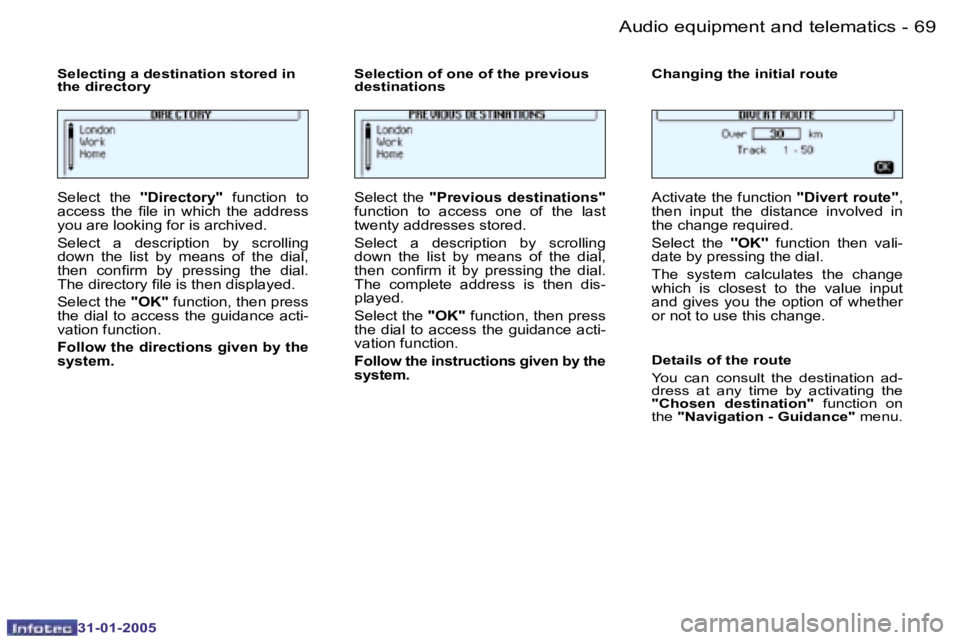

destination: • entering a postal address,
• selecting a service available in a
town (town hall, hotel, cinema, air-
port...),
• entering GPS details,
• selecting a destination stored in the
directory,
• selecting one of the previous desti-
nations. The last guidance address is dis-
played.
Select and validate in succession the
entry zones
"Town", "Road" , then
"N°" to ill them in.
The "OK" function permits valida-
tion of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
Audio equipment and telematics

66 -
31-01-2005
67
-
31-01-2005
Entering the name of the town

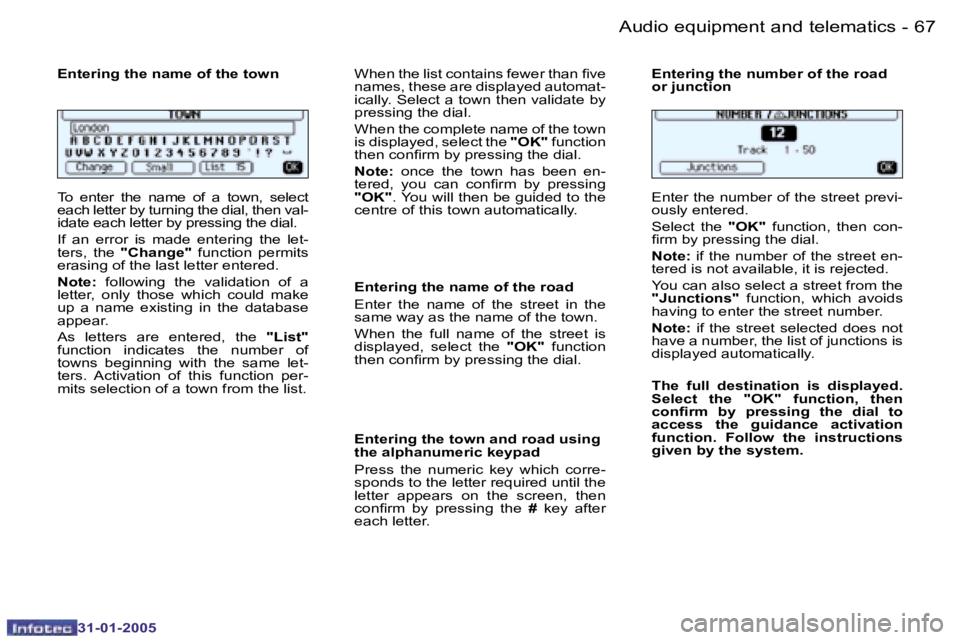

To enter the name of a town, select
each letter by turning the dial, then val-
idate each letter by pressing the dial.
If an error is made entering the let-
ters, the "Change" function permits
erasing of the last letter entered.
Note: following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List"
function indicates the number of
towns beginning with the same let-
ters. Activation of this function per-
mits selection of a town from the list. When the list contains fewer than ive
names, these are displayed automat-
ically. Select a town then validate by
pressing the dial.
When the complete name of the town
is displayed, select the
"OK" function
then conirm by pressing the dial.
Note: once the town has been en-
tered, you can conirm by pressing
"OK" . You will then be guided to the
centre of this town automatically. Entering the number of the road
or junction
Enter the number of the street previ-
ously entered.
Select the
"OK" function, then con-
irm by pressing the dial.
Note: if the number of the street en-
tered is not available, it is rejected.
You can also select a street from the
"Junctions" function, which avoids
having to enter the street number.
Note: if the street selected does not
have a number, the list of junctions is
displayed automatically.
The full destination is displayed.
Select the "OK" function, then
conirm by pressing the dial to
access the guidance activation
function. Follow the instructions
given by the system.
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is
displayed, select the "OK" function
then conirm by pressing the dial.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corre-
sponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.
Audio equipment and telematics

68 -
31-01-2005
69
-
31-01-2005
Selecting a service
If you wish to be directed to a service,
select the category corresponding to
the service, then conirm by pressing
the dial.
The list of services corresponding to
the category selected is displayed.
Select the service then conirm
by pressing the dial to access the
"Choice of a location" function.
The last address entered is dis-
played.
There are three options for deining
the location in which you wish to ob-
tain this service:
- accept the last address entered us- ing the "OK" function,
- ill in the "Town" and "Road" zones,
- automatically enter the name of your current location using the
"Curr. loc." function. Note:
if the service selected is not
available in the programmed loca-
tion, a temporary message informs
you of this.
Following validation of the location,
the service closest to it is displayed.
The distance indicated is the distance
as the crow lies from the service to
the selected location.
An indication on the edge of the
screen (x/n) shows you the maximum
number of establishments providing
the same service within a radius of
30 miles (50 km), as the crow lies,
from the selected location.
Use buttons "<" and ">" to consult
the list provided.
When the establishment of your
choice is displayed, you can: • select the "OK" function to activate
guidance towards this service,
• select the "Store" function to enter
this establishment in your directory. GPS details
The most recent destinations are
shown.
There are three possible methods
of deining the location to which you
wish to travel:
- accept the last details input by
means of the "OK" function,
- input the details of your destination,
- automatically input the details of your current location by means of
the "Curr. loc." function.
Audio equipment and telematics

68 -
31-01-2005
69
-
31-01-2005
Selecting a destination stored in
the directory Selection of one of the previous
destinationsChanging the initial route
Select the
''Directory'' function to
access the ile in which the address
you are looking for is archived.
Select a description by scrolling
down the list by means of the dial,
then conirm by pressing the dial.
The directory ile is then displayed.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the directions given by the
system. Select the
"Previous destinations"
function to access one of the last
twenty addresses stored.
Select a description by scrolling
down the list by means of the dial,
then conirm it by pressing the dial.
The complete address is then dis-
played.
Select the "OK" function, then press
the dial to access the guidance acti-
vation function.
Follow the instructions given by the
system. Activate the function
''Divert route'',
then input the distance involved in
the change required.
Select the ''OK'' function then vali-
date by pressing the dial.
The system calculates the change
which is closest to the value input
and gives you the option of whether
or not to use this change.
Details of the route
You can consult the destination ad-
dress at any time by activating the
"Chosen destination" function on
the "Navigation - Guidance" menu.
Audio equipment and telematics
