Guidance options Calculation criteria
The menu ''Guidance options''
provides access to the following
functions:
- changing of the route calculation criteria,
- voice synthesis adjustment of guid- ance messages,
- description of the information relating to the navigation CD-Rom,
- management of the addresses stored in the directory. The last criterion used is displayed.
Select a criterion from the list, then
validate by pressing the dial.
When the criterion of your choice has
been selected, select the
"OK" func-
tion then conirm by pressing the dial.
Management of the directory
This function enables you to rename
an address stored in the directory.
Select the description corresponding
to the stored address to be changed.
Select the "Rename" function, then
conirm by pressing the dial.
Select the "OK" function, then con-
irm by pressing the dial to record the
changes made.
Adjusting the voice synthesiser
Select the type of voice "male" or
"female" , after inserting the conigu-
ration CD-Rom.
Adjust the volume of the voice syn-
thesis by turning the dial, then vali-
date by pressing the dial.
Note: the volume can also be ad-
justed during a message, using the
audio/telephone button or the steer-
ing wheel control. Stopping/Resuming guidance •
"Stop guidance"
During guidance, select this function
then validate. • "Resume guidance"
In the absence of guidance, select
this function then validate to activate
guidance to the last destination pro-
grammed.
Note: after re-starting the engine,
a screen appears enabling you to
resume guidance activated before
the ignition was switched off.
Audio equipment and telematics

70 -
31-01-2005
71
-
31-01-2005
"Navigation - Guidance"
contextual menu
The contextual menu associated with
the "Navigation - Guidance" appli-
cation appears as a superimposed
display, when this is the application
currently in use in the main screen
window.
This menu is limited to the following
functions:
- changing of the initial route (enter- ing of a diversion),
- storing of the current location (post- al address if available or, if it is not,
the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status). TMC (Trafic Message Channel)
RDS Trafic Information*
The RT3 GPS audio/telephone per-
mits access to the TMC RDS trafic
information which is broadcast free
of charge on the FM waveband.
This function enables you to re-
ceive messages regarding the trafic
conditions (accidents, trafic jams,
weather, ...).
They may appear temporarily as a
superimposed display or be read by
the voice synthesiser, if it is active.
Select the
"TMC Trafic Informa-
tion" function on the "Telematics"
menu, you can choose:
- "Consult the messages" to display the list of TMC messages available,
- "Filter the TMC information" to se- lect a type of message and initialise
the TMC station,
- "Voice synthesiser" to listen to the TMC messages received,
- "Activate/Deactivate trafic infor- mation" to choose whether or not
to display the TMC messages re-
ceived.
* During the year. Initialisation of the TMC station
To initialise this function, you must
select an FM station which is able to
transmit these messages.
Select the
"Selection of the TMC
station" function from the "TMC
Trafic Information" menu, the
screen will then show either:
- the name of the station to which you are listening,
- "No TMC station available" if no station is selected or if it does not
transmit TMC messages,
- "Searching" if you have activated the search for the next station.
Audio equipment and telematics

72 -
31-01-2005
73
-
31-01-2005
Filtering of the TMC messages
To ilter these messages, select the
"Filter the TMC information" func-
tion from the "TMC Trafic Informa-
tion" menu, the screen then shows:
- "Filter according to route" to obtain the messages relating to the route
of the guidance in progress,
- "Filter by event" to display only messages relating to accidents or
trafic jams or...,
- "Geographical ilter" to consider messages within a radius of action
to be deined around the vehicle
and/or a location.
You can ilter these messages using
one or more ilters simultaneously.
Audio equipment and telematics

74 -
31-01-2005
75
-
31-01-2005
Comfort

74 -
31-01-2005
75
-
31-01-2005

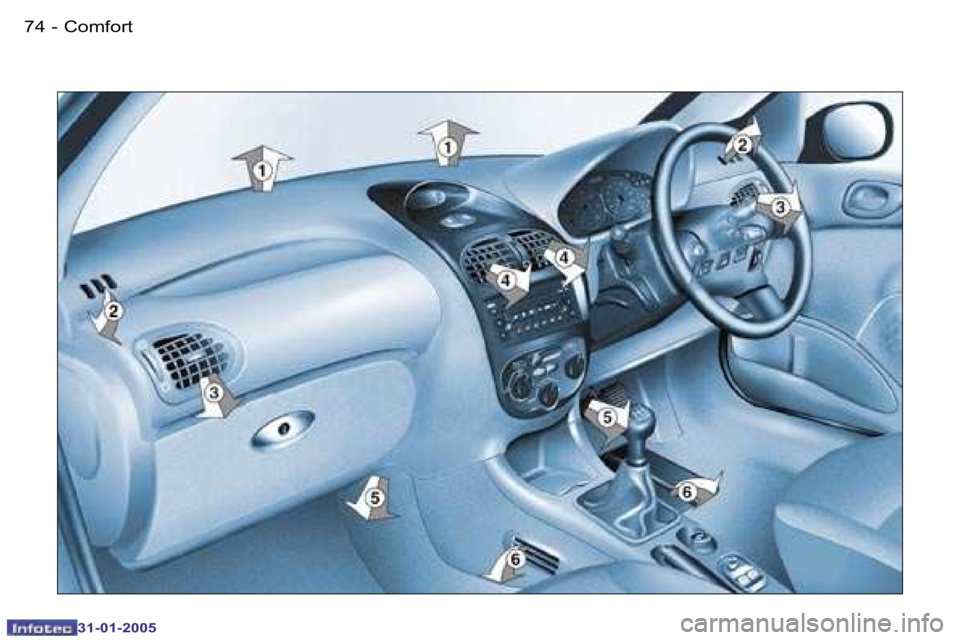

VENTILATION
1. Windscreen de-icing or
demisting vents.
2. Front door windows de-icing or
demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells.
Advice on operation
- Place the air low control at a level
suficient to ensure correct renewal
of air in the passenger compart-
ment.
- Only use the ''OFF'' position occa-
sionally (risk of condensation).
- Select the air distribution most suited to your requirements and
the climatic conditions.
- Gradually adjust the temperature setting for optimum comfort.
- Position the outside air control to the left; the ''Outside Air'' position.
- For perfectly even air distribution, take care not to obstruct the exte-
rior air intake grille on the bonnet,
the vents and the air ducts under
the front seats. Check that the
passenger compartment ilter is in
good condition.
Comfort

76 -
31-01-2005
77
-
31-01-2005
HEATING/VENTILATION
2. Air distribution adjustment
1. Temperature adjustment
To be adjusted to your requirements.
From blue (exterior temperature) to
red (hot). Windscreen and side win-
dows (de-icing/demisting).Windscreen, side windows
and footwells.
Footwells.
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
3. Air low adjustment
Turn the control from position
1 to position 4 to obtain an air
low suficient to ensure your
comfort.
Comfort

76 -
31-01-2005
77
-
31-01-2005
5. Demisting the rear screen and
the mirrors
With the engine running,
press once to demist the rear
screen and the mirrors.
It switches off automatically
after approximately twelve minutes.
Press again to switch it back on for
twelve minutes.
It is possible to stop demisting by
pressing the button again before the
end of the twelve minutes. Rapid de-icing/demisting
To quickly de-ice or demist the wind-
screen and side windows:
- position the air intake control to the
left; the ''Outside Air" position,
- turn the temperature and air low controls to maximum,
- close the centre vents.
4. Air intake control
Intake of exterior air.
This is the normal operating position. Recirculation of interior air.
This position prevents exterior
odours and smoke entering the pas-
senger compartment. It speeds up
the rate at which the passenger com-
partment can be heated but equally,
there is a risk of misting the windows
due to condensation. As soon as possible, position the
control in the exterior air intake
position to prevent misting of the
windows.
Comfort

78 -
31-01-2005
79
-
31-01-2005
AIR CONDITIONING
The air conditioning does not op-
erate while the air low adjustment
control is in the "OFF" position.
Note
It is quite normal that the condensa-
tion created by the air conditioning
results in a low of water under the
vehicle when it is stationary.
1. Air conditioning
In all seasons, the air conditioning
increases the effectiveness of the
demisting. In summer, it enables the
temperature to be lowered. 2. Temperature adjustment
To be adjusted to your requirements.
From blue (cold when the air condi-
tioning is on) to red (hot).
Windscreen and side win-
dows (de-icing/demisting).
Windscreen, side windows
and footwells.
Press the switch to activate
the air conditioning. The indi-
cator light comes on. Footwells.
3. Air distribution adjustment
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
Comfort

78 -
31-01-2005
79
-
31-01-2005
6. Demisting the rear screen and
the mirrors
With the engine running,
press once to demist the rear
screen and the mirrors.
It switches off automatically
after approximately twelve minutes.
Press again to switch it back on for
twelve minutes.
It is possible to stop demisting by
pressing the button again before the
end of the twelve minutes. Rapid de-icing/demisting
To quickly de-ice or demist the wind-
screen and side windows:
- operate the air conditioning,
- turn the temperature and air low
controls to maximum,
- close the centre vents,
- position the air intake control to the left, the "Outside Air" position.
4. Air low adjustment
Turn the control from posi-
tion 1 to position 4 to obtain
an air low suficient to en-
sure your comfort.
Intake of exterior air.
Recirculation of interior air.
This is the normal operating position.
This position prevents exterior odours
and smoke entering the passenger
compartment.
Used simultaneously with the air
conditioning,
recirculation enables
both heating and cooling perform-
ance to be improved .
Used without the air conditioning,
recirculation may result in misting of
the windows.
As soon as possible, position the con-
trol in the exterior air intake position.
5. Air intake control
Important precaution
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
Comfort

80 -
31-01-2005
81
-
31-01-2005
AUTOMATIC AIR CONDITIONING
Automatic operation
2. Automatic comfort program
Press the AUTO button. The
system automatically adjusts
the atmosphere inside the
vehicle in accordance with
the value that you have chosen. To
do this, it controls the temperature,
the low, the distribution and the
intake of air as well as the air con-
ditioning. 3. Automatic visibility program
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The other
functions will still be controlled auto-
matically. Pressing the
AUTO button
returns the system to completely au-
tomatic operation.
1. Temperature adjustment
The value indicated on the
display corresponds to a
level of comfort and not to a
temperature in degrees Cel-
sius or Fahrenheit.
Press the arrows 1 (up and down) to
change this value. A setting around
21 enables a comfortable tempera-
ture to be obtained. In some cases, the auto-
matic comfort program may
not be suficient for de-icing
or demisting of the windows
(humidity, several passengers, ice
etc.). Select this program to clear the
windows quickly.
To exit this program and return to the
automatic comfort program, press
the AUTO button.
