COMFORT
-
- position the seat belt under the
belt holder 2 ,
- pull the controls 3 to unlock the
seat back 4 ,
- r e m o v e o r l o w e r t h e h e a d
r e s t r a i n t s ,
- tilt the seat back 4.
Always start with the seat, never
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:- lift the front of the seat cushion 1 ,
- tilt the seat cushion 1 against the
f r o n t s e a t s , When repositioning:
- return the seat back to the
u p r i g h t p o s i t i o n ,
- f o l d b a c k t h e s e a t c u s h i o n ,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 52 of 127
51
COMFORT
-
"Forwards-facing"
W h e n a " f o r w a r d s - f a c i n g " c h i l d s e a t
is installed on the front passenger
seat , a d j u s t t h e v e h i c l e ’ s s e a t t o t h e
intermediate longitudinal position
w i t h t h e s e a t b a c k u p r i g h t a n d l e a v e
the passenger air bag armed.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for transporting children
a r e s p e c i i c t o e a c h c o u n t r y . C o n -
sult the current legislation in your
country. Intermediate longitudinal
position
Although one of PEUGEOT’s main
c r i t e r i a w h e n d e s i g n i n g y o u r v e h i c l e ,
the safety of your children also de-
pends on you.
F o r m a x i m u m s a f e t y , p l e a s e f o l l o w
these precautions:
- i n a c c o r d a n c e w i t h D i r e c t i v e
2 0 0 3 / 2 0 , all children under
the age of 12 or less than one
m e t r e i f t y t a l l m u s t t r a v e l i n
approved child seats suited to
their weight , o n s e a t s i t t e d w i t h
a s e a t b e l t o r I S O F I X m o u n t i n g s * ,
- statistically, the safest
seats in your vehicle for the
transportation of children are
the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
a g e o f 2 ,
- "forwards-facing" over the age
of 2. "Rearwards-facing"
W h e n a " r e a r w a r d s - f a c i n g " c h i l d s e a t
is installed on the
front passenger
seat , i t i s e s s e n t i a l t h a t t h e p a s s e n -
g e r a i r b a g i s d i s a r m e d . O t h e r w i s e ,
the child would risk being seri-
ously injured or killed if the air bag
w e r e t o i n l a t e .
Page 53 of 127
COMFORT
52 -

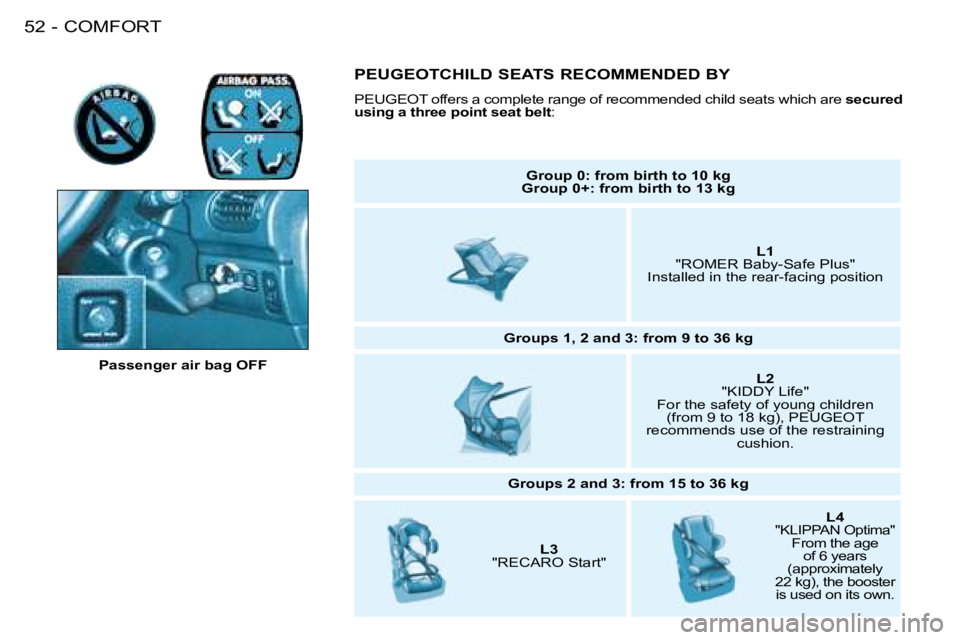

Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg L2
"KIDDY Life"
For the safety of young children ( f r o m 9 t o 1 8 k g ) , P E U G E O T
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start" L4
"KLIPPAN Optima"From the age
of 6 years
(approximately
2 2 k g ) , t h e b o o s t e r i s u s e d o n i t s o w n .
PEUGEOTCHILD SEATS RECOMMENDED BY
P E U G E O T o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l
d s e a t s w h i c h a r e secured
using a three point seat belt :
Page 54 of 127
COMFORT
56 -
ADVICE ON CHILD
SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keeping
the slack in relation to the child’s
body to a minimum, even for short
journeys.
For optimum installation of the "for-
w a r d f a c i n g " c h i l d s e a t , e n s u r e t h a t
the back of the child seat is in contact
w i t h t h e b a c k o f t h e v e h i c l e ’ s s e a t
and that the head restraint does not
cause any discomfort.
I f t h e h e a d r e s t r a i n t h a s t o b e r e m o v e d ,
ensure that it is stored or attached se-
c u r e l y t o p r e v e n t i t f r o m b e i n g t h r o w n
around the vehicle in the event of
sharp braking. Children under the age of 10 must not
t r a v e l i n t h e " f o r w a r d f a c i n g " p o s i t i o n
o n t h e f r o n t p a s s e n g e r s e a t , u n l e s s
the rear seats are already occupied
b y o t h e r c h i l d r e n , c a n n o t b e u s e d o r
are absent.
D i s a r m t h e p a s s e n g e r a i r b a g w h e n
a "rear facing" child seat is installed
o n t h e f r o n t s e a t . O t h e r w i s e , t h e c h i l d
w o u l d r i s k b e i n g s e r i o u s l y i n j u r e d o r
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e .
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
w i t h o u t t o u c h i n g t h e n e c k .
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , i t
-
t e d w i t h a s e a t b e l t g u i d e a t s h o u l d e r
level. A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
u n s u p e r v i s e d i n a v e h i c l e ,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
t h e w i n d o w s c l o s e d ,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
T a k e c a r e n o t t o o p e n t h e r e a r w i n -
d o w s b y m o r e t h a n o n e t h i r d .
To protect young children from the
r a y s o f t h e s u n , i t s i d e b l i n d s o n t h e
r e a r w i n d o w s .
Page 55 of 127
COMFORT
52 -
Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg L2
"KIDDY Life"
For the safety of young children ( f r o m 9 t o 1 8 k g ) , P E U G E O T
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start" L4
"KLIPPAN Optima"From the age
of 6 years
(approximately
2 2 k g ) , t h e b o o s t e r i s u s e d o n i t s o w n .
PEUGEOTCHILD SEATS RECOMMENDED BY
P E U G E O T o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l
d s e a t s w h i c h a r e secured
using a three point seat belt :
Page 56 of 127
53
COMFORT
-
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT I n a c c o r d a n c e w i t h E u r o p e a n r e g u l a t i o n s ( D i r e c t i v e 2 0 0 0 / 3 ) , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r t h e i n s t a l l a t i o n o f c h i l d s e a t s
s e c u r e d u s i n g t h e s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d ( a ) , i n r e l a t i o n t o t h e w e i g h t o f t h e c h i l d a n d t h e s e a t i n t h e v e h i c l e .

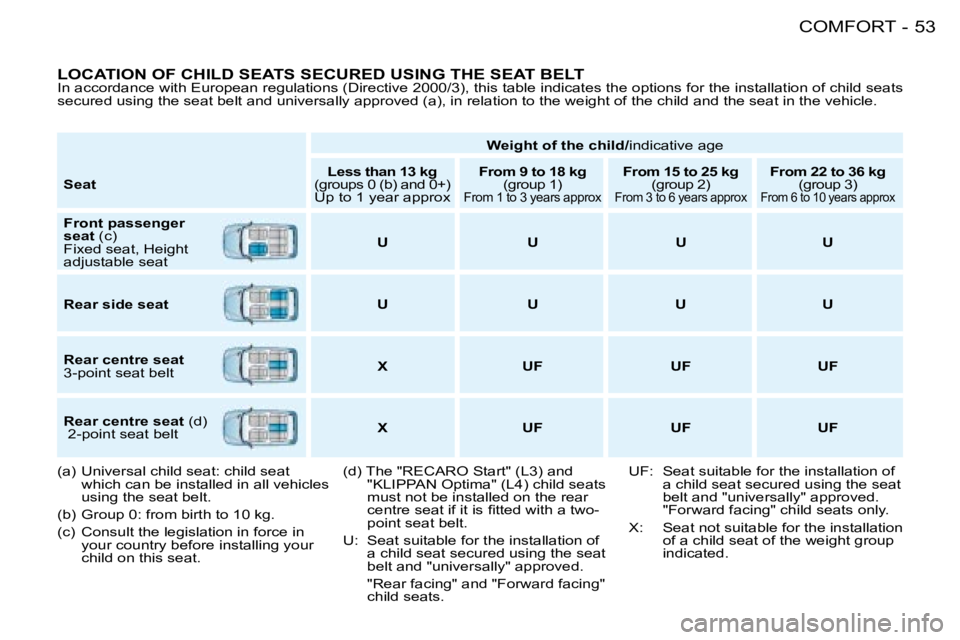

Weight of the child/ indicative age
Seat Less than 13 kg
(groups 0 (b) and 0+) Up to 1 year approx From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger
seat (c)
F i x e d s e a t , H e i g h t
adjustable seat U U U U
Rear side seat U U U U
Rear centre seat
3-point seat belt X UF UF UF
Rear centre seat (d)
2-point seat belt X UF UF UF
(a) Universal child seat: child seat w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s
using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before installing your
child on this seat. (d) The "RECARO Start" (L3) and
"KLIPPAN Optima" (L4) child seats
must not be installed on the rear
c e n t r e s e a t i f i t i s i t t e d w i t h a t w o -
point seat belt.
U: Seat suitable for the installation of a child seat secured using the seat
belt and "universally" approved.
" R e a r f a c i n g " a n d " F o r w a r d f a c i n g " child seats. UF: Seat suitable for the installation of
a child seat secured using the seat
belt and "universally" approved.
" F o r w a r d f a c i n g " c h i l d s e a t s o n l y .
X: Seat not suitable for the installation o f a c h i l d s e a t o f t h e w e i g h t g r o u p
indicated.
Page 57 of 127
COMFORT
54 -
T h e s e a r e t w o r i n g s l o c a t e d b e t w e e n
the seat back and the seat cushion.
The ISOFIX child seats a r e i t t e d
w i t h t w o l o c k s w h i c h a r e s e c u r e d
easily on these rings."ISOFIX" MOUNTINGS
This ISOFIX mounting system guar-
a n t e e s r e l i a b l e , s a f e a n d f a s t i t t i n g o f
the child seat in your vehicle.
T h e s e s e a t s a r e i t t e d w i t h I S O F I X
mountings.
Page 58 of 127
55
COMFORT
-
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

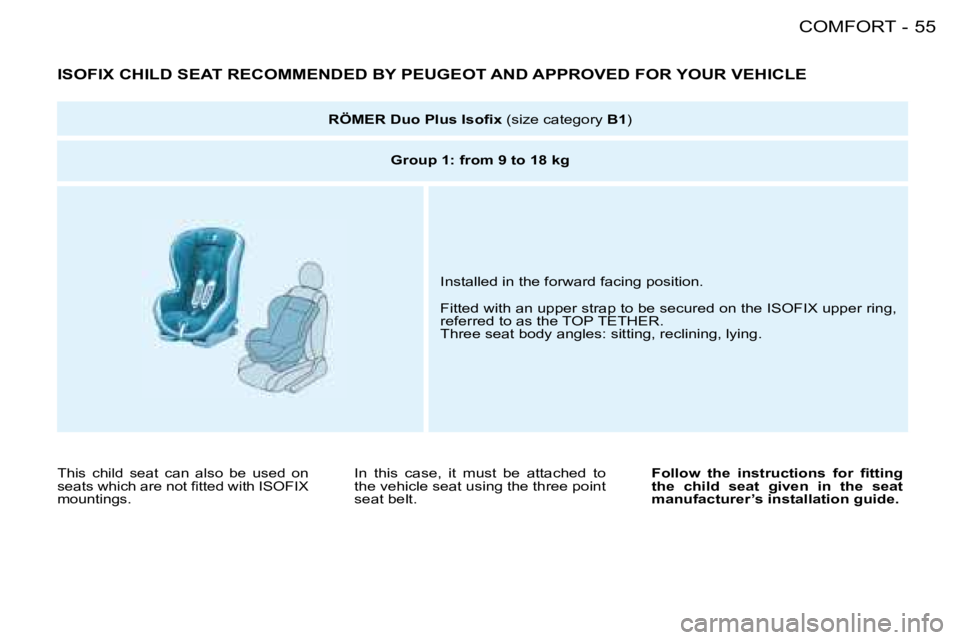

R Ö M E R D u o P l u s I s o i x (size category B1)
Group 1: from 9 to 18 kg
I n s t a l l e d i n t h e f o r w a r d f a c i n g p o s i t i o n .
F i t t e d w i t h a n u p p e r s t r a p t o b e s e c u r e d o n t h e I S O F I X u p p e r r i n g ,
referred to as the TOP TETHER.
T h r e e s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g , l y i n g .
This child seat can also be used on
s e a t s w h i c h a r e n o t i t t e d w i t h I S O F I X
mountings. I n t h i s c a s e , i t m u s t b e a t t a c h e d t o
the vehicle seat using the three point
seat belt. F o l l o w t h e i n s t r u c t i o n s f o r i t t i n g
the child seat given in the seat
manufacturer’s installation guide.
Page 59 of 127
57
ACCESS
-
KEYS
T h e k e y s a l l o w y o u t o s w i t c h o n t h e
ignition and independently oper-
ate the passenger air bag disarming
s w i t c h a n d t h e s t e e r i n g l o c k . Locating your vehicle
T o l o c a t e y o u r v e h i c l e , i f y o u h a v e
l o c k e d i t , i n a c a r p a r k :
F
press button A , t h e c o u r t e s y
lights come on and the direction
i n d i c a t o r s l a s h f o r a f e w
seconds.
Changing the remote control
battery
Battery ref.: CR2016/3 volts.
W a r n i n g t h a t t h e b a t t e r y i s l a t i s g i v e n
by an audible signal accompanied by
the message "Remote control bat-
tery low" on the multifunction display.
T o r e p l a c e t h e b a t t e r y , r e m o v e t h e
s c r e w t h e n u n c l i p t h e c a s i n g u s i n g a
coin at the ring.
I f t h e r e m o t e c o n t r o l d o e s n o t w o r k
a f t e r t h e b a t t e r y h a s b e e n c h a n g e d ,
reprogramme the remote control.
Key in ignition
A buzzer sounds on opening the
d r i v e r ’ s d o o r , i f t h e k e y h a s b e e n l e f t
in the ignition. Programming the remote
control
F
S w i t c h o f f t h e i g n i t i o n .
F S w i t c h t h e i g n i t i o n o n a g a i n .
F Press button A immediately for a
f e w s e c o n d s .
F S w i t c h o f f t h e i g n i t i o n a n d
remove the remote control
key from the ignition lock. The
r e m o t e c o n t r o l i s n o w w o r k i n g
again.
Without central locking/
unlocking by hand
T h e k e y s a l s o a l l o w y o u t o u n l o c k /
l o c k t h e f r o n t d o o r s , t h e b o o t a n d t h e
f u e l i l l e r c a p .
With central locking/
unlocking
T h e k e y s a l l o w y o u t o l o c k o r u n l o c k
a l l o f t h e d o o r s a n d t h e t a i l g a t e , f r o m
the front doors.
If one of the doors or the tailgate is
o p e n , t h e c e n t r a l l o c k i n g d o e s n o t
w o r k . With central locking/
unlocking via the remote
control
Press button
A to lock the vehicle.
T h i s i s c o n i r m e d b y i x e d l i g h t i n g o f
the direction indicators for approxi-
m a t e l y t w o s e c o n d s .
Press button B to unlock the vehicle.
T h i s i s c o n i r m e d b y t h e r a p i d l a s h -
ing of the direction indicators.
Avoid pressing the buttons of your
remote control out of range of your
vehicle. You risk causing it not to
w o r k a n d t h e r e m o t e c o n t r o l w o u l d
then have to be reprogrammed (see
corresponding section).
Page 60 of 127
ACCESS
58 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
s w i t c h e d o f f a n d t h e r e f o r e p r e v e n t s
s t a r t i n g o f t h e v e h i c l e b y a n y o n e w h o
does not have the key.
The ignition key has an electronic
c h i p w h i c h h a s a s p e c i a l c o d e . W h e n
t h e i g n i t i o n i s s w i t c h e d o n , t h e c o d e
must be recognised for starting to be
possible.
Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
The high frequency remote control
i s a s e n s i t i v e s y s t e m ; d o n o t o p e r -
a t e i t w h i l e i t i s i n y o u r p o c k e t a s
there is a possibility that it may un-
l o c k t h e v e h i c l e , w i t h o u t y o u b e i n g
a w a r e o f i t .
The remote control does not oper-
a t e w h e n t h e k e y i s i n t h e i g n i t i o n ,
e v e n w h e n t h e i g n i t i o n i s s w i t c h e d
o f f , e x c e p t f o r r e p r o g r a m m i n g .
D r i v i n g w i t h t h e d o o r s l o c k e d m a y
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f i c u l t i n a n e m e r -
gency.
A s a s a f e t y p r e c a u t i o n ( w i t h c h i l d r e n
o n b o a r d ) , r e m o v e t h e k e y f r o m t h e
i g n i t i o n w h e n y o u l e a v e t h e v e h i c l e ,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
w o r k i n g a n d t h e r e m o t e c o n t r o l
w o u l d h a v e t o b e r e p r o g r a m m e d .
When purchasing a second-hand ve-
h i c l e , h a v e t h e k e y c o d e s m e m o r i s e d
b y a P E U G E O T d e a l e r , t o e n s u r e t h a t
the keys in your possession are the
o n l y o n e s w h i c h c a n s t a r t t h e v e h i c l e .
D o n o t m a k e a n y m o d i i c a t i o n s t o
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
i n d i c a t o r l i g h t , s i t u a t e d i n t h e c e n t r e
o f t h e f a s c i a , l a s h e s r a p i d l y w h e n t h e
i g n i t i o n i s s w i t c h e d o n ( 2 n d n o t c h ) .
I n t h i s c a s e y o u r v e h i c l e w i l l n o t
start.
Contact a PEUGEOT dealer as soon
as possible. If the keys are lost
V i s i t a P E U G E O T d e a l e r w i t h t h e v e
-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i i c a t e a n d
y o u r p e r s o n a l i d e n t i i c a t i o n d o c u -
ments.
T h e P E U G E O T n e t w o r k w i l l b e a b l e
to retrieve the key code and the
transponder code to order a replace-
ment key.
