fuse box Peugeot 206 CC 2001.5 Owner's Manual

1Side windows demisting vents
2 Adjustable side vent
3 Passenger air bag
4 Windscreen demisting vents
5 Multi-function display
6 Central locking control*
7 Hazard warning lights switch
8 Radio
9 Central adjustable vents
10 Instrument panel lightingrheostat
11 Lighting and fog lamps switch
12 Driver's air bag/ horn 13
Steering lock
14 Passenger air bag disarmingswitch*
15 Windscreen wash/wipe stalk
16 Alarm button*
17 Radio steering column stalk
18 Headlamp height adjustment
19 Steering wheel heightadjustment control
20 Fuse box
21 Glove box
22 Electric retractable roofcontrol
23 Electric windows switch
24 Electric mirrors switch 25
Lighter
26 Handbrake
27 Gear lever
28 Front ashtray
29 Switch for heating, ventila-tion, air conditioning andrear screen and mirrorsdemisting
30 Glove box
31 Bonnet opening control
* According to specification.
3YOUR AT A GLANCE

PRACTICAL ASPECTS OF YOUR VEHICLE103

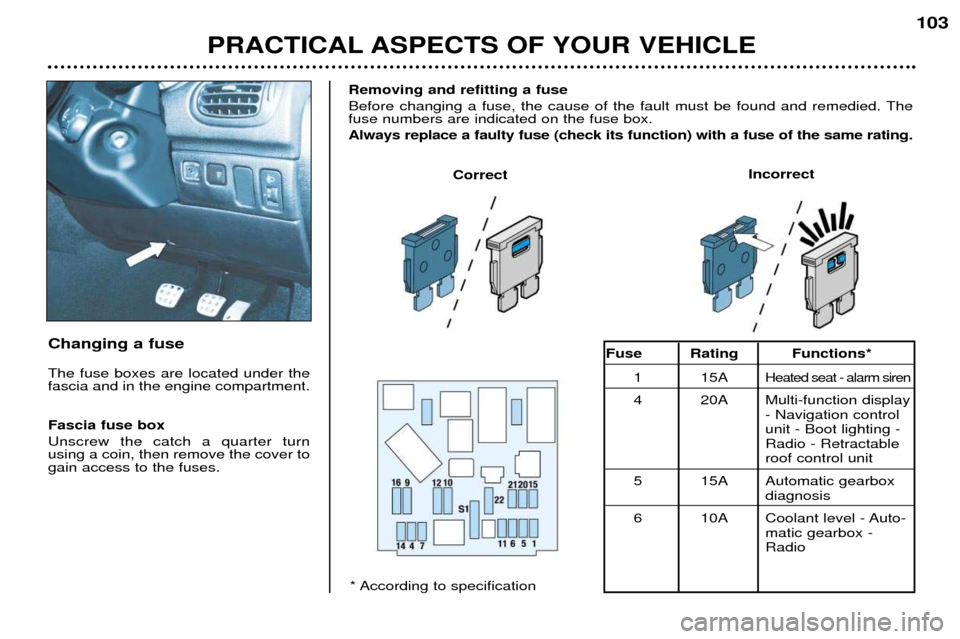

Changing a fuse The fuse boxes are located under the fascia and in the engine compartment. Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the cover togain access to the fuses.Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Always replace a faulty fuse (check its function) with a fuse of the same rating.
Correct
Incorrect
* According to specificationFuse Rating Functions*
1 15A
Heated seat - alarm siren
4 20A Multi-function display - Navigation control unit - Boot lighting -Radio - Retractableroof control unit
5 15A Automatic gearbox diagnosis
6 10A Coolant level - Auto- matic gearbox -Radio

PRACTICAL ASPECTS OF YOUR VEHICLE103
Changing a fuse The fuse boxes are located under the fascia and in the engine compartment. Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the cover togain access to the fuses.Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Always replace a faulty fuse (check its function) with a fuse of the same rating.
Correct
Incorrect
* According to specificationFuse Rating Functions*
1 15A
Heated seat - alarm siren
4 20A Multi-function display - Navigation control unit - Boot lighting -Radio - Retractableroof control unit
5 15A Automatic gearbox diagnosis
6 10A Coolant level - Auto- matic gearbox -Radio

PRACTICAL ASPECTS OF YOUR VEHICLE
104
Fuse no. Rating*
Functions*
7 15A Driving school accessories - Retro-fit alarm - Rain sensor
9 30A Hydraulic pump
10 40A Exterior mirror demisting 11 15A Wiper
12 30A Front windows
14 10A Engine fuse box - Air bags - Steering wheel stalks
15 15A Instrument panel - Multi-function display - Navigation control unit - Air conditioning - Radio
16 30A Door locking / unlocking controls - Deadlocking controls
20 10A Right brake light
21 15A Left brake light - 3rd brake light
22 30A Front courtesy light - Glove box lighting - Cigarette lighter
S1 Shunt PARC shunt
* According to specification

PRACTICAL ASPECTS OF YOUR VEHICLE105
Fuse no. Rating* Functions*
1** 20A Fan unit
2** 60A ABS
3** 30A ABS
4** 70A Built-in systems interface supply
5** 70A Built-in systems interface supply
6** Ñ Not used
7** 30A Ignition switch supply

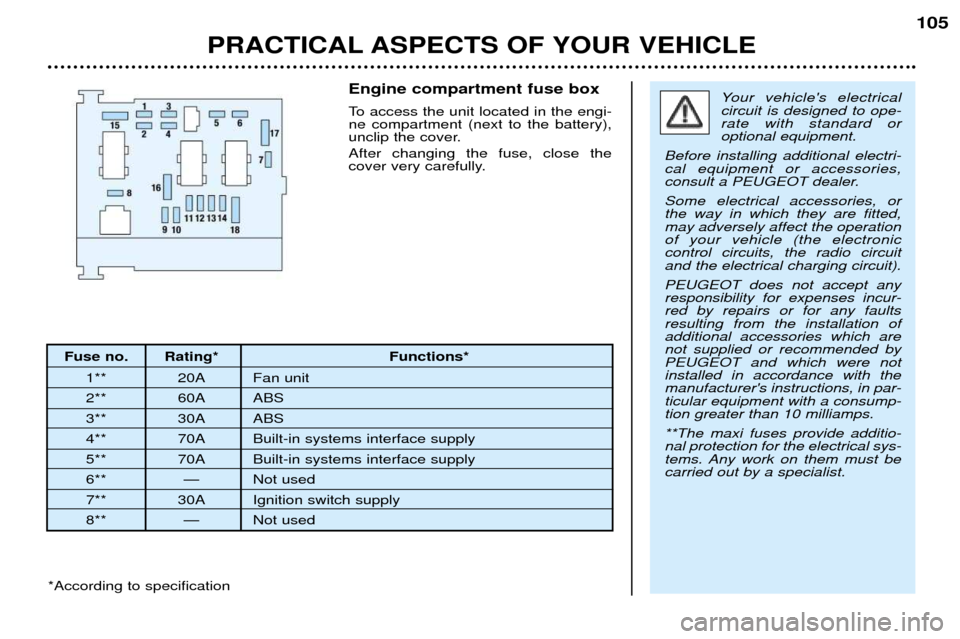

8** Ñ Not used Engine compartment fuse box
To access the unit located in the engi- ne compartment (next to the battery),
unclip the cover. After changing the fuse, close the
cover very carefully.
Your vehicle's electrical circuit is designed to ope-rate with standard oroptional equipment.
Before installing additional electri-cal equipment or accessories,
consult a PEUGEOT dealer. Some electrical accessories, or the way in which they are fitted,may adversely affect the operationof your vehicle (the electroniccontrol circuits, the radio circuitand the electrical charging circuit). PEUGEOT does not accept any responsibility for expenses incur-red by repairs or for any faultsresulting from the installation ofadditional accessories which arenot supplied or recommended byPEUGEOT and which were notinstalled in accordance with themanufacturer's instructions, in par-ticular equipment with a consump-tion greater than 10 milliamps. **The maxi fuses provide additio- nal protection for the electrical sys-
tems. Any work on them must becarried out by a specialist.
*According to specification

PRACTICAL ASPECTS OF YOUR VEHICLE
106
* According to specification
Fuse no. Rating*
Functions*
1 10A Reversing lights switch - Speed sensor
2 15A Canister solenoid valve - Fuel pump
3 10A ABS control unit
4 10A Automatic gearbox control unit - Engine control unit
5 Ñ Not used
7 20A Headlamp wash pump
8 20A Fan unit relay - Engine control unit - Engine management solenoid valve
9 15A Left dipped headlamps
10 15A Right dipped headlamps
11 10A Left main beam headlamps
12 15A Right main beam headlamps
13 15A Horns
14 10A Front windscreen wash pumps
15 30A Throttle housing heater - Oxygen sensor - Engine control unit - Air flow meter - Ignition coil -
Engine management solenoid valve - Injectors
16 30A Air pump relay
17 30A Fast and slow-speed wiper
18 40A Air conditioning fan
