7YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the accesso-ries can be used.
2nd notch, Running position:
the ignition is on.
Starting position:
operates the starter. Steering lock Before starting, unlock the stee-
ring if necessary, by gentlyturning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting an engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns.
THE KEYS The keys operate
independently
the locks for the boot (opening), the fuel filler flap, the steeringlock and the glove box as well asoperating the passenger air bagdisarming switch. Central locking
From the driver's door, the keys allow you to:
Ð simultaneously lock the doors and the boot,
Ð simultaneously unlock the doors alone.
You can only unlock the boot by using the boot lock. The remote control* Pressing button A
allows you to lock the doors and bootby remote control.This is confirmed bythe fixed lighting ofthe direction indica-tors for approxima-tely two seconds. Pressing button B
allows you to unlock
the doors alone. This is confir-med by the rapid flashing ofthe direction indicators forapproximately two seconds.
* According to specification.
68
Never race a cold engine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.

INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light With the engine running, the
warning light comes on when the dri- ver has not fastened his seat belt.
Engine autodiagnosticswarning light This comes on each time the ignition is switched on.
If it comes on when the engine is run-ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light isaccompanied by an audible signal andthe message ''Passenger air bag
disarmed'' on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals,
- a cut or slack alternator belt,
- an alternator fault.
Contact a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light With the engine running, the
warning light comes on when the dri- ver has not fastened his seat belt.
Engine autodiagnosticswarning light This comes on each time the ignition is switched on.
If it comes on when the engine is run-ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light isaccompanied by an audible signal andthe message ''Passenger air bag
disarmed'' on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals,
- a cut or slack alternator belt,
- an alternator fault.
Contact a PEUGEOT dealer.

YOUR 206 CC IN DETAIL
42
COMPACT DISC Selecting CD mode After insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, press button Q.
Ejection of a disc Press button Sto eject the disc from the player.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated play Keep button Lor Npressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
ShuffleWhen the CD player is selected, keep button Qpressed for two seconds. The tracks will be played in random sequence.
Pressing the button again for two seconds returns you to normal play.
Shuffle mode is de-activated each time the audio is switched off.

YOUR 206 CC IN DETAIL43
CD CHANGER* Selecting CD changer mode Press button R.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated play Keep button Lor Npressed for forwards or backwards accelerated play. Accelerated play stops as soon as the button is
released. Shuffle When the CD changer is selected, keep button Rpressed down for two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
*Available during the current year.

YOUR 206 CC IN DETAIL57
Windscreen ,side window-
sand footwells. Footwells.
These settings are recommended for cold climates. Centre and side vents. This setting is recommended
for hot climates.
3. Air flow adjustment
Turn the control to give a suf- ficient air flow to ensure yourcomfort. 4. Air intake control
Outside air intake.
This is the position for normal use.
Recirculation of interior air.
This position prevents the exteriorodours and smoke from entering thepassenger compartment and increas-es the speed of heating. As soon as possible, place the control in the outside air position, otherwise there is a risk of the windows misting up.
5. De-icing the rear screen
With the engine running, pressing the button de-icesthe rear screen and the mir-rors*.
It switches off automatically afterapproximately twelve minutes. Press-ing the button again starts it again fortwelve minutes. It is possible to stop the de-icing oper- ation by pressing the button before thetwelve minutes have elapsed. Note: this function is disarmed when
the roof is stored in the boot.
* According to specification.

YOUR 206 CC IN DETAIL75
*According to specification
AUTOMATIC SWITCHING ON OF LIGHTS* Side lights and dipped beam head- lamps switch on automatically if the
light is poor. They switch off as soonas the light becomes bright enough orthe windscreen wipers stop. Note:
In foggy weather the brightness
sensor can detect sufficient light. As a consequence, the lights will not come
on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accessories
position (1st notch),
- Press the end of the stalk for more than two seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
Comment: The brightness sensor,
coupled with the rain sensor, is loca-ted in the centre of the windscreen,
behind the interior mirror. It is usedfor automatic switching on of thelights. Operating check Activation Acivation of this function is accompanied by an audible signal
"Automatic ligh-
ting'' on the multifunction display.
Disarming of the function is not accom-panied by any audible signal Note: the function is temporarily disar-
med when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audiblesignal, accompanied by the message"switching on of lights faulty" .
Contact a PEUGEOT dealer to have thesystem checked.

YOUR 206 CC IN DETAIL
76
* According to specification Windscreen wash Pull the wipers stalk towards you.The windscreen wash, then the wind- screen wipers, operate for a fixed period.
Operation In position
1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, then resumesits initial speed when the vehicle startsagain. In the Intermittent position, the wiping speed is proportional to the speed ofthe vehicle. In the AUTO* position, the wiping
speed is proportional to the heaviness of the rain. When the ignition has been switched off for more than oneminute with the stalk in the wipeposition, it is necesary to reactivatethis function. To do this, move the
stalk to any position, then move it backto the required position.

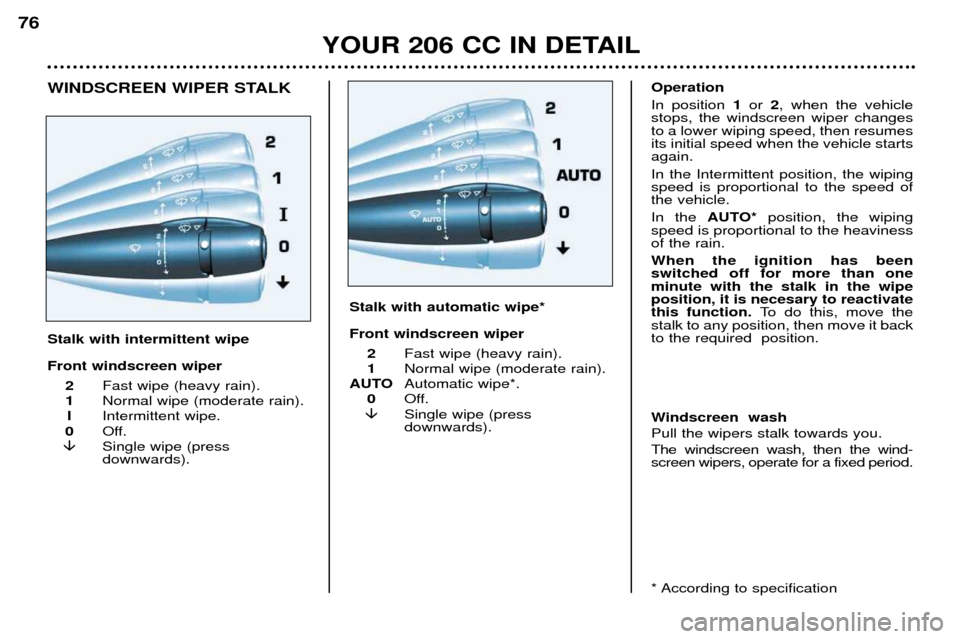

WINDSCREEN WIPER STALK Stalk with intermittent wipe Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
Stalk with automatic wipe* Front windscreen wiper
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe*.
0 Off.
Single wipe (press downwards).

PRACTICAL ASPECTS OF YOUR VEHICLE107
Battery
To charge the battery using a battery charger:
Ð Disconnect the battery.
Ð Follow the instructions for use given by the battery charger manufacturer.
Ð Reconnect starting with the negative (-) terminal.
Ð Check that the terminals and connectors are clean. If they are covered with sul-
phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle and charge the battery from another battery:
Ð Connect the red cable to the positive (+) terminals of the two batteries.
Ð Connect one end of the green or black cable to the negative (-) terminal of the slave battery.
Ð Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery.
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables. Economy mode function After the engine has stopped, with the key in the accessories position, cer-
tain functions (windscreen wiper, elec-tric windows, courtesy lights, audioequipment etc.) can only be used forthirty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
A flat battery will prevent the engine from starting.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initiali- sed. If slight difficulties are experienced after this, please contact a
PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.
