PEUGEOT 206 CC 2001 Owners Manual

TECHNICAL DATA117

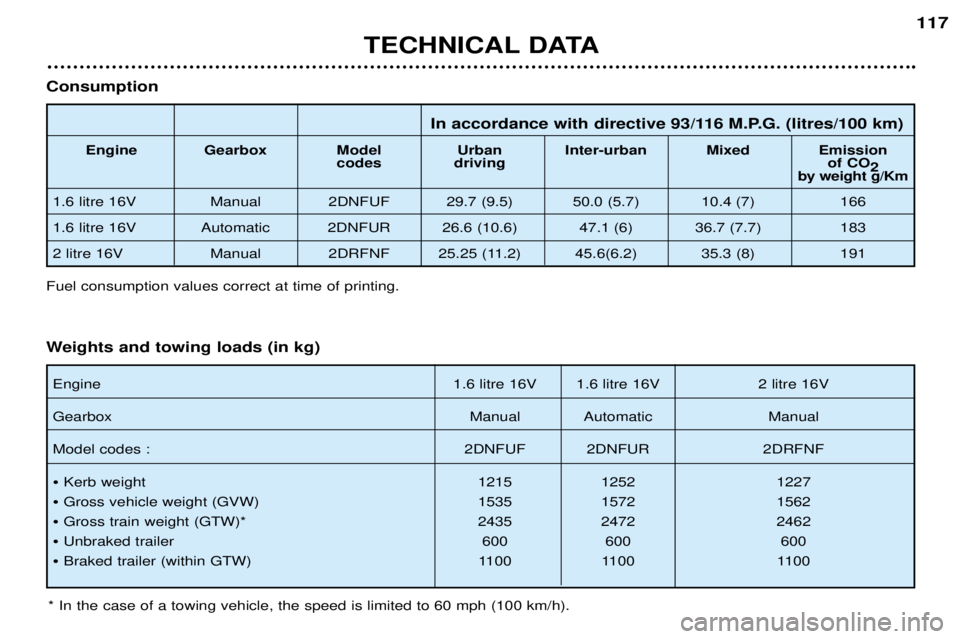

In accordance with directive 93/116 M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving of CO
2
by weight g/Km
1.6 litre 16V Manual 2DNFUF 29.7 (9.5) 50.0 (5.7) 10.4 (7) 166
1.6 litre 16V Automatic 2DNFUR 26.6 (10.6) 47.1 (6) 36.7 (7.7) 183
2 litre 16V Manual 2DRFNF 25.25 (11.2) 45.6(6.2) 35.3 (8) 191
Consumption
Fuel consumption values correct at time of printing.
Engine 1.6 litre 16V 1.6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual
Model codes : 2DNFUF 2DNFUR 2DRFNF
¥ Kerb weight
1215 1252 1227
¥ Gross vehicle weight (GVW) 1535 1572 1562
¥ Gross train weight (GTW)* 2435 2472 2462
¥ Unbraked trailer
600 600 600
¥ Braked trailer (within GTW) 1100 1100 1100
Weights and towing loads (in kg)
* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).

TECHNICAL DATA
118

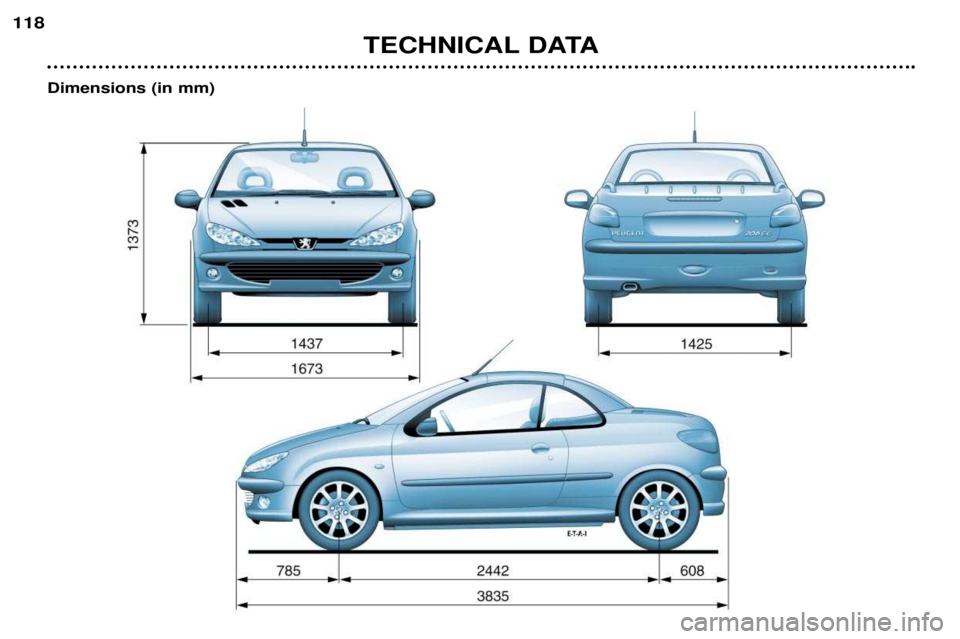

Dimensions (in mm)

TECHNICAL DATA119

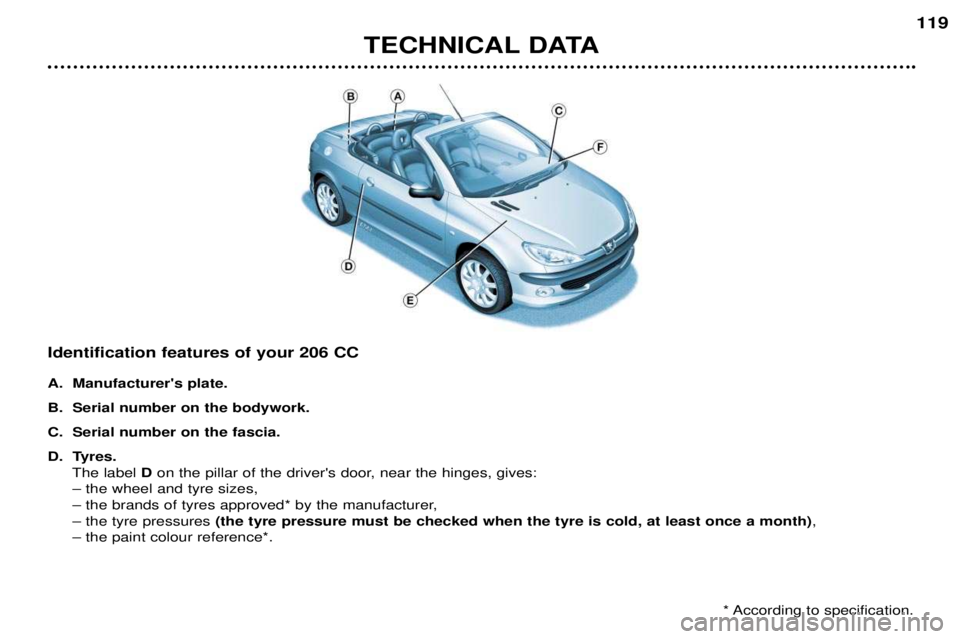

Identification features of your 206 CC
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia.
D. Tyres.
The label Don the pillar of the driver's door, near the hinges, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved* by the manufacturer,Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month) ,
Ð the paint colour reference*.
* According to specification.
