YOUR 206 CC IN DETAIL81
Interior mirror The interior mirror has two positions: -
day (normal),
- night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower edge of
the mirror. Electric mirrors
Turn knob
1to the right or to the left to
select the corresponding mirror. Move knob 1in all four directions to
adjust. Electric folding mirrors* With the ignition on, turn knob 1to
position A.
The driver's mirror is non- spherical (the externalarea is delimited by a dot-ted line) to reduce the
"blind spot". Therefore, objects in the driver's and passenger's mirrors are really
closer than they appear. It is therefore necessary to take this into account to correctly judgethe distance of vehicles approa-
ching from the rear.
* According to specification.

YOUR 206 CC IN DETAIL
82
Headlamp adjustment
Depending on the load in your vehicle, it is recommended to adjust the headlampbeam.
0.
1 or 2 people in the front seats.
Ð. 3 people.
1. 4 people.
2. 4 people + maximum authorisedload.
3. Driver + maximum authorised load.
Initial setting is position 0. Steering wheel heightadjustment Lower the handle to unlock the steer- ing wheel. Adjust to the desired height and lift the handle to lock the steering wheel.
Horn
Press one of the spokes orthe centre of the steeringwheel.

YOUR 206 CC IN DETAIL83
Areas for toll cards / car park tickets* The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
Courtesy lights
Off Lights when one of the doors is opened. In this position thecourtesy light flashes whenthe vehicle is moving, if a dooris not correctly closed*. Permanently on when the igni- tion key is in the accessoriesposition or the ignition is on. Sun visor The sun visors are fitted with a vanity
mirror, with a concealing flap on the
driverÕs side. Front ashtray
To empty, close the cover. Pull the lug and release the ashtray upwards.
Lighter Press and wait a few minutes until it
springs out automatically.
* According to specification.

YOUR 206 CC IN DETAIL
84
Glove compartment The glove compartment is fitted with a lock.
To open the glove compartment, lift the handle. The light comes on when the lid is opened. 1.
Vehicle document folder storage
2. Cup holder
3. Pen holder
4. Spectacles storage
5. Map storage
6. Coin storage Bottle holder
A bottle holder is fitted between the two rear seat backs.
To open it, pull the top of the cover. Lashing rings Use the 4 lashing rings on the luggage compartment floor secure your lug-gage.

YOUR 206 CC IN DETAIL85
Automatic autoadaptive gearbox* Moving Off
To move off, move the selector lever to position
Nor P. Press the brake to exit
position P. Stopped or parked Always leave the lever in position Pwhen you get out of your vehicle.
If not, a buzzer will sound when you open the driver's door.
Positions of the selector lever These positions are displayed on the instrument panel.P
Park: use with the handbrake when parking
R
Reverse: this must only be engaged when the vehicle is stationary, engine at idle.
N
Neutral: if
Nis engaged by mistake while the car is moving, allow the
engine to return to idle before engaging a new forward gear.
D
Drive: in this position, the four gears change automatically. The gear change points vary depending on the programme selected.
3


Automatic changes of the first three gears only. Select this position when you notice frequent changes between third and fourth gear (town driving oron winding roads).
2


Automatic changes of the first two gears only. This position is particularly suitable for mountain roads, when going uphill (to make the best use of theengine's power) and downhill (engine braking).
* According to specification .

YOUR 206 CC IN DETAIL
86
Operating programmes
You have a choice of three operating pro- grammes:
Ð Autoadaptive (normal).
Ð Sport.
Ð Snow.One press on button
Aor Bwill select
Sport or Snow respectively. The selec- tion is displayed on the instrumentpanel. Pressing the button a secondtime will return to the autoadaptive(normal) programme. Autoadaptive programme (normal) Gear changes are carried out on the basis of various parameters, such as:
Ð driving style,
Ð road characteristics,
Ð vehicle load.The gearbox continuously scans the
different programmes in the memoryand selects the one most suitable forthe driving conditions at any givenmoment. Sport programme The Sport programme automatically favours more dynamic driving. Snow Programme In position
D, the Snow programme
provides smooth driving suited to slip- pery roads in order to improve traction
and stability. Starting is in 2nd gear
and changing down is at low enginespeeds. Special operating features
Ð During prolonged braking, the gearbox changes down automatically, so as to
provide efficient engine braking.
Ð If you take your foot off the accele- rator suddenly (when you are takenby surprise, for example), the gear-box will not change up, so as to
improve safety.
Ð When the engine is cold, the gear- box automatically selects a specialprogramme that enables the engineto reach its ideal temperature more quickly in order to decrease pollu-tion.
Kickdown For immediate maximum acceleration
without touching the gear lever, press theaccelerator pedal down as far as it will go.The gearbox will change down automati-cally or stay in the gear selected, up tomaximum engine speed.Any disruption of the system is signalled by the simulta-neous flashing of the Sportand Snow lights on the ins-
trument panel. In such a case, thegearbox will operate in downgrade
mode. You may feel a substantialknock when reverse is selected from P
to Ror Nto R(without any risk of
damage to the gearbox). Do not exceed 60 m.p.h. (100km/h).Contact a PEUGEOT dealer without
delay. When the engine is idling with the car
in gear, the car will move even withoutyou accelerating. Do not accelerate while a gear is being
selected, when the vehicle is stationary.
When stationary, have your foot on the
brake pedal when selecting a gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engi- ne running, apply the handbrake andselect position P.
Do not change down to brake on slip-pery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Rif the vehicle is
not stationary.Do not leave children inside the vehicle unsupervised when the engineis running.

YOUR 206 CC IN DETAIL87
The normal operation of the ABS may make itself felt by slight vibra-tions of the brake pedal. In emergency braking, press very firmly without releasing thepressure.
The ABS Anti-lock Braking System*
When used with approved tyres in
good condition, the ABS increases thestability and manoeuvrability of yourvehicle, particularly on poor or slipperyroad surfaces. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
Handbrake Locking When parking, pull the handbrake to immobilise your vehicle. Unlocking Pull the handle and press the button to release the handbrake.
* According to specification.

YOUR 206 CC IN DETAIL
88
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. Theyare deployed simultaneously except incases where the air bag is disarmed. Front air bag fault If this warning light comes on, accom- panied by an audible signal and themessage
"Air bag fault" on the multi-
function display, contact a PEUGEOTdealer to have the system checked.
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions. Itworks in conjunction with the force-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration of thevehicle: if the triggering threshold isreached the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not
serious, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the
cushion can be a minor irritant. Disarming the passenger* air bag
To ensure the safety of your child, it is essential to disarm the passen-ger air bag when you install a rear-facing child seat on the front pas-senger seat.
Remove the ignition key, insert it into the passenger airbag switch 1
and turn it to the "OFF"position,
then remove it, maintaining thisposition.
The air bag warning light onthe instrument panel is litthroughout the disarmingprocess.
* According to specification.

YOUR 206 CC IN DETAIL89
In the
"OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as you remove the rear-fac- ing child seat from the front passengerseat, turn the air bag switch to the"ON" position, to arm the air bag
again and thus ensure the safety ofyour passenger in an impact. Operating check This is provided by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play. When the ignition is on (2nd notch on the ignition key), switching on of thiswarning light, accompanied by anaudible signal and the message ''Pas-
senger air bag disarmed'' on the
multifunction screen, indicates that thepassenger air bag is disarmed ( ''OFF''
position on the control).SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on the doorside. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. Operating check This is confirmed by an indica-
tor light on the instrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.
*According to specification

YOUR 206 CC IN DETAIL
90

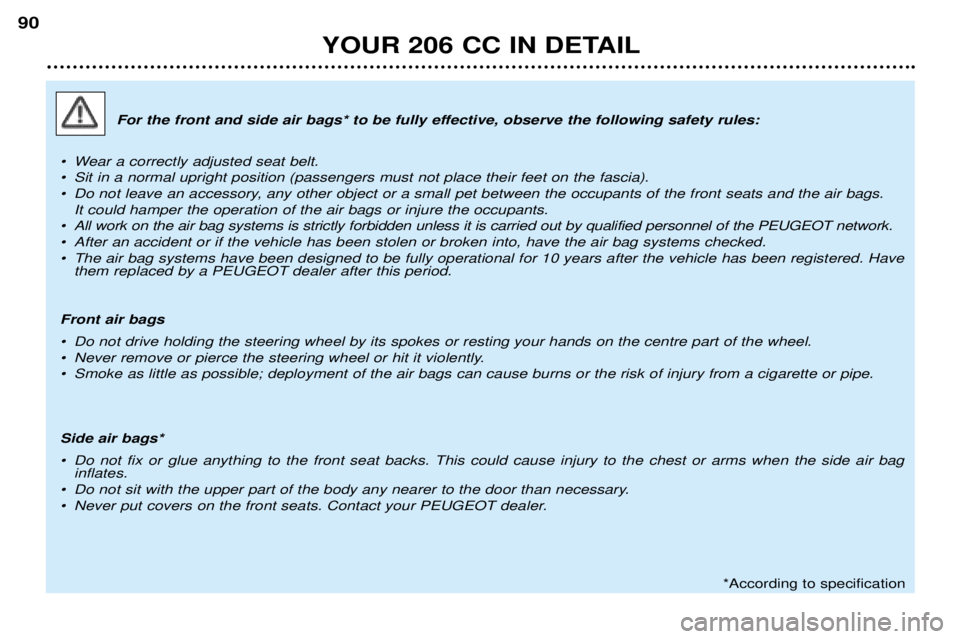

For the front and side air bags* to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave an accessory, any other object or a small pet between the occupants of the front seats and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag systems is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe. Side air bags*
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Never put covers on the front seats. Contact your PEUGEOT dealer.
*According to specification
