PRACTICAL ASPECTS OF YOUR VEHICLE107
Battery
To charge the battery using a battery charger:
Ð Disconnect the battery.
Ð Follow the instructions for use given by the battery charger manufacturer.
Ð Reconnect starting with the negative (-) terminal.
Ð Check that the terminals and connectors are clean. If they are covered with sul-
phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle and charge the battery from another battery:
Ð Connect the red cable to the positive (+) terminals of the two batteries.
Ð Connect one end of the green or black cable to the negative (-) terminal of the slave battery.
Ð Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery.
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables. Economy mode function After the engine has stopped, with the key in the accessories position, cer-
tain functions (windscreen wiper, elec-tric windows, courtesy lights, audioequipment etc.) can only be used forthirty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
A flat battery will prevent the engine from starting.
- Never disconnect a terminal when the engine is running.
- Never charge a battery without first disconnecting the terminals.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initiali- sed. If slight difficulties are experienced after this, please contact a
PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.

PRACTICAL ASPECTS OF YOUR VEHICLE
108
Fitting audio equipment
Your vehicle is equipped with certain factory-fitted audio equipment:
Ð roof aerial,
Ð coaxial aerial cable,
Ð basic interference suppression,
Ð supply to front speakers,
Ð supply to rear speakers* and
tweeters*,
Ð two 8-way connectors.

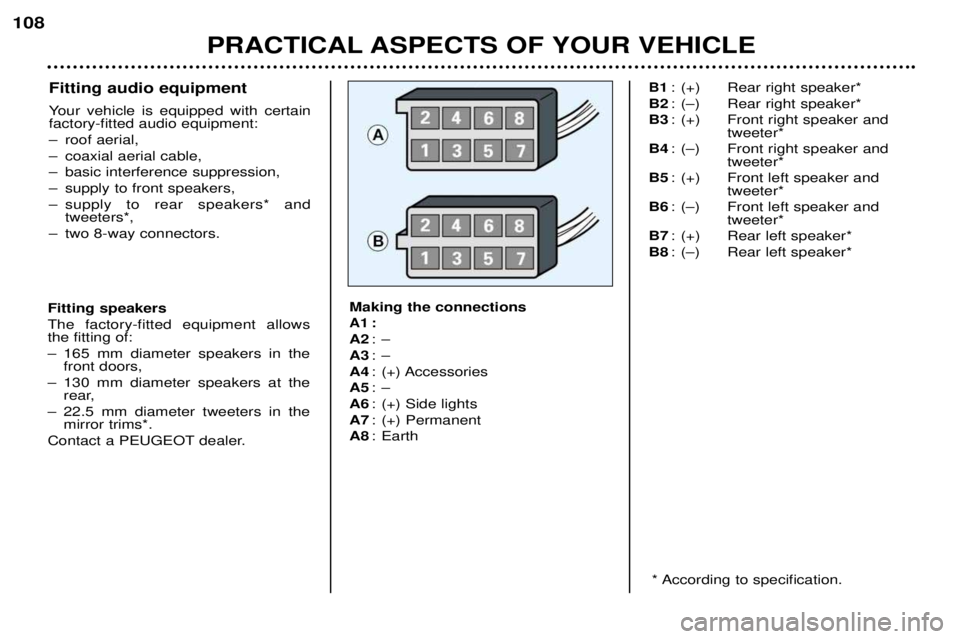

Making the connections
A1 :
A2:Ð
A3 :Ð
A4 : (+) Accessories
A5 :Ð
A6 : (+) Side lights
A7 : (+) Permanent
A8 : Earth
B1: (+) Rear right speaker*
B2 : (Ð) Rear right speaker*
B3 : (+) Front right speaker and
tweeter*
B4 : (Ð) Front right speaker and
tweeter*
B5 : (+) Front left speaker and
tweeter*
B6 : (Ð) Front left speaker and
tweeter*
B7 : (+) Rear left speaker*
B8 : (Ð) Rear left speaker*
Fitting speakers The factory-fitted equipment allows the fitting of:
Ð 165 mm diameter speakers in the front doors,
Ð 130 mm diameter speakers at the rear,
Ð 22.5 mm diameter tweeters in the mirror trims*.
Contact a PEUGEOT dealer.
* According to specification.

PRACTICAL ASPECTS OF YOUR VEHICLE109
Towing your vehicle
Without lifting (four wheels on the ground)

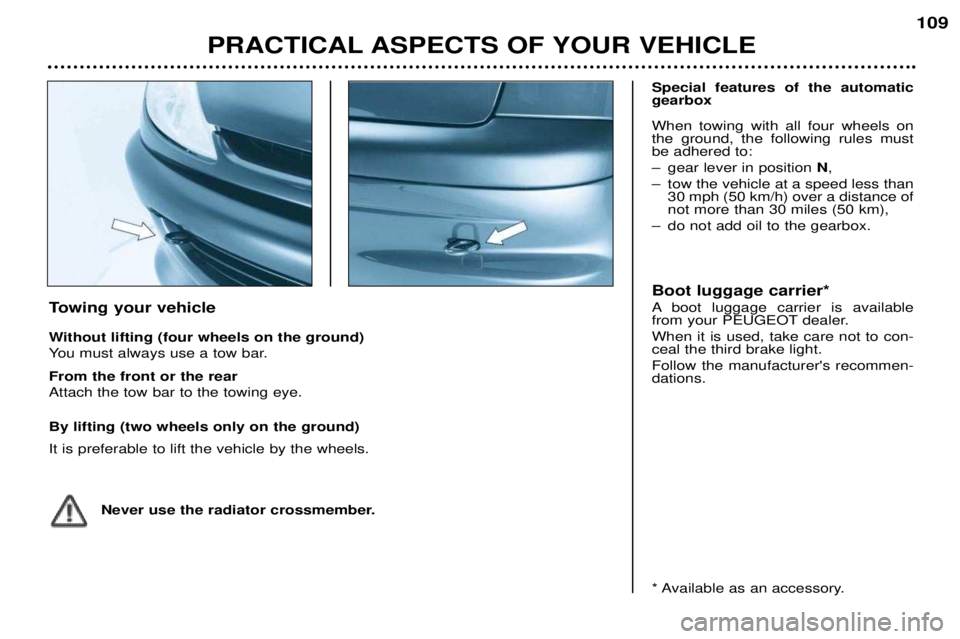

You must always use a tow bar. From the front or the rear Attach the tow bar to the towing eye. By lifting (two wheels only on the ground) It is preferable to lift the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearbox When towing with all four wheels on the ground, the following rules mustbe adhered to:
Ð gear lever in position
N,
Ð tow the vehicle at a speed less than 30 mph (50 km/h) over a distance of not more than 30 miles (50 km),
Ð do not add oil to the gearbox. Boot luggage carrier*
A boot luggage carrier is available
from your PEUGEOT dealer. When it is used, take care not to con- ceal the third brake light. Follow the manufacturer's recommen- dations.
* Available as an accessory.

PRACTICAL ASPECTS OF YOUR VEHICLE
110
Towing a trailer, caravan, boat etc.
Only use original PEUGEOT tow bars that have been tested and approvedfrom the design stage of your vehicle.The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is mainly designed for transporting people and luggage but it
may also be used for towing a trailer. Driving with a trailer subjects the tow- ing vehicle to more significant stressand its driver must be particularlycareful. Air density decreases with altitude, thus reducing engine performance.The maximum towing load must bereduced by 10% for every1000 metres of altitude. Driving advice Distribution of loadsDistribute the load in the trailer so that the heaviest items are as close aspossible to the axle and the noseweight approaches the maximum per-mitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent onthe engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient and theoutside temperature. Always pay attention to the coolant temperature. If the warning light comes on, stop the
vehicle and switch off the engine assoon as possible.
Tyres Check the tyre pressures of the towing
vehicle and of the trailer, observing therecommended pressures.
Braking
Towing increases the braking dis- tance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sensi- tivity to side wind.

PRACTICAL ASPECTS OF YOUR VEHICLE111
Bodywork maintenance
To preserve the paintwork and the plastic trim on your vehicle, we recom-
mend that you wash them regularly.
Ð by hand: there are no specific pre-
cautions to take;
Ð using an automatic car wash: repeated use of poorly maintained automatic car washes can lead tothe appearance of microscopicscratches which give the paintworka matt appearance (especiallyvisible on dark colours);
Ð using a high pressure washer: always follow the recommendationson the equipment (pressure andspraying distance). If there are damaged areas on the vehicle (painted bumpers, or head-lamps), it is not recommended todirect the high pressure jet onto
them. Wash these areas by hand. Also avoid the entry of water into the locks.

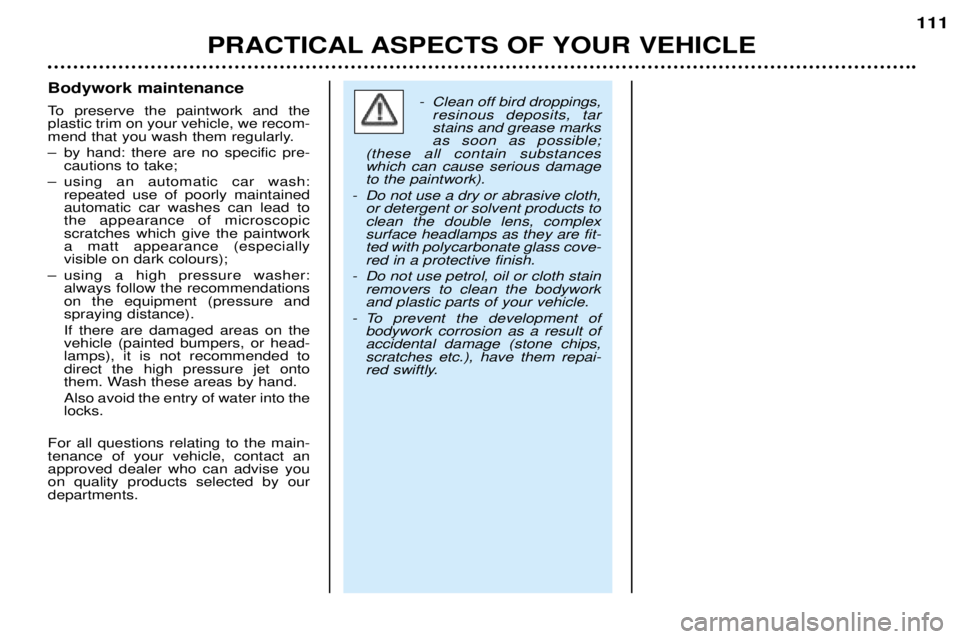

For all questions relating to the main-tenance of your vehicle, contact anapproved dealer who can advise youon quality products selected by ourdepartments.- Clean off bird droppings, resinous deposits, tar stains and grease marksas soon as possible;
(these all contain substanceswhich can cause serious damageto the paintwork).
- Do not use a dry or abrasive cloth, or detergent or solvent products toclean the double lens, complexsurface headlamps as they are fit-ted with polycarbonate glass cove-red in a protective finish.
- Do not use petrol, oil or cloth stain removers to clean the bodyworkand plastic parts of your vehicle.
- To prevent the development of bodywork corrosion as a result ofaccidental damage (stone chips,scratches etc.), have them repai-
red swiftly.

PRACTICAL ASPECTS OF YOUR VEHICLE
112

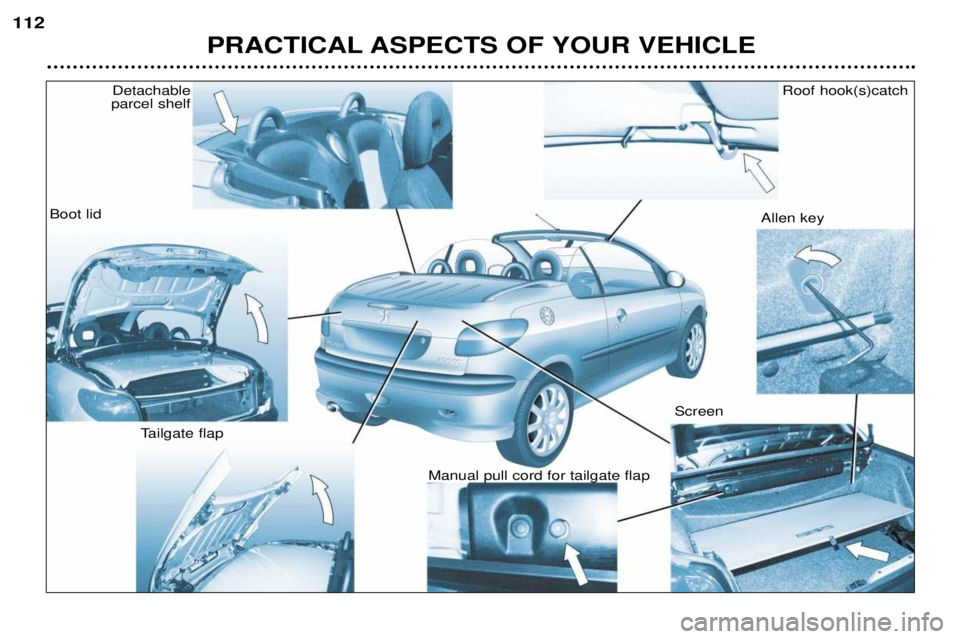

Detachable
parcel shelf
Boot lid
Tailgate flap Manual pull cord for tailgate flapScreenAllen key
Roof hook(s)catch

PRACTICAL ASPECTS OF YOUR VEHICLE113

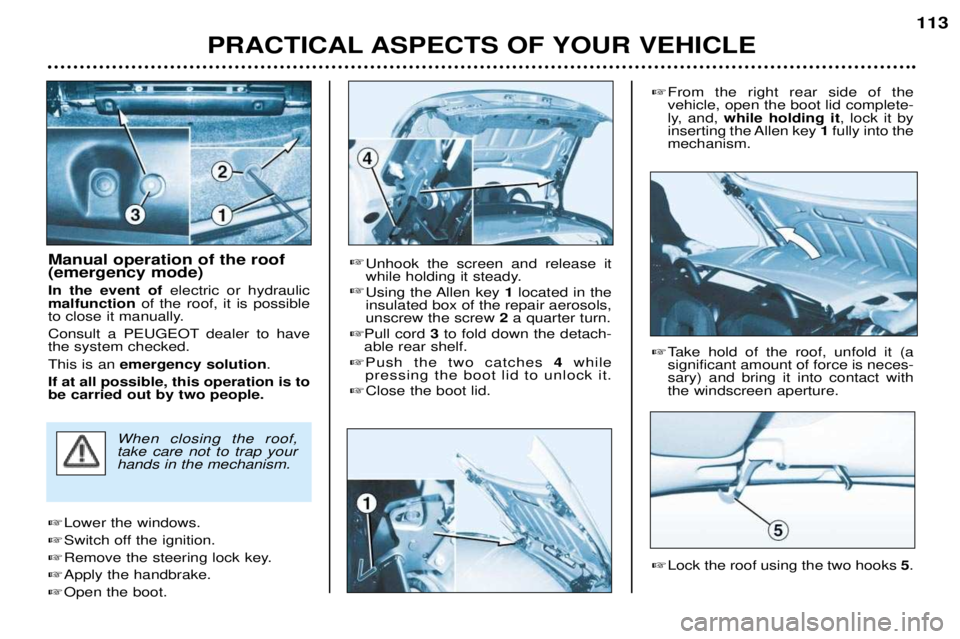

Manual operation of the roof (emergency mode) In the event of
electric or hydraulic
malfunction of the roof, it is possible
to close it manually.
Consult a PEUGEOT dealer to have the system checked. This is an emergency solution .
If at all possible, this operation is to be carried out by two people.  Lower the windows.
 Switch off the ignition.
 Remove the steering lock key.
 Apply the handbrake.
 Open the boot.
Unhook the screen and release it
while holding it steady.
 Using the Allen key 1located in the
insulated box of the repair aerosols,unscrew the screw 2a quarter turn.
 Pull cord 3to fold down the detach-
able rear shelf.
 Push the two catches 4while
pressing the boot lid to unlock it.
 Close the boot lid.
From the right rear side of the vehicle, open the boot lid complete-
ly, and, while holding it , lock it by
inserting the Allen key 1fully into the
mechanism.
 Lock the roof using the two hooks 5.
When closing the roof, take care not to trap yourhands in the mechanism.
 Take hold of the roof, unfold it (a significant amount of force is neces-sary) and bring it into contact withthe windscreen aperture.

PRACTICAL ASPECTS OF YOUR VEHICLE
114

Take out the Allen key 1 while
holding the boot lid , then fold it
down slowly and steadily, without trying to lock it.
 Open the boot.
 Pull both white clips 6located
above the catches, and turn themdownwards a quarter turn, while atthe same time keeping the boot lidclosed.
 Push the two white clips 6into their
locking holes.
 Close the boot.
Contact a PEUGEOT dealer to havethe system checked.
The roof must not be ope- rated while a loaded lug-gage-holder is fitted onthe boot lid.

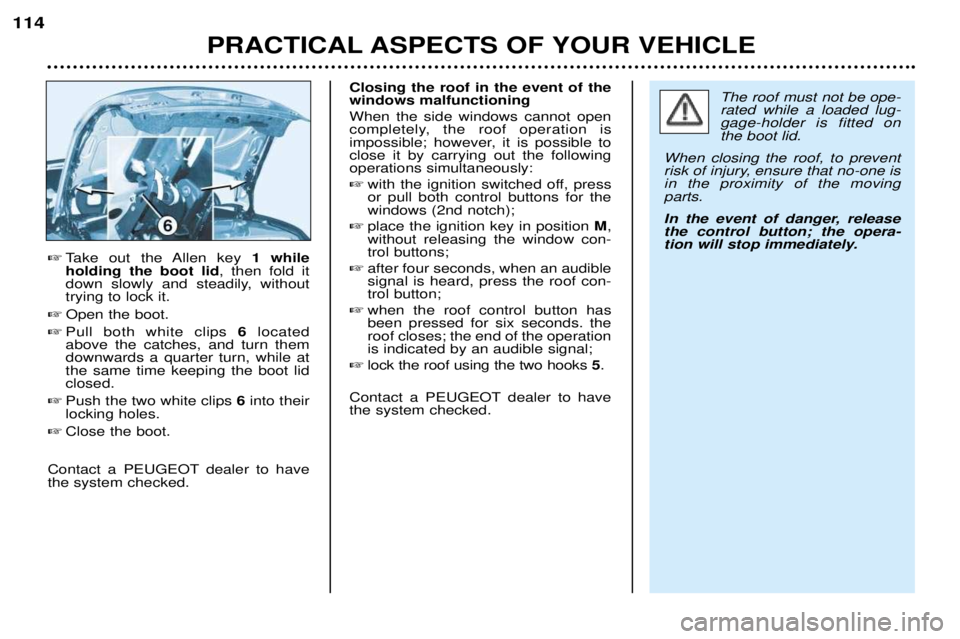

When closing the roof, to prevent
risk of injury, ensure that no-one isin the proximity of the movingparts.
In the event of danger, release the control button; the opera-
tion will stop immediately.Closing the roof in the event of the windows malfunctioning When the side windows cannot open
completely, the roof operation is
impossible; however, it is possible toclose it by carrying out the followingoperations simultaneously:  with the ignition switched off, press or pull both control buttons for thewindows (2nd notch);
 place the ignition key in position M,
without releasing the window con-trol buttons;
 after four seconds, when an audiblesignal is heard, press the roof con-trol button;
 when the roof control button hasbeen pressed for six seconds. theroof closes; the end of the operationis indicated by an audible signal;
 lock the roof using the two hooks 5.
Contact a PEUGEOT dealer to havethe system checked.

PRACTICAL ASPECTS OF YOUR VEHICLE115
206 CC Accessories
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety, which
PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee. Safety:
Anti-theft alarms, lift detection alarm, window engraving, wheel locks, signalling triangle, first aid kit...
Protection: Covers suitable for side air bags, carpets, boot storage tray, É
Communication: Telephone, satellite navigation system, CD changers*, audio systems, speakers, audio trim, ...
Personalisation: Alloy wheels, trims, mud flaps*, aluminium and wood panel trim...
Comfort: Centre armrest, can holder, CD or cassette storage, telephone console, anti-air swirl net, ....
Leisure: Towbar, roof bars , snow chains, ...
Children: Booster seats and child seats, ...
Maintenance products: Screenwash, interior and exterior maintenance and cleaning products.
* Available during the year

TECHNICAL DATA
116

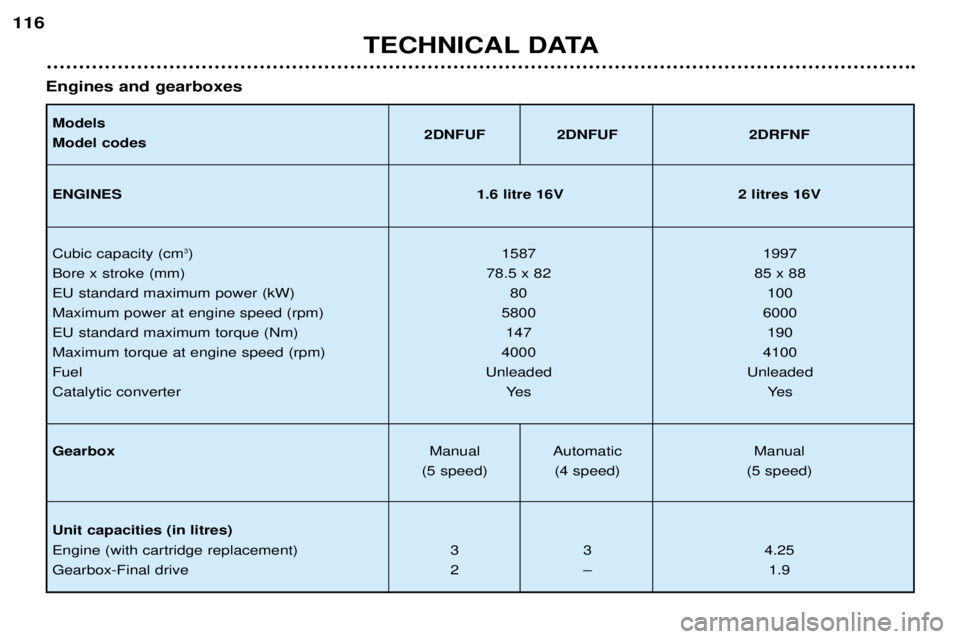

Models Model codes
2DNFUF 2DNFUF 2DRFNF
ENGINES 1.6 litre 16V 2 litres 16V
Cubic capacity (cm 3
) 1587 1997
Bore x stroke (mm) 78.5 x 82 85 x 88
EU standard maximum power (kW) 80 100
Maximum power at engine speed (rpm) 5800 6000
EU standard maximum torque (Nm) 147 190
Maximum torque at engine speed (rpm) 4000 4100Fuel Unleaded Unleaded
Catalytic converter Yes Yes
Gearbox Manual Automatic Manual
(5 speed) (4 speed) (5 speed)
Unit capacities (in litres)
Engine (with cartridge replacement) 3 3 4.25Gearbox-Final drive 2 Ð 1.9
Engines and gearboxes
