Page 25 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 26 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 96 of 123
PRACTICAL ASPECTS OF YOUR VEHICLE
94
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 2.8 litres or 6.6 litres withheadlamp wash). Battery
At the start of winter, have your batte-
ry checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential.
If you drive in very
dusty conditions, change it twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town, for short jour-neys. It may be necessary to checkthe thickness of the pads even bet-ween services.
* According to specification. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a

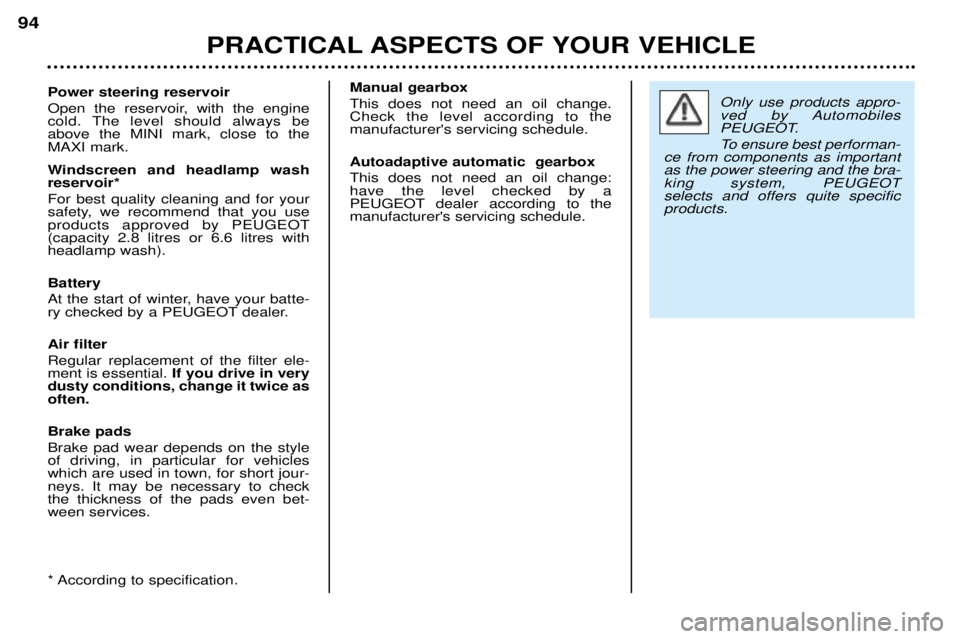

PEUGEOT dealer according to themanufacturer's servicing schedule.Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best performan-
ce from components as important as the power steering and the bra-king system, PEUGEOTselects and offers quite specificproducts.
