glove box PEUGEOT 206 CC DAG 2001 Owners Manual

1Bonnet opening control
2 Fuse box
3 Storage
4 Steering wheel height adjust- ment control
5 Headlamp height adjustment
6 Lights and fog lamps stalk
7 Adjustable side vent
8 Heated seats switch*
9 Side windows demisting vents
10 Passenger air bag disarmingswitch*
11 Driver's air bag / horn
12 Instrument panel lighting rheostat
13 Windscreen wash/wipe stalk 14
Radio steering column stalk
15 Steering lock
16 Central adjustable vents
17 Hazard warning lights switch
18 Multifunction display
19 Audio equipment
20 Windscreen demisting vents
21 Passenger air bag
22 Glove box
23 Controls for heating, ventila-tion, air conditioning and rearscreen and mirrors demisting
24 Front ashtray
25 Gear lever
26 Lighter
27 Electric mirrors switch 28
Electric windows switch
29 Handbrake
30 Retractable roof switch
* According to specification.
3YOUR AT A GLANCE

7YOUR AT A GLANCE

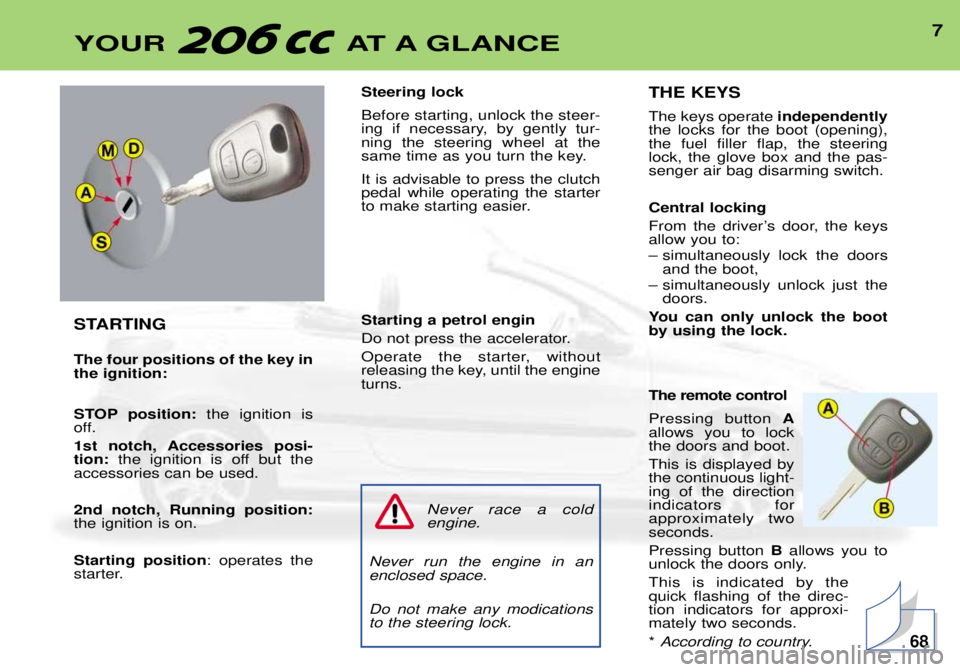

STARTING The four positions of the key in the ignition:
STOP position:the ignition is
off.
1st notch, Accessories posi- tion: the ignition is off but the
accessories can be used. 2nd notch, Running position: the ignition is on. Starting position : operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting a petrol engin
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
THE KEYS The keys operate
independently
the locks for the boot (opening), the fuel filler flap, the steeringlock, the glove box and the pas-senger air bag disarming switch. Central locking
From the driverÕs door, the keys allow you to:
Ð simultaneously lock the doors and the boot,
Ð simultaneously unlock just the doors.
You can only unlock the boot by using the lock. The remote control Pressing button A
allows you to lock the doors and boot. This is displayed by the continuous light-ing of the directionindicators forapproximately twoseconds. Pressing button Ballows you to
unlock the doors only.This is indicated by the quick flashing of the direc-tion indicators for approxi-mately two seconds. * According to country.
68
Never race a cold engine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.

YOUR 206 CC IN DETAIL
44

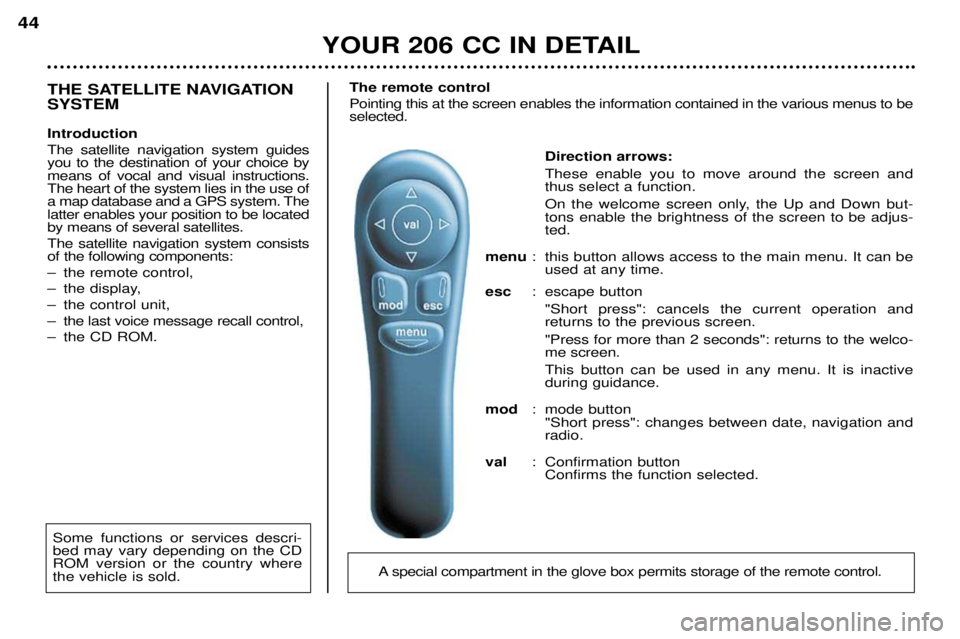

Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down but- tons enable the brightness of the screen to be adjus-ted.
menu : this button allows access to the main menu. It can be
used at any time.
esc : escape button
"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the welco- me screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button
"Short press": changes between date, navigation andradio.
val : Confirmation button
Confirms the function selected.
THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of your choice bymeans of vocal and visual instructions.The heart of the system lies in the use of
a map database and a GPS system. Thelatter enables your position to be locatedby means of several satellites. The satellite navigation system consists of the following components:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall control,
Ð the CD ROM. The remote controlPointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services descri- bed may vary depending on the CDROM version or the country wherethe vehicle is sold.

YOUR 206 CC IN DETAIL
46

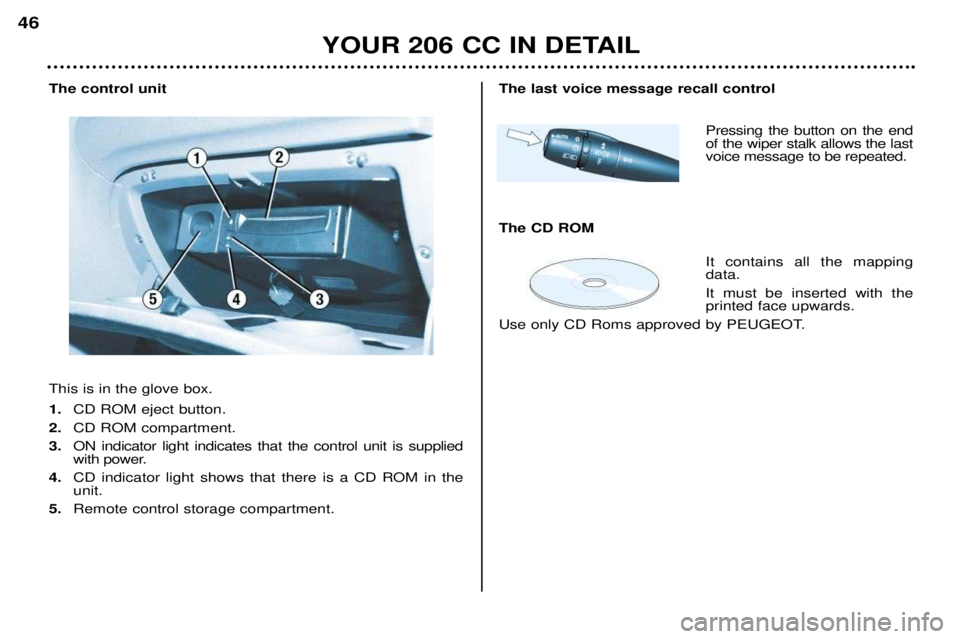

The control unit This is in the glove box. 1.
CD ROM eject button.
2. CD ROM compartment.
3. ON indicator light indicates that the control unit is supplied
with power.
4. CD indicator light shows that there is a CD ROM in theunit.
5. Remote control storage compartment.The last voice message recall control
Pressing the button on the end of the wiper stalk allows the lastvoice message to be repeated.
The CD ROM It contains all the mappingdata. It must be inserted with the printed face upwards.
Use only CD Roms approved by PEUGEOT.

YOUR 206 CC IN DETAIL
68
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied bythe message
"Remote control batte-
ry low" on the multifunction display.
To replace the battery, remove thescrew then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.

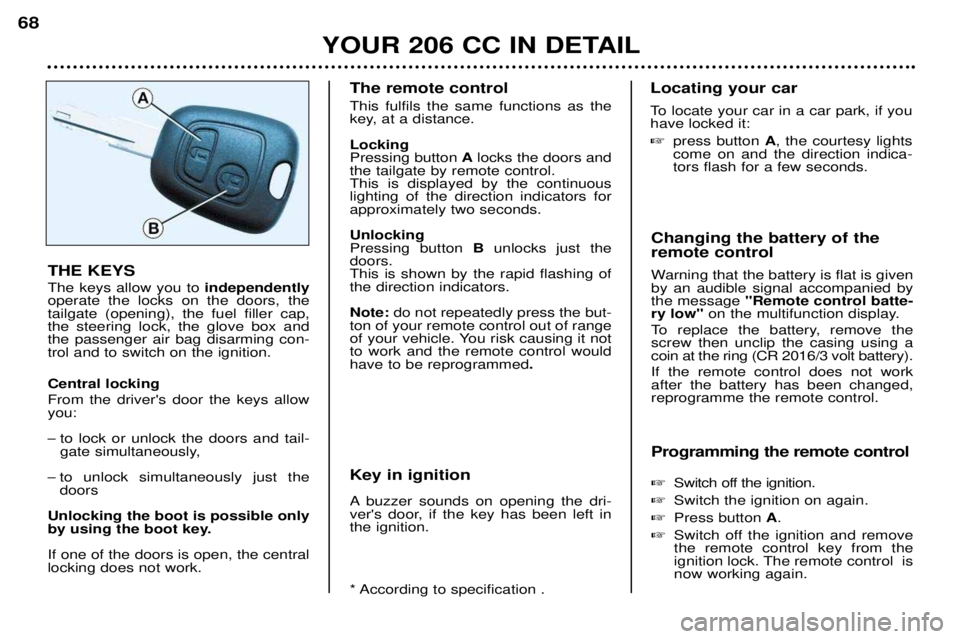

THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the doors and
the tailgate by remote control.This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors.This is shown by the rapid flashing ofthe direction indicators. Note: do not repeatedly press the but-
ton of your remote control out of range
of your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed .Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy lights
come on and the direction indica- tors flash for a few seconds.Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
* According to specification .
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

PRACTICAL ASPECTS OF YOUR VEHICLE
104

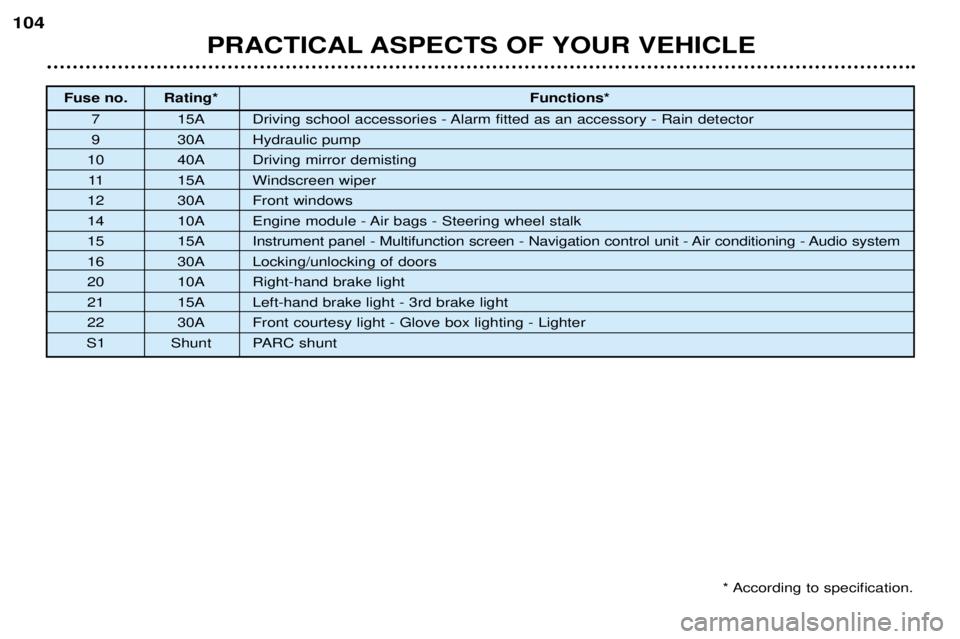

Fuse no. Rating*
Functions*
7 15A Driving school accessories - Alarm fitted as an accessory - Rain detector
9 30A Hydraulic pump
10 40A Driving mirror demisting 11 15A Windscreen wiper
12 30A Front windows
14 10A Engine module - Air bags - Steering wheel stalk
15 15A Instrument panel - Multifunction screen - Navigation control unit - Air conditioning - Audio system
16 30A Locking/unlocking of doors
20 10A Right-hand brake light
21 15A Left-hand brake light - 3rd brake light
22 30A Front courtesy light - Glove box lighting - Lighter
S1 Shunt PARC shunt
* According to specification.
