3YOUR 206 AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Lighting rheostat for instrument dials
6 Audio equipment remotecontrol
7 Windscreen wiper and windscreen wash stalk
8 Steering lock
9 Hazard warning lights switch
10 Multi-function display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet opening control
27 Fuse box
28 Storage compartment
29 Steering wheel height adjustment control
30 Headlamp height adjustment
* According to destination.
17-06-2002

83
4YOUR 206 AT A GLANCE
KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors andthe tailgate. If one of the doors, the tailgate (206 SW) or the rear screen (206SW) is open, the central lockingdoes not work.Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Pressing button Bremotely
unlocks the vehicle. This is confirmed by rapid fla- shing of the direction indicatorsfor approximately two seconds. 206 SW : Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:  press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
the ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the stee-
ring if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
17-06-2002

83
4YOUR 206 AT A GLANCE
KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors andthe tailgate. If one of the doors, the tailgate (206 SW) or the rear screen (206SW) is open, the central lockingdoes not work.Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Pressing button Bremotely
unlocks the vehicle. This is confirmed by rapid fla- shing of the direction indicatorsfor approximately two seconds. 206 SW : Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:  press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
the ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the stee-
ring if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
17-06-2002

107
5YOUR 206 AT A GLANCE
Never race a coldengine.
Never run the enginein a confined space.
Do not make any modificationsto the steering lock.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engi-ne turns.Starting a dieselengine Do not press the acce-
lerator.
Turn the key to the ''Running''
position. If the engine is warm enough, the pre-heat light does not comeon and you can start immediate-
ly. If the pre-heat light comes on, wait for it to go out before opera-
ting the starter. If the engine stalls, it is necessa- ry to return the key to the
''STOP'' position before restar-
ting. FRONT AIR BAGS
Precautions regarding thepassenger air bag For a vehicle fitted with a disar- ming switch :Ð disarm theair bag ifyou install arear-facingchild seat,
Ð arm the air bag for anadult pas-
senger.
For a vehicle not fitted with adisarming switch: Ð do not ins-tall a rear-facing childseat on thefront pas-senger seat.
In no circumstances should youplace your feet or any otherobject on the fascia.
Operating check
* According to destination.
Disarming the passenger air bag* Insert the ignition key in the switch 1
and turn it to:
Ð the ''ON'' position, the passen-
ger air bag is armed,
- the ''OFF'' position, the pas-
senger air bag is disarmed.
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audiblesignal and the message"Passenger air bag disarmed"
on the multi-function display,indicates that the passenger airbag is disarmed (switch in the"OFF" position).
The warning light remains onthroughout the disarming pro-cess.
17-06-2002

8991
8YOUR 206 AT A GLANCE
STEERING WHEEL CONTROLS Lights Front and rear lights(ring A)
Lights off Side lights Dipped / main beam headlamps Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position and the lightsstalk in position 0, then press the
end of the stalk for more thanfour seconds. Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps / Rear fog lamp(ring C)
Front fog lamps (1st rotation of the ringforwards)
Front fog lampsand rear fog lamp(2nd rotation of thering forwards) Windscreen wipers Front
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you. Rear
Off Intermittent wipe
Automatic wipe In the AUTOposition,
the wipers operate auto- matically and ajust their
speed to the intensityof the rainfall. Windscreen
wipe
17-06-2002

107
5YOUR 206 AT A GLANCE
Never race a coldengine.
Never run the enginein a confined space.
Do not make any modificationsto the steering lock.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engi-ne turns.Starting a dieselengine Do not press the acce-
lerator.
Turn the key to the ''Running''
position. If the engine is warm enough, the pre-heat light does not comeon and you can start immediate-
ly. If the pre-heat light comes on, wait for it to go out before opera-
ting the starter. If the engine stalls, it is necessa- ry to return the key to the
''STOP'' position before restar-
ting. FRONT AIR BAGS
Precautions regarding thepassenger air bag For a vehicle fitted with a disar- ming switch :Ð disarm theair bag ifyou install arear-facingchild seat,
Ð arm the air bag for anadult pas-
senger.
For a vehicle not fitted with adisarming switch: Ð do not ins-tall a rear-facing childseat on thefront pas-senger seat.
In no circumstances should youplace your feet or any otherobject on the fascia.
Operating check
* According to destination.
Disarming the passenger air bag* Insert the ignition key in the switch 1
and turn it to:
Ð the ''ON'' position, the passen-
ger air bag is armed,
- the ''OFF'' position, the pas-
senger air bag is disarmed.
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audiblesignal and the message"Passenger air bag disarmed"
on the multi-function display,indicates that the passenger airbag is disarmed (switch in the"OFF" position).
The warning light remains onthroughout the disarming pro-cess.
17-06-2002

13VOTRE 307 EN UN COUP DÕÎIL
9788
13YOUR 206 AT A GLANCE

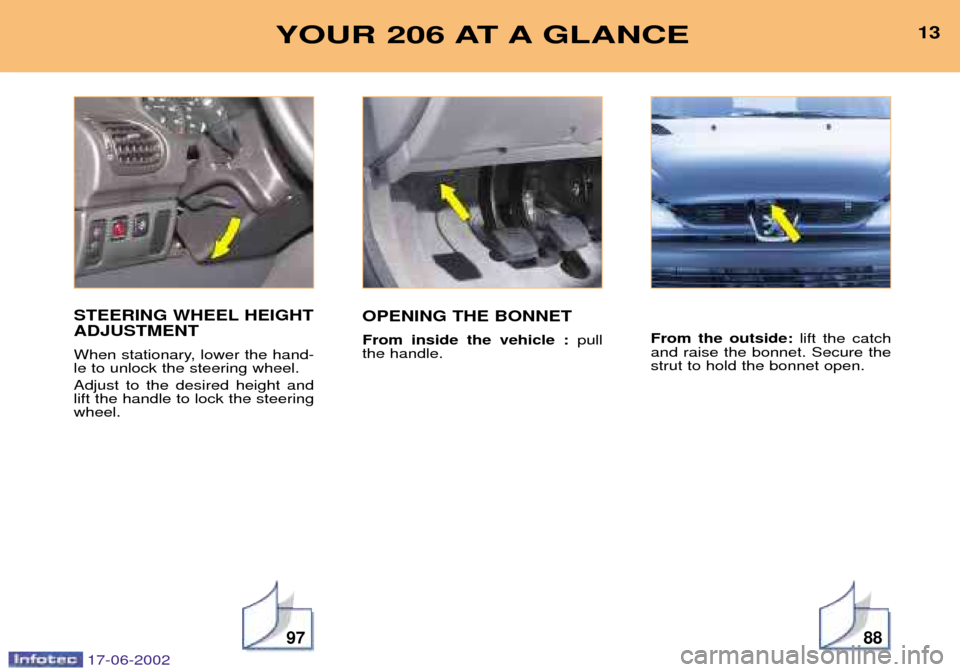

STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the hand- le to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.OPENING THE BONNET From inside the vehicle :
pull
the handle. From the outside:
lift the catch
and raise the bonnet. Secure the strut to hold the bonnet open.
17-06-2002

PEUGEOT SERVICING25
PEUGEOT SERVICING
Level
Operations Description of operations1st serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel only).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVELS- Front/rear screen-wash.- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up, according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers) and check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle by a Peugeot technician.
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditions: Arduous conditions * According to country.17-06-2002

RECOMMENDATIONS FOR APPROVED LUBRICANTS The oils which appear in the table opposite are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CF(for diesel engines) may be used byfollowing the "Arduous Conditions"servicing schedule which specifiesshorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING27
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
AL4 Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other approved products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35¼C
17-06-2002

17-06-2002
YOUR 206 IN DETAIL97
HEADLAMP ADJUSTMENT Depending on the load in your vehicle, it is recommended that theheadlamp beam is adjusted. 0. 1 or 2 people in the front seats.
Ð. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorisedload.
Initial setting is position 0.
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the handle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel. HORN
Press one of the spokes orthe centre of the steeringwheel.
