Peugeot 206 Dag 2003 Manual PDF

26-05-2003
YOUR 206 IN DETAIL
70

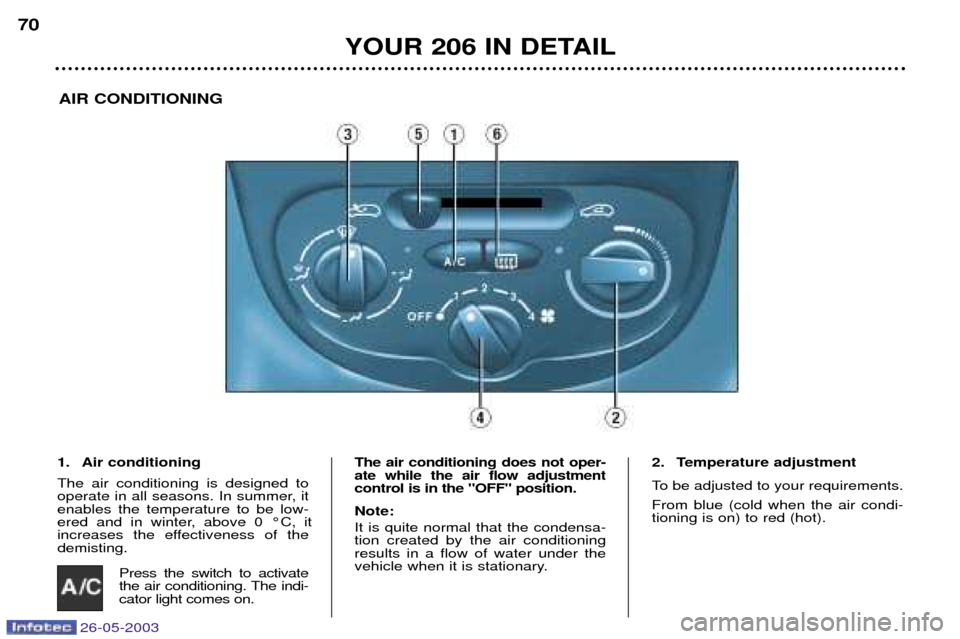

AIR CONDITIONING
1. Air conditioning The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be low-
ered and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not oper-ate while the air flow adjustmentcontrol is in the "OFF" position. Note: It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements. From blue (cold when the air condi- tioning is on) to red (hot).

26-05-2003
YOUR 206 IN DETAIL71
3. Air distribution adjustment
Windscreen and side win- dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
Ð turn the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð position the air intake control to the left; the "Outside Air" position,
Ð start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Intake of exterior air.
This is the normal operating position.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment. Used simultaneously with the air con- ditioning, recirculation enables bothheating and cooling performance tobe improved. Used without the air conditioning, recirculation may result in misting ofthe windows. As soon as possible, position the
control in the exterior air intakeposition. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.
4. Air flow adjustment
Turn the control from posi-tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 6. Demisting the rear screen and
the mirrors
With the engine running,
press once to demist the rear screen and themirrors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.

26-05-2003
YOUR 206 IN DETAIL
72

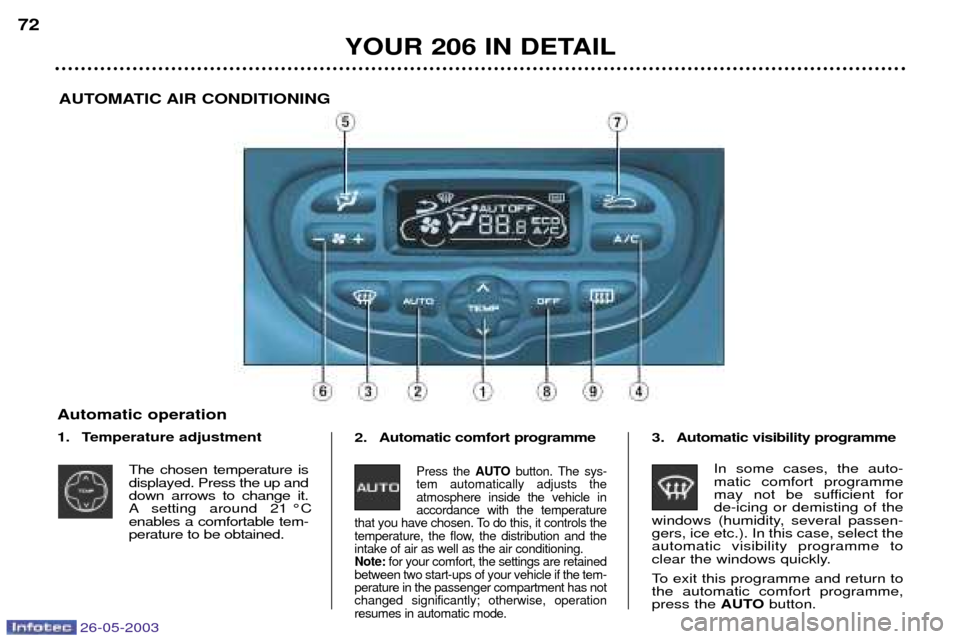

Automatic operation
1. Temperature adjustment
The chosen temperature is displayed. Press the up anddown arrows to change it.
A setting around 21 ¡Cenables a comfortable tem-perature to be obtained. 2. Automatic comfort programme
Press the
AUTObutton. The sys-
tem automatically adjusts theatmosphere inside the vehicle inaccordance with the temperature
that you have chosen. To do this, it controls the
temperature, the flow, the distribution and theintake of air as well as the air conditioning.Note: for your comfort, the settings are retained
between two start-ups of your vehicle if the tem-perature in the passenger compartment has notchanged significantly; otherwise, operationresumes in automatic mode.
3. Automatic visibility programme
In some cases, the auto-matic comfort programme
may not be sufficient for de-icing or demisting of the
windows (humidity, several passen-gers, ice etc.). In this case, select theautomatic visibility programme to
clear the windows quickly.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.
AUTOMATIC AIR CONDITIONING

26-05-2003
YOUR 206 IN DETAIL73
5. Air distribution
Pressing this button sever- al times in successionenables the air flow to bedirected in turn towards:
Ð the windscreen (de-icing or demisting),
Ð the windscreen and the footwells,
Ð the footwells,
Ð the centre and side vents and the footwells,
Ð the centre and side vents.
7. Air intake
Press this button for recircu-
lation of the interior air.Recirculation, shown on the
display, enables the passen-
ger compartment to be insulated fromexterior odours and smoke.
Avoid prolonged recirculation of interi-
or air. To do this, press the buttonagain to resume automatic manage-
ment of the intake of air. Note: To prevent condensation on the
inside of the vehicle in cold or wet
weather, you are advised to avoidusing this mode.
4. Air conditioning
Press this button to switch
off the air conditioning. Thesymbol ECOis displayed.
Automatic operation of the
air conditioning is resumed when the
button is pressed again. The symbolA/C is displayed. 8. Switching the system off
The OFF button enables
the entire system to be
switched off.
Temperature-related com-
fort is no longer guaranteed.Pressing the OFF, AUTO , or visi-
bility button again reactivates the
system with the values set before it
was switched off.
9. Demisting the rear screen Press this button to demistthe rear screen and themirrors. Demisting switches
off automatically. It is pos-
sible to stop operation of the
demisting before it is switched offautomatically by pressing the buttonagain. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish, you can make a different
choice from that offered by the sys-
tem by changing a setting. The otherfunctions will still be controlled auto-
matically. Pressing the
AUTObutton
returns the system to completelyautomatic operation.
6. Air flowThe flow of air can beincreased or reducedby pressing buttons+or Ðrespectively.
Notes It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
To prevent condensation on the inside of the vehicle in cold or wet
weather, you are advised to avoidusing the ECOmode.

YOUR 206 IN DETAIL
74
26-05-2003

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS

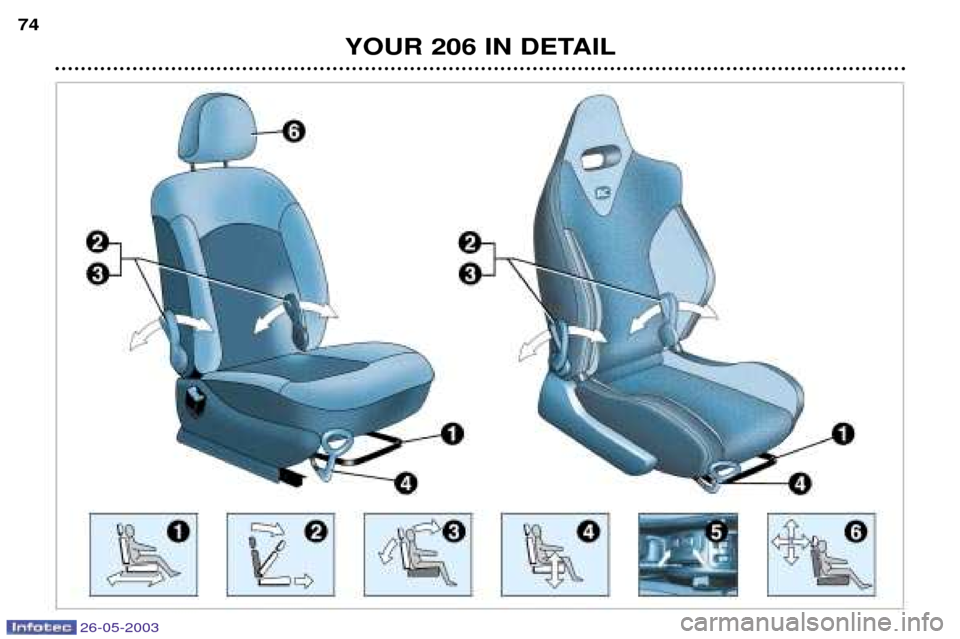

1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL
76
Storage compartment
Ð Lift the cover to gain access to the
storage compartment.
Ð Ensure that the cover is locked correctly before folding back the seat cushion. Folding seat back(all models)
Ð Remove the head restraint for
complete folding of the seat.
Ð Push either of the two handles 2
towards the rear to fold the seat back.
Note: with the modifiable seat, this
can be tilted or removed in order to

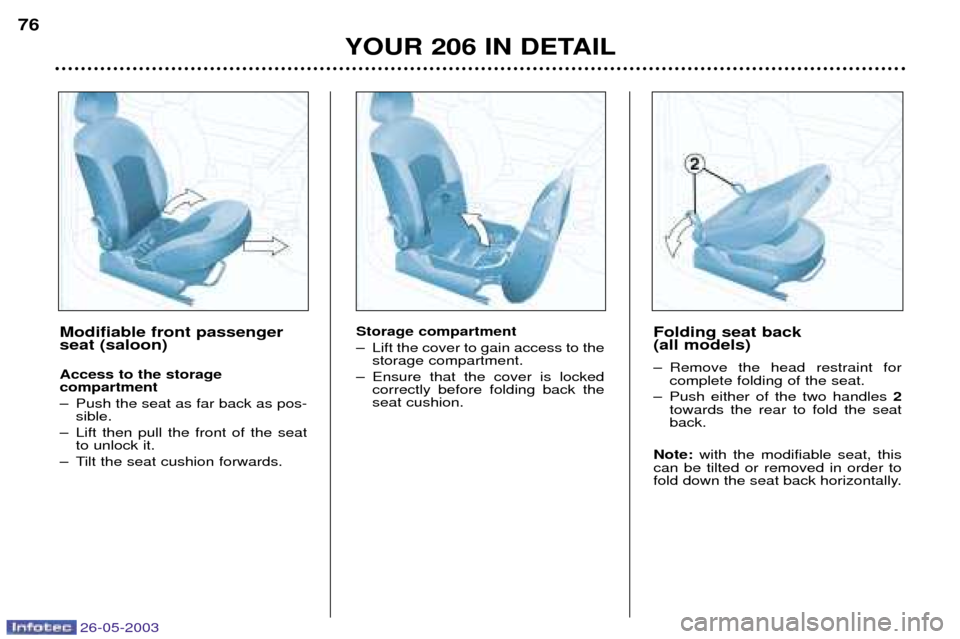

fold down the seat back horizontally.Modifiable front passenger seat (saloon) Access to the storage compartment
Ð Push the seat as far back as pos- sible.
Ð Lift then pull the front of the seat to unlock it.
Ð Tilt the seat cushion forwards.

26-05-2003
YOUR 206 IN DETAIL77

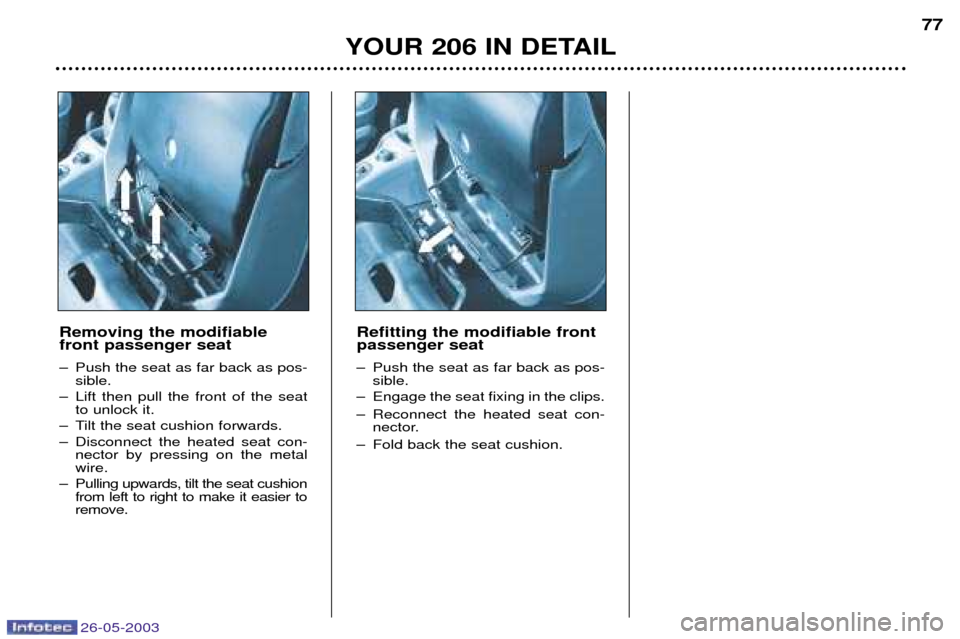

Removing the modifiable front passenger seat
Ð Push the seat as far back as pos- sible.
Ð Lift then pull the front of the seat to unlock it.
Ð Tilt the seat cushion forwards.
Ð Disconnect the heated seat con- nector by pressing on the metal wire.
Ð Pulling upwards, tilt the seat cushion from left to right to make it easier toremove. Refitting the modifiable frontpassenger seat
Ð Push the seat as far back as pos-
sible.
Ð Engage the seat fixing in the clips.
Ð Reconnect the heated seat con- nector.
Ð Fold back the seat cushion.

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS
1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL
78

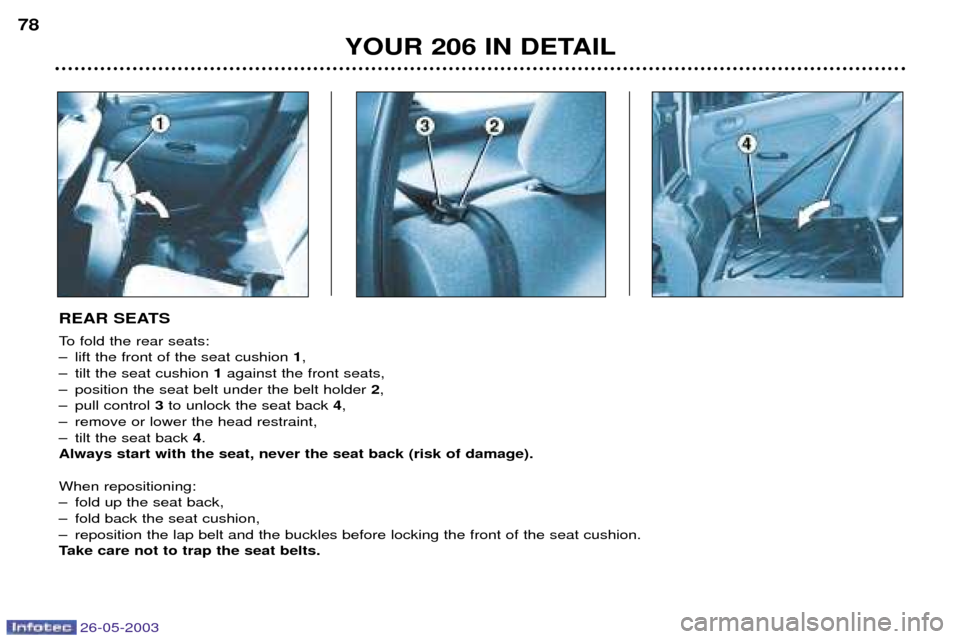

REAR SEATS
To fold the rear seats:
Ð lift the front of the seat cushion
1,
Ð tilt the seat cushion 1against the front seats,
Ð position the seat belt under the belt holder 2,
Ð pull control 3to unlock the seat back 4,
Ð remove or lower the head restraint,
Ð tilt the seat back 4.
Always start with the seat, never the seat back (risk of damage). When repositioning:
Ð fold up the seat back,
Ð fold back the seat cushion,
Ð reposition the lap belt and the buckles before locking the front of the seat cushion.
Take care not to trap the seat belts.
