PRACTICAL INFORMATION
100 -

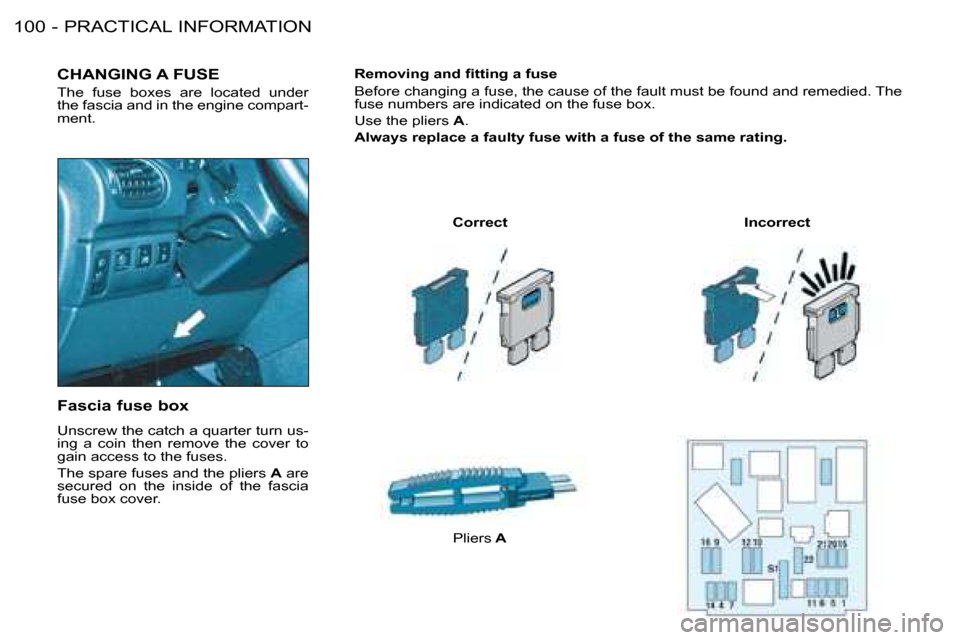

CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers
A are
secured on the inside of the fascia
fuse box cover. Removing and itting a fuse
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .

PRACTICAL INFORMATION
100 -
CHANGING A FUSE
The fuse boxes are located under
the fascia and in the engine compart-
ment.
Correct Incorrect
Pliers A
Fascia fuse box
Unscrew the catch a quarter turn us-
ing a coin then remove the cover to
gain access to the fuses.
The spare fuses and the pliers
A are
secured on the inside of the fascia
fuse box cover. Removing and itting a fuse
Before changing a fuse, the cause of the fault must be foun
d and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A.
Always replace a faulty fuse with a fuse of the same rating .

PRACTICAL INFORMATION
102 -
or The electrical circuit of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electri-
cal equipment or accessories in
your vehicle, consult a PEUGEOT
dealer.
Some electrical accessories or the
way in which they are itted may
have an adverse effect on the op-
eration of your vehicle (its elec -
tronic control circuits, the audio
circuit and the electrical charging
circuit).
PEUGEOT declines any respon-
sibility for expenses incurred
through the repair of your vehicle
or for any malfunctions resulting
from the installation of auxiliary
accessories, not supplied and not
recommended by PEUGEOT and
not installed in accordance with
PEUGEOT's instructions, in par-
ticular for any equipment the pow-
er consumption of which exceeds
10 milliamps.

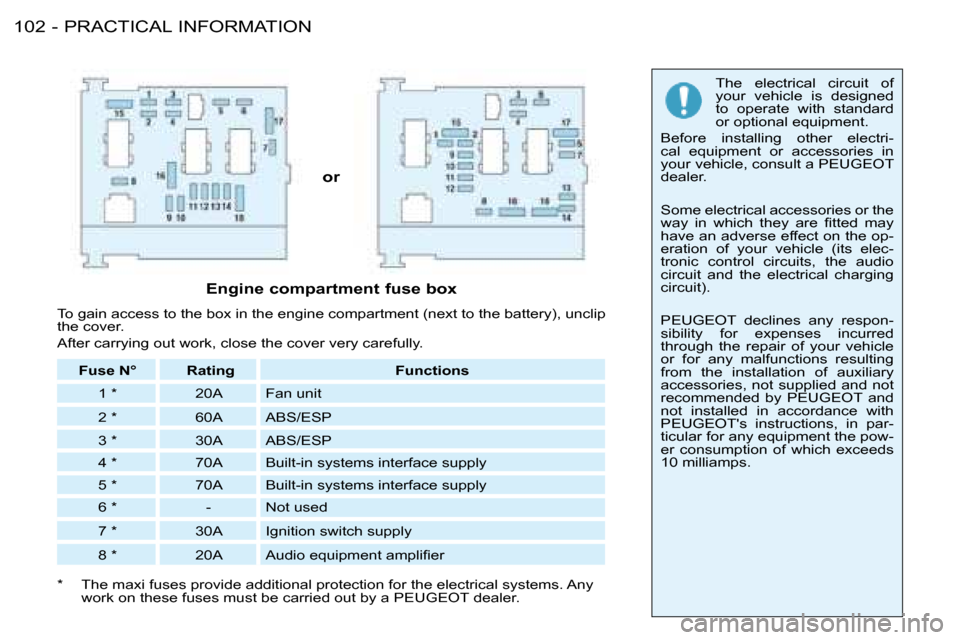

Fuse N° Rating Functions
1 * 20AFan unit
2 * 60A ABS/ESP
3 * 30A ABS/ESP
4 * 70ABuilt-in systems interface supply
5 * 70ABuilt-in systems interface supply
6 * - Not used
7 * 30A Ignition switch supply
8 * 20A Audio equipment ampliier Engine compartment fuse box
To gain access to the box in the engine compartment (next to t he battery), unclip
the cover.
After carrying out work, close the cover very carefully.
* The maxi fuses provide additional protection for the electr ical systems. Any
work on these fuses must be carried out by a PEUGEOT dealer.
