FAMILIARISATION
4 -
INSTRUMENTS AND
CONTROLS
1. Cruise control / speed limiter
control.
2. S t e e r i n g w h e e l a d j u s t m e n t
control.
3. Lights and direction indicators
stalk.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. Bonnet release.
9. Fuse box.
10. Dynamic stability control
(ESP/ASR) button.
11. R e a r e l e c t r i c w i n d o w s
deactivation control.
12. Passenger air bag disarming
control.
13. Headlamp height adjustment.
14. Side adjustable and
closing vent.
15. S i d e w i n d o w d e m i s t i n g v e n t .
16. S p e a k e r ( t w e e t e r ) .
17. Windscreen demisting vent.
Page 2 of 123
5
FAMILIARISATION
-
INSTRUMENTS AND
CONTROLS
1. Steering lock and ignition.
2. S t e e r i n g w h e e l a u d i o e q u i p m e n t
control.
3. W i p e r s / w a s h - w i p e / t r i p
computer stalk.
4. Central adjustable and closing
vents.
5. H a z a r d w a r n i n g l i g h t s s w i t c h .
Central locking button.
6. Multifunction display.
7. Passenger air bag.
8. Glove box.
9. R e a r e l e c t r i c w i n d o w s c o n t r o l .
10. Heated seats control
(according to country).
11. F r o n t e l e c t r i c w i n d o w c o n t r o l s .
12. Exterior mirrors control.
13. Lighter.
14. Front ashtray.
15. Heating / air conditioning
controls.
16. Audio RD3.
Page 3 of 123
FAMILIARISATION
6 -
OPENING
Bonnet
Fuel tank
A. Locking of the vehicle.
B. Unlocking of the vehicle.
: 57 1.
Opening of the fuel tank
cap.
Fuel tank capacity: approximately
50 litres. : 62
Normal key - Remote control
A. Interior control.
Page 4 of 123
7
FAMILIARISATION
-
OPENING
Doors
Opening / Closing of the front doors. : 59 1.
Locking.
2. Unlocking.
3. Remote locking
(at the same time as the doors).
4. Remote unlocking
(at the same time as the doors).
: 61
Boot
B. Exterior control.
C. Bonnet strut.
: 62
Page 5 of 123
FAMILIARISATION
8 -
SITTING COMFORTABLY
Front seat adjustment
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. Head restraint height and angle
adjustment.
3. Access to rear seats
(3-door). 4.
Height adjustment.
5. Seat back angle adjustment.
6. Heated seats control
(according to country). N e v e r d r i v e w i t h t h e h e a d
restraints removed.
: 46
Page 6 of 123
9
FAMILIARISATION
-
SITTING COMFORTABLY
Electric exterior mirrors
adjustment
1. Selection of the mirror's "day"
position.
2. Adjustment of the mirror.
: 69 A.
Selection of the left or right
mirror.
B. Adjustment of the position
of the mirror.
C. Deselection of the mirror.
D. Electric Folding / Unfolding.
: 69 A.
Adjustment of the position
of the mirror.
B. Manual Folding / Unfolding.
: 69
Interior mirror adjustment
Manual exterior mirrors
adjustment
Page 7 of 123
FAMILIARISATION
10 -
SITTING COMFORTABLY
Front seat belts adjustment
2. Height adjustment.
: 86 Steering wheel adjustment
1.
Unlocking.
2. Height adjustment.
3. Locking.
: 70
1. Fastening.
Page 8 of 123
11
FAMILIARISATION
-
SEEING CLEARLY
Wipers
Lights off.
Side lights. Dipped / main beam head-
lamps.
A u t o m a t i c s w i t c h i n g o n o f
the lights.
Ring B
or
Rear fog lamp. Park.
I n t e r m i t t e n t w i p e .
W a s h - w i p e .
: 66
Front and rear fog lamps. Rear wiper (ring A)
Lights
Ring A :
63 Windscreen wipers
2
F a s t w i p e .
1 N o r m a l w i p e .
I I n t e r m i t t e n t w i p e .
or
AUTO A u t o m a t i c w i p e .
0 Park.
รข S i n g l e w i p e
( p r e s s d o w n w a r d s ) .
W a s h - w i p e : p u l l t h e s t a l k t o w a r d s
you. : 65
Page 9 of 123
FAMILIARISATION
12 -

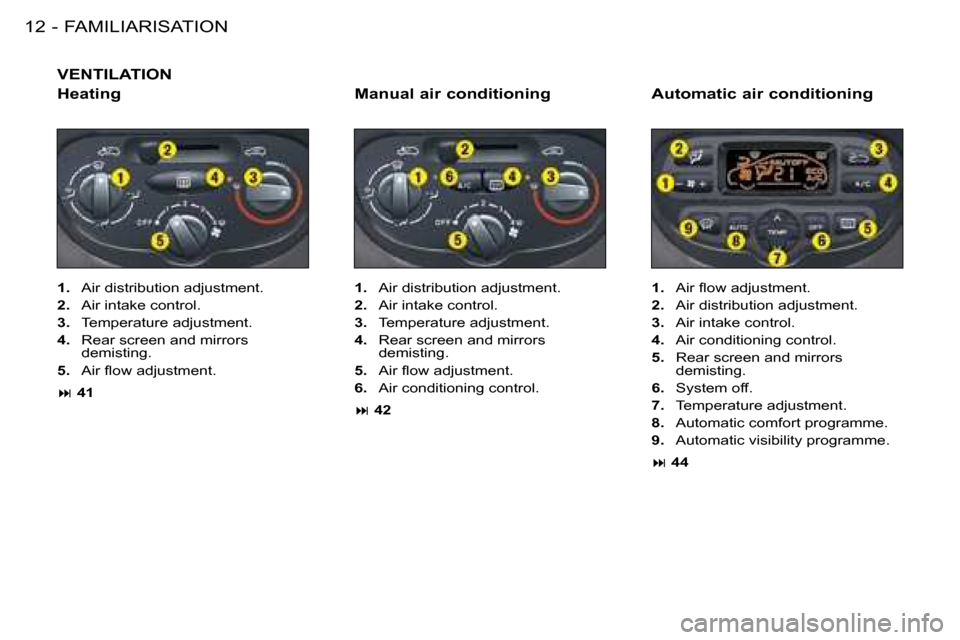

VENTILATION
1. Air distribution adjustment.
2. Air intake control.
3. Temperature adjustment.
4. Rear screen and mirrors
demisting.
5. A i r l o w a d j u s t m e n t .
6. Air conditioning control.
: 42 1.
A i r l o w a d j u s t m e n t .
2. Air distribution adjustment.
3. Air intake control.
4. Air conditioning control.
5. Rear screen and mirrors
demisting.
6. System off.
7. Temperature adjustment.
8. Automatic comfort programme.
9. Automatic visibility programme.
: 44
1.
Air distribution adjustment.
2. Air intake control.
3. Temperature adjustment.
4. Rear screen and mirrors
demisting.
5. A i r l o w a d j u s t m e n t .
: 41
Heating Manual air conditioning Automatic air conditioning
Page 10 of 123
13
FAMILIARISATION
-
VENTILATION
Recommended interior settings
I require ... Heating or Manual air conditioning
Air distribution A i r l o wAir recirculation /
Intake of exterior air Temperature Manual A/C
HEATING
COOLING
DEMISTING DE-ICING
Automatic air conditioning: u s e o f t h e f u l l y a u t o m a t i c m o d e i s r e c o m m e n d e d , p r e s s t h e "AUTO" button.
