CHANGING A BULB
Front lights

1. Direction indicators
(PY21 W amber).

2. Side lights (W 5 W).

3. Dipped headlamps (H7-55 W).

4. Main beam headlamps (H1-55 W).

5. Fog lamps (PSX-24 W).
Operating procedure for replacing a
faulty bulb with a new bulb. These
operations must be carried out
with the
ignition off .
To gain access to the bulbs on the right-
hand side:
- Remove the screenwash reservoir fi ller tube.
- Unclip the engine harness 1 .
- Remove the nut from the engine control unit support 2 using a size
10 spanner.
- Remove the engine control unit and support assembly. After changing the faulty bulb:
- Slide the two lugs of the control unit
support into the locations A .
- Put the engine control unit back in place.
- Tighten the engine control unit sup- port nut (size 10 spanner).
- Reclip the engine harness.
These bulbs are available from
PEUGEOT dealers.
In certain climatic conditions (low
temperature, humidity), conden-
sation inside the glass of the
headlamps and lights is normal .
However, contact a PEUGEOT
dealer if water is present in the
headlamps.

i
77

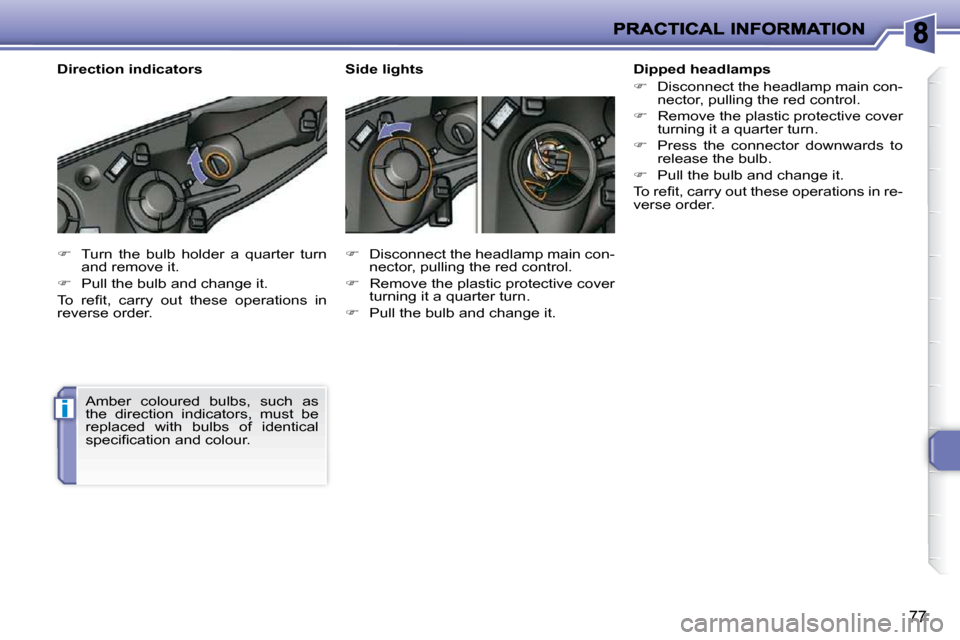

 Turn the bulb holder a quarter turn
and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Direction indicators

 Disconnect the headlamp main con-
nector, pulling the red control.

 Remove the plastic protective cover
turning it a quarter turn.

 Pull the bulb and change it. Dipped headlamps

 Disconnect the headlamp main con-
nector, pulling the red control.

 Remove the plastic protective cover
turning it a quarter turn.

 Press the connector downwards to
release the bulb.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Side lights

!
78
Front fog lamp

 Slide a hand under the bumper.

 Turn the connector a quarter turn
and remove the assembly.

 Remove the bulb and change it.
Main bean headlamps

 Disconnect the headlamp main con-
nector, pulling the red control.

 Remove the plastic protective cover
turning it a quarter turn.

 Move aside the springs to release
the bulb and pull the bulb.
To refi t, carry out these operations in
reverse order. Direction indicator side repeater

 Push the repeater forwards and
release it.

 Remove the repeater and change it.
Repeaters can be obtained from a
PEUGEOT dealer.

High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging
their coating and their seal.

79
Third brake light 5 bulbs W 5 W
Unclip the boot side trim.
Remove the wing nut.
Release the light unit from the outside.
Press the lug A and disconnect the con-
nector.
Remove the sealing foam.
Move aside the tabs B and remove the
bulb holder.
Turn the faulty bulb a quarter turn and
change it.
To refi t, carry out these operations in
reverse order and ensure that the bulb
holder, the light and the foam cover are
repositioned correctly. Using a 10 mm spanner, unscrew the
2 nuts
A .
Release the light unit.
Squeeze the two tabs B to release the
bulb holder.
Change the faulty bulb.

1. Direction indicators
(P21 W amber).

2. Reversing lights P21 W.

3. Brake lights/side lights
(P21/5 W).

4. Fog lamp (P21 W).
Rear lights

80
Rear fog lamp (P21 W)
The fog lamp is located on the rear
bumper, on the left-hand side.
Unscrew the lamp and release the as-
sembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb. Number plate lights W 5 W
Insert a thin screwdriver into one of the
outer holes of the transparent cover.
Push it outwards to unclip it.
Remove the transparent cover.
Change the faulty bulb.

!
i
88
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this specifi c warning.
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.

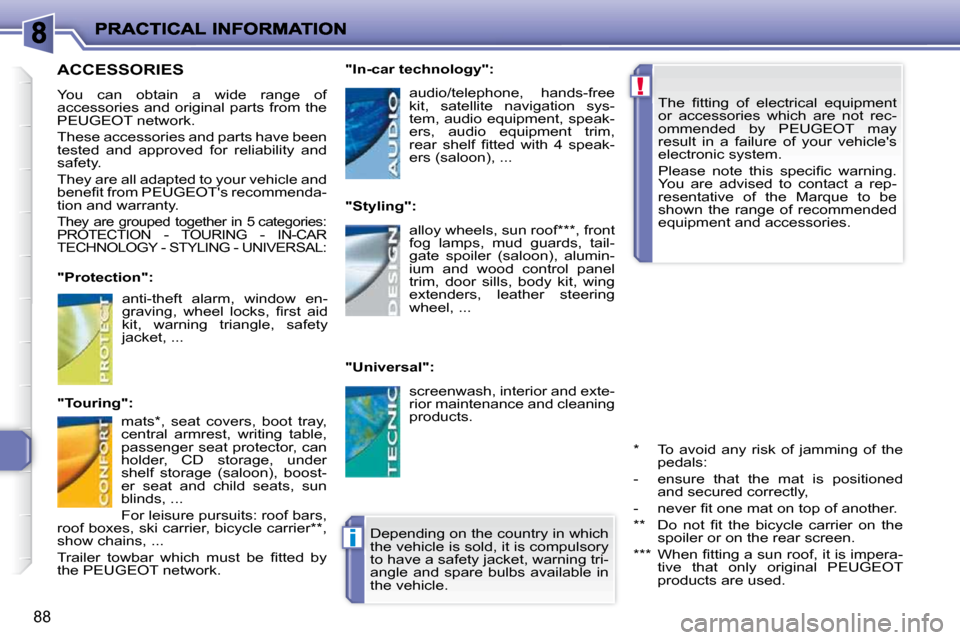

ACCESSORIES
You can obtain a wide range of
accessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
They are grouped together in 5 categories:
PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL:

"Protection":

"Touring":
"In-car technology":

"Styling":

"Universal":
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
** Do not fi t the bicycle carrier on the spoiler or on the rear screen.
*** When fi tting a sun roof, it is impera- tive that only original PEUGEOT
products are used.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
anti-theft alarm, window en-
graving, wheel locks, fi rst aid
kit, warning triangle, safety
jacket, ...
mats * , seat covers, boot tray,
central armrest, writing table,
passenger seat protector, can
holder, CD storage, under
shelf storage (saloon), boost-
er seat and child seats, sun
blinds, ...
For leisure pursuits: roof bars,
roof boxes, ski carrier, bicycle carrier ** ,
show chains, ...
Trailer towbar which must be fi tted by
the PEUGEOT network. audio/telephone, hands-free
kit, satellite navigation sys-
tem, audio equipment, speak-
ers, audio equipment trim,
rear shelf fi tted with 4 speak-
ers (saloon), ...
alloy wheels, sun roof *** , front
fog lamps, mud guards, tail-
gate spoiler (saloon), alumin-
ium and wood control panel
trim, door sills, body kit, wing
extenders, leather steering
wheel, ...
screenwash, interior and exte-
rior maintenance and cleaning
products.
