Page 2 of 119
FAMILIARISATION
OPEN
REMOTE CONTROL KEY
A. Locking the vehicle.
B. Unlocking the vehicle.
44
FUEL TANK
1. O p e n i n g t h e fi l l e r c a p .
Capacity of the tank: approximately
50 litres.
50 BONNET
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
77 BOOT
- Unlock the vehicle using the remote
control.
- Operate the handle A to open.
49

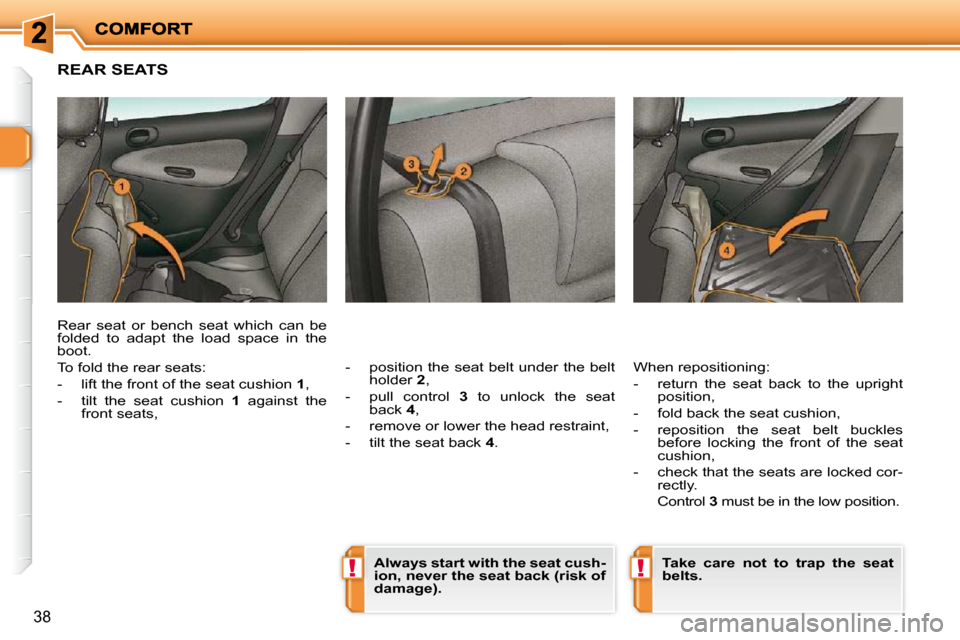

Page 36 of 119
!!
38
REAR SEATS
- position the seat belt under the belt holder 2 ,
- pull control 3 to unlock the seat
back 4 ,
- remove or lower the head restraint,
- tilt the seat back 4 . When repositioning:
- return the seat back to the upright
position,
- fold back the seat cushion,
- reposition the seat belt buckles before locking the front of the seat
cushion,
- check that the seats are locked cor- rectly.
Control 3 must be in the low position.
Rear seat or bench seat which can be
folded to adapt the load space in the
boot.
To fold the rear seats:
- lift the front of the seat cushion
1 ,
- tilt the seat cushion 1 against the
front seats,
Take care not to trap the seat
belts.
A l w a y s s t a r t w i t h t h e s e a t
cush-
ion
, never the seat back (risk of
damage).
Page 42 of 119
43
BOOT FITTINGS
Rear parcel shelf
To remove the shelf:
- unhook the two strings 1 ,
- slightly raise the shelf, then remove it.
Warning triangle
Depending on the country of sale, a
warning triangle may be stored in the
boot.
There are several options for storing the
shelf:
- either behind the front seats,
- o r fl a t i n t h e b o o t .
12 V ACCESSORIES SOCKET GLOVE BOX
To open the glove box, lift the handle.
1. Handbook pack storage.
2. Cup holder.
3. Pen holder.
4. Spectacles storage.
5. Map storage.
6. Coin storage. It is supplied with power with the ignition
key in the accessories position (1 st notch).
Page 43 of 119
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 45 of 119
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.

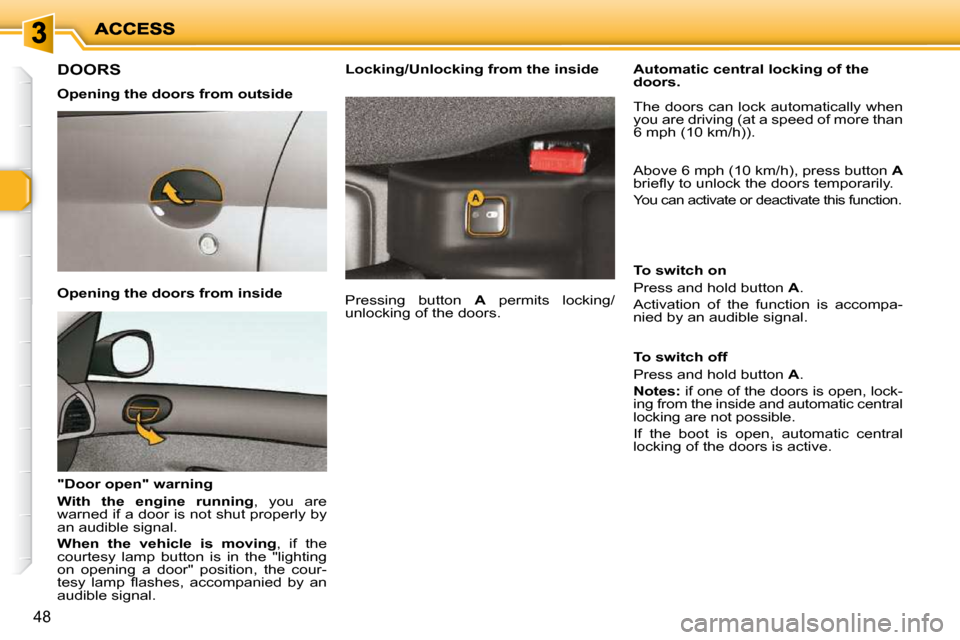

Page 50 of 119
48
DOORS
Opening the doors from outside
Opening the doors from inside
"Door open" warning
With the engine running , you are
warned if a door is not shut properly by
an audible signal.
When the vehicle is moving , if the
courtesy lamp button is in the "lighting
on opening a door" position, the cour-
t e s y l a m p fl a s h e s , a c c o m p a n i e d b y a n
audible signal. Locking/Unlocking from the inside Automatic c
entral locking of the
doors.
Pressing button A permits locking/
unlocking of the doors. To switch on
Press and hold button
A .
Activation of the function is accompa-
nied by an audible signal.
To switch off
Press and hold button A .
Notes: if one of the doors is open, lock-
ing from the inside and automatic central
locking are not possible.
If the boot is open, automatic central
locking of the doors is active.
The doors can lock automatically when
you are driving (at a speed of more than
6 mph (10 km/h)).
Above 6 mph (10 km/h), press button
A
b r i e fl y t o u n l o c k t h e d o o r s t e m p o r a r i l y .
You can activate or deactivate this function.
Page 51 of 119
49
CHILD LOCK
On each rear door, this prevents open-
ing of the door from the inside.
Turn control 1 an eighth turn (45 de-
grees) towards the inside of the vehicle
using the ignition key.
Check that the safety lock is engaged
correctly. The control 1 should no longer
be in the vertical position.
LOCKING/UNLOCKING
THE BOOT
Locking and unlocking of the boot is
simultaneous with the doors.
To open the boot, press the control A .
The lighting is controlled by opening
the boot. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Pull the tailgate trim to detach it.
Pull the opening control 1 upwards.

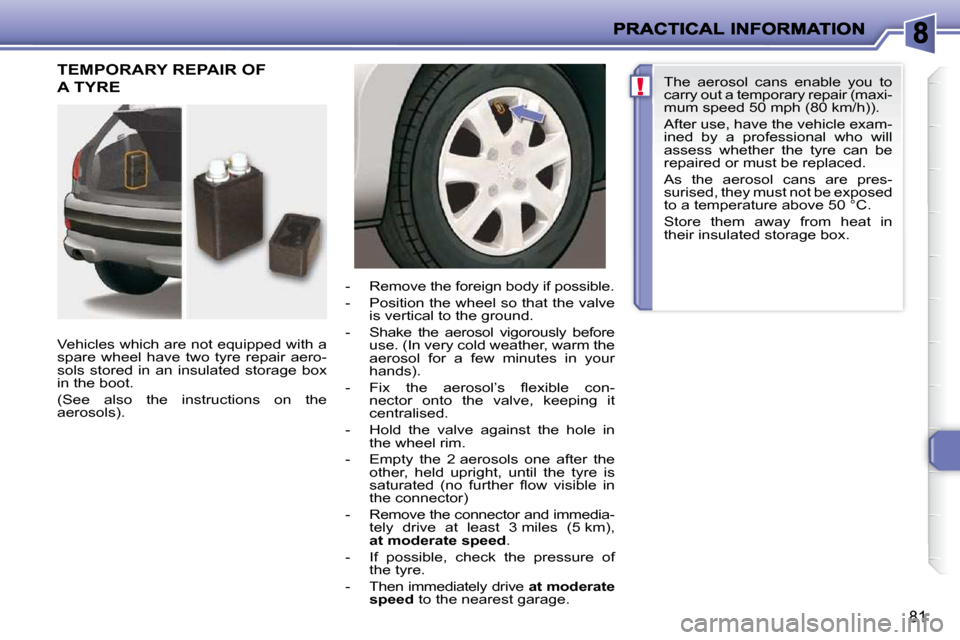

Page 86 of 119
!
81
TEMPORARY REPAIR OF
A TYRE
Vehicles which are not equipped with a
spare wheel have two tyre repair aero-
sols stored in an insulated storage box
in the boot.
(See also the instructions on the
aerosols). - Remove the foreign body if possible.
- Position the wheel so that the valve
is vertical to the ground.
- Shake the aerosol vigorously before use. (In very cold weather, warm the
aerosol for a few minutes in your
hands).
- F i x t h e a e r o s o l ’ s fl e x i b l e c o n - nector onto the valve, keeping it
centralised.
- Hold the valve against the hole in the wheel rim.
- Empty the 2 aerosols one after the other, held upright, until the tyre is
s a t u r a t e d ( n o f u r t h e r fl o w v i s i b l e i n
the connector)
- Remove the connector and immedia- tely drive at least 3 miles (5 km),
at moderate speed .
- If possible, check the pressure of the tyre.
- Then immediately drive at moderate
speed to the nearest garage. The aerosol cans enable you to
carry out a temporary repair (maxi-
mum speed 50 mph (80 km/h)).
After use, have the vehicle exam-
ined by a professional who will
assess whether the tyre can be
repaired or must be replaced.
As the aerosol cans are pres-
surised, they must not be exposed
to a temperature above 50 °C.
Store them away from heat in
their insulated storage box.

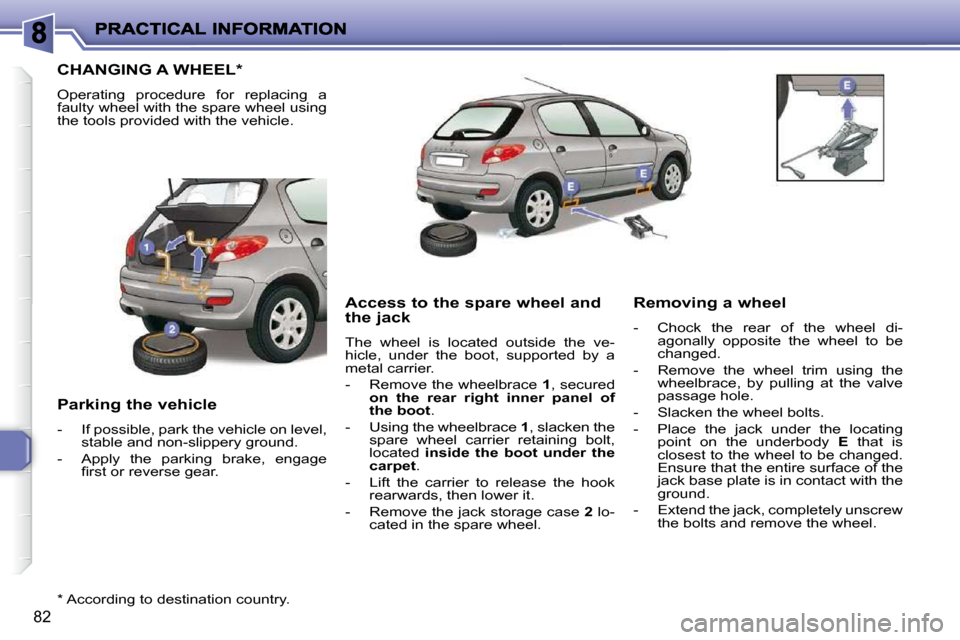

Page 87 of 119
82
CHANGING A WHEEL *
Operating procedure for replacing a
faulty wheel with the spare wheel using
the tools provided with the vehicle.
Parking the vehicle
- If possible, park the vehicle on level, stable and non-slippery ground.
- Apply the parking brake, engage fi r s t o r r e v e r s e g e a r . Access to the spare wheel and
the jack
The wheel is located outside the ve-
hicle, under the boot, supported by a
metal carrier.
- Remove the wheelbrace
1 , secured
on the rear right inner panel of
the boot .
- Using the wheelbrace 1 , slacken the
spare wheel carrier retaining bolt,
located inside the boot under the
carpet .
- Lift the carrier to release the hook rearwards, then lower it.
- Remove the jack storage case 2 lo-
cated in the spare wheel. Removing a wheel
- Chock the rear of the wheel di-
agonally opposite the wheel to be
changed.
- Remove the wheel trim using the wheelbrace, by pulling at the valve
passage hole.
- Slacken the wheel bolts.
- Place the jack under the locating point on the underbody E that is
closest to the wheel to be changed.
Ensure that the entire surface of the
jack base plate is in contact with the
ground.
- Extend the jack, completely unscrew the bolts and remove the wheel.
* According to destination country.

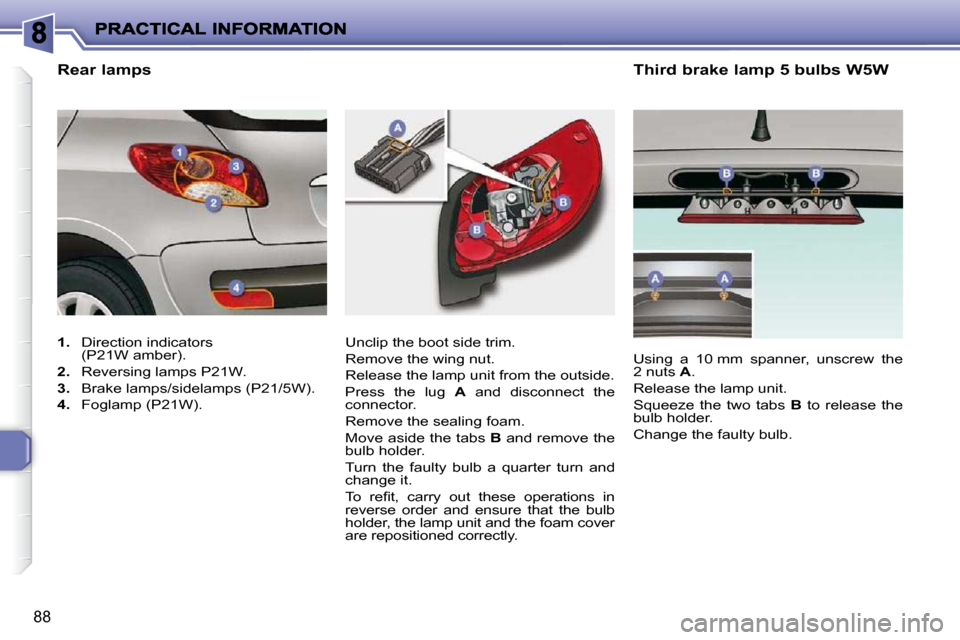

Page 93 of 119
88
Third brake lamp 5 bulbs W5W
Unclip the boot side trim.
Remove the wing nut.
Release the lamp unit from the outside.
Press the lug A and disconnect the
connector.
Remove the sealing foam.
Move aside the tabs B and remove the
bulb holder.
Turn the faulty bulb a quarter turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order and ensure that the bulb
holder, the lamp unit and the foam cover
are repositioned correctly. Using a 10 mm spanner, unscrew the
2 nuts
A .
Release the lamp unit.
Squeeze the two tabs B to release the
bulb holder.
Change the faulty bulb.
1. Direction indicators
(P21W amber).
2. Reversing lamps P21W.
3. Brake lamps/sidelamps (P21/5W).
4. Foglamp (P21W).
Rear lam
ps
