Peugeot 206 P Dag 2010.5 Owner's Manual

FAMILIARISATION EXTERIOR
AUTOMATIC ILLUMINATION OF
HEADLAMPS
This system switches on the sidelamps
and dipped beam headlamps when the
light is poor or when the windscreen
wipers are operating continuously,
when the lighting stalk is in the " AUTO "
position.

 54
GUIDE-ME-HOME LIGHTING
This function, linked with the automatic
illumination of headlamps or activated
manually, allows you to leave the front
lighting on after switching off the ignition.

 53 BRAKING ASSISTANCE SYSTEMS
(ABS, EBFD AND EBA)
These systems are linked and comple-
ment each other to assist you to brake
safely and effectively in emergency
situations.

 58

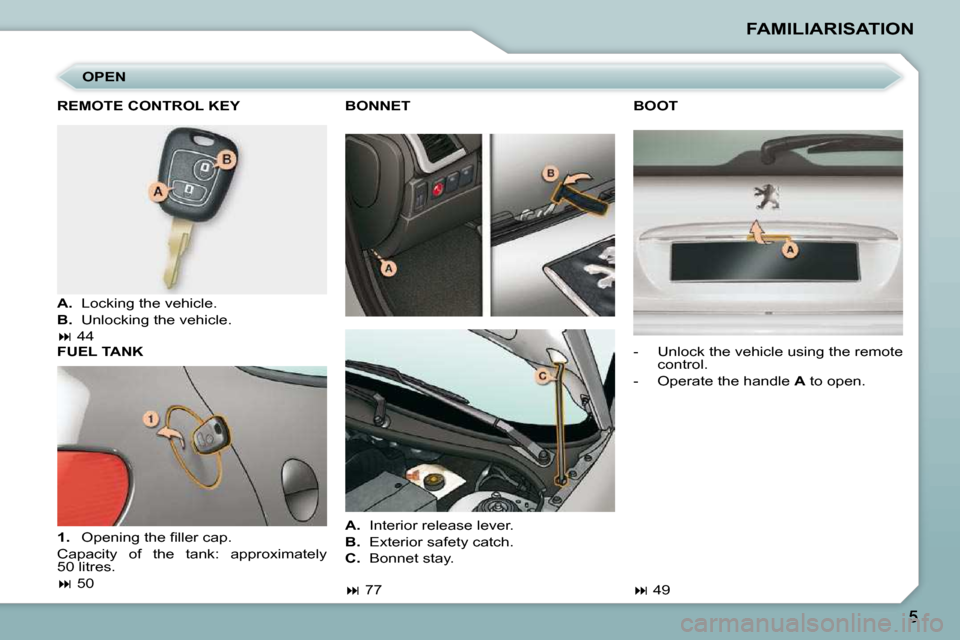

FAMILIARISATION
OPEN
REMOTE CONTROL KEY

A. Locking the vehicle.

B. Unlocking the vehicle.

 44
FUEL TANK

1. Opening the fi ller cap.
Capacity of the tank: approximately
50 litres.

 50 BONNET

A. Interior release lever.

B. Exterior safety catch.

C. Bonnet stay.

 77 BOOT
- Unlock the vehicle using the remote
control.
- Operate the handle A to open.

 49

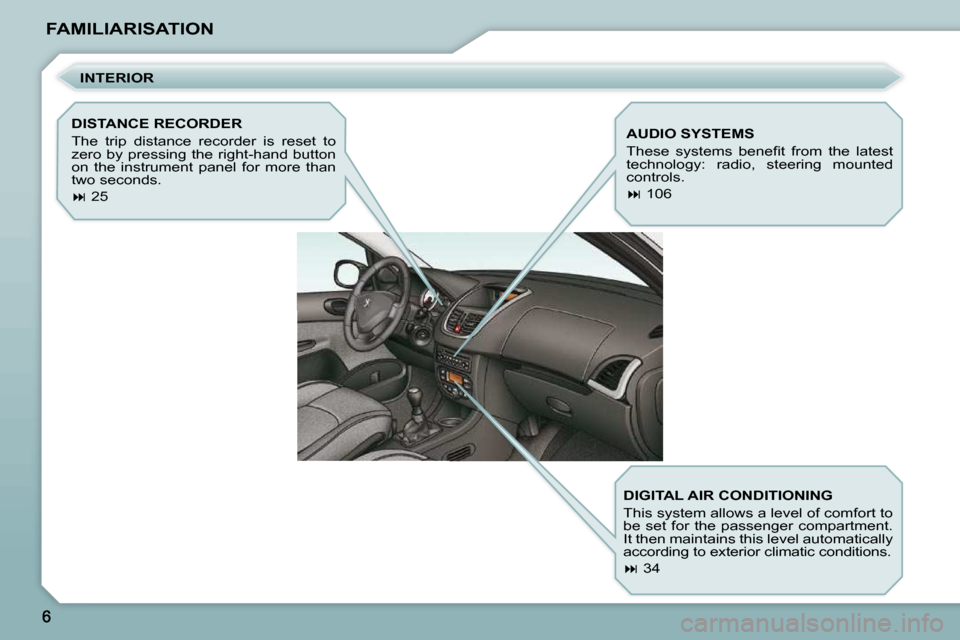

FAMILIARISATION INTERIOR
DISTANCE RECORDER
The trip distance recorder is reset to
zero by pressing the right-hand button
on the instrument panel for more than
two seconds.

 25
DIGITAL AIR CONDITIONING
This system allows a level of comfort to
be set for the passenger compartment.
It then maintains this level automatically
according to exterior climatic conditions.

 34
AUDIO SYSTEMS
These systems benefi t from the latest
technology: radio, steering mounted
controls.

 106

FAMILIARISATION

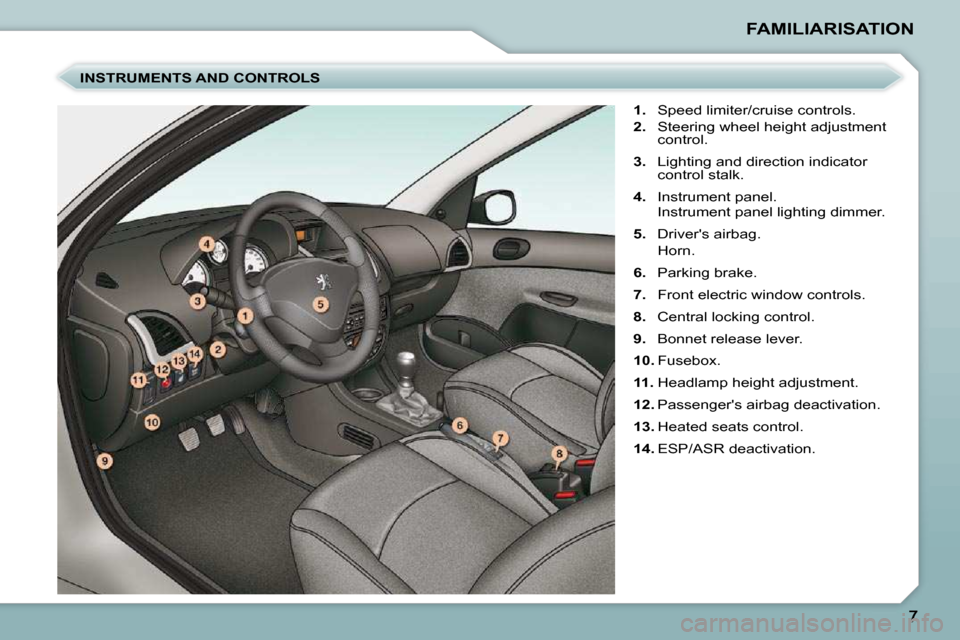

INSTRUMENTS AND CONTROLS
1. Speed limiter/cruise controls.

2. Steering wheel height adjustment
control.

3. Lighting and direction indicator
control stalk.

4. Instrument panel.
Instrument panel lighting dimmer.

5. Driver's airbag.
Horn.

6. Parking brake.

7. Front electric window controls.

8. Central locking control.

9. Bonnet release lever.

10. Fusebox.

11. Headlamp height adjustment.

12. Passenger's airbag deactivation.

13. Heated seats control.

14. ESP/ASR deactivation.

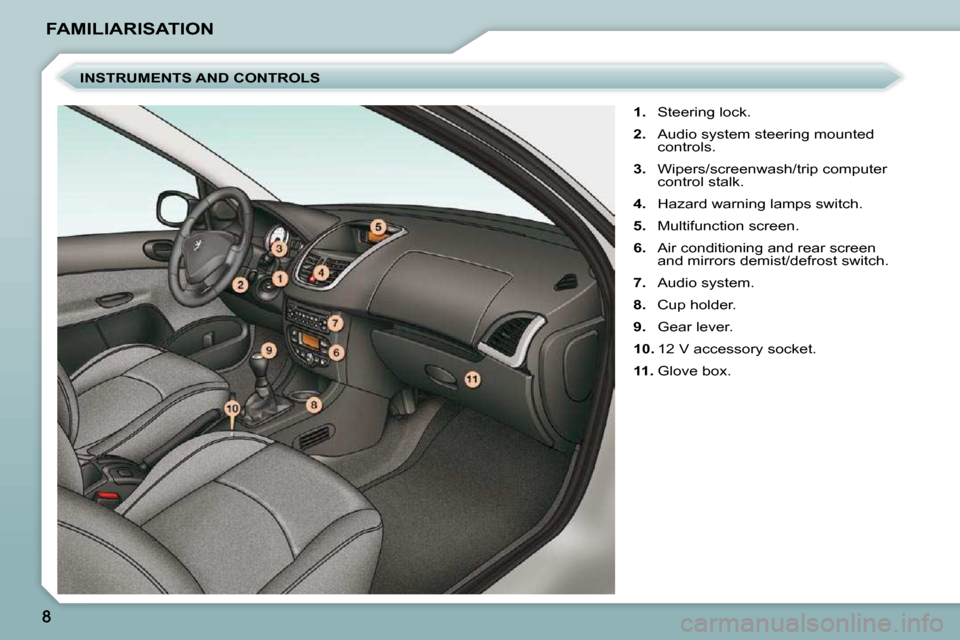

FAMILIARISATION
1. Steering lock.

2. Audio system steering mounted
controls.

3. Wipers/screenwash/trip computer
control stalk.

4. Hazard warning lamps switch.

5. Multifunction screen.

6. Air conditioning and rear screen
and mirrors demist/defrost switch.

7. Audio system.

8. Cup holder.

9. Gear lever.

10. 12 V accessory socket.

11. Glove box.
INSTRUMENTS AND CONTROLS

FAMILIARISATION

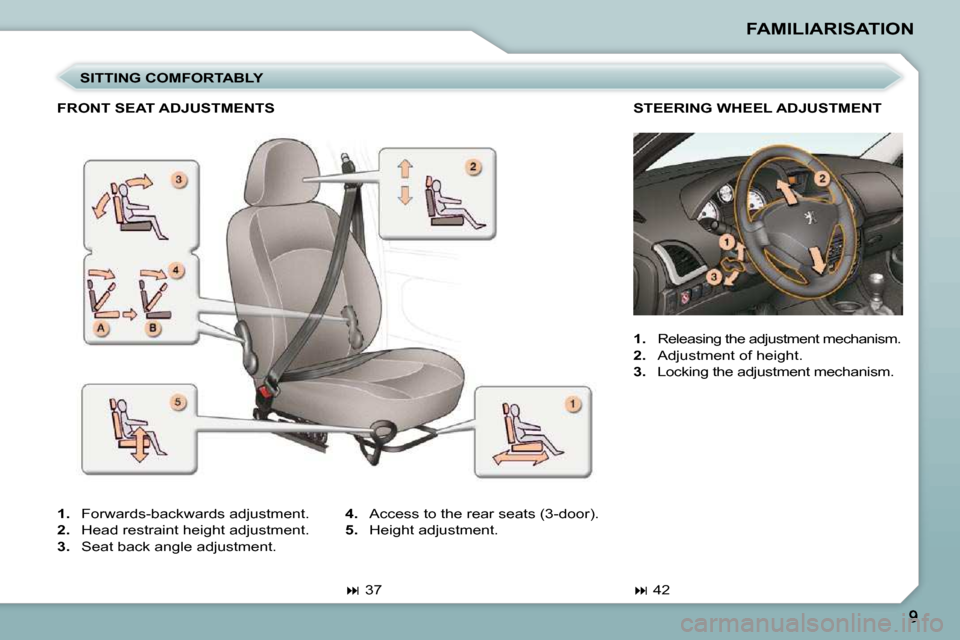

SITTING COMFORTABLY
FRONT SEAT ADJUSTMENTS

1. Forwards-backwards adjustment.

2. Head restraint height adjustment.

3. Seat back angle adjustment.

 37

4. Access to the rear seats (3-door).

5. Height adjustment. STEERING WHEEL ADJUSTMENT

1. Releasing the adjustment mechanism.

2. Adjustment of height.

3. Locking the adjustment mechanism.

 42

FAMILIARISATION FRONT SEAT BELT

1. Fastening.

 60

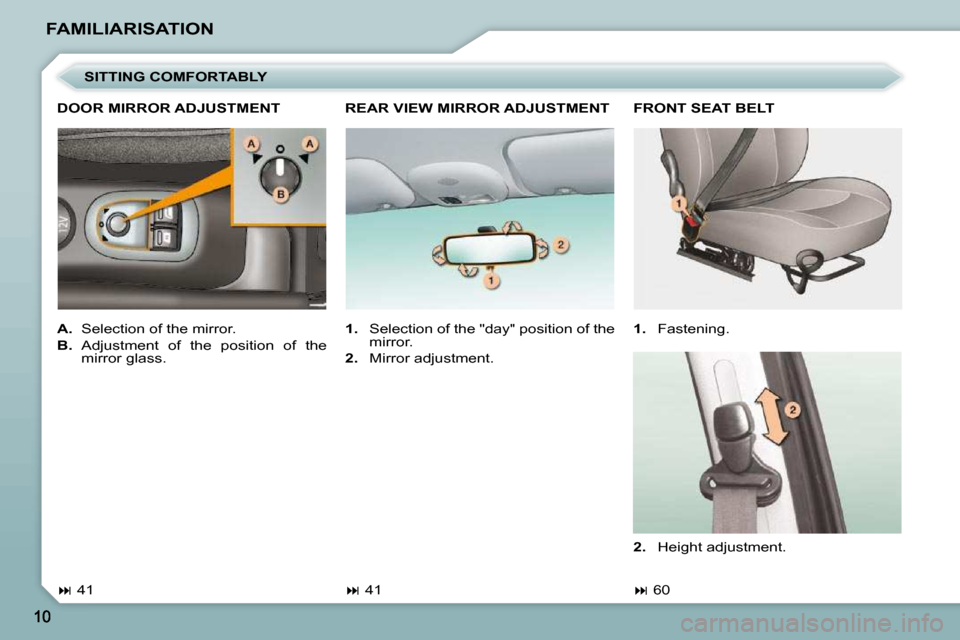

SITTING COMFORTABLY
DOOR MIRROR ADJUSTMENT

A. Selection of the mirror.

B. Adjustment of the position of the
mirror glass.

 41 REAR VIEW MIRROR ADJUSTMENT

1. Selection of the "day" position of the
mirror.

2. Mirror adjustment.

 41
2. Height adjustment.

FAMILIARISATION

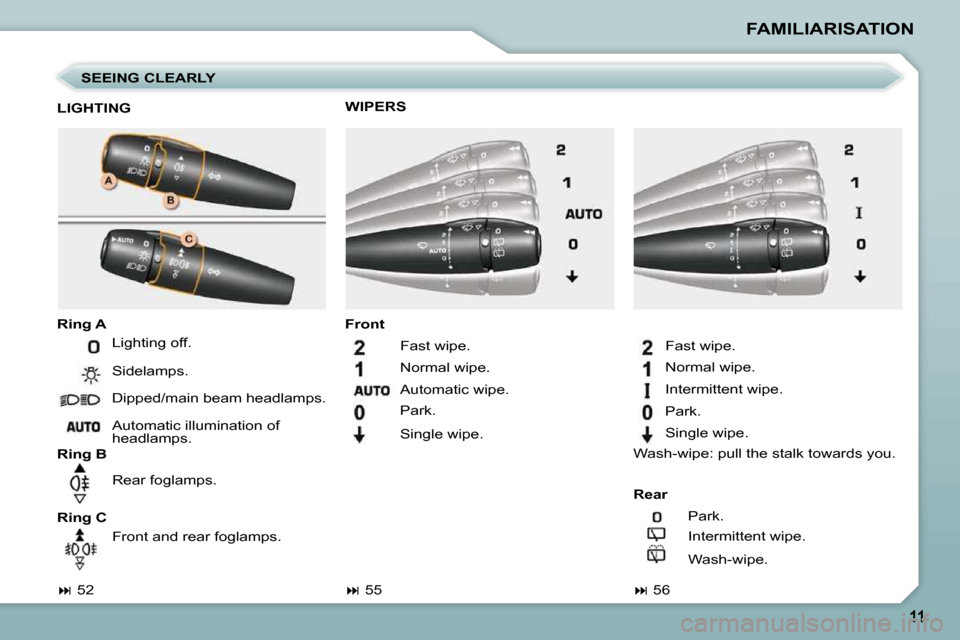

SEEING CLEARLY
LIGHTING

Ring A

Rear

Ring B
Front
WIPERS

 52
 56
Lighting off.
Dipped/main beam headlamps.
Automatic illumination of
headlamps.
Rear foglamps.

Ring C
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Sidelamps.

 55 Fast wipe.
Fast wipe.
Normal wipe.
Automatic wipe.
Park.
Single wipe. Normal wipe.
Intermittent wipe.
Park.
Single wipe.
Wash-wipe: pull the stalk towards you.

FAMILIARISATION

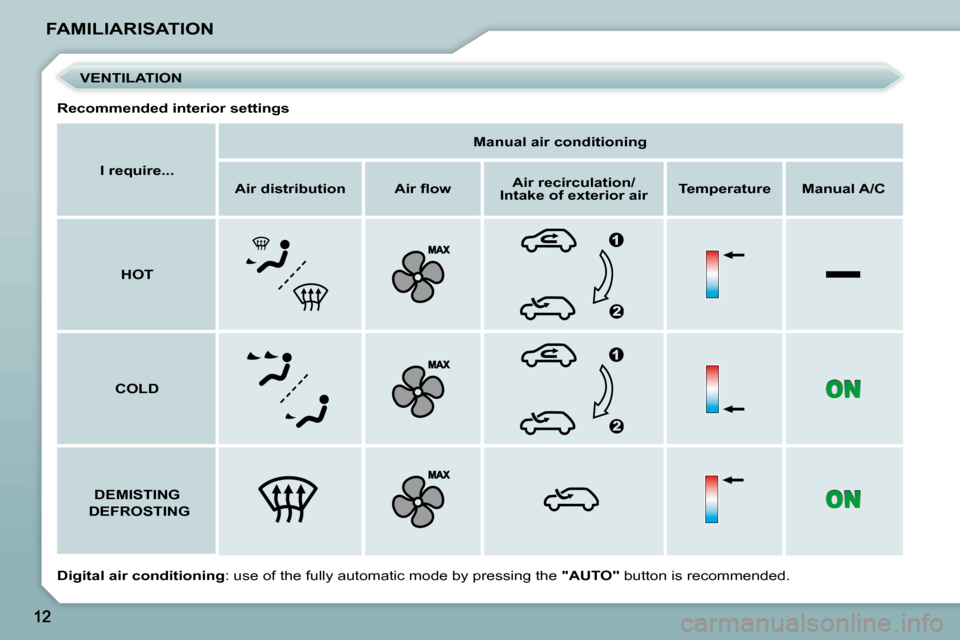

I require...
Manual air conditioning

Air distribution Air fl ow
Air recirculation/
Intake of exterior air
Temperature Manual A/C

HOT


COLD


DEMISTING
DEFROSTING


Digital air conditioning : use of the fully automatic mode by pressing the "AUTO" button is recommended.

Recommended interior settings
VENTILATION

FAMILIARISATION

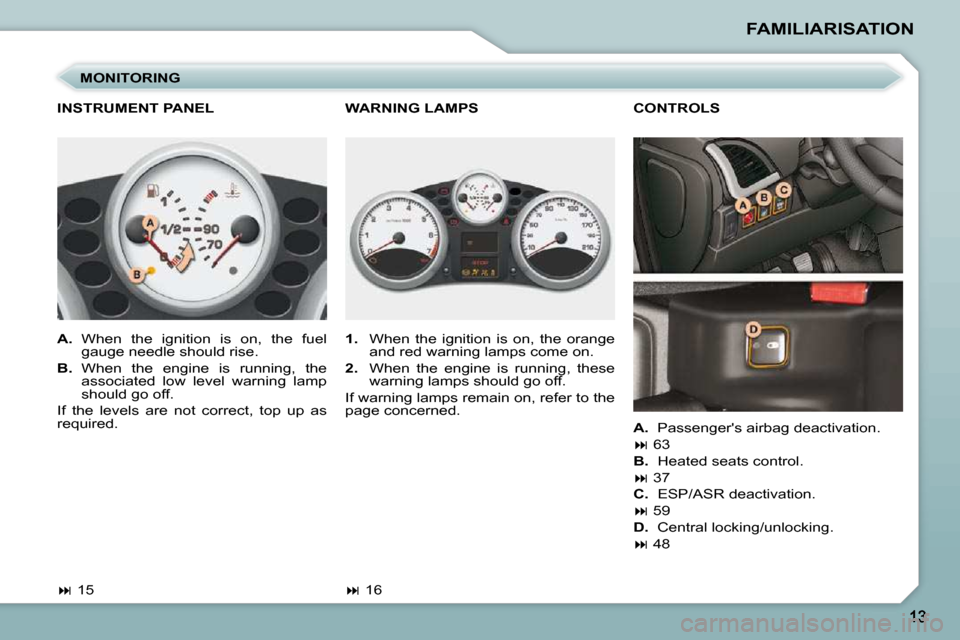

MONITORING

1. When the ignition is on, the orange
and red warning lamps come on.

2. When the engine is running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
WARNING LAMPS

 16
INSTRUMENT PANEL

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, the
associated low level warning lamp
should go off.
If the levels are not correct, top up as
required.

 15 CONTROLS

A. Passenger's airbag deactivation.

 63

B. Heated seats control.

 37

C. ESP/ASR deactivation.

 59

D. Central locking/unlocking.

 48
