FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Speed limiter/cruise controls.
2. Steering wheel height adjustment
control.
3. Lighting and direction indicator
control stalk.
4. Instrument panel.
Instrument panel lighting dimmer.
5. Driver's airbag.
Horn.
6. Parking brake.
7. Front electric window controls.
8. Central locking control.
9. Bonnet release lever.
10. Fusebox.
11. Headlamp height adjustment.
12. Passenger's airbag deactivation.
13. Heated seats control.
14. ESP/ASR deactivation.
Page 82 of 119
78

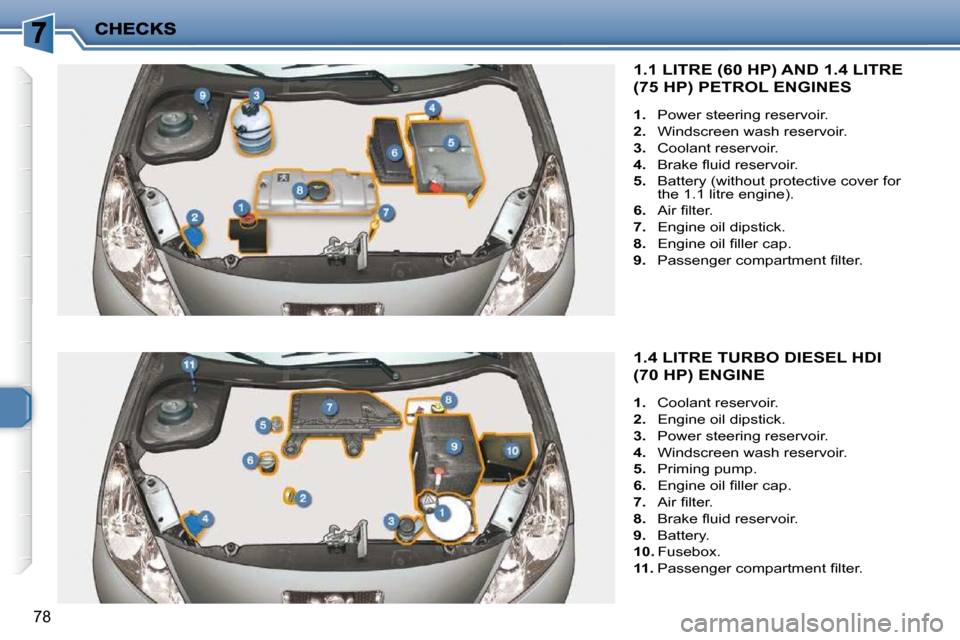

1.4 LITRE TURBO DIESEL HDI
(70 HP) ENGINE
1. Coolant reservoir.
2. Engine oil dipstick.
3. Power steering reservoir.
4. Windscreen wash reservoir.
5. Priming pump.
6. E n g i n e o i l fi l l e r c a p .
7. A i r fi l t e r .
8. B r a k e fl u i d r e s e r v o i r .
9. Battery.
10. Fusebox.
11. P a s s e n g e r c o m p a r t m e n t fi l t e r .
1.1 LITRE (60 HP) AND 1.4 LITRE
(75 HP) PETROL ENGINES
1. Power steering reservoir.
2. Windscreen wash reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery (without protective cover for
the 1.1 litre engine).
6. A i r fi l t e r .
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. P a s s e n g e r c o m p a r t m e n t fi l t e r .
Page 95 of 119
90

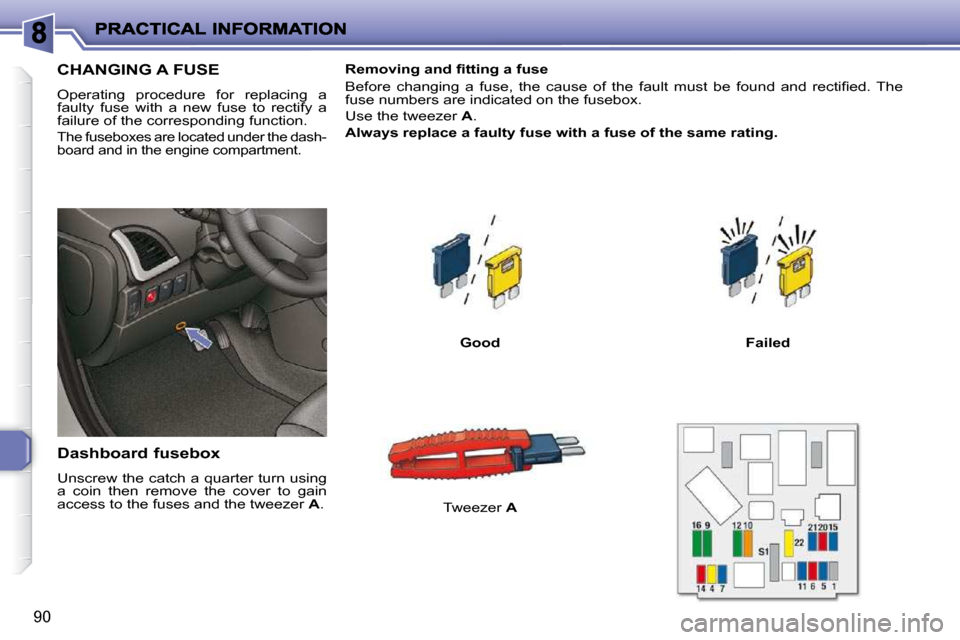

CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuseboxes are located under the dash-
board and in the engine compartment.
Dashboard fusebox
Unscrew the catch a quarter turn using
a coin then remove the cover to gain
access to the fuses and the tweezer A . R e m o v i n g a n d fi t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f t h e f a u l t m u s t b e f o u
n d a n d r e c t i fi e d . T h e
fuse numbers are indicated on the fusebox.
Use the tweezer A .
Always replace a faulty fuse with a fuse of the same rating .
Tweezer A
Good Failed
Page 96 of 119
90
CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuseboxes are located under the dash-
board and in the engine compartment.
Dashboard fusebox
Unscrew the catch a quarter turn using
a coin then remove the cover to gain
access to the fuses and the tweezer A . R e m o v i n g a n d fi t t i n g a f u s e
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f t h e f a u l t m u s t b e f o u
n d a n d r e c t i fi e d . T h e
fuse numbers are indicated on the fusebox.
Use the tweezer A .
Always replace a faulty fuse with a fuse of the same rating .
Tweezer A
Good Failed
Page 97 of 119
91

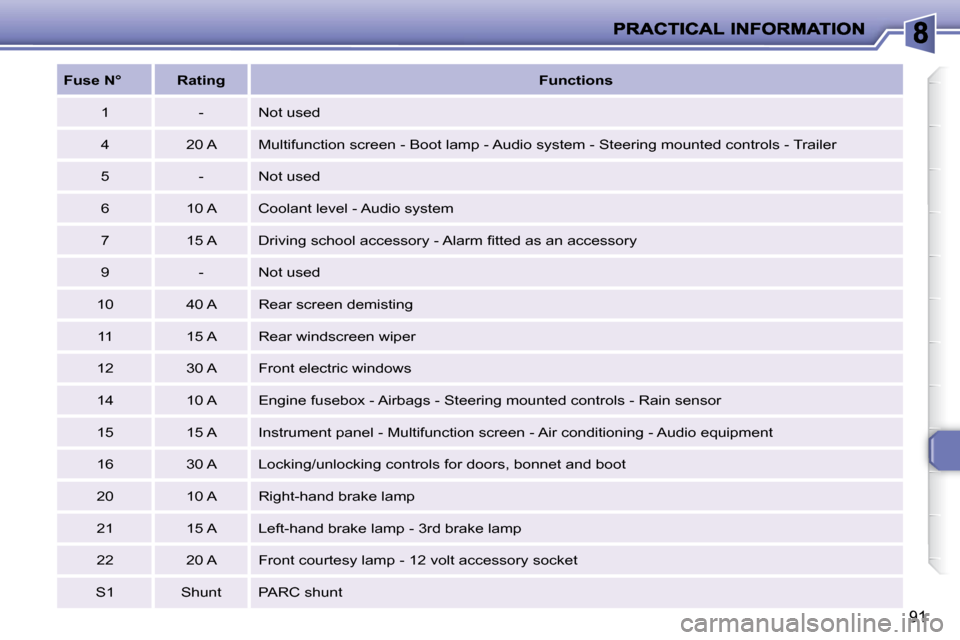

Fuse
N° Rating
Functions
1 - Not used
4 20 A Multifunction screen - Boot lamp - Audio system - Ste ering mounted controls - Trailer
5 - Not used
6 10 A Coolant level - Audio system
7 15 A D r i v i n g s c h o o l a c c e s s o r y - A l a r m fi t t e d a s a n a c c e s s o r y
9 - Not used
10 40 A Rear screen demisting 11 15 A Rear windscreen wiper
12 30 A Front electric windows
14 10 A Engine fusebox - Airbags - Steering mounted cont rols - Rain sensor
15 15 A Instrument panel - Multifunction screen - Air con ditioning - Audio equipment
16 30 A Locking/unlocking controls for doors, bonnet a nd boot
20 10 A Right-hand brake lamp
21 15 A Left-hand brake lamp - 3rd brake lamp
22 20 A Front courtesy lamp - 12 volt accessory socket
S1 Shunt PARC shunt
Page 98 of 119
92
or

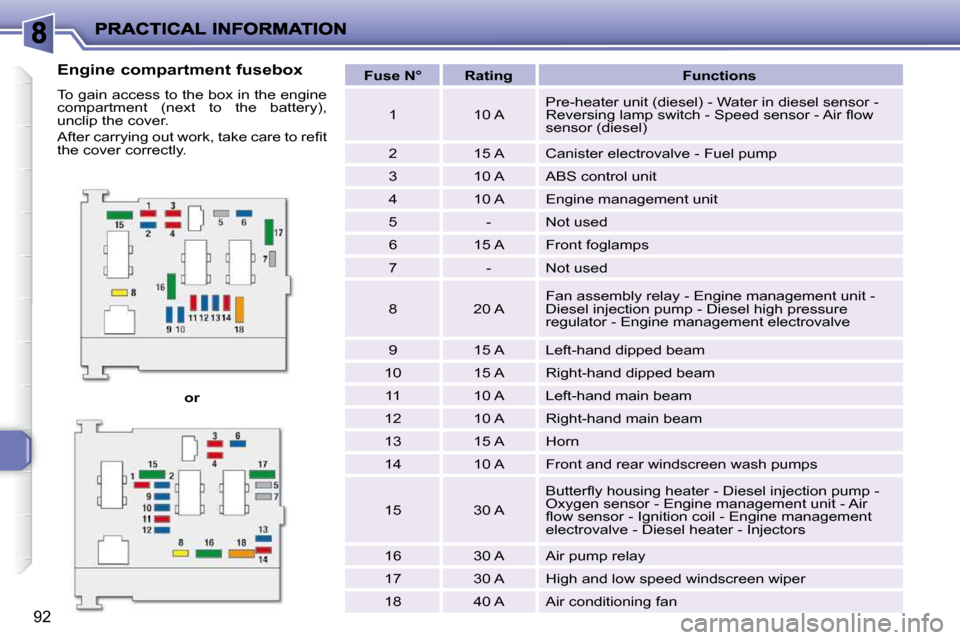

Fuse N° Rating Functions
1 10 A Pre-heater unit (diesel) - Water in diesel sensor -
R e v e r s i n g l a m p s w i t c h - S p e e d s e n s o r - A i r fl o w
sensor (diesel)
2 15 A Canister electrovalve - Fuel pump
3 10 A ABS control unit
4 10 A Engine management unit
5 - Not used
6 15 A Front foglamps
7 - Not used
8 20 A Fan assembly relay - Engine management unit -
Diesel injection pump - Diesel high pressure
regulator - Engine management electrovalve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam
11 10 A Left-hand main beam
12 10 A Right-hand main beam
13 15 A Horn
14 10 A Front and rear windscreen wash pumps
15 30 A B u t t e r fl y h o u s i n g h e a t e r - D i e s e l i n j e c t i o n p u m p -
Oxygen sensor - Engine management unit - Air
fl o w s e n s o r - I g n i t i o n c o i l - E n g i n e m a n a g e m e n t
electrovalve - Diesel heater - Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
Engine compartment fusebox
To gain access to the box in the engine
compartment (next to the battery),
unclip the cover.
A f t e r c a r r y i n g o u t w o r k , t a k e c a r e t o r e fi t
the cover correctly.
