Page 23 of 119
INSTRUMENTS and CONTROLS
26

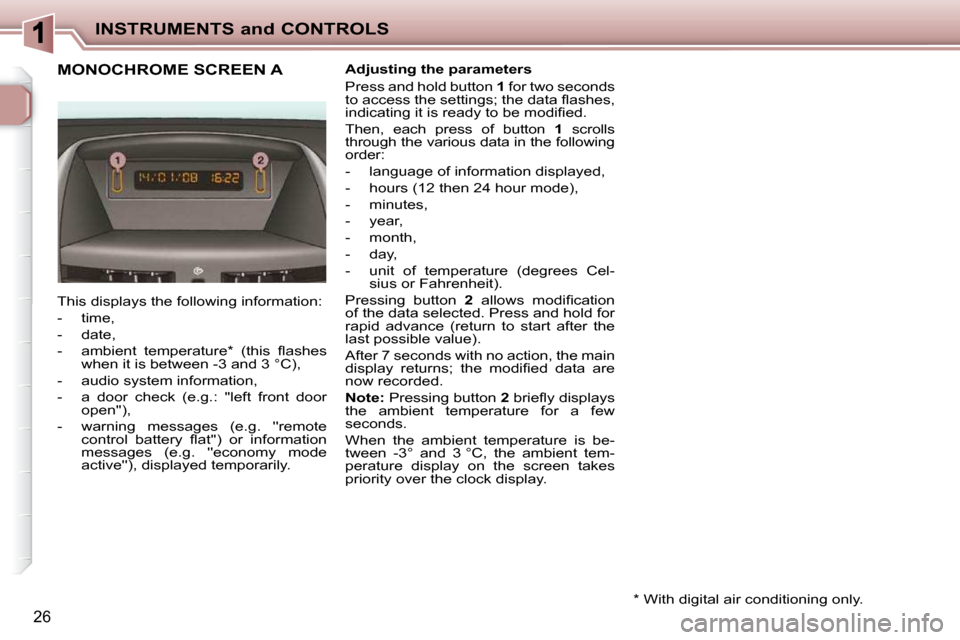

MONOCHROME SCREEN A Adjusting the parameters
Press and hold button 1 for two seconds
t o a c c e s s t h e s e t t i n g s ; t h e d a t a fl a s h e s ,
i n d i c a t i n g i t i s r e a d y t o b e m o d i fi e d .
Then, each press of button 1 scrolls
through the various data in the following
order:
- language of information displayed,
- hours (12 then 24 hour mode),
- minutes,
- year,
- month,
- day,
- unit of temperature (degrees Cel- sius or Fahrenheit).
Pressing button 2 a l l o w s m o d i fi c a t i o n
of the data selected. Press and hold for
rapid advance (return to start after the
last possible value).
After 7 seconds with no action, the main
d i s p l a y r e t u r n s ; t h e m o d i fi e d d a t a a r e
now recorded.
Note: Pressing button 2 b r i e fl y d i s p l a y s
the ambient temperature for a few
seconds.
When the ambient temperature is be-
tween -3° and 3 °C, the ambient tem-
perature display on the screen takes
priority over the clock display.
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s
when it is between -3 and 3 °C),
- audio system information,
- a door check (e.g.: ''left front door open''),
- warning messages (e.g. ''remote c o n t r o l b a t t e r y fl a t ' ' ) o r i n f o r m a t i o n
messages (e.g. ''economy mode
active''), displayed temporarily.
* With digital air conditioning only.
Page 43 of 119
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 44 of 119
!
46
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reprogrammed.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n . Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT network will be able to retrieve the key code and the
transponder code to order a replacement key.
Page 45 of 119
i
!
44
KEYS
Central locking and unlocking
From the front doors, the keys allow you
to lock and unlock the doors and boot.
If one of the doors is open, the central
locking does not work.
If the boot is open, the central locking
works.
Remote control
This carries out the same functions as
the key, from a distance. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
d i r e c t i o n i n d i c a t o r s f o r a p p r o x i m a t e l y
two seconds.
Unlocking
Press button B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators. Starting the vehicle
There are four possible positions of the
key in the ignition switch:
1. STOP position:
the ignition is off.
2. 1 st notch, Accessories position:
the ignition is off but the accessories can operate.
3. 2nd notch, On position:
the ignition is on.
4. Starting position:
the starter is operated.
Avoid pressing the buttons of your
remote control out of range of your
vehicle as this could stop it from
working. The remote control would
then have to be reinitialised (refer
to the corresponding section).
A heavy object (key ring, etc.), at-
tached to the key and weighing
down on its shaft in the switch,
may cause a malfunction.
Page 46 of 119
i
45
Steering lock
Before starting, unlock the steering, if
necessary, by turning the steering wheel
slightly while turning the key.
It is advisable to press the clutch pedal
whle operating the starter to facilitate
the starting of the engine. ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function cor-
rectly, the central locking button indica-
tor lamp, situated on the centre console,
fl a s h e s r a p i d l y w h e n t h e i g n i t i o n i s
switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.
Key in ignition
If the key is left in the ignition, this
is indicated by an audible signal
when the driver's door is opened.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button A , the courtesy lamps
come on and the direction indicators
fl a s h f o r a f e w s e c o n d s . Changing the remote control
battery
Battery ref.: CR2016/3 volts.
I f t h e r e m o t e c o n t r o l b a t t e r y i s fl a t , y o u
are warned by a message on display B.
To replace the battery, remove the
screw then unclip the casing using a
coin at the ring.
If the remote control does not work after
the battery has been changed, repro-
gramme the remote control.
Reinitialising the remote control
Switch off the ignition.
Switch the ignition on again.
Press button A immediately for a
few seconds.
Switch off the ignition and remove
the remote control key from the igni-
tion lock. The remote control is now
working again.
Page 47 of 119
!
46
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
Remote control
The high frequency remote control is a sensitive system; do not o perate
it while it is in your pocket as there is a possibility that i t may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reprogrammed.
The remote control does not operate when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x c e p t f o r r e i n i t i a l i s a t i o n . Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT network will be able to retrieve the key code and the
transponder code to order a replacement key.
Page 48 of 119
i
45
Steering lock
Before starting, unlock the steering, if
necessary, by turning the steering wheel
slightly while turning the key.
It is advisable to press the clutch pedal
whle operating the starter to facilitate
the starting of the engine. ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function cor-
rectly, the central locking button indica-
tor lamp, situated on the centre console,
fl a s h e s r a p i d l y w h e n t h e i g n i t i o n i s
switched on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.
Key in ignition
If the key is left in the ignition, this
is indicated by an audible signal
when the driver's door is opened.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button A , the courtesy lamps
come on and the direction indicators
fl a s h f o r a f e w s e c o n d s . Changing the remote control
battery
Battery ref.: CR2016/3 volts.
I f t h e r e m o t e c o n t r o l b a t t e r y i s fl a t , y o u
are warned by a message on display B.
To replace the battery, remove the
screw then unclip the casing using a
coin at the ring.
If the remote control does not work after
the battery has been changed, repro-
gramme the remote control.
Reinitialising the remote control
Switch off the ignition.
Switch the ignition on again.
Press button A immediately for a
few seconds.
Switch off the ignition and remove
the remote control key from the igni-
tion lock. The remote control is now
working again.
