AUDIO EQUIPMENT
32 -
Manual station search
Press the "MAN" button.
B r i e l y p r e s s b u t t o n L or N to in-
crease or decrease the frequency
displayed.
By continuing to press the button in
t h e d i r e c t i o n s e l e c t e d , y o u w i l l o b t a i n
continuous scrolling of the frequency.
The scrolling stops as soon as the
button is released.
Pressing the "MAN" button again
returns you to automatic station
search. Automatic storing of FM stations
in the memory (autostore)
Your radio automatically stores the
6 s t a t i o n s w i t h t h e s t r o n g e s t s i g n a l i n
FM
. These stations are stored in the
F M a s t w a v e b a n d .
I f i t i s n o t p o s s i b l e t o i n d 6 s t a t i o n s ,
the remaining memories are empty.
Automatic station search
Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"
f o r m o r e t h a n t w o s e c o n d s .
The sound stops then becomes audi-
b l e a g a i n , c o n i r m i n g t h a t t h e s t a t i o n
has been stored in the memory. Press and hold button
R
f o r m o r e t h a n t w o
seconds.
Recalling stations stored in the
memory
F o r e a c h w a v e b a n d , b r i e l y p r e s s
buttons "1" to "6" to recall the cor-
responding station.
B r i e l y p r e s s b u t t o n
L or N to search
for the station immediately above or
b e l o w . B y c o n t i n u i n g t o p r e s s t h e
b u t t o n i n t h e d i r e c t i o n s e l e c t e d , y o u
w i l l o b t a i n c o n t i n u o u s s c r o l l i n g o f t h e
frequency.
T h e s c r o l l i n g s t o p s a t t h e i r s t s t a -
tion found as soon as the button is
released.
If the TA t r a f i c p r o g r a m m e i s s e l e c t -
e d , o n l y s t a t i o n s b r o a d c a s t i n g t h i s
type of programme are selected.
S e a r c h i n g f o r a s t a t i o n o c c u r s i r s t i n
"LO" sensitivity (selection of the most
p o w e r f u l t r a n s m i t t e r s ) d u r i n g s c a n -
n i n g o f t h e w a v e b a n d , t h e n i n "DX"
s e n s i t i v i t y ( s e l e c t i o n o f t h e w e a k e s t
and most distant transmitters).
To make a direct search in "DX" sen-
s i t i v i t y , p r e s s b u t t o n L or N t w i c e .
Page 32 of 127
33
AUDIO EQUIPMENT
-
RDS T r a f i c i n f o r m a t i o n p r o g r a m m e
(TA) Regional following mode
W h e n t h e y a r e p a r t o f a n e t w o r k ,
certain stations broadcast regional
programmes in the various areas
t h e y s e r v e . W i t h r e g i o n a l f o l l o w i n g
mode you can keep listening to the
same programme.
Press the "RDS" button for more
t h a n t w o s e c o n d s t o s w i t c h t h e f u n c -
tion on or off.
RDS station following
The display indicates the name of the
station selected. The radio is contin-
u a l l y s e a r c h i n g f o r t h e s t a t i o n w h i c h
h a s t h e b e s t r e c e p t i o n a n d w h i c h i s
transmitting the same programme. Press the
"TA" button
t o s w i t c h t h e f u n c t i o n
on or off.
The multifunction dis-
p l a y w i l l s h o w :
- "TA" i f t h e f u n c t i o n i s s e l e c t e d ,
- "(TA)" if the function is selected
but not available.
A n y t r a f i c i n f o r m a t i o n l a s h w i l l b e
g i v e n p r i o r i t y , w h a t e v e r s o u r c e y o u
a r e l i s t e n i n g t o ( r a d i o , C D o r C D
changer).
I f y o u w i s h t o i n t e r r u p t a m e s s a g e ,
press the "TA" b u t t o n ; t h i s s w i t c h e s
the function off.
N o t e : t h e v o l u m e o f t r a f i c i n f o r m a -
tion is independent of the volume
of normal radio listening. You can
adjust it using the volume button.
The setting will be stored and will
be used when the next messages
are broadcast.
B r i e l y p r e s s t h e "RDS"
b u t t o n t o s w i t c h t h e
function on or off.
The multifunction dis-
p l a y w i l l s h o w :
- "RDS" if the function is selected.
- "(RDS)" if the function is
selected but not available.
Using the RDS (Radio Data
System) function on FM
R a d i o D a t a S y s t e m a l l o w s y o u t o
continue listening to the same sta-
t i o n , w h a t e v e r f r e q u e n c y i t i s u s i n g
for the region you are going through.
Page 33 of 127
AUDIO EQUIPMENT
34 -
EON system
T h i s c o n n e c t s s t a t i o n s w h i c h a r e p a r t
o f t h e s a m e n e t w o r k . I t e n a b l e s t h e
b r o a d c a s t o f t r a f i c i n f o r m a t i o n o r a
PTY p r o g r a m m e , b y a s t a t i o n t h a t i s
p a r t o f t h e s a m e n e t w o r k a s t h e s t a -
t i o n t o w h i c h y o u a r e l i s t e n i n g .
T h i s s e r v i c e i s a v a i l a b l e w h e n y o u
have selected the TA t r a f i c i n f o r m a -
tion programme or the PTY function.
Search by type of programme
(PTY)
T h i s a l l o w s y o u t o l i s t e n t o s t a t i o n s b r o a d
-
c a s t i n g a s p e c i i c t y p e o f p r o g r a m m e
( n e w s , c u l t u r e , s p o r t , r o c k , e t c . ) .
To search for a PTY programme:
With FM s e l e c t e d , p r e s s
the "TA" button for
t w o s e c o n d s t o s w i t c h
this function on or off.
- select the PTY f u n c t i o n ,
- b r i e l y p r e s s b u t t o n L or N to
s c r o l l d o w n t h e l i s t o f t h e v a r i o u s
types of programmes offered.
- w h e n t h e p r o g r a m m e o f y o u r c h o i c e i s d i s p l a y e d , k e e p b u t t o n
L or N p r e s s e d f o r t w o s e c o n d s
to carry out an automatic search
(after an automatic search the
PTY f u n c t i o n i s s w i t c h e d o f f ) .
In PTY mode the different types of
programme can be stored in the mem-
o r y . T o d o t h i s , p r e s s t h e p r e s e l e c t i o n
buttons "1" to "6" f o r t w o s e c o n d s .
B r i e l y p r e s s t h e c o r r e s p o n d i n g b u t -
ton to recall the type of programme
stored in the memory.
Page 34 of 127
35
AUDIO EQUIPMENT
-
Ejection of a disc Selecting a track
S h u f l e ( R D M )
W h e n t h e C D p l a y e r i s s e l e c t e d ,
press and hold button Q f o r t w o s e c -
o n d s . T h e t r a c k s w i l l b e p l a y e d i n
random sequence. Pressing the but-
t o n a g a i n f o r t w o s e c o n d s r e t u r n s
you to normal play.
S h u f l e m o d e i s d e - a c t i v a t e d e a c h
t i m e t h e s e t i s s w i t c h e d o f f .
COMPACT DISC
Press button L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
Accelerated play
Press and hold button L or N for
f o r w a r d s o r b a c k w a r d s a c c e l e r a t e d
play.
Accelerated play stops as soon as
the button is released.
After insertion of a
d i s c , p r i n t e d f a c e
u p w a r d s , t h e p l a y e r
starts automatically.
I f a d i s c i s a l r e a d y i n s e r t e d , p r e s s
button Q.
Press button S to
eject the disc from the
player.
The use of copied compact
discs may cause faults.
Insert circular compact
discs only.
Selecting CD mode
Page 35 of 127
AUDIO EQUIPMENT
36 -
RADIO RECEPTION
(AERIAL ADJUSTMENT)
Notes on radio reception. Your radio
w i l l b e s u b j e c t t o p h e n o m e n a w h i c h
do not affect domestic radio sets.
Both MW/LW and FM reception are
subject to various forms of interfer-
e n c e , w h i c h a r e n o r e l e c t i o n o n t h e
quality of your equipment but are due
to the nature of the signals and the
w a y i n w h i c h t h e y a r e t r a n s m i t t e d .
O n M W / L W , i n t e r f e r e n c e m a y b e n o -
t i c e d w h e n p a s s i n g u n d e r n e a t h h i g h
v o l t a g e p o w e r l i n e s , u n d e r b r i d g e s o r
in tunnels. O n F M , i n t e r f e r e n c e m a y b e t h e r e
-
sult of increasing distance from the
t r a n s m i t t e r , d e l e c t i o n o f t h e s i g n a l
b y o b s t a c l e s ( m o u n t a i n s , h i l l s , b u i l d -
i n g s , e t c . ) , o r o f b e i n g i n a n a r e a n o t
covered by a transmitter.
Saloon: recommended position for
the front aerial for best reception.
N o p a r t i c u l a r p o s i t i o n f o r t h e i x e d
rear aerial (preset aerial).
Page 36 of 127
37
AUDIO EQUIPMENT
-

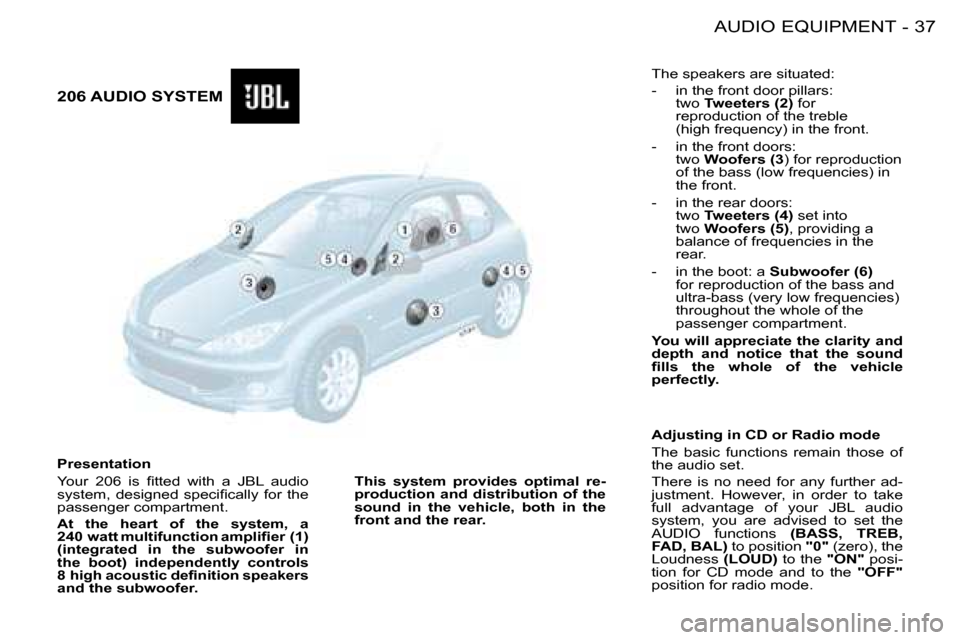

206 AUDIO SYSTEM
Presentation
Y o u r 2 0 6 i s i t t e d w i t h a J B L a u d i o
s y s t e m , d e s i g n e d s p e c i i c a l l y f o r t h e
passenger compartment.
At the heart of the system, a
2 4 0 w a t t m u l t i f u n c t i o n a m p l i i e r ( 1 )
(integrated in the subwoofer in
the boot) independently controls
8 h i g h a c o u s t i c d e i n i t i o n s p e a k e r s
and the subwoofer. The speakers are situated:
- in the front door pillars:
t w o Tweeters (2) for
reproduction of the treble
(high frequency) in the front.
- in the front doors: t w o Woofers (3 ) for reproduction
o f t h e b a s s ( l o w f r e q u e n c i e s ) i n
the front.
- in the rear doors: t w o Tweeters (4) set into
t w o Woofers (5) , p r o v i d i n g a
balance of frequencies in the
rear.
- in the boot: a Subwoofer (6)
for reproduction of the bass and
u l t r a - b a s s ( v e r y l o w f r e q u e n c i e s )
t h r o u g h o u t t h e w h o l e o f t h e
passenger compartment.
You will appreciate the clarity and
depth and notice that the sound
i l l s t h e w h o l e o f t h e v e h i c l e
perfectly.
This system provides optimal re-
production and distribution of the
sound in the vehicle, both in the
front and the rear. Adjusting in CD or Radio mode
The basic functions remain those of
the audio set.
There is no need for any further ad-
j u s t m e n t . H o w e v e r , i n o r d e r t o t a k e
full advantage of your JBL audio
s y s t e m , y o u a r e a d v i s e d t o s e t t h e
AUDIO functions
(BASS, TREB,
FAD, BAL) to position "0" ( z e r o ) , t h e
Loudness (LOUD) to the "ON" posi-
tion for CD mode and to the "OFF"
position for radio mode.
Page 37 of 127
COMFORT
38 -
Page 38 of 127
39
COMFORT
-

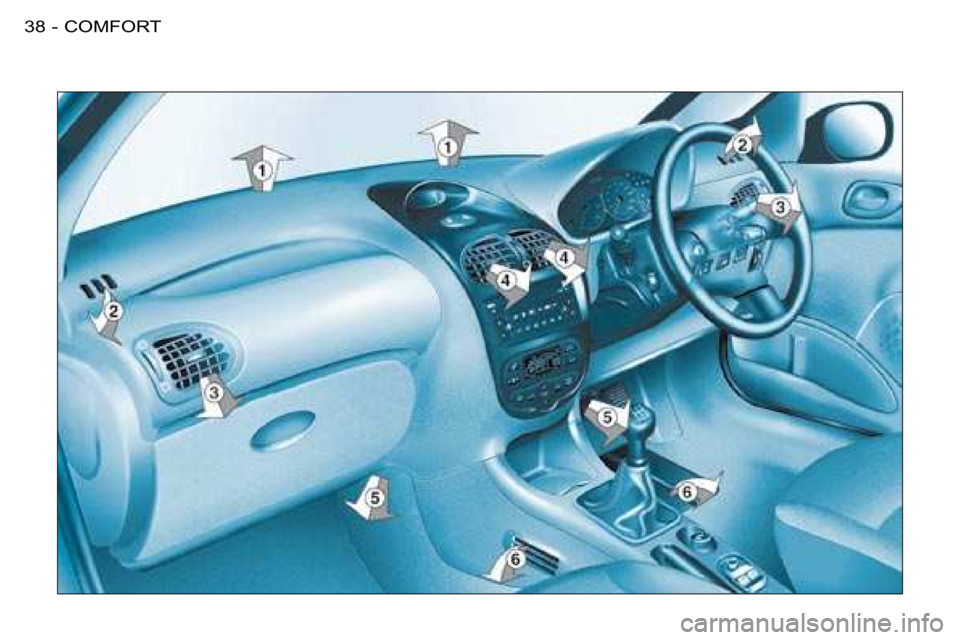

VENTILATION
1. Windscreen de-icing or
demisting vents.
2. F r o n t d o o r w i n d o w s d e - i c i n g o r
demisting vents.
3. Side vents.
4. Centre vents.
5. A i r o u t l e t t o f r o n t f o o t w e l l s .
6. A i r o u t l e t t o r e a r f o o t w e l l s ( w i t h
automatic air conditioning only). Advice on operation and
notes
P l a c e t h e a i r l o w c o n t r o l a t a l e v e l
s u f i c i e n t t o e n s u r e a n a d e q u a t e r e
-
n e w a l o f a i r i n t h e p a s s e n g e r c o m -
partment.
W h e n t h e a i r l o w c o n t r o l i s i n t h e
OFF p o s i t i o n ( s y s t e m s w i t c h e d o f f ) ,
temperature-related comfort is no
l o n g e r g u a r a n t e e d . H o w e v e r , a s l i g h t
l o w o f a i r , d u e t o t h e m o v e m e n t o f
t h e v e h i c l e , c a n s t i l l b e f e l t .
S e l e c t t h e a i r d i s t r i b u t i o n w h i c h i s
most suited to your requirements and
t h e w e a t h e r c o n d i t i o n s .
Change the temperature setting pro-
gressively for greater comfort.
Place the air intake control in the
" E x t e r i o r a i r " p o s i t i o n , t h i s f a c i l i t a t e s
demisting.
If the interior temperature remains
v e r y h i g h f o l l o w i n g a l o n g p e r i o d
p a r k e d i n t h e s u n , d o n o t h e s i t a t e t o
ventilate the passenger compartment
f o r a f e w m i n u t e s .
To obtain a perfectly uniform distribu-
t i o n o f a i r , d o n o t c o v e r t h e e x t e r i o r
a i r i n t a k e g r i l l e , t h e v e n t s , t h e a i r p a s -
sages and the air outlets in the foot-
w e l l s . In certain cases of particularly ardu-
o u s u s e ( t o w i n g t h e m a x i m u m l o a d
on a steep gradient in a high temper-
a t u r e ) , c u t t i n g o f f t h e a i r c o n d i t i o n i n g
p e r m i t s r e c o v e r y o f t h e e n g i n e p o w e r
a n d , t h e r e f o r e i m p r o v e m e n t o f t h e
t o w i n g c a p a c i t y .
Ensure that the passenger com-
p a r t m e n t i l t e r , l o c a t e d b y t h e w i n d
-
s c r e e n , u n d e r t h e b o n n e t , i s i n g o o d
c o n d i t i o n . H a v e t h e i l t e r e l e m e n t s
replaced regularly. If you drive in a
d u s t y e n v i r o n m e n t , c h a n g e t h e m
t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
f o r 5 t o 1 0 m i n u t e s , o n c e o r t w i c e a
m o n t h t o k e e p i t i n p e r f e c t w o r k i n g
order.
T h e w a t e r f o r m e d b y t h e c o n d e n s a -
tion of the air conditioning system is
discharged via an opening provided
f o r t h i s p u r p o s e . T h e r e f o r e , a p u d -
dle may form underneath the vehicle
w h e n s t a t i o n a r y .
If the system does not produce
c o l d a i r , d o n o t u s e i t a n d c o n t a c t a
PEUGEOT dealer.
Page 39 of 127
COMFORT
40 -
DE-ICING AND DEMISTING
De-icing the rear screen and
mirrors
W h e n t h e e n g i n e i s r u n n i n g ,
pressing this button de-ices
the rear screen and exterior
mirrors.
I t s w i t c h e s o f f a u t o m a t i c a l l y , a f t e r a p -
p r o x i m a t e l y t w e l v e m i n u t e s , t o p r e -
vent an excessive consumption of
current. Pressing the button again re-
s t a r t s o p e r a t i o n f o r t w e l v e m i n u t e s .
It is possible to stop the operation of
t h e d e - i c i n g b e f o r e i t i s s w i t c h e d o f f
automatically by pressing the button
again.
S w i t c h o f f t h e d e - i c i n g a s s o o n a s
y o u c o n s i d e r t h i s n e c e s s a r y a s l o w
current consumption reduces fuel
consumption. Manual demisting
T o q u i c k l y d e m i s t t h e w i n d s c r e e n a n d
s i d e w i n d o w s :
- s w i t c h o n t h e a i r c o n d i t i o n i n g ,
- place the temperature and air
l o w c o n t r o l s i n t h e m a x i m u m
p o s i t i o n ,
- c l o s e t h e c e n t r a l v e n t s ,
- place the exterior air intake c o n t r o l o n t h e l e f t , i n t h e
"Exterior Air" position. Automatic demisting,
visibility programme
I n s o m e c a s e s , t h e A U T O p r o g r a m m e
m a y n o t b e s u f i c i e n t t o d e m i s t t h e
w i n d s c r e e n a n d s i d e w i n d o w s ( h u
-
m i d i t y , s e v e r a l p a s s e n g e r s , i c e . . . ) .
Select the "visibility" demisting pro-
gramme by pressing this button to
c l e a r t h e w i n d o w s q u i c k l y .
To exit from this programme and re-
t u r n t o t h e A U T O p r o g r a m m e , p r e s s
the AUTO button.
Page 40 of 127
41
COMFORT
-

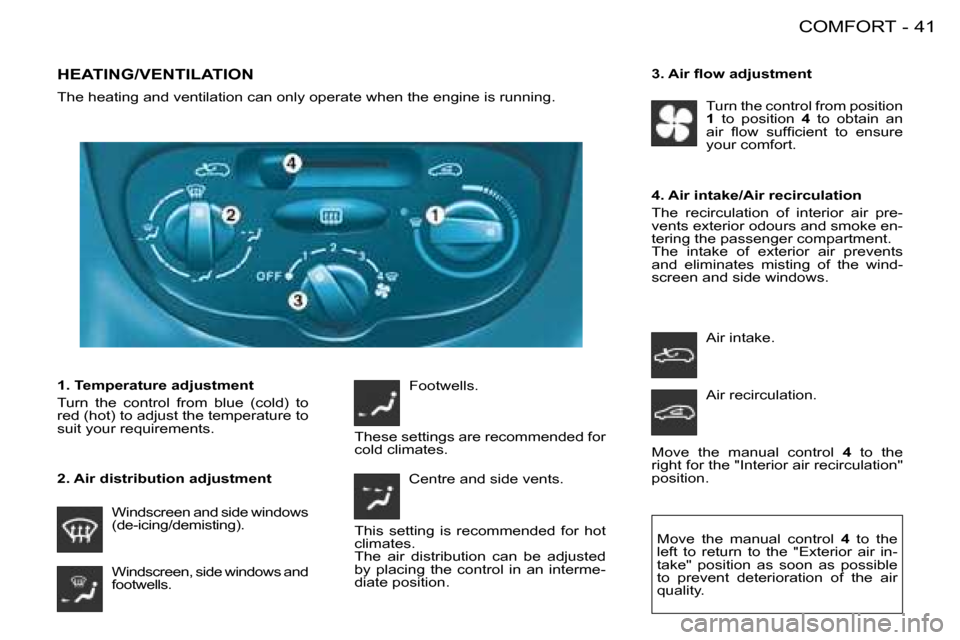

HEATING/VENTILATION
T h e h e a t i n g a n d v e n t i l a t i o n c a n o n l y o p e r a t e w h e n t h e e n g i n e i s r u n n i n g .
2. Air distribution adjustment
1. Temperature adjustment
Turn the control from blue (cold) to
red (hot) to adjust the temperature to
suit your requirements.
W i n d s c r e e n a n d s i d e w i n d o w s
(de-icing/demisting).
W i n d s c r e e n , s i d e w i n d o w s a n d
f o o t w e l l s . F o o t w e l l s .
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
The air distribution can be adjusted
by placing the control in an interme-
diate position. 3 . A i r l o w a d j u s t m e n t
Turn the control from position
1 to position 4 to obtain an
a i r l o w s u f i c i e n t t o e n s u r e
your comfort.
4. Air intake/Air recirculation
The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents
a n d e l i m i n a t e s m i s t i n g o f t h e w i n d -
s c r e e n a n d s i d e w i n d o w s .
Air intake.
Air recirculation.
Move the manual control 4 to the
right for the "Interior air recirculation"
position.
Move the manual control 4 to the
left to return to the "Exterior air in-
take" position as soon as possible
to prevent deterioration of the air
quality.
