PEUGEOT SERVICING25
PEUGEOT SERVICING
Level
Operations Description of operations1st serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel only).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVELS- Front/rear screen-wash.- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up, according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers) and check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle by a Peugeot technician.
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditions: Arduous conditions * According to country.17-06-2002

INSTRUMENTS AND CONTROLS
28
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distribution warning light
14. Dipped beam headlamps indicator light
15. Battery charge warning light
16. Engine oil pressure and temperature warning light
17. Water in diesel filter warning light
18. Coolant temperature and lowlevel warning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting rheostat button
26. Fuel level indicator
27. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicatorlight
12. Handbrake, low brake fluid leveland electronic brake force distribution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light 17.
Operating programmes
18. Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS31
Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter indicator*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, you haveenough fuel to drive at least 50 km. The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
17-06-2002

INSTRUMENTS AND CONTROLS31
Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter indicator*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, you haveenough fuel to drive at least 50 km. The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
17-06-2002

17-06-2002
YOUR 206 IN DETAIL35

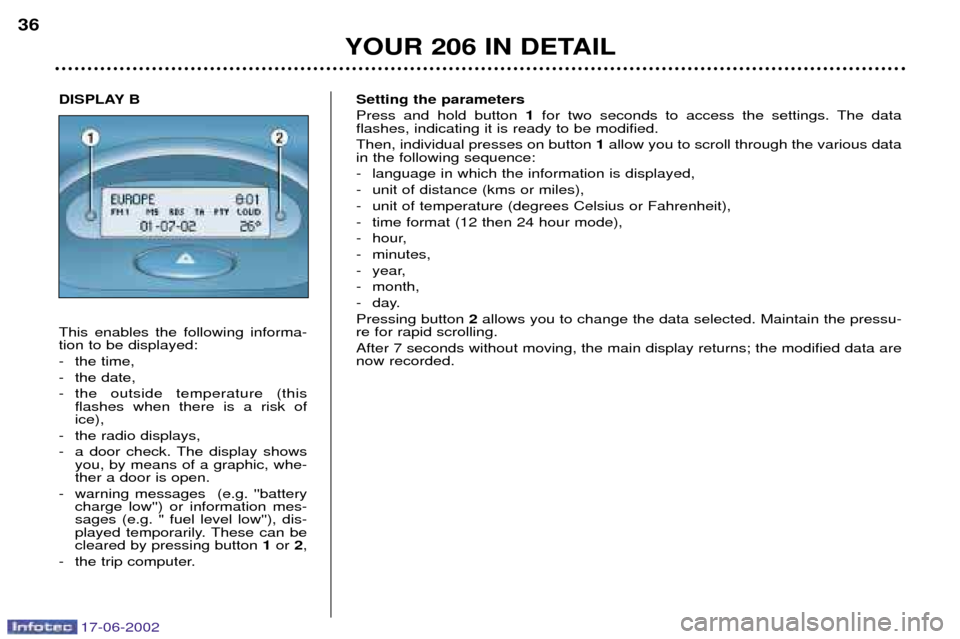

DISPLAY A This displays the following informa- tion:
- the time,
- the date,
- the outside temperature (this
flashes if there is a risk of ice),
- the audio system displays,
- a door check (e.g.: ''left front door open''),
- warning messages (e.g. ''remote control battery flat'') or information messages (e.g. ''economy mode
active''), displayed temporarily. Adjusting the parameters Press and hold button 1 for two seconds to access the settings; the data flashes, indicating it is ready to be modified. Then, each press of button
1scrolls through the various data in the following
order:
Ð language of information displayed,
Ð hours (12 then 24 hour mode),
Ð minutes,
Ð year,
Ð month,
Ð day,
Ð unit of temperature (degrees Celsius or Fahrenheit).Pressing button 2alters the value of the parameter selected. Press and hold for
rapid advance (return to start after the last possible value). After 7 seconds with no action, the main display returns; the modified data are now recorded. Note: Pressing button 2briefly displays the outside temperature for a few
seconds.

17-06-2002
YOUR 206 IN DETAIL
36
Setting the parameters Press and hold button 1for two seconds to access the settings. The data
flashes, indicating it is ready to be modified. Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 then 24 hour mode),
- hour,
- minutes,
- year,
- month,
- day.Pressing button 2allows you to change the data selected. Maintain the pressu-
re for rapid scrolling.After 7 seconds without moving, the main display returns; the modified data are now recorded.
DISPLAY B This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- a door check. The display shows you, by means of a graphic, whe- ther a door is open.
- warning messages (e.g. ''battery charge low'') or information mes-sages (e.g. " fuel level low''), dis-
played temporarily. These can becleared by pressing button 1or 2,
- the trip computer.

17-06-2002
YOUR 206 IN DETAIL83
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message ''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt bat-tery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch and the fuelfiller cap, as well as independentlyoperate the locks on the front doors. Central locking The keys allow you to lock or unlock the doors and tailgate from the frontdoors. If one of the doors, the tailgate (206 SW) or the rear screen (206 SW) isopen, the central locking does notwork. The remote control This performs the same functions as
the key, at a distance. LockingPress button
Ato lock the vehicle.
This is confirmed by fixed lighting ofthe direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by the rapid flashing of the direction indicators.
206 SW: Press and hold button Bto
unlock the vehicle and open the rear screen. Note: If the vehicle is locked and
unlocking is activated inadvertently, unless the doors are opened within30 seconds, the vehicle will lockautomatically (206 SW).
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldthen have to be reprogrammed. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy
lights come on and the direction indicators flash for a fewseconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.

17-06-2002
PRACTICAL INFORMATION
110
1.
Power steering reservoir.
2. Windscreen and headlamp wash
reservoir.
3. Coolant reservoir. 4.
Brake fluid reservoir.
5. Battery.
6. Air filter. 7.
Dipstick.
8. Engine oil filler cap.
1.1 litre, 1.4 litre engine

17-06-2002
PRACTICAL INFORMATION111
1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.6 litre 16V engine
