PEUGEOT SERVICING25
PEUGEOT SERVICING
Level
Operations Description of operations1st serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel only).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVELS- Front/rear screen-wash.- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up, according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers) and check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle by a Peugeot technician.
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditions: Arduous conditions * According to country.17-06-2002

17-06-2002
YOUR 206 IN DETAIL53

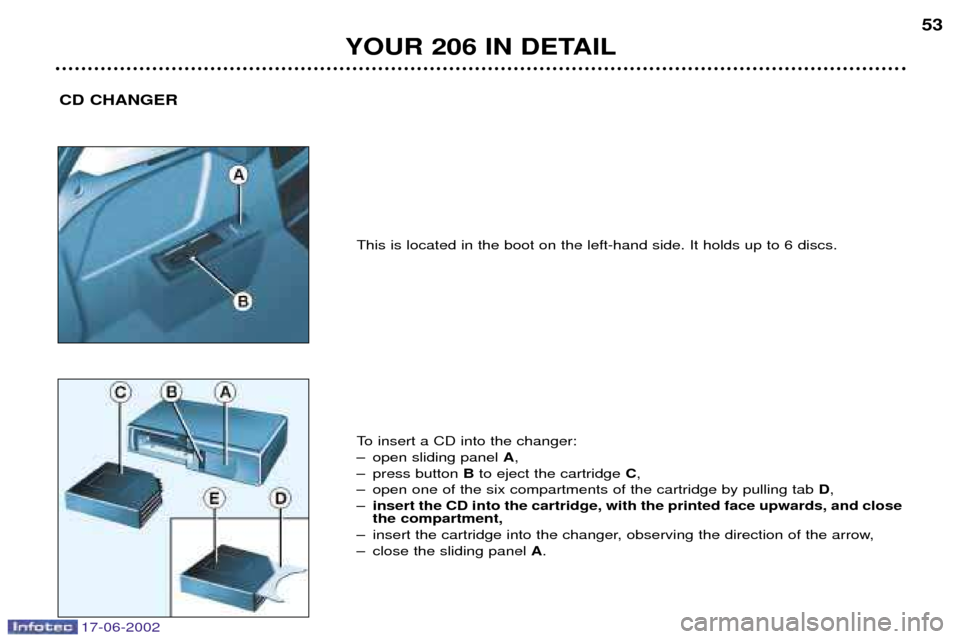

CD CHANGER
This is located in the boot on the left-hand side. It holds up to 6 discs.
To insert a CD into the changer:
Ð open sliding panel
A,
Ð press button Bto eject the cartridge C,
Ð open one of the six compartments of the cartridge by pulling tab D,
Ð insert the CD into the cartridge, with the printed face upwards, and close the compartment,
Ð insert the cartridge into the changer, observing the direction of the arrow,
Ð close the sliding panel A.

17-06-2002
YOUR 206 IN DETAIL87
TAILGATE RELEASE (saloon) This enables the tailgate to be unlocked in the event of a centrallocking fault.
Ð Fold back the rear seats to gain access to the boot from inside the vehicle,
Ð Pull the tailgate trim to release it,
Ð Pull the opening catch 1upwards.
SUNROOF (saloon)
To open Press part Bof the switch. The sun-
roof will open in the intermediate
(comfort) position. To open comple-
tely, press part Bagain.
To close Press part Aof the switch. The sun-
roof will close in the intermediate
(comfort) position. To close comple-
tely, press part Aagain.
Panoramic sunroof screen
To move it to your chosen position, press part Aor Bof the switch.
The lighting is activated on ope- ning the tailgate or the rearscreen. Notes: the tailgate and the rear
screen lock automatically while dri- ving (from 10 km/h) and unlockwhen one of the doors is opened. When the rear windscreen wiper is in a wiping position, the rear screencan only be opned at the end of thecycle. Close the rear screen using the windscreen wiper arm or by pres-sing the centre of the glass.
"Tailgate/rear screen open" warning
With the engine running , if the tail-
gate or the rear screen is not pro- perly closed, you are warned by anaudible signal and a message
"Tailgate open" or a diagram on the
multi-function display. In addition, while driving , if the
courtesy light button is in the "ligh- ting on opening the tailgate or rearscreen" position, the courtesy lightflashes.

17-06-2002
YOUR 206 IN DETAIL87
TAILGATE RELEASE (saloon) This enables the tailgate to be unlocked in the event of a centrallocking fault.
Ð Fold back the rear seats to gain access to the boot from inside the vehicle,
Ð Pull the tailgate trim to release it,
Ð Pull the opening catch 1upwards.
SUNROOF (saloon)
To open Press part Bof the switch. The sun-
roof will open in the intermediate
(comfort) position. To open comple-
tely, press part Bagain.
To close Press part Aof the switch. The sun-
roof will close in the intermediate
(comfort) position. To close comple-
tely, press part Aagain.
Panoramic sunroof screen
To move it to your chosen position, press part Aor Bof the switch.
The lighting is activated on ope- ning the tailgate or the rearscreen. Notes: the tailgate and the rear
screen lock automatically while dri- ving (from 10 km/h) and unlockwhen one of the doors is opened. When the rear windscreen wiper is in a wiping position, the rear screencan only be opned at the end of thecycle. Close the rear screen using the windscreen wiper arm or by pres-sing the centre of the glass.
"Tailgate/rear screen open" warning
With the engine running , if the tail-
gate or the rear screen is not pro- perly closed, you are warned by anaudible signal and a message
"Tailgate open" or a diagram on the
multi-function display. In addition, while driving , if the
courtesy light button is in the "ligh- ting on opening the tailgate or rearscreen" position, the courtesy lightflashes.

17-06-2002
YOUR 206 IN DETAIL
100
Stowing rings Use the stowing rings on the boot floor and on the back of the rear seatto secure your luggage. Luggage retaining net Hooked onto the stowing rings, this enables your luggage to be secured.
BOOT LAYOUT (Saloon)
Retaining strap
A strap secured to the side of the boot enables you to secure variousobjects (cans, first aid kit etc.).
Rear parcel shelf
To remove the shelf:
Ð unhook the two strings 1,
Ð slightly raise the shelf, then remo- ve it.
There are several options for storing the shelf:
Ð either behind the front seats,
Ð or behind the rear seat using theluggage retaining net,
Ð or flat in the boot.

17-06-2002
YOUR 206 IN DETAIL103
BOOT LAYOUT (206 SW)
1. Grab handles and coat hooks
2. Coat hooks There are six hooks to accommodate coats.
3. High load retaining net fastenings The high load retaining net can be installed behind the front seats or behind the rear seat. Open the covers of the corresponding upper fastenings.
Install one end of the metal bar in one of the two fastenings, compress the bar, then install the other end and release.
Secure the two net strap hooks behind the front seats, with the rear seat folded down, or in the stowing rings on the floor.The rings are located directly below the corresponding upper fastenings.Pull the two straps taut.
4. Hooks
There are two side hooks on which to hang light bags.
5. 12V Socket for accessories This is a 12 volt socket (lighter type) installed on the the rear left trim and supplied from the accessories position (1stnotch).
6. Storage nets There are two nets (which cannot be removed) which can contain the luggage retaining net, a first aid kit etc.
7. Retaining straps There are two straps for securing various objects: cans etc.
8. Tonneau To install it:
Ð position one end of the tonneau roller in one of the two supports,
Ð compress the opposite end of the roller and position it,
Ð release it to allow it to engage,
Ð unroll the tonneau as far as the boot pillars,
Ð insert the tonneau guides in the rails in the pillars.
To remove it:
Ð remove the tonneau guides from the pillar rails,
Ð return the tonneau into its roller, compress it and remove it from its support.
9. Stowing rings There are eight stowing rings for securing the luggage retaining net: four on the rear seat back and four on the boot floor(two of which are under the carpet, at the far end of the boot).
Warning triangle The tailgate has a location intended for a warning triangle.

17-06-2002
PRACTICAL INFORMATION
118
CHANGING A WHEEL (saloon) Parking the vehicle
Ð If possible, park the vehicle on
level, stable and non-slippery ground.
Ð Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack The wheel is located outside the vehicle, under the boot, supported
by a metal carrier.
Ð Remove the wheelbrace 1, secu-
red on the rear right inner panel of the boot. Ð Using the wheelbrace
1, slacken the spare wheel carrier retaining bolt, loca-
ted inside the boot under the carpet.
Ð Lift the carrier to release the hook rearwards, then lower it.
Ð Remove the jack storage box 2located in the spare wheel.
Removing a wheel
Ð Chock the rear of the wheel diagonally opposite the wheel to be changed, using the jack storage box.
Ð Remove the wheel trim using the wheelbrace, by pulling at the valve passage hole.
Ð Slacken the wheel bolts.
Ð Place the jack under the locating point on the sub-frame Ethat is closest to
the wheel to be changed. Ensure that the entire surface of the jack base plate is in contact with the ground.
Ð Extend the jack, completely unscrew the bolts and remove the wheel.

17-06-2002
PRACTICAL INFORMATION121
SPECIAL FEATURES OF
ALLOY WHEELS Bolt covers Alloy wheel bolts are covered by chrome trims. Use tool 4to remove the trims befo-
re slackening the bolts.
Tool 4is located:
- on the saloon, on the rear right inner panel of the boot,
- on the 206 SW, in the jack storage compartment. Fitting the spare wheelIf your vehicle is equipped with a steel spare wheel, when fitting it, it isnormal
to notice that the bolt
washers do not come into contact
with the rim. The spare wheel issecured by the cone-shape of eachbolt. Fitting snow tyres If you fit snow tyres that are moun- ted on steel rims onto your vehicle, itis essential that you use special
bolts available from your PEUGEOT
dealer. Anti-theft bolt* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed, using tool
4, befo-
re it is unscrewed using one of thetwo anti-theft sockets (which weregiven to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheelbrace 1.
Note: make a careful note of the
code number engraved on the top of
the anti-theft socket. This will enableyou to obtain a duplicate anti-theft
socket from your PEUGEOT dealer.
* According to model and destination.

17-06-2002
PRACTICAL INFORMATION119
CHANGING A WHEEL (206 SW) Parking the vehicle
Ð If possible, park the vehicle on
level, stable and non-slippery ground.
Ð Apply the handbrake, engage first or reverse gear, (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack The wheel is located outside the vehicle, under the boot, supported
by a metal carrier.
Ð Remove the wheelbrace 1secu-
red under the right-hand boot trim. Ð Using the wheelbrace
1, slacken the spare wheel carrier retaining bolt located
inside the boot under the carpet.
Ð Lift the carrier to release the hook rearwards, then lower it.
Ð Remove the jack storage box 2located in the spare wheel.
Removing a wheel
Ð Chock the rear of the wheel diagonally opposite the wheel to be changed, using the collapsible chock located in jack storage box.
Ð Remove the wheel trim using the wheelbrace, by pulling at the valve passage hole.
Ð Slacken the wheel bolts.
Ð Place the jack under the locating point on the sub-frame Ethat is closest to
the wheel to be changed. Ensure that the entire surface of the jack base plate is in contact with the ground.
Ð Extend the jack, completely unscrew the bolts and remove the wheel.

17-06-2002
PRACTICAL INFORMATION121
SPECIAL FEATURES OF
ALLOY WHEELS Bolt covers Alloy wheel bolts are covered by chrome trims. Use tool 4to remove the trims befo-
re slackening the bolts.
Tool 4is located:
- on the saloon, on the rear right inner panel of the boot,
- on the 206 SW, in the jack storage compartment. Fitting the spare wheelIf your vehicle is equipped with a steel spare wheel, when fitting it, it isnormal
to notice that the bolt
washers do not come into contact
with the rim. The spare wheel issecured by the cone-shape of eachbolt. Fitting snow tyres If you fit snow tyres that are moun- ted on steel rims onto your vehicle, itis essential that you use special
bolts available from your PEUGEOT
dealer. Anti-theft bolt* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed, using tool
4, befo-
re it is unscrewed using one of thetwo anti-theft sockets (which weregiven to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheelbrace 1.
Note: make a careful note of the
code number engraved on the top of
the anti-theft socket. This will enableyou to obtain a duplicate anti-theft
socket from your PEUGEOT dealer.
* According to model and destination.
