Peugeot 206 SW Dag 2003 Owner's Manual

26-05-2003
YOUR 206 IN DETAIL
116
For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.

26-05-2003
YOUR 206 IN DETAIL
115
In the "OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bagand thus ensure the safety of yourpassenger in the event of an impact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag
disarmed" on the multifunction dis-
play, indicates that the passenger airbag is disarmed (switch in the"OFF" position). SIDE AIRBAGS* These are incorporated into the frame of the front seat back, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head.
Operating check
This is confirmed by an indicatorlight on the instrument panel. It comes on for six seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after six seconds, or
Ð flashes for five minutes then stays on,
Contact a PEUGEOT dealer.
* According to destination.

26-05-2003
YOUR 206 IN DETAIL
116

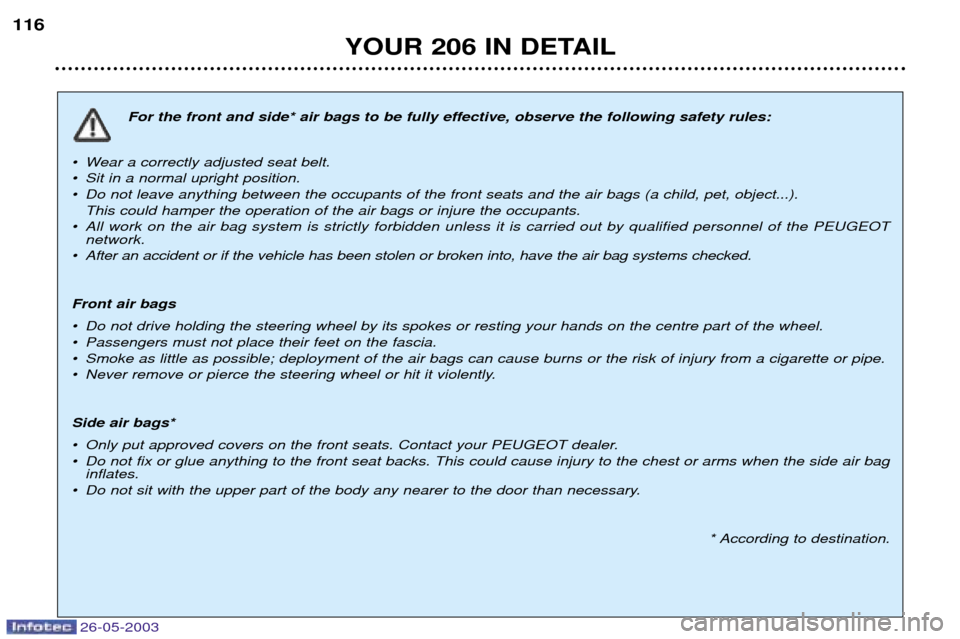

For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.

26-05-2003
PRACTICAL INFORMATION117
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
1.1 litre, 1.4 litre ENGINE

26-05-2003
PRACTICAL INFORMATION
118
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.

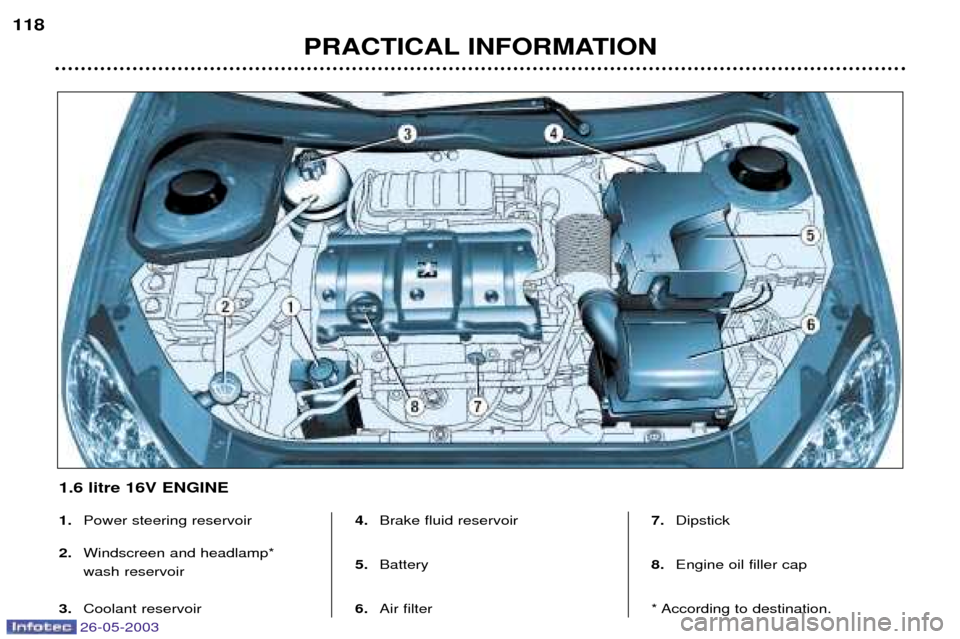

1.6 litre 16V ENGINE

26-05-2003
PRACTICAL INFORMATION119
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
2 litre 16V ENGINE

26-05-2003
PRACTICAL INFORMATION
120
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
* According to destination.
** During the year, according to destination.

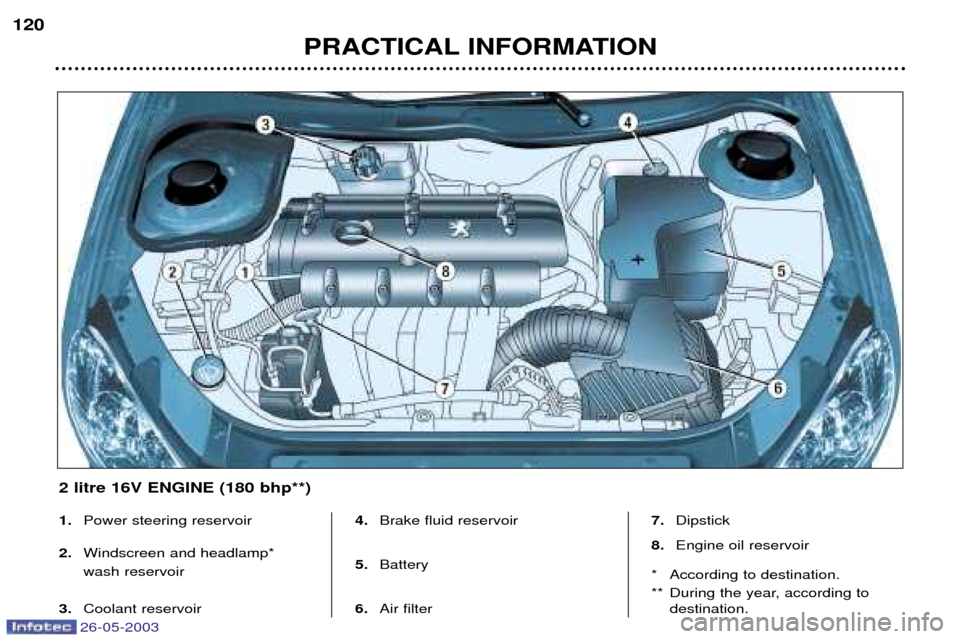

2 litre 16V ENGINE (180 bhp**)

26-05-2003
PRACTICAL INFORMATION121
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
9. Priming pump
* According to destination.

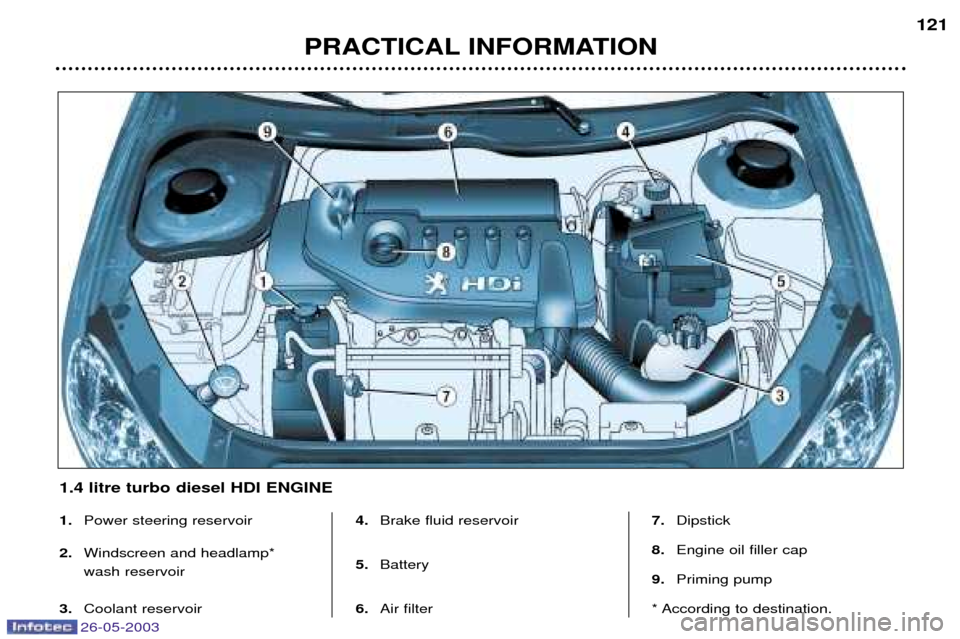

1.4 litre turbo diesel HDI ENGINE

26-05-2003
PRACTICAL INFORMATION
122
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.

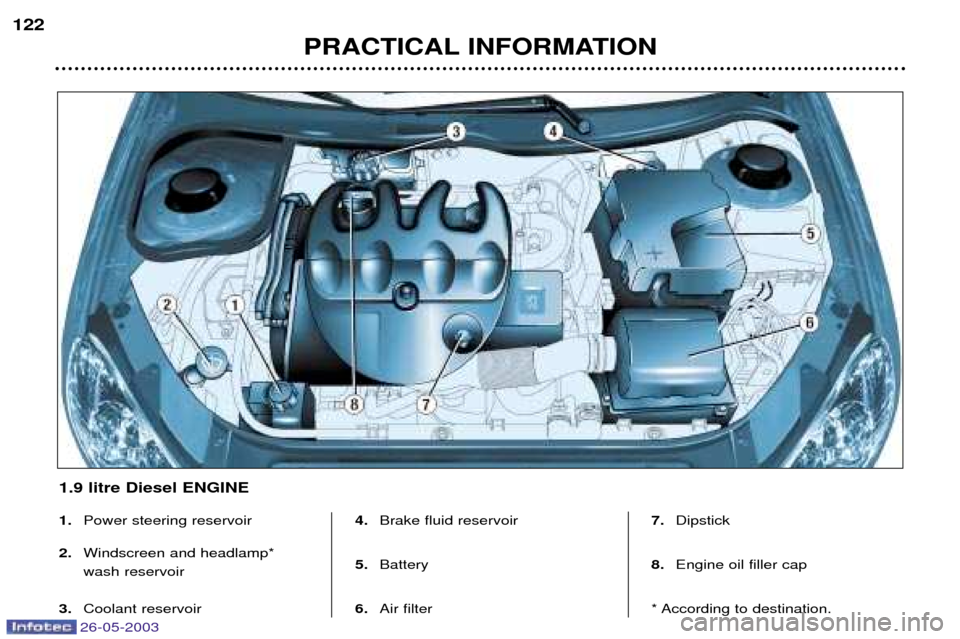

1.9 litre Diesel ENGINE

26-05-2003
PRACTICAL INFORMATION123
1.
Power steering reservoir
2. Windscreen and headlamp* wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
* According to destination.
2 litre Turbo Diesel HDI ENGINE
