PRACTICAL INFORMATION
124
CHECKING THE LEVELS Oil level Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per
600 miles (1 000 km). Check the level with the vehicle level, engine cold, using the oillevel gauge on the instrumentpanel or the dipstick.
Dipstick There are two marks onthe dipstick: A=maximum
Never fill past this mark.B= minimum
To maintain the reliability of engines and emissioncontrol systems, the useof additives in engine oilis prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid used oil coming into
prolonged contact with the skin. Viscosity selection In all cases, the oil selected must meet the manufacturer's requirements. Brake fluid level:
Ð The level must always be between
the DANGER and MAXIMUM marks
in the reservoir.
Ð If the level drops substantially, contact a PEUGEOT dealer
immediately.
Fluid change:
Ð must be carried out according to the manufacturer's servicing schedule.
Ð use fluids recommended by the manufacturer, which fulfil DOT4 standards.
Note: brake fluid is harmful to health
and very corrosive. Avoid all contactwith the skin. Cooling system Use the fluid recommended by the
manufacturer. When the engine is warm, the tem- perature of the coolant is controlled
by the engine fan. As this fan canoperate with the ignition key removedand because the cooling system ispressurised, wait for at least one hourafter the engine has stopped beforecarrying out any work. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note:
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir  Open the reservoir, with the engine at ambient temperature.The level should always beabove the MIN. mark and closeto the MAX. mark.
Windscreen and headlamp* wash level For best quality cleaning and for
your safety, we would advise thatyou use products recommended by
PEUGEOT.
* According to destination.

26-05-2003
PRACTICAL INFORMATION125
CHECKS Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT deal-
er. Air filter and passenger compartment filter Have the filter elements replaced regu-
larly. If you drive in dusty conditions,
change them twice as often .
Brake pads Brake pad wear depends on the style of driving, in particular for vehi-cles which are used in town, overshort distances. It may be necessary to check the thickness of the pads, even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level, according to themanufacturer's servicing schedule. Automatic gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer, according to themanufacturer's servicing schedule. Oil filter
Change the filter regularly, in accor- dance with the servicing schedule.
Only use products recom-
mended by PEUGEOT.
To ensure best perfor- mance from compo-
nents as important as the powersteering and the braking system,PEUGEOT selects and offersquite specific products.
RUNNING OUT OF FUEL (DIESEL) If you should run out of fuel, it is neces- sary to re-prime the circuit: 1.4 litre HDI engine
Ð fill the fuel tank with at least five litres of diesel,
Ð operate the manual re-priming pump, until fuel appears in the transparent pipe under the bonnet,
Ð operate the starter until the engine starts.

26-05-2003
PRACTICAL INFORMATION125
CHECKS Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT deal-
er. Air filter and passenger compartment filter Have the filter elements replaced regu-
larly. If you drive in dusty conditions,
change them twice as often .
Brake pads Brake pad wear depends on the style of driving, in particular for vehi-cles which are used in town, overshort distances. It may be necessary to check the thickness of the pads, even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level, according to themanufacturer's servicing schedule. Automatic gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer, according to themanufacturer's servicing schedule. Oil filter
Change the filter regularly, in accor- dance with the servicing schedule.
Only use products recom-
mended by PEUGEOT.
To ensure best perfor- mance from compo-
nents as important as the powersteering and the braking system,PEUGEOT selects and offersquite specific products.
RUNNING OUT OF FUEL (DIESEL) If you should run out of fuel, it is neces- sary to re-prime the circuit: 1.4 litre HDI engine
Ð fill the fuel tank with at least five litres of diesel,
Ð operate the manual re-priming pump, until fuel appears in the transparent pipe under the bonnet,
Ð operate the starter until the engine starts.

26-05-2003
PRACTICAL INFORMATION
126
CHANGING A WHEEL (saloon) Parking the vehicle
Ð If possible, park the vehicle on
level, stable and non-slippery ground.
Ð Apply the handbrake, engage first or reverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack The wheel is located outside the vehicle, under the boot, supported
by a metal carrier.

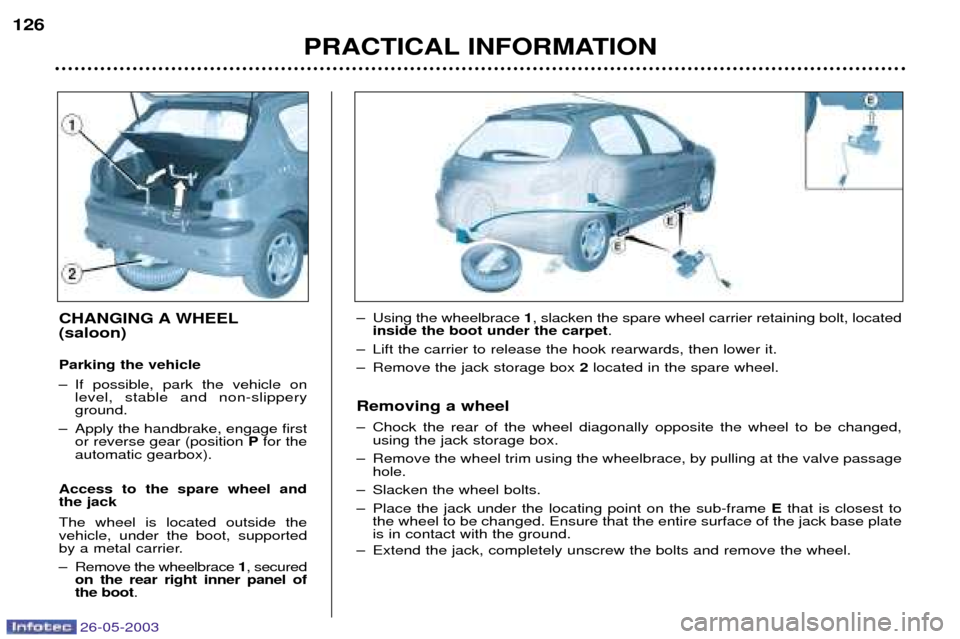

Ð Remove the wheelbrace 1, secured
on the rear right inner panel of the boot . Ð Using the wheelbrace
1, slacken the spare wheel carrier retaining bolt, located
inside the boot under the carpet .
Ð Lift the carrier to release the hook rearwards, then lower it.
Ð Remove the jack storage box 2located in the spare wheel.
Removing a wheel
Ð Chock the rear of the wheel diagonally opposite the wheel to be changed, using the jack storage box.
Ð Remove the wheel trim using the wheelbrace, by pulling at the valve passage hole.
Ð Slacken the wheel bolts.
Ð Place the jack under the locating point on the sub-frame Ethat is closest to
the wheel to be changed. Ensure that the entire surface of the jack base plate is in contact with the ground.
Ð Extend the jack, completely unscrew the bolts and remove the wheel.

26-05-2003
PRACTICAL INFORMATION
128
Refitting the wheel
Ð After positioning the wheel, lightly pre-tighten the bolts using the wheelbrace.
Ð Compress the jack and release it.
Ð Fully tighten the bolts using the wheelbrace.
Ð Replace the trim except in the case of a space-saver spare wheel, starting atthe valve passage hole, and press it on using the palm of the hand.
Note: If the vehicle is fitted in production with a wheel anti-theft lock, the trim cap on the anti-theft bolt is in two parts.
Replacing the wheel in the carrier
Ð Replace the jack storage box in the wheel.

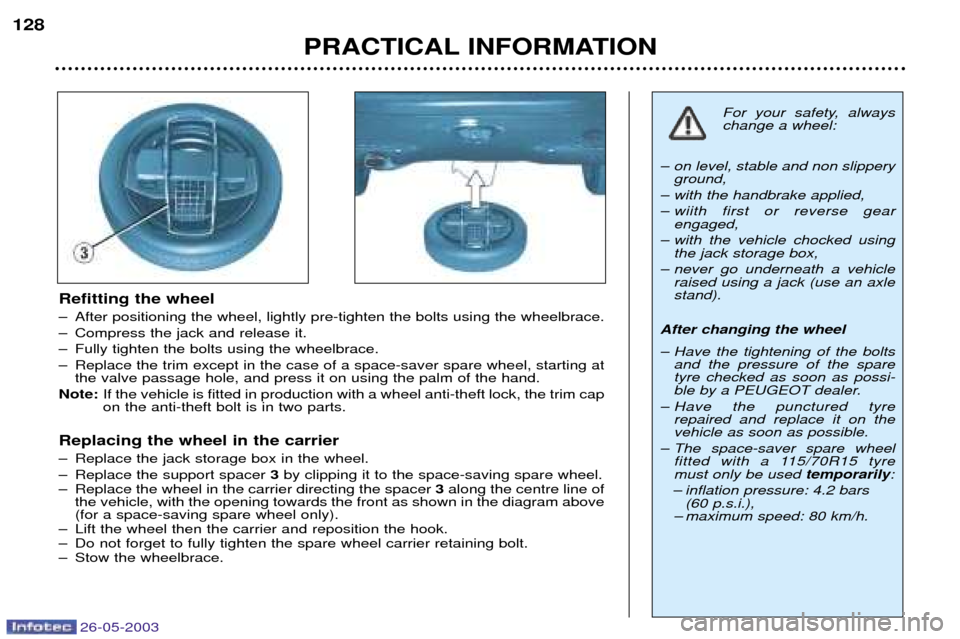

Ð Replace the support spacer 3by clipping it to the space-saving spare wheel.
Ð Replace the wheel in the carrier directing the spacer 3along the centre line of
the vehicle, with the opening towards the front as shown in the diagram above (for a space-saving spare wheel only).
Ð Lift the wheel then the carrier and reposition the hook.
Ð Do not forget to fully tighten the spare wheel carrier retaining bolt.
Ð Stow the wheelbrace.
For your safety, always change a wheel:
Ð on level, stable and non slippery ground,
Ð with the handbrake applied,
Ð wiith first or reverse gear engaged,
Ð with the vehicle chocked using the jack storage box,
Ð never go underneath a vehicle raised using a jack (use an axle stand).
After changing the wheel
Ð Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possi-
ble by a PEUGEOT dealer.
Ð Have the punctured tyre repaired and replace it on thevehicle as soon as possible.
Ð The space-saver spare wheel fitted with a 115/70R15 tyremust only be used temporarily:
Ð inflation pressure: 4.2 bars(60 p.s.i.),
Ð maximum speed: 80 km/h.

26-05-2003
PRACTICAL INFORMATION
130
SPECIAL FEATURES OF
ALLOY WHEELS Bolt covers Alloy wheel bolts are covered by chrome trims. Use the yellow tool 4to remove the
trims before slackening the bolts.

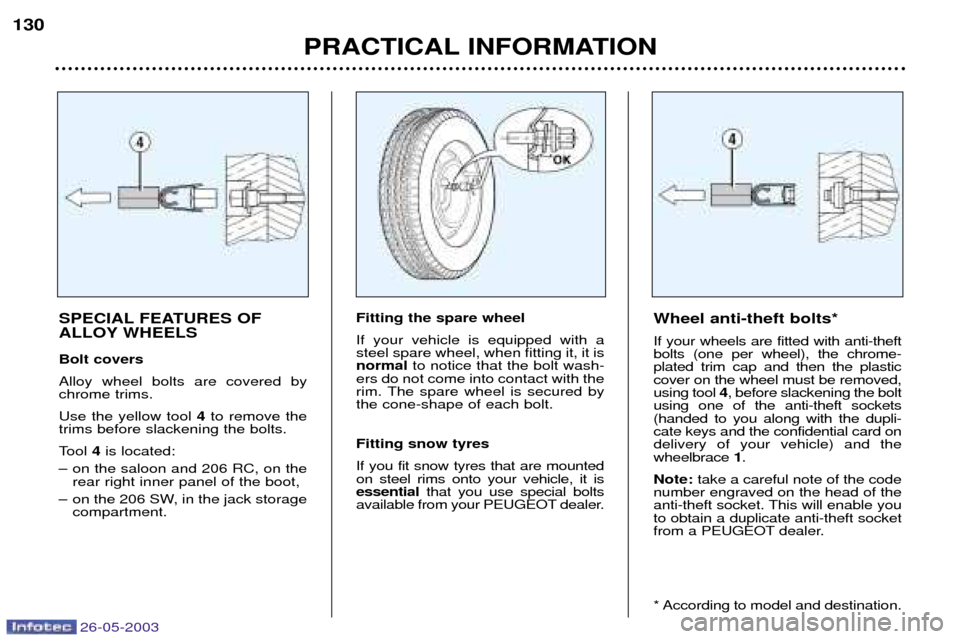

Tool 4is located:
Ð on the saloon and 206 RC, on the rear right inner panel of the boot,
Ð on the 206 SW, in the jack storage compartment. Fitting the spare wheelIf your vehicle is equipped with a steel spare wheel, when fitting it, it isnormal
to notice that the bolt wash-
ers do not come into contact with the
rim. The spare wheel is secured bythe cone-shape of each bolt. Fitting snow tyres If you fit snow tyres that are mounted on steel rims onto your vehicle, it isessential that you use special bolts
available from your PEUGEOT dealer. Wheel anti-theft bolts* If your wheels are fitted with anti-theft bolts (one per wheel), the chrome-plated trim cap and then the plasticcover on the wheel must be removed,using tool
4, before slackening the bolt
using one of the anti-theft sockets(handed to you along with the dupli-cate keys and the confidential card ondelivery of your vehicle) and thewheelbrace 1.
Note: take a careful note of the code
number engraved on the head of the
anti-theft socket. This will enable youto obtain a duplicate anti-theft socketfrom a PEUGEOT de aler.
* According to model and destination.

26-05-2003
PRACTICAL INFORMATION127
CHANGING A WHEEL (206 SW) Parking the vehicle
Ð If possible, park the vehicle on
level, stable and non-slippery ground.
Ð Apply the handbrake, engage first or reverse gear, (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack The wheel is located outside the vehicle, under the boot, supported
by a metal carrier.

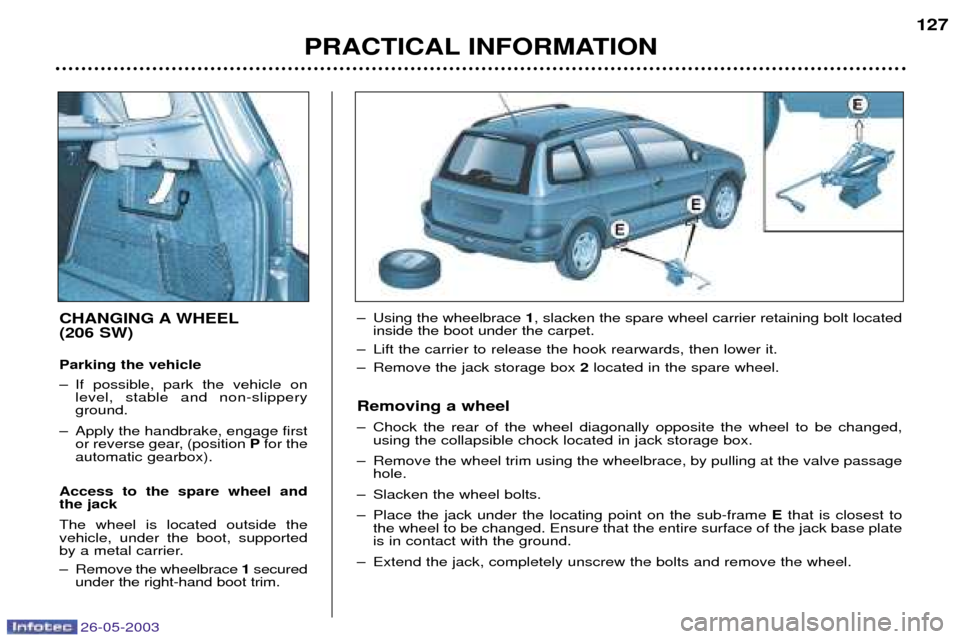

Ð Remove the wheelbrace 1secured
under the right-hand boot trim. Ð Using the wheelbrace
1, slacken the spare wheel carrier retaining bolt located
inside the boot under the carpet.
Ð Lift the carrier to release the hook rearwards, then lower it.
Ð Remove the jack storage box 2located in the spare wheel.
Removing a wheel
Ð Chock the rear of the wheel diagonally opposite the wheel to be changed, using the collapsible chock located in jack storage box.
Ð Remove the wheel trim using the wheelbrace, by pulling at the valve passage hole.
Ð Slacken the wheel bolts.
Ð Place the jack under the locating point on the sub-frame Ethat is closest to
the wheel to be changed. Ensure that the entire surface of the jack base plate is in contact with the ground.
Ð Extend the jack, completely unscrew the bolts and remove the wheel.

26-05-2003
PRACTICAL INFORMATION
128
Refitting the wheel
Ð After positioning the wheel, lightly pre-tighten the bolts using the wheelbrace.
Ð Compress the jack and release it.
Ð Fully tighten the bolts using the wheelbrace.
Ð Replace the trim except in the case of a space-saver spare wheel, starting atthe valve passage hole, and press it on using the palm of the hand.
Note: If the vehicle is fitted in production with a wheel anti-theft lock, the trim cap on the anti-theft bolt is in two parts.
Replacing the wheel in the carrier
Ð Replace the jack storage box in the wheel.
Ð Replace the support spacer 3by clipping it to the space-saving spare wheel.
Ð Replace the wheel in the carrier directing the spacer 3along the centre line of
the vehicle, with the opening towards the front as shown in the diagram above (for a space-saving spare wheel only).
Ð Lift the wheel then the carrier and reposition the hook.
Ð Do not forget to fully tighten the spare wheel carrier retaining bolt.
Ð Stow the wheelbrace.
For your safety, always change a wheel:
Ð on level, stable and non slippery ground,
Ð with the handbrake applied,
Ð wiith first or reverse gear engaged,
Ð with the vehicle chocked using the jack storage box,
Ð never go underneath a vehicle raised using a jack (use an axle stand).
After changing the wheel
Ð Have the tightening of the bolts and the pressure of the spare tyre checked as soon as possi-
ble by a PEUGEOT dealer.
Ð Have the punctured tyre repaired and replace it on thevehicle as soon as possible.
Ð The space-saver spare wheel fitted with a 115/70R15 tyremust only be used temporarily:
Ð inflation pressure: 4.2 bars(60 p.s.i.),
Ð maximum speed: 80 km/h.

26-05-2003
PRACTICAL INFORMATION
130
SPECIAL FEATURES OF
ALLOY WHEELS Bolt covers Alloy wheel bolts are covered by chrome trims. Use the yellow tool 4to remove the
trims before slackening the bolts.
Tool 4is located:
Ð on the saloon and 206 RC, on the rear right inner panel of the boot,
Ð on the 206 SW, in the jack storage compartment. Fitting the spare wheelIf your vehicle is equipped with a steel spare wheel, when fitting it, it isnormal
to notice that the bolt wash-
ers do not come into contact with the
rim. The spare wheel is secured bythe cone-shape of each bolt. Fitting snow tyres If you fit snow tyres that are mounted on steel rims onto your vehicle, it isessential that you use special bolts
available from your PEUGEOT dealer. Wheel anti-theft bolts* If your wheels are fitted with anti-theft bolts (one per wheel), the chrome-plated trim cap and then the plasticcover on the wheel must be removed,using tool
4, before slackening the bolt
using one of the anti-theft sockets(handed to you along with the dupli-cate keys and the confidential card ondelivery of your vehicle) and thewheelbrace 1.
Note: take a careful note of the code
number engraved on the head of the
anti-theft socket. This will enable youto obtain a duplicate anti-theft socketfrom a PEUGEOT de aler.
* According to model and destination.

26-05-2003
PRACTICAL INFORMATION129
CHANGING A WHEEL
Tools
Ð The jack and the chock are in a cover 2secured by two straps on
the left-hand side of the boot.
Ð The wheelbrace and the bolt cover tool are secured on the boot rear right inner panel.
Wheel changing procedure The wheels of your 206 RC are fit- ted with anti-theft bolts. The wheels are changed in the same way as on the saloon. Refer to the corresponding sections.
PUNCTURES (206 RC*) Because this version does not pos- sess a spare wheel, you will find twotemporary tyre repair aerosolsstored in an insulated box
1secured
by a strap on the left-hand side ofthe boot. Using the repair aerosols (Read the instructions for use on the aerosols also).  If possible remove the object which caused the puncture.
 Turn the wheel so that the valveis at the 2 o'clock or 10 o'clockposition.
Shake the aerosols vigorously
before use. In very cold weather,warm the aerosols for a few minutesin your hands.
 In one hand hold the valve.
 With the other, firmly push thespray end of the aerosol onto thevalve, keeping it centralised.
 Maintain the pressure firmly forone minute, then immediatelydrive at a moderate speed to the
nearest garage.
* During the year, according to destination.
The aerosol cans enable you to carry out a tempo-rary repair (maximumspeed 50 mph (80 km/h)).
After use, the tyre must be
replaced. As the aerosol cans arepressurised, they must not beexposed to a temperature above
50 ¡C. Store them away from heat in their insulated storage box.
