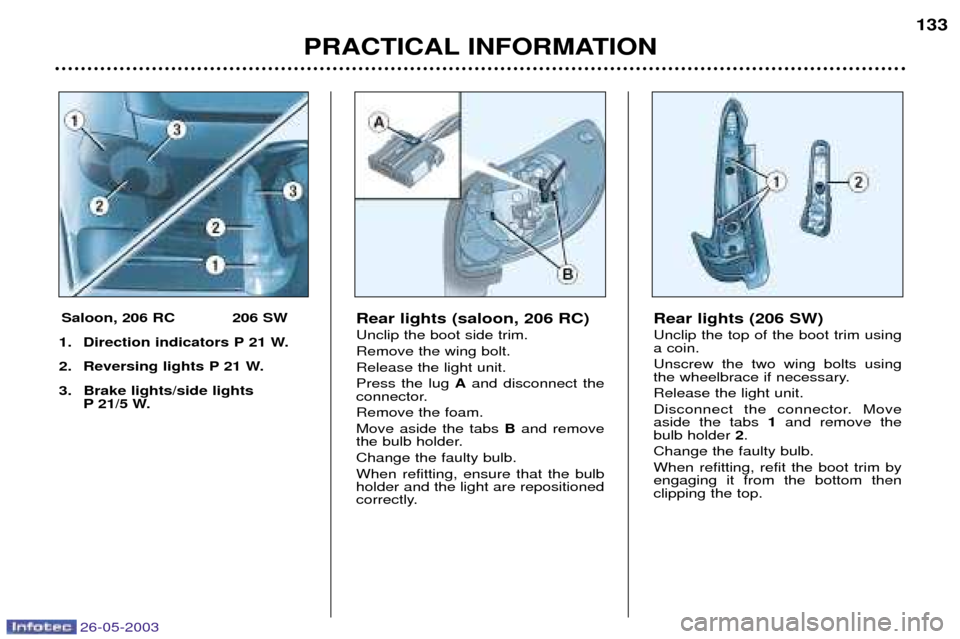

Rear lights (saloon, 206 RC) Unclip the boot side trim.Remove the wing bolt.Release the light unit.Press the lug
Aand disconnect the
connector.Remove the foam.Move aside the tabs Band remove
the bulb holder.Change the faulty bulb.When refitting, ensure that the bulb holder and the light are repositioned
correctly.
Saloon, 206 RC 206 SW
1. Direction indicators P 21 W.
2. Reversing lights P 21 W.
3. Brake lights/side lights P 21/5 W.Rear lights (206 SW) Unclip the top of the boot trim using a coin. Unscrew the two wing bolts using
the wheelbrace if necessary. Release the light unit.
Disconnect the connector. Move aside the tabs 1and remove the
bulb holder 2.
Change the faulty bulb. When refitting, refit the boot trim by engaging it from the bottom thenclipping the top.

26-05-2003
PRACTICAL INFORMATION
134
Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.

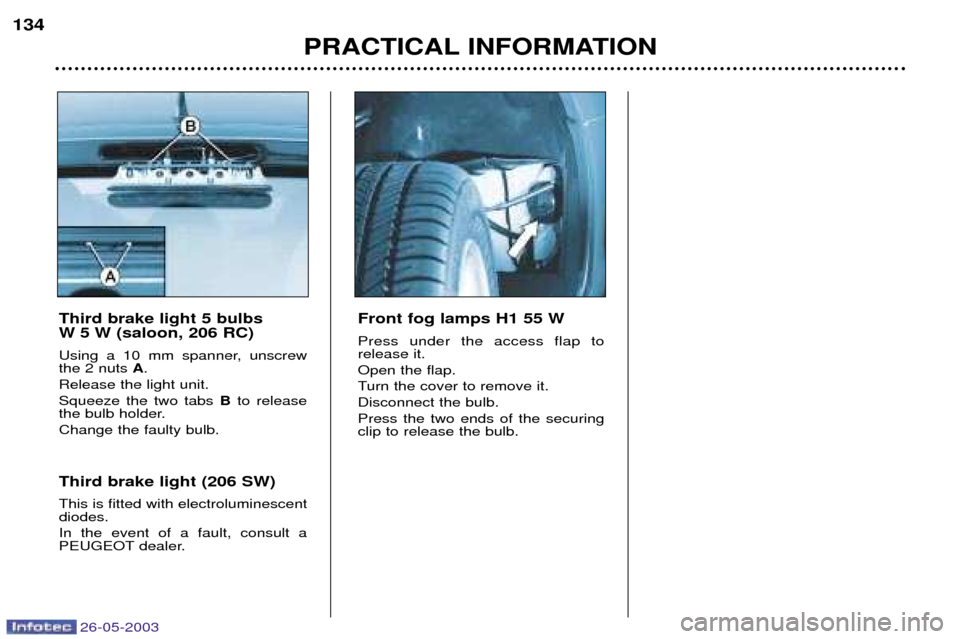

Third brake light 5 bulbs
W 5 W (saloon, 206 RC)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

26-05-2003
PRACTICAL INFORMATION
138
The electrical circuit of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories in yourvehicle, consult a PEUGEOT deal-
er. Some electrical accessories or the way in which they are fitted mayhave an adverse effect on the oper-ation of your vehicle (its electroniccontrol circuits, the audio circuit andthe electrical charging circuit). PEUGEOT declines any responsi- bility for expenses incurred throughthe repair of your vehicle or for anymalfunctions resulting from theinstallation of auxiliary accessories,not supplied and not recommendedby PEUGEOT and not installed inaccordance with PEUGEOT'sinstructions, in particular for anyequipment the power consumptionof which exceeds 10 milliamps.
* The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a PEUGEOT dealer.
Fuse N¡ Rating Functions
1* 20 A Fan unit
2* 60 A ABS/ESP
3* 30 A ABS/ESP
4* 70 A Built-in systems interface supply
5* 70 A Built-in systems interface supply
6* Ð Not used
7* 30 A Ignition switch supply
8* Ð Not used
Engine compartment fuse box
To gain access to the box in the engine compartment (next to the battery), unclip
the cover.
After carrying out work, close the cover very carefully.
or

26-05-2003
PRACTICAL INFORMATION139
Fuse N¡ Rating
Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 20 A Headlamp wash pump
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 15 A Right-hand main beam
13 15 A Horns
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors -
Variable engine timing solenoid valve (206 RC) - Variable engine air intake solenoid valve (206 RC)
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
