PEUGEOT 207 2008 Owners Manual

FAMILIARISATION
Panoramic roof
This extensively glazed roof provides
incomparable visibility and light in the
passenger compartment.

 79
Static directional lighting
This additional lighting automatically pro-
vides extended visibility when turning.

 84 Opening rear screen (SW)
This equipment permits easy access to
the luggage compartment without the
need to open the tailgate.
Check that the rear screen is closed
properly before opening the boot or
locking the vehicle.

 77
Tyre under-infl ation detection
This equipment monitors the pressure
in each tyre and warns you if a puncture
or defl ation occurs.

 101 Rear parking assistance
This equipment provides a
warning when reversing by
detecting obstacles located
behind the vehicle.

 122

i
FAMILIARISATION

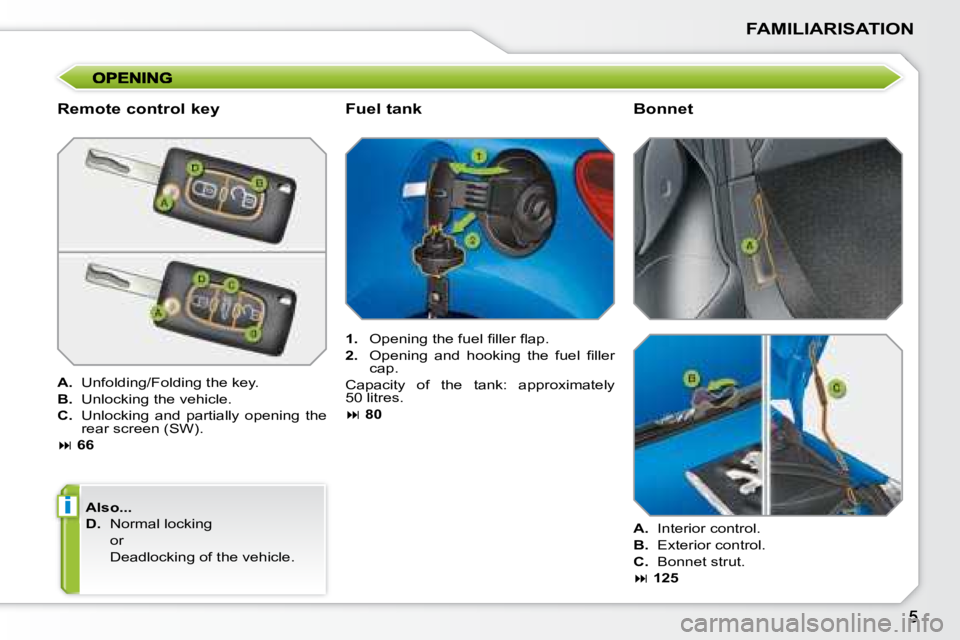

Remote control key

A. Unfolding/Folding the key.

B. Unlocking the vehicle.

C. Unlocking and partially opening the
rear screen (SW).

 66

Also...

D. Normal locking
or
Deadlocking of the vehicle. Fuel tank

1. Opening the fuel fi ller fl ap.

2. Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres.

 80 Bonnet

A. Interior control.

B. Exterior control.

C. Bonnet strut.

 125

i
FAMILIARISATION

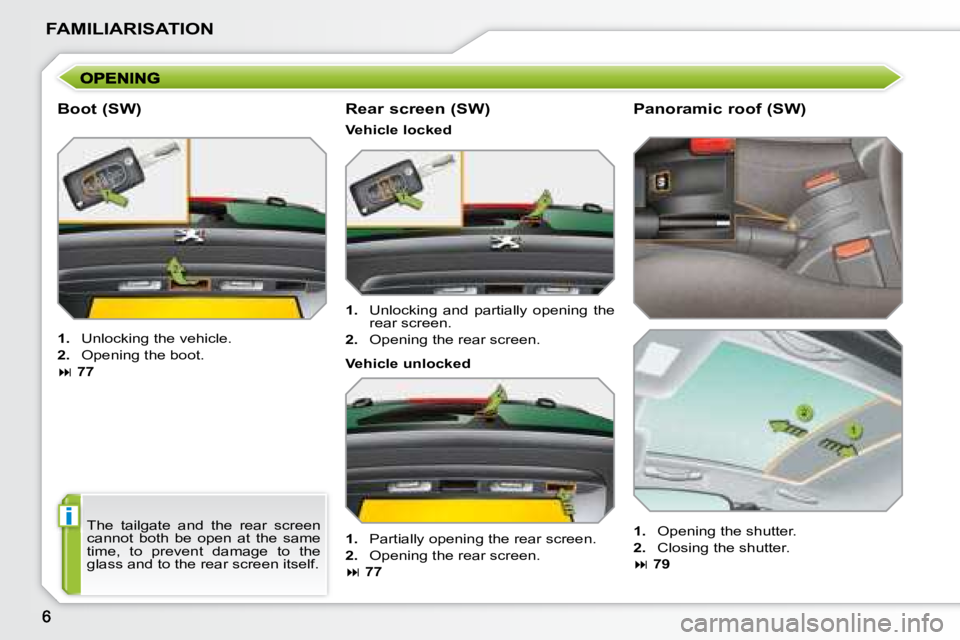

Boot (SW)

1. Unlocking the vehicle.

2. Opening the boot.

 77 Vehicle locked
Panoramic roof (SW)

1. Unlocking and partially opening the
rear screen.

2. Opening the rear screen.

1. Opening the shutter.

2. Closing the shutter.

 79

1. Partially opening the rear screen.

2. Opening the rear screen.

 77
Vehicle unlocked
The tailgate and the rear screen
cannot both be open at the same
time, to prevent damage to the
glass and to the rear screen itself. Rear screen (SW)

FAMILIARISATION

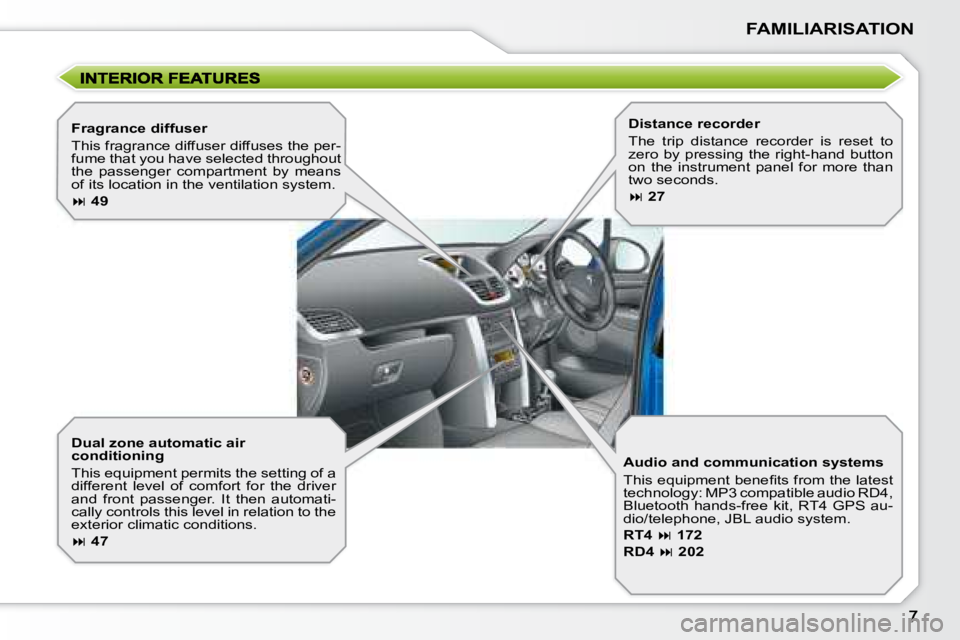

Dual zone automatic air
conditioning
This equipment permits the setting of a
different level of comfort for the driver
and front passenger. It then automati-
cally controls this level in relation to the
exterior climatic conditions.

 47 Distance recorder
The trip distance recorder is reset to
zero by pressing the right-hand button
on the instrument panel for more than
two seconds.

 27
Fragrance diffuser
This fragrance diffuser diffuses the per-
fume that you have selected throughout
the passenger compartment by means
of its location in the ventilation system.

 49
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible audio RD4,
Bluetooth hands-free kit, RT4 GPS au-
dio/telephone, JBL audio system.

RT4  172

RD4  202

FAMILIARISATION

1. Audio equipment steering wheel
control.

2. Steering lock and ignition.

3. Wipers/wash-wipe/trip computer
controls.

4. Instrument panel.

5. Driver's air bag.
Horn.

6. Dynamic stability control
(ESP/ASR) button.
Rear parking assistance button.
Central locking button.
Alarm button.
Electric child lock button.

7. Gear lever.

8. Handbrake.

9. Panoramic roof shutter control
(SW).

10. Exterior mirror controls.
Electric window controls.
Rear electric windows deactivation control.

11. Headlamp height adjustment.

12. Front door window de-icing vent.

13. Side adjustable and closing vent.

14. Windscreen de-icing vent.

FAMILIARISATION

1. Steering wheel adjustments control.

2. Cruise control/speed limiter switch.

3. Lights and direction indicators
controls.

4. Hazard warning lights switch.

5. Fragrance diffuser.

6. Multifunction display.
Seat belt fastening status warning lights.

7. Sunshine sensor.

8. Passenger air bag.

9. Speaker (tweeter).

10. Glove box/Passenger air bag
disarming/Audio/video sockets/
Fuse box.

11. Bonnet release control.

12. Front ashtray/Lighter.

13. Heating/air conditioning controls.

14. CD changer.

15. Audio RD4 or RT4 GPS audio/
telephone.

16. Central adjustable and closing
vents.

i
FAMILIARISATION

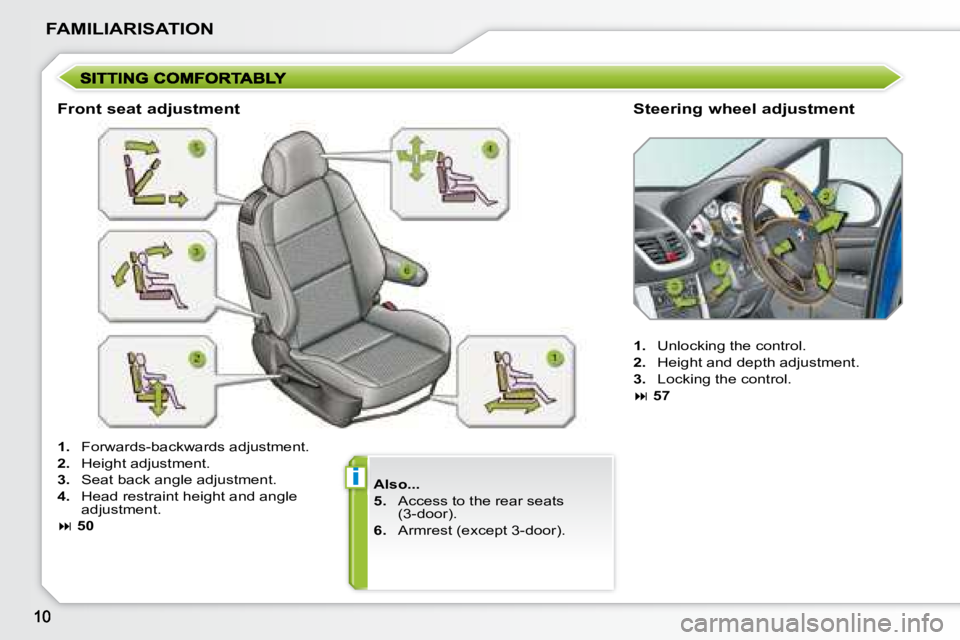

Also...

5. Access to the rear seats
(3-door).

6. Armrest (except 3-door).
Front seat adjustment
Steering wheel adjustment

1. Forwards-backwards adjustment.

2. Height adjustment.

3. Seat back angle adjustment.

4. Head restraint height and angle
adjustment.

 50
1. Unlocking the control.

2. Height and depth adjustment.

3. Locking the control.

 57

i
FAMILIARISATION

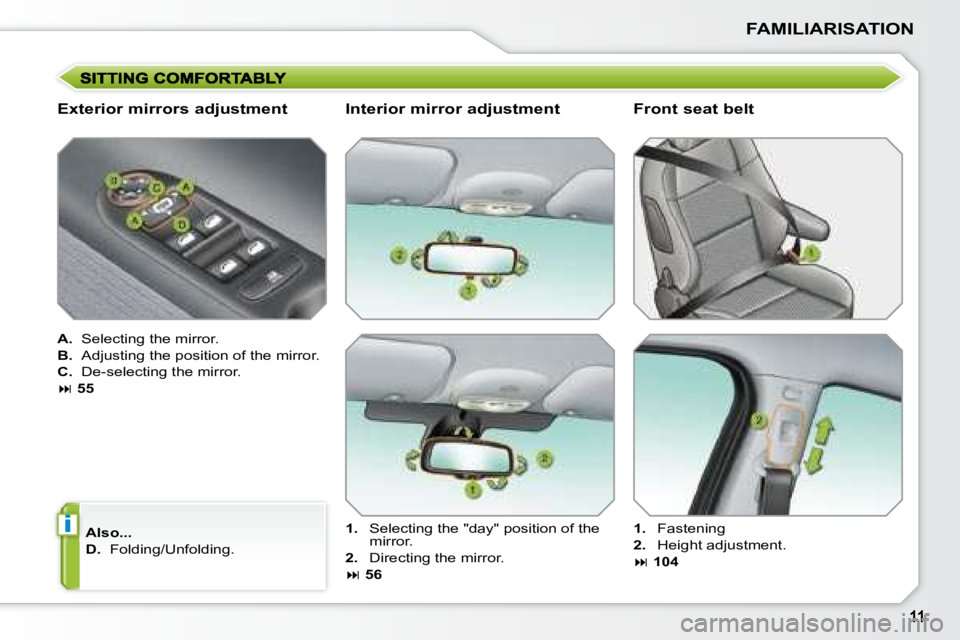

Exterior mirrors adjustment

A. Selecting the mirror.

B. Adjusting the position of the mirror.

C. De-selecting the mirror.

 55

Also...

D. Folding/Unfolding. Interior mirror adjustment

1. Selecting the "day" position of the
mirror.

2. Directing the mirror.

 56 Front seat belt

1. Fastening

2. Height adjustment.

 104

FAMILIARISATION

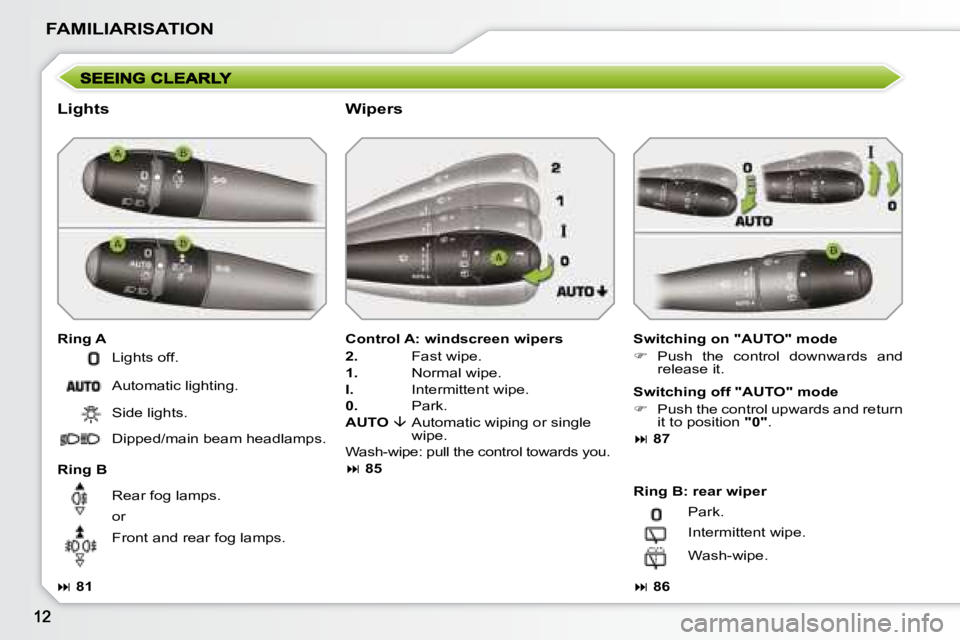

Lights
Ring A Switching on "AUTO" mode

 Push the control downwards and
release it.
Ring B Control A: windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

AUTO  Automatic wiping or single
wipe.
Wash-wipe: pull the control towards you.


85
Wipers
Switching off "AUTO" mode

 Push the control upwards and return
it to position "0" .

 87
Ring B: rear wiper

 81
 86
Lights off.
Side lights.
Dipped/main beam headlamps.
Rear fog lamps.
or
Front and rear fog lamps.
Park.
Intermittent wipe.
Wash-wipe.
Automatic lighting.

–
FAMILIARISATION

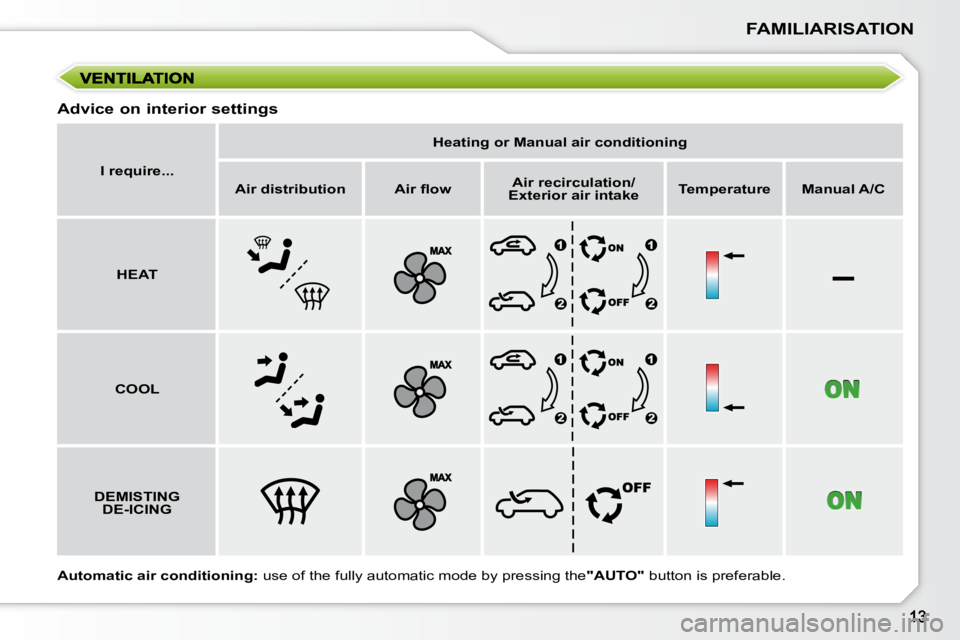

I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation/

Exterior air intake
Temperature Manual A/C

HEAT


COOL


DEMISTING
DE-ICING

Automatic air conditioning: use of the fully automatic mode by pressing the "AUTO" button is preferable.
Advice on interior settings
