PEUGEOT 207 2008 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 207, Model: PEUGEOT 207 2008Pages: 255, PDF Size: 13.06 MB
Page 101 of 255
i
CHILD SAFETY
90
PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
-
"rearwards-facing" up to the age
of 2,
- "forwards-facing" over the age
of 2.
TO CHILD SEATS
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle’s seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Intermediate
longitudinal position
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . C o n s u l t t h e current legislation in your country.
Although one of PEUGEOT’s main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
fi f t y t a l l m u s t t r a v e l i n a p p r o v e d
child seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
-
a child weighing less than 9 kg must
travel in the "rearwards-facing"
position both in the front and in the
rear.
Page 102 of 255

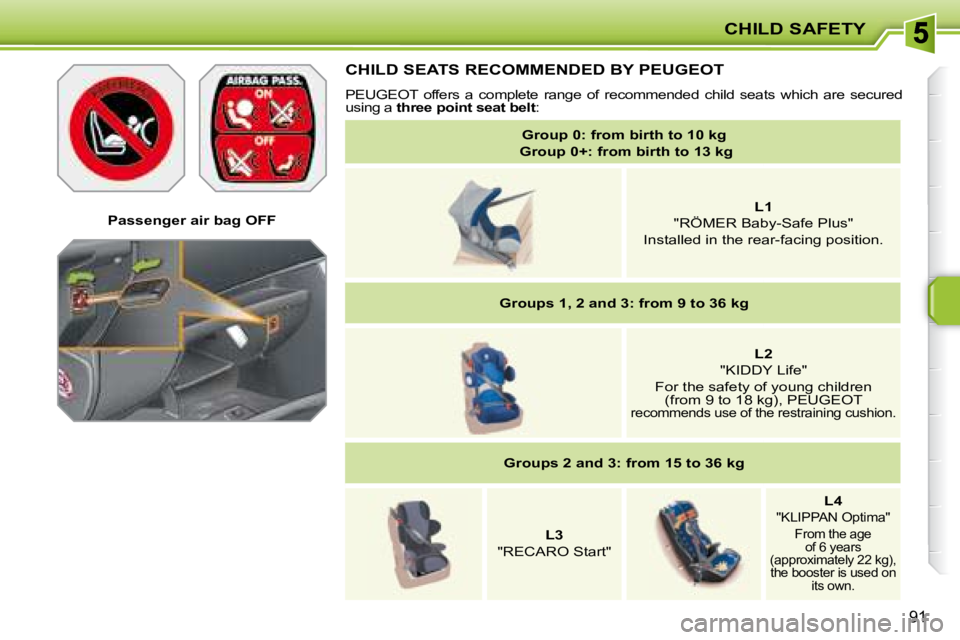

CHILD SAFETY
91
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg), the booster is used on its own.
Page 103 of 255
CHILD SAFETY
91
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg), the booster is used on its own.
Page 104 of 255
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
U : seat suitable for the installation of a child seat secured u sing the seat belt and universally approved "rear facing" and/or
"forward facing".
X : seat not suitable for the installation of a child seat of the weight group indicated.
Seat
Weight of the child/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
- fi x e d
U U U U
- height adjustable
Rear side seats U U U U
Rear centre seat * U X X X
Page 105 of 255
CHILD SAFETY
93
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SW)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or
"forward facing".
Weight of the child /indicative age
Seat
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
- fi x e d
- height adjustable U U U U
Rear side seats U U U U
Rear centre seat U * U * U * U *
* The rear left side seat becomes unusable.
Page 106 of 255
!
i
CHILD SAFETY
94
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , f o r fi x i n g t h e u p p e r s t r a p
referred to as the TOP TETHER .
This ISOFIX mounting system guarantees
y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f t h e c h i l d
seat in your vehicle.
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat’s head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
Saloon
GTi
SW
Page 107 of 255
i
CHILD SAFETY
95
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n g u i d e .
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 108 of 255
CHILD SAFETY
96
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
o n t h e v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat’s ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S emi- U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an ISO FIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU ** X IL-SU ** X IL-SU **
IUF **
IL-SU **
* T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r
seats.
To install it on the rear seats of a 3-door model, the fron t seat belt must be adjusted to the lowest position.
** The head restraint of the seat equipped with ISOF IX mountings must be removed and stored.
Page 109 of 255
CHILD SAFETY
97
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (GTI)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
o n t h e v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat’s ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X : seat which is not suitable for the installation of an I SOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "rear facing"
ISOFIX size category F G C * D ** E C * D ** A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
X IL-SU IL-SU
IUF
IL-SU
* The corresponding front seat belt must be adjusted to the highest position minus one notch.
The corresponding front seat must be adjusted to the mid-way longitudinal position plus two notches.
** The corresponding front seat belt must be adjusted to the highest position minus one notch.
Page 110 of 255
CHILD SAFETY
98
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
In accordance with the European regulation (ECE 16), this table indicates the options for the installation of ISOFIX child seats
o n t h e v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat’s ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S emi- U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an ISO FIX seat of the category indicated.
( a ) T h e h e a d r e s t r a i n t w h e r e t h e I S O F I X s e a t i s fi t t e d m u s t b e r e m o v e d a n d s t o r e d s a f e l y .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C ** D E C ** D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU (a) IL-SU (a) IL-SU (a)
IUF (a)
IL-SU (a)
* T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r
seats and prevents use of the 2/3 - 1/3 modularity.
* * T h e f r o n t s e a t m u s t b e a d j u s t e d t o t h e m o s t f o r w a r d p o s i t i o n m i n u s fi v e n o t c h e s .
