FAMILIARISATION

1. Audio equipment steering wheel
control.

2. Steering lock and ignition.

3. Wipers/wash-wipe/trip computer
controls.

4. Instrument panel.

5. Driver's air bag.
Horn.

6. Dynamic stability control
(ESP/ASR) button.
Rear parking assistance button.
Central locking button.
Alarm button.
Electric child lock button.

7. Gear lever.

8. Handbrake.

9. Panoramic roof shutter control
(SW).

10. Exterior mirror controls.
Electric window controls.
Rear electric windows deactivation control.

11. Headlamp height adjustment.

12. Front door window de-icing vent.

13. Side adjustable and closing vent.

14. Windscreen de-icing vent.

FAMILIARISATION
"2 Tronic" gearbox
This fi ve-speed piloted manual gearbox
offers a choice between the comfort of
fully automatic operation or the pleas-
ure of manual gear changing.

1. Gear lever.

2. Steering wheel control "-" .

3. Steering wheel control "+" . Display on the instrument panel
The gear or the driving mode selected
appears on the instrument panel.

N: neutral.

R: reverse.

1 2 3 4 5: gears engaged.

AUTO: automatic mode.


: automatic "snow" mode. Moving off

 Select position N and press the
brake pedal fi rmly while starting the
engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Release the handbrake.

 Take your foot off the brake pedal
and accelerate.

 112

!
19
The indicator/warning light comes
on continuously or fl ashes.
Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred.
Indicator and warning lights
Visual indicators which inform the driv-
er when a system comes into opera-
tion (operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).
Associated warnings
The lighting of certain indicator/warning
lights may be accompanied by an audible
signal and a message on the multifunction
display. Operation indicator lights
The lighting of one of the following indica-
tor lights confi rms that the corresponding
system has come into operation.

Left-hand direction
indicator.

Handbrake applied.

Right-hand direction
indicator.

Main beam headlamps.

Dipped headlamps.

Diesel engine pre-heating.
Wait until this switches off before
operating the starter.

Front fog lamps.

Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle ignition is
switched on.
When the engine is started, these warning
lights should switch off.
If they remain on, before moving off,
consult the text relating to the warning
light concerned.

22
Air bags.
The lighting of this warning
light indicates the occurrence
of a fault in one of the air bags
(front, side or curtain) or pre-tensioning
seat belt systems.
Dynamic stability control
(ESP).
The ESP system is activated auto-
matically when the vehicle is started.
Unless the system has been deactivated,
continuous lighting of this warning light
and fl ashing of the indicator light on the
button indicate the occurrence of a fault
in this system.
Engine autodiagnostics
system.
The lighting of this warning light
indicates the occurrence of a
fault in the engine management system.
Flashing of this warning light indicates
the occurrence of a fault in the emission
control system.
Engine oil pressure.
The lighting of this warning light
indicates the occurrence of a
fault in the engine lubrication
circuit. It is imperative that the vehicle is
stopped as soon as it is safe to do so. Battery charge.
The lighting of this warning light
indicates the occurrence of a
fault in the battery charging cir-
cuit (dirty or loose terminals, slack or
cut alternator belt, ...).
Braking.
The lighting of this warning light
indicates the occurrence of a fault
in one of the braking systems:
- signifi cant drop in the level in the cir- cuit,
- electronic brake force distribution (EBFD) faulty (if lit at the same time
as the ABS warning light).
It is imperative that the vehicle is
stopped as soon as it is safe to do so.
If the vehicle is moving, check that the
handbrake has been released fully.
Low fuel level.
The lighting of this warning light
indicates that there is enough
fuel left to drive approximately
30 miles (50 km).
The capacity of the fuel tank is approxi-
mately 50 litres.
Maximum coolant
temperature.
The lighting of this warning light
indicates an excessively high
temperature in the cooling system. It is
imperative that the vehicle is stopped
as soon as it is safe to do so. Door open.
A door, the boot, the rear screen
or the bonnet is still open:
- if the speed is below 6 mph (10 km/h),
this warning light comes on continuously,
- if the speed is above 6 mph (10 km/h), this warning light comes on continuously,
accompanied by an audible signal.
Seat belt not fastened/
unfastened.
The lighting of this warning light
indicates that the driver * and/or
the front passenger has not fastened
his seat belt or has unfastened it.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Power steering.
The lighting of this warning light
indicates the occurrence of a fault
in the electric power steering.
Presence of water
in diesel * .
The lighting of this warning light
indicates the presence of water
in the diesel fi lter.
There is a risk of damage to the injection
system on Diesel engines.
Directional headlamps.
Flashing of this warning light
indicates the occurrence of a
fault in the directional head-
lamps system.
* According to country.

!
111
When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.
HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying

 Pull the handbrake to immobilise
your vehicle. When the vehicle is being
driven, if this warning light and

STOP the warning light come
on, accompanied by an audible
signal and a message on the multi-func-
tion display, this indicates that the hand-
brake is still on or has not been properly
released.
Releasing

 Pull on the handle and press the
button A to release the handbrake.

i
i
i
113
Instrument panel displays
Gear lever positions

N. Neutral

R. Reverse

1, 2, 3, 4, 5. Gears in sequential mode

AUTO. This comes on when the au-
tomated mode is selected. It
switches off on changing to se-
quential mode.

 . In the automated mode, if the gear-
box detects poor grip, this warning
light comes on. Moving off Sequential mode

 After starting the vehicle, select
position M to change to sequential
mode.
Automated mode

 Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobilise
the vehicle; apply the handbrake.
When moving off on a slope, accel-
erate gradually while releasing the
handbrake.

 Place your foot on the
brake when this warning
light fl ashes (e.g.: starting
the engine).
 Select position N .

 Press the brake pedal.

 Start the engine.

N appears on the instrument panel.

N fl ashes on the instrument panel
display if the gear lever is not in po-
sition N on starting.

 Select fi rst gear (position M or A ) or
reverse (position R )

 Release the handbrake.

 Take your foot off the brake pedal,
then accelerate.

AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the gears
engaged appear in succession
on the instrument panel.
The gear change requests are only car-
ried out if the engine speed permits.
When driving at low speed, on ap-
proaching a stop sign or traffi c lights for
example, the gearbox changes down to
fi rst gear automatically.

AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
When reverse gear is engaged, an
audible signal is triggered.

!
i
114

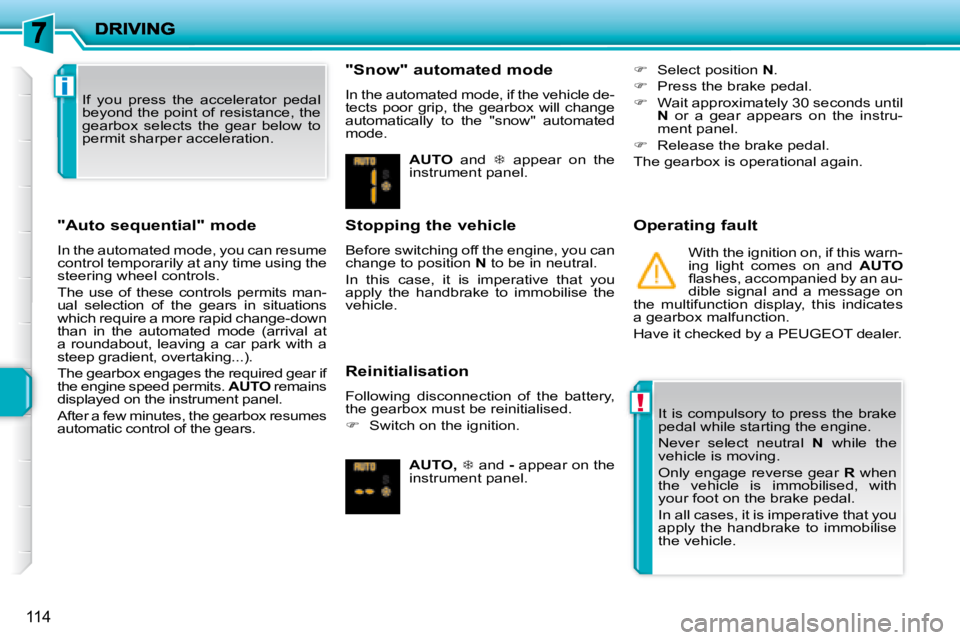

"Auto sequential" mode
In the automated mode, you can resume
control temporarily at any time using the
steering wheel controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a more rapid change-down
than in the automated mode (arrival at
a roundabout, leaving a car park with a
steep gradient, overtaking...).
The gearbox engages the required gear if
the engine speed permits. AUTO remains
displayed on the instrument panel.
After a few minutes, the gearbox resumes
automatic control of the gears. "Snow" automated mode
In the automated mode, if the vehicle de-
tects poor grip, the gearbox will change
automatically to the "snow" automated
mode.
Stopping the vehicle
Before switching off the engine, you can
change to position
N to be in neutral.
In this case, it is imperative that you
apply the handbrake to immobilise the
vehicle.
Reinitialisation
Following disconnection of the battery,
the gearbox must be reinitialised.

 Switch on the ignition. Operating fault
With the ignition on, if this warn-
ing light comes on and AUTO
fl ashes, accompanied by an au-
dible signal and a message on
the multifunction display, this indicates
a gearbox malfunction.
Have it checked by a PEUGEOT dealer.
It is compulsory to press the brake
pedal while starting the engine.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised, with
your foot on the brake pedal.
In all cases, it is imperative that you
apply the handbrake to immobilise
the vehicle.
If you press the accelerator pedal
beyond the point of resistance, the
gearbox selects the gear below to
permit sharper acceleration.

AUTO and  appear on the
instrument panel.

AUTO,  and - appear on the
instrument panel.
 Select position N .

 Press the brake pedal.

 Wait approximately 30 seconds until

N or a gear appears on the instru-
ment panel.

 Release the brake pedal.
The gearbox is operational again.

!
!
i
116

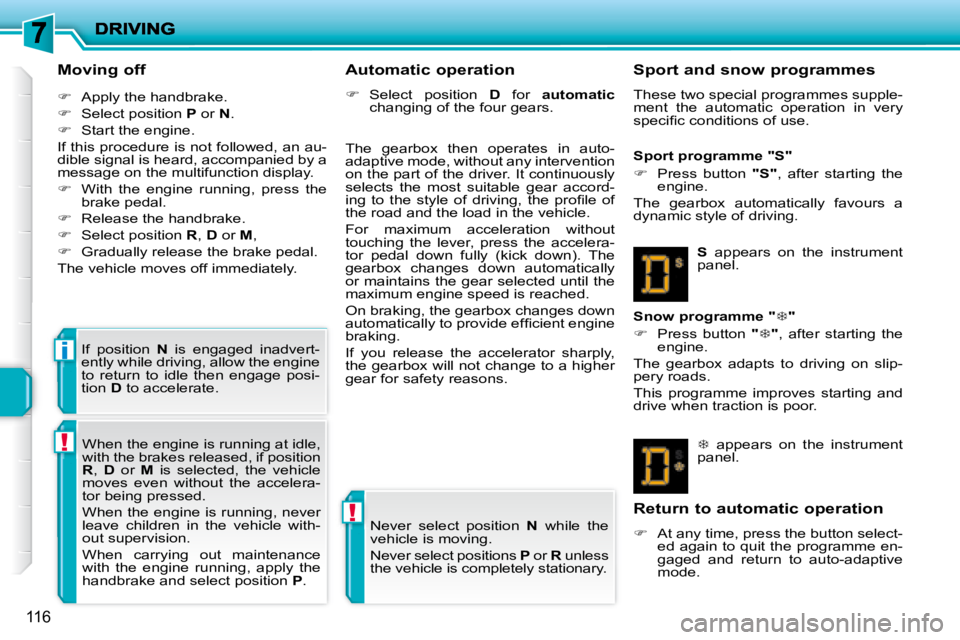

Moving off

 Apply the handbrake.

 Select position P or N .

 Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.

 With the engine running, press the
brake pedal.

 Release the handbrake.

 Select position R , D or M ,

 Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvert-
ently while driving, allow the engine
to return to idle then engage posi-
tion D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation

 Select position D for automatic
changing of the four gears.

 appears on the instrument
panel.
Snow programme "
 "

 Press button "

" , after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"

 Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at idle,
with the brakes released, if position

R , D or M is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Return to automatic operation

 At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.

!i
117
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
function display, indicates a gearbox
malfunction.
In this case, the gearbox switches to
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
the gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a PEUGEOT dealer as soon as
possible.
If the battery is fl at and the lever is
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
this could damage the gearbox.

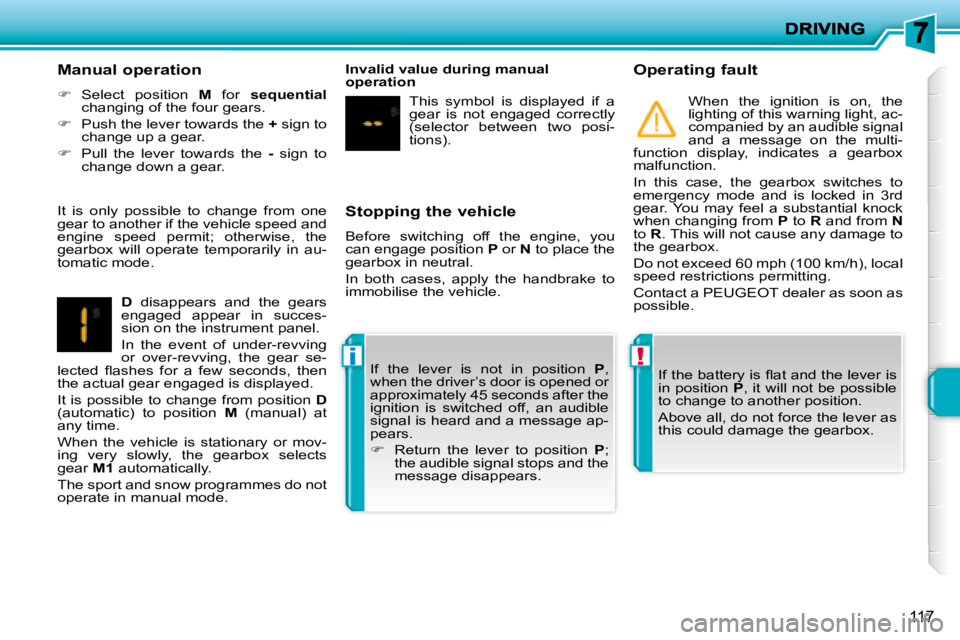

Manual operation

 Select position M for sequential
changing of the four gears.

 Push the lever towards the + sign to
change up a gear.

 Pull the lever towards the - sign to
change down a gear.

D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
lected fl ashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver’s door is opened or
approximately 45 seconds after the
ignition is switched off, an audible
signal is heard and a message ap-
pears.

 Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).

!
130
Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited.
"2 Tronic" gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component. Brake disc drum wear status
For any information relating
to checking of the brake disc
and/or drum wear status, con-
tact a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component. Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must be
adjusted, even between two
services.
This system must be checked by a
PEUGEOT dealer.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
tervals for this component.
