Page 5 of 255

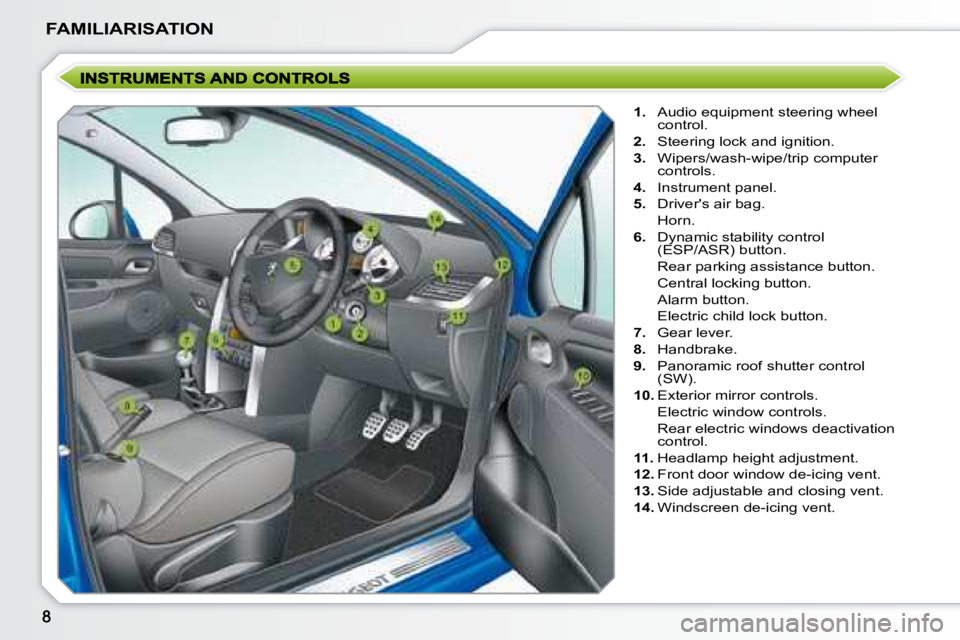

FAMILIARISATION
1. Audio equipment steering wheel
control.
2. Steering lock and ignition.
3. Wipers/wash-wipe/trip computer
controls.
4. Instrument panel.
5. Driver's air bag.
Horn.
6. Dynamic stability control
(ESP/ASR) button.
Rear parking assistance button.
Central locking button.
Alarm button.
Electric child lock button.
7. Gear lever.
8. Handbrake.
9. Panoramic roof shutter control
(SW).
10. Exterior mirror controls.
Electric window controls.
Rear electric windows deactivation control.
11. Headlamp height adjustment.
12. Front door window de-icing vent.
13. Side adjustable and closing vent.
14. Windscreen de-icing vent.

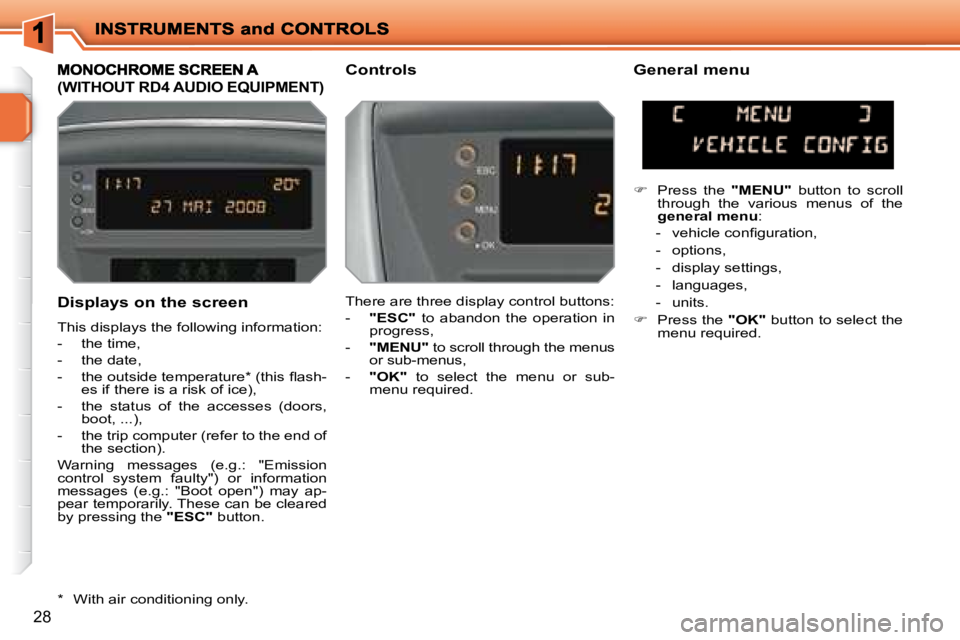

Page 25 of 255
28
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h -es if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
(WITHOUT RD4 AUDIO EQUIPMENT)
Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
* With air conditioning only.
Page 27 of 255
30

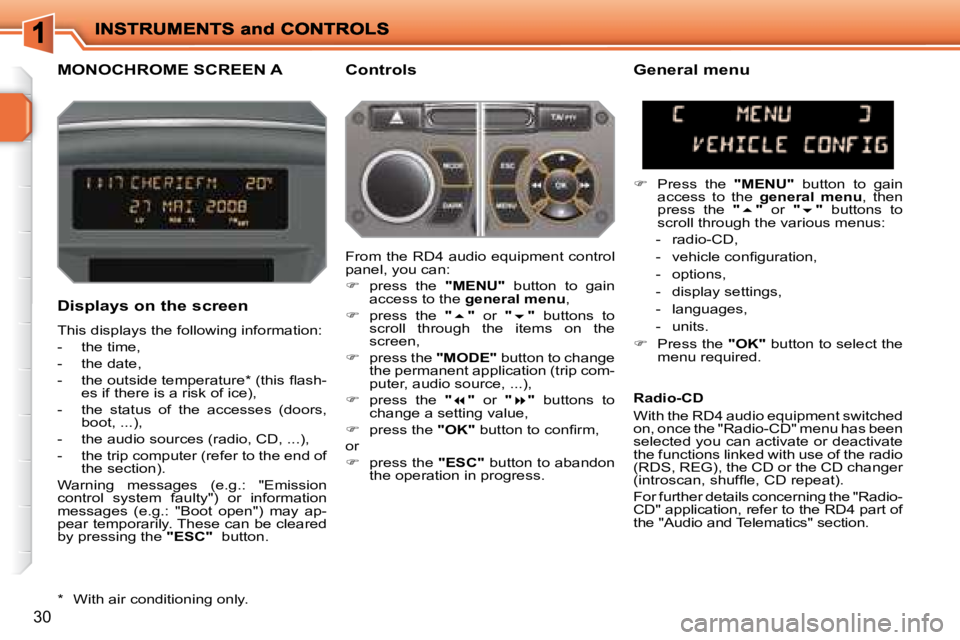

MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button.
General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the RD4 audio equipment control
panel, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the RD4 audio equipment switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning the "Radio-
CD" application, refer to the RD4 part of
the "Audio and Telematics" section.
* With air conditioning only.
Page 29 of 255
32

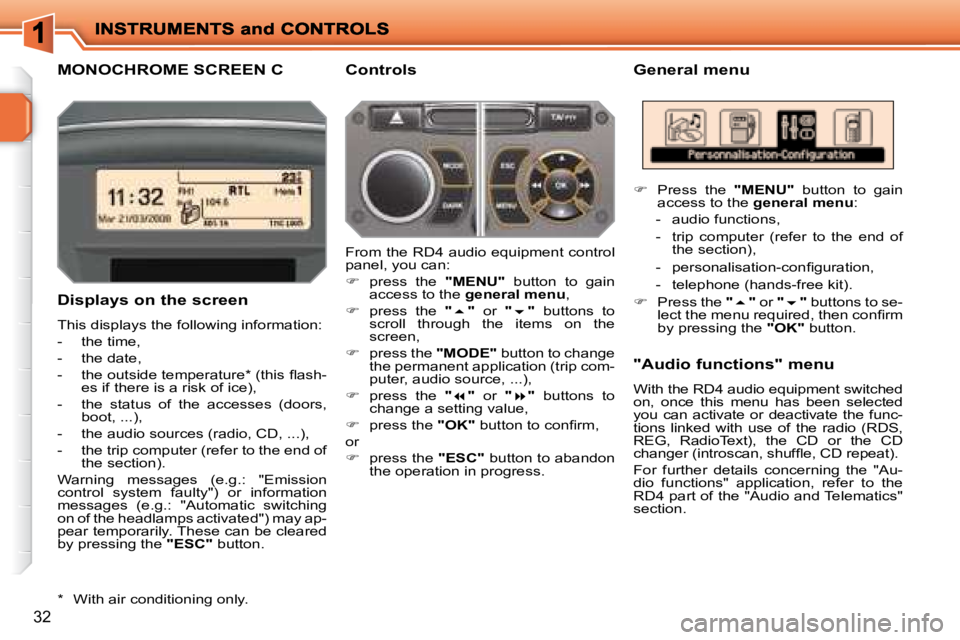

MONOCHROME SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "
ESC" button. Controls
From the RD4 audio equipment control
panel, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. "Audio functions" menu
With the RD4 audio equipment switched
on, once this menu has been selected
you can activate or deactivate the func-
tions linked with use of the radio (RDS,
REG, RadioText), the CD or the CD
c h a n g e r ( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning the "Au-
dio functions" application, refer to the
RD4 part of the "Audio and Telematics"
section.
* With air conditioning only.
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
Page 30 of 255
33

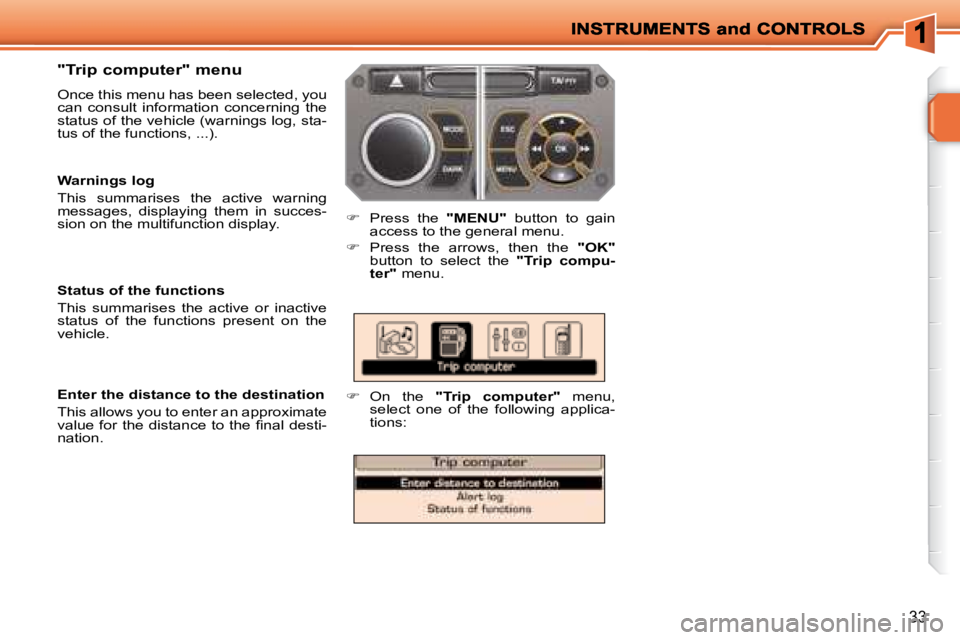

"Trip computer" menu
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (warnings log, sta-
tus of the functions, ...).
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the "Trip compu-
ter" menu.
On the "Trip computer" menu,
select one of the following applica-
tions:
Enter the distance to the destination
This allows you to enter an approximate
v a l u e f o r t h e d i s t a n c e t o t h e fi n a l d e s t i -
nation.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Page 36 of 255
39

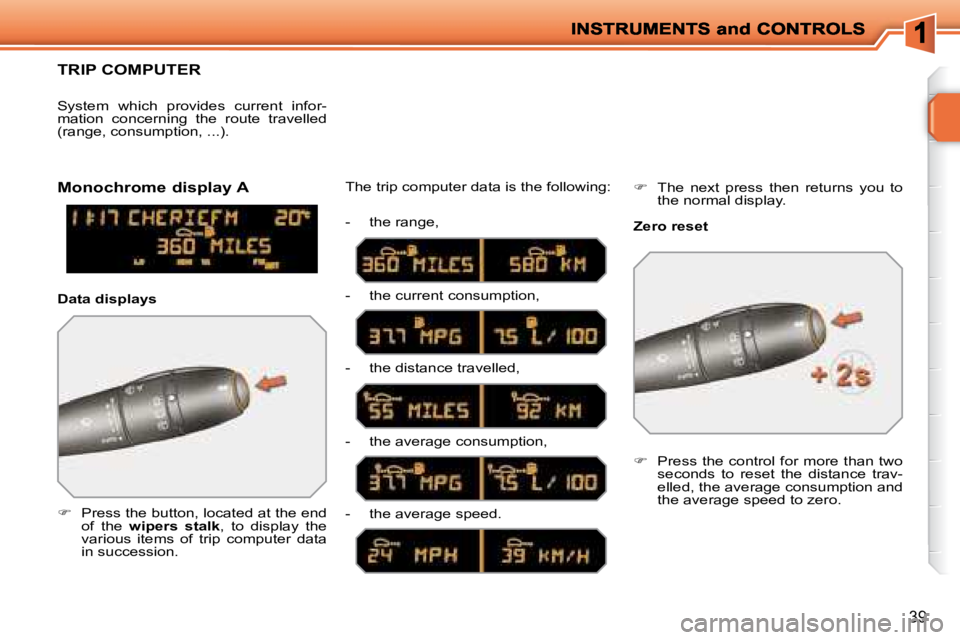

TRIP COMPUTER
Press the button, located at the end
of the wipers stalk , to display the
various items of trip computer data
in succession. The trip computer data is the following:
System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).
Press the control for more than two
seconds to reset the distance trav-
elled, the average consumption and
the average speed to zero.
Monochrome display A
Zero reset
Data displays - the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
The next press then returns you to
the normal display.
Page 37 of 255
!
i
i
41
Distance remaining to be
travelled
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is calculated either instantly by the navi-
gation system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

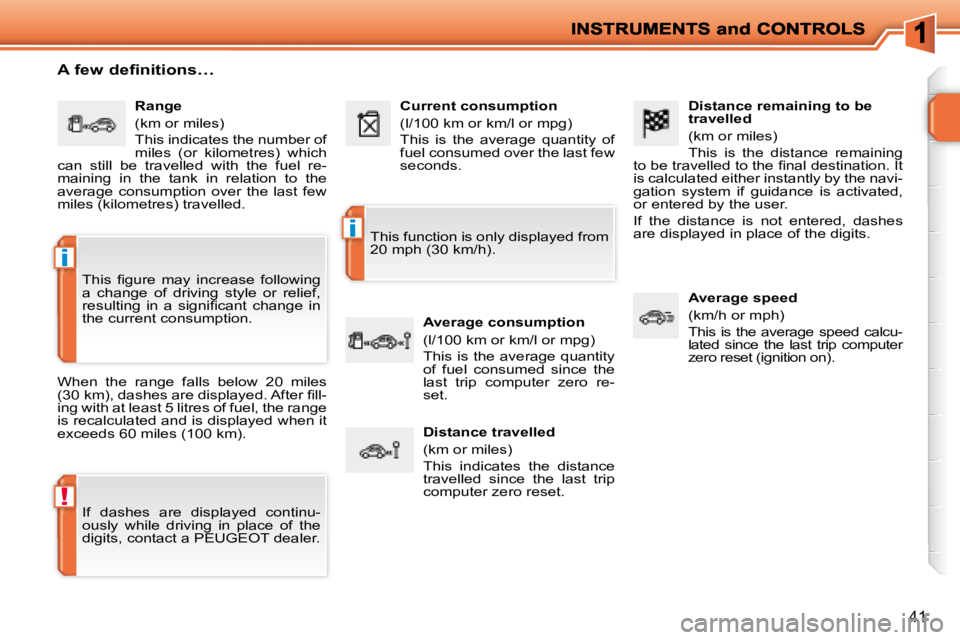

Average speed
(km/h or mph)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Range
(km or miles)
This indicates the number of
miles (or kilometres) which
can still be travelled with the fuel re-
maining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero re-
set.
Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current consumption.
Page 39 of 255
!
i
i
41
Distance remaining to be
travelled
(km or miles)
This is the distance remaining
t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is calculated either instantly by the navi-
gation system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Range
(km or miles)
This indicates the number of
miles (or kilometres) which
can still be travelled with the fuel re-
maining in the tank in relation to the
average consumption over the last few
miles (kilometres) travelled. Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last few
seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero re-
set.
Distance travelled
(km or miles)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current consumption.

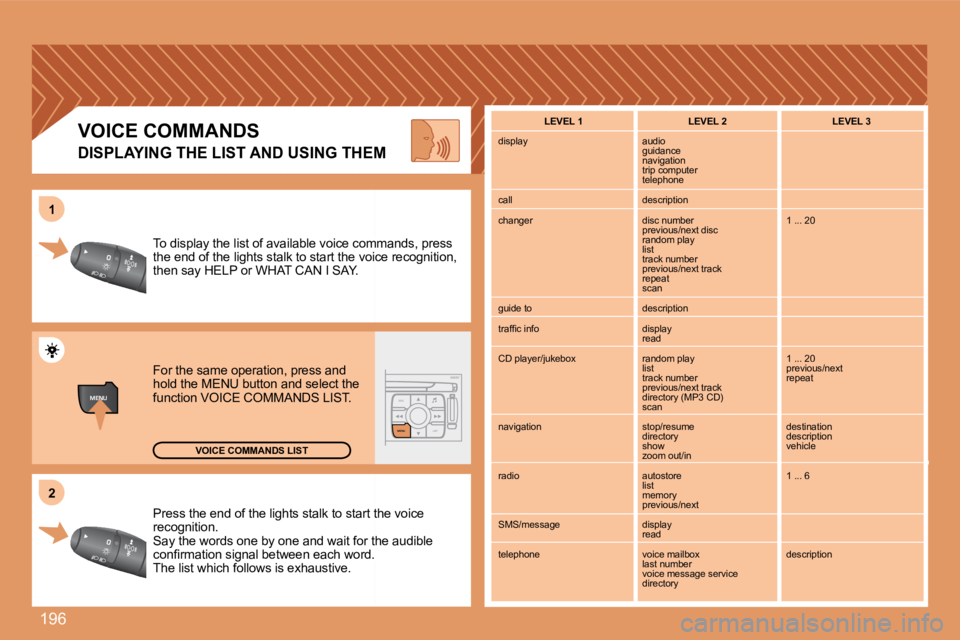

Page 209 of 255
196
MENUESCLIST
MENU
22
11
Press the end of the lights stalk to start thtart the voice recognition. Say the words one by one and wait for the for the audible c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d . The list which follows is exhaustive.
To display the list of available voice commcommands, press the end of the lights stalk to start the voice voice recognition, then say HELP or WHAT CAN I SAY.
For the same operation, press and hold the MENU button and select the function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1 LEVEL 2 LEVEL 3
display audio guidance navigation trip computer telephone
call description
changer disc number previous/next disc random play list track number previous/next track repeat scan
1 ... 20
guide to description
t r a f fi c i n f o display read
CD player/jukebox random play list track number previous/next track directory (MP3 CD) scan
1 ... 20 previous/next repeat
navigation stop/resume directory show zoom out/in
destination description vehicle
radio autostore list memory previous/next
1 ... 6
SMS/message display read
telephone voice mailbox last number voice message service directory
description
Page 220 of 255
204

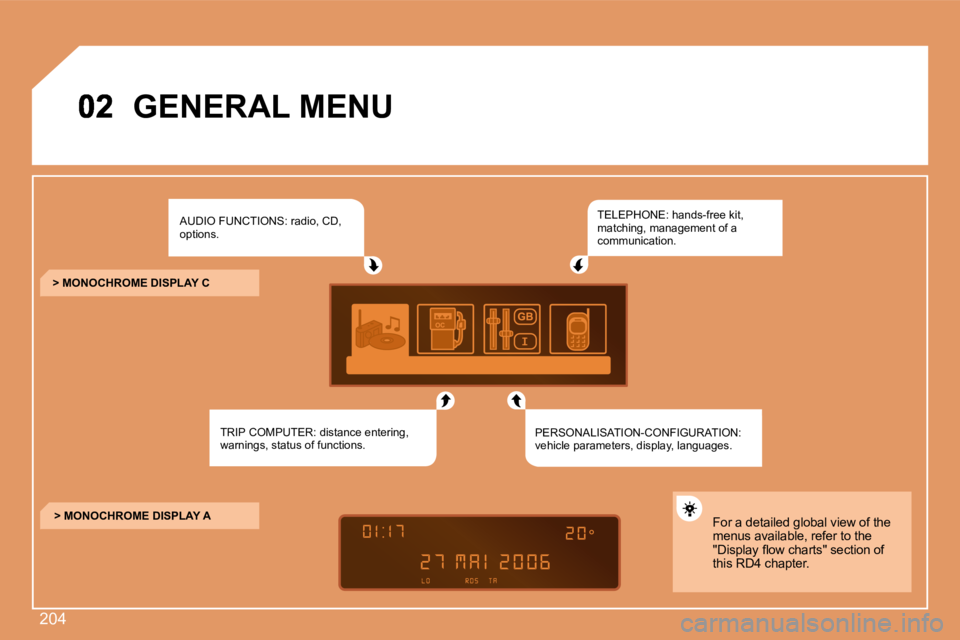

GENERAL MENU
AUDIO FUNCTIONS: radio, CD, options.
TRIP COMPUTER: distance entering, warnings, status of functions.
TELEPHONE: hands-free kit, matching, management of a communication.
PERSONALISATION-CONFIGURATION: vehicle parameters, display, languages.
> MONOCHROME DISPLAY C
> MONOCHROME DISPLAY A For a detailed global view of the menus available, refer to the " D i s p l a y fl o w c h a r t s " s e c t i o n o f this RD4 chapter.
