i
PRACTICAL INFORMATION
131
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
e d e x c e e d s 1 0 m i l l i a m p e r e s .
Installation of electrical acces-
sories
Your vehicle's electrical circuit is
designed to operate with the stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d o n t h e
b a c k o f t h e d a s h b a o r d f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
unclip the cover pulling at the top,
remove the cover completely,
remove the pliers. Replacing a fuse
Before replacing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y e x a m i n i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number engraved
o n t h e b o x a n d t h e r a t i n g e n g r a v e d
on the top correspond to the tables
which follow. Correct
Incorrect
Page 142 of 207
PRACTICAL INFORMATION
132
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r d a s h -
b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse table
Fuse N° Rating Functions
G37 30 A Retractable roof unit supply.
G38 20 A H i - F i a m p l i fi e r .
G39 20 A Driver and passenger heated seats.
G40 40 A T r a i l e r f u s e b o x s u p p l y .
Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r
p u m p ( D i e s e l ) .
F5 30 A Rear electric windows, retractable roof.
F6 30 A Front electric windows, folding mirrors supply.
F7 5 A Front courtesy lamp, map reading reading lamps,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g .
Page 143 of 207
PRACTICAL INFORMATION
133
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
m o u n t e d c o n t r o l s , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
t r a i l e r f u s e b o x , a l a r m ( a c c e s s o r y ) .
F9 30 A Front 12 V socket, front courtesy lamp, map readin
g
l a m p s , s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A S u n s h i n e s e n s o r , t r a i l e r f u s e b o x , r e t r a c t a b l e r o o f .
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipm
ent,
Bluetooth system, rear parking sensors control unit .
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
Page 144 of 207
PRACTICAL INFORMATION
134
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves
( 1 . 6 l 1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n
p u m p ( D i e s e l ) , w a t e r i n D i e s e l s e n s o r ( D i e s e l ) ,
E G R e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s
( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
Page 145 of 207
PRACTICAL INFORMATION
135
Fuse N° Rating Functions
F14 30 A D i e s e l h e a t e r ( D i e s e l ) .
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems.
A l l w o r k o n t h e m a x i - f u s e s m u s t b e
carried out by a PEUGEOT dealer.
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A A d d i t i o n a l f a n a s s e m b l y ( 1 . 6 l 1 6 V T H P ) .
MF7 * 80 A D a s h b o a r d f u s e b o x .
MF8 * - Not used.
Box 2
MF9 * 80 A H e a t i n g u n i t ( D i e s e l ) .
MF10 * 80 A Electric power steering.
MF11 * 40 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l 1 6 V T H P ) .
Page 146 of 207
PRACTICAL INFORMATION
136
BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
t h e n t o t h e p o s i t i v e t e r m i n a l ( + ) o f
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
p l e , r i g h t - h a n d e n g i n e m o u n t i n g ) .
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet
on the left.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior re-
l e a s e l e v e r , t h e n t h e e x t e r i o r s a f e t y
catch,
secure the bonnet stay,
remove the plastic cover to gain
access to the two terminals.
Page 147 of 207
!
i
PRACTICAL INFORMATION
137
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

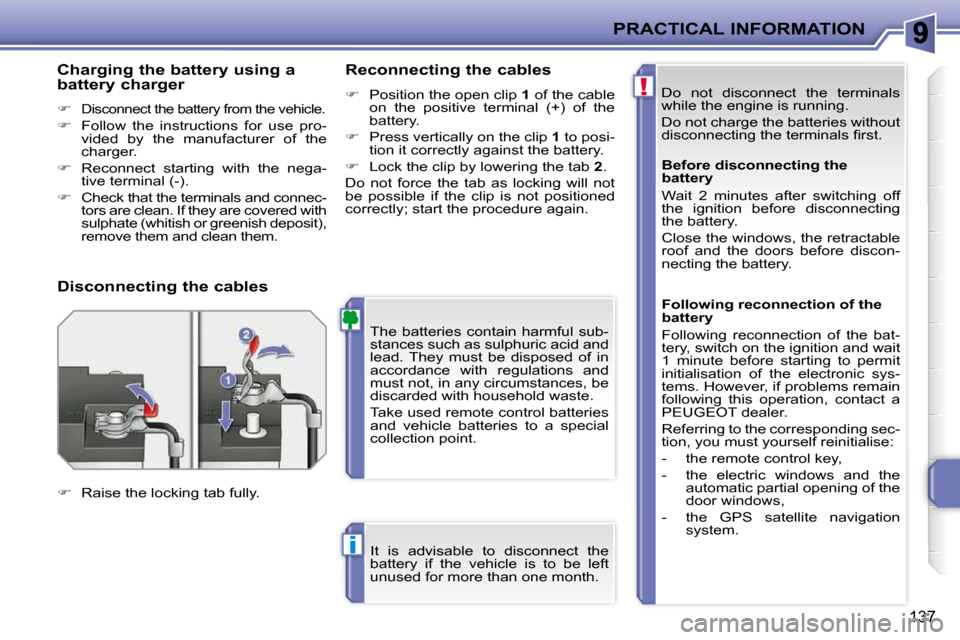

Charging the battery using a
battery charger
Disconnect the battery from the vehicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows, the retractable
roof and the doors before discon-
necting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems remain
following this operation, contact a
PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the electric windows and the
automatic partial opening of the
door windows,
- the GPS satellite navigation system.
Disconnecting the cables
Reconnecting the cables
Position the open clip 1 of the cable
o n t h e p o s i t i v e t e r m i n a l ( + ) o f t h e
battery.
Press vertically on the clip 1 to posi-
tion it correctly against the battery.
Lock the clip by lowering the tab 2 .
Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.
Raise the locking tab fully.
Page 148 of 207
!
i
PRACTICAL INFORMATION
138
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If a roof operation is in progress,
it will be completed, but no further
operation is possible.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamp, etc.
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
engine and let it run for a few minutes.
The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-
w a y s b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front wiper blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front wiper blade
Check the size of the wiper blade
a s t h e s h o r t e r b l a d e i s fi t t e d o n t h e
right-hand side of the vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 149 of 207
!i
PRACTICAL INFORMATION
139
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, pull on the cov-
er to unclip it.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in a holder at
t h e b o t t o m o f t h e b o o t u n d e r t h e fl o o r .
F o r a c c e s s t o i t :
p l a c e t h e v e h i c l e i n " c o u p é " c o n fi g u -
ration,
open the boot,
r a i s e t h e fl o o r ,
remove the towing eye from the
holder. When towing with all four wheels
on the ground, always use a towing
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
F a i l u r e t o o b s e r v e t h i s s p e c i fi c instruction may result in damage
to certain braking units and the
absence of braking assistance
when the engine is restarted.
Page 150 of 207
i
i
PRACTICAL INFORMATION
140
TOWING A TRAILER, A
CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
In all cases, pay attention to the coolant
temperature.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions. Driving advice
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Lighting
Check the electrical lighting and sig-
nalling on the trailer.
