Page 41 of 207
COMFORT
43
VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n c r e a s e
or reduce the speed of the ventilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning controls.
Air distribution
1.
Windscreen demisting-defrosting vents.
2. Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 124 of 207
115
PETROL ENGINES
T h e c a p s a n d c o v e r s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Screenwash and headlamp wash
reservoir.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 125 of 207
116
DIESEL ENGINE
T h e c a p s a n d c o v e r s p r o v i d e a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o p r i m e
the fuel system.
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3. Screenwash and headlamp wash
reservoir.
4. Priming pump.
5. B r a k e fl u i d r e s e r v o i r .
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. A i r fi l t e r .
Page 141 of 207
!
i
PRACTICAL INFORMATION
131
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
e d e x c e e d s 1 0 m i l l i a m p e r e s .
Installation of electrical acces-
sories
Your vehicle's electrical circuit is
designed to operate with the stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer.

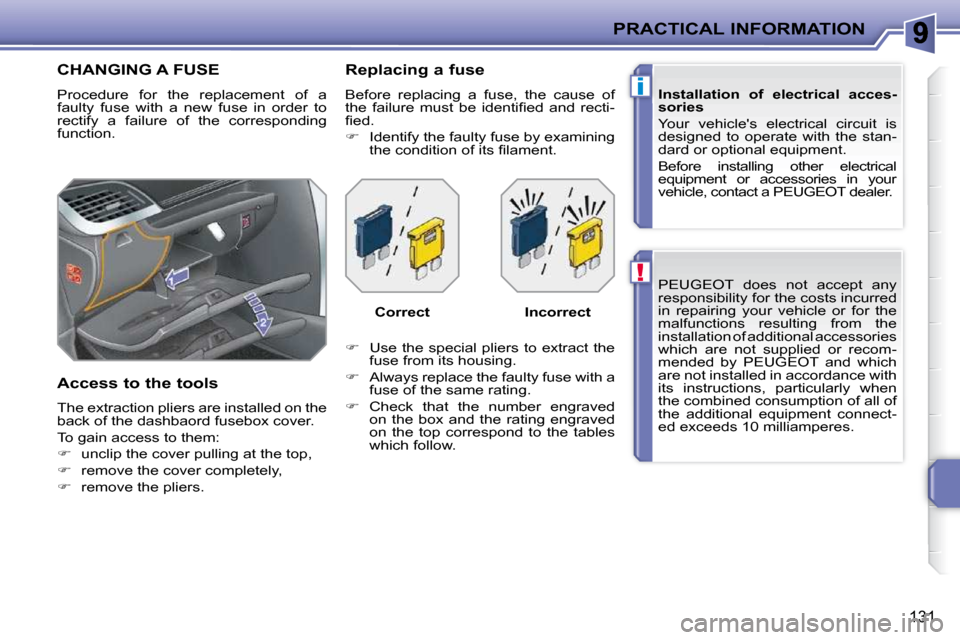

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a r e i n s t a l l e d o n t h e
b a c k o f t h e d a s h b a o r d f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
unclip the cover pulling at the top,
remove the cover completely,
remove the pliers. Replacing a fuse
Before replacing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
I d e n t i f y t h e f a u l t y f u s e b y e x a m i n i n g
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number engraved
o n t h e b o x a n d t h e r a t i n g e n g r a v e d
on the top correspond to the tables
which follow. Correct
Incorrect
Page 142 of 207
PRACTICAL INFORMATION
132
Dashboard fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r d a s h -
b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse table
Fuse N° Rating Functions
G37 30 A Retractable roof unit supply.
G38 20 A H i - F i a m p l i fi e r .
G39 20 A Driver and passenger heated seats.
G40 40 A T r a i l e r f u s e b o x s u p p l y .
Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r
p u m p ( D i e s e l ) .
F5 30 A Rear electric windows, retractable roof.
F6 30 A Front electric windows, folding mirrors supply.
F7 5 A Front courtesy lamp, map reading reading lamps,
s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g .
Page 143 of 207
PRACTICAL INFORMATION
133
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
m o u n t e d c o n t r o l s , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
t r a i l e r f u s e b o x , a l a r m ( a c c e s s o r y ) .
F9 30 A Front 12 V socket, front courtesy lamp, map readin
g
l a m p s , s u n v i s o r l i g h t i n g , g l o v e b o x l i g h t i n g .
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
a u t o m a t i c g e a r b o x c o n t r o l u n i t .
F12 15 A S u n s h i n e s e n s o r , t r a i l e r f u s e b o x , r e t r a c t a b l e r o o f .
F13 5 A E n g i n e f u s e b o x , A B S r e l a y , d u a l - f u n c t i o n b r a k e
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipm
ent,
Bluetooth system, rear parking sensors control unit .
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
Page 144 of 207
PRACTICAL INFORMATION
134
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves
( 1 . 6 l 1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n
p u m p ( D i e s e l ) , w a t e r i n D i e s e l s e n s o r ( D i e s e l ) ,
E G R e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s
( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
Page 145 of 207
PRACTICAL INFORMATION
135
Fuse N° Rating Functions
F14 30 A D i e s e l h e a t e r ( D i e s e l ) .
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems.
A l l w o r k o n t h e m a x i - f u s e s m u s t b e
carried out by a PEUGEOT dealer.
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A A d d i t i o n a l f a n a s s e m b l y ( 1 . 6 l 1 6 V T H P ) .
MF7 * 80 A D a s h b o a r d f u s e b o x .
MF8 * - Not used.
Box 2
MF9 * 80 A H e a t i n g u n i t ( D i e s e l ) .
MF10 * 80 A Electric power steering.
MF11 * 40 A V a l v e t r o n i c e l e c t r i c m o t o r ( 1 . 6 l 1 6 V T H P ) .
Page 207 of 207
197

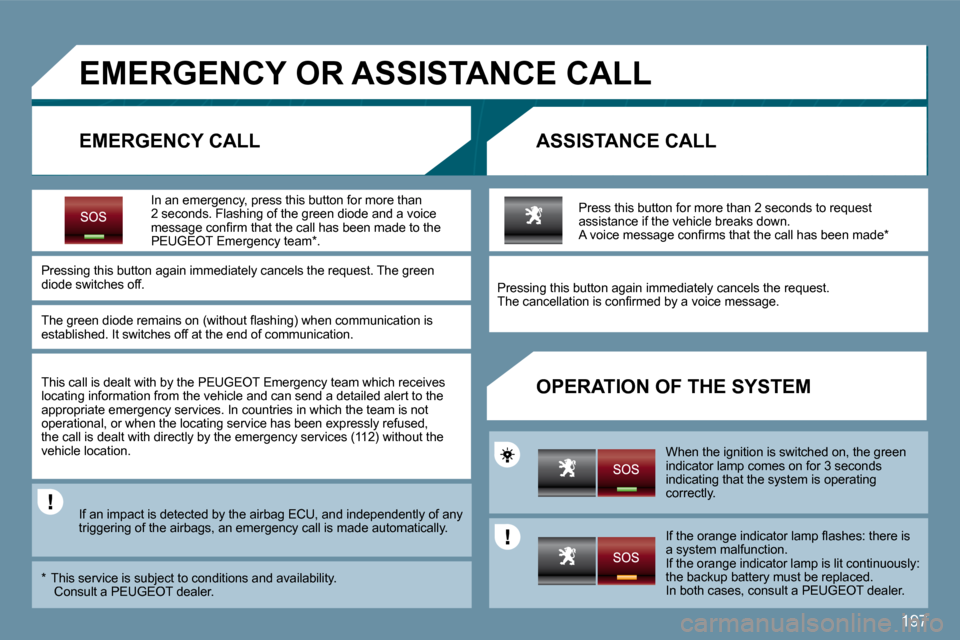

E M E R G E N C Y O R A S S I S T A N C E C A L L
E M E R G E N C Y C A L L A S S I S T A N C E C A L L
O P E R A T I O N O F T H E S Y S T E M
I n a n e m e r g e n c y , p r e s s t h i s b u t t o n f o r m o r e t h a n 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e P E U G E O T E m e r g e n c y t e a m * .
P r e s s i n g t h i s b u t t o n a g a i n i m m e d i a t e l y c a n c e l s t h e r e q u e s t . T h e g r e e n diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s e s t a b l i s h e d . I t s w i t c h e s o f f a t t h e e n d o f c o m m u n i c a t i o n .
T h i s c a l l i s d e a l t w i t h b y t h e P E U G E O T E m e r g e n c y t e a m w h i c h r e c e i v e s l o c a t i n g i n f o r m a t i o n f r o m t h e v e h i c l e a n d c a n s e n d a d e t a i l e d a l e r t t o t h e a p p r o p r i a t e e m e r g e n c y s e r v i c e s . I n c o u n t r i e s i n w h i c h t h e t e a m i s n o t operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
I f a n i m p a c t i s d e t e c t e d b y t h e a i r b a g E C U , a n d i n d e p e n d e n t l y o f a n y t r i g g e r i n g o f t h e a i r b a g s , a n e m e r g e n c y c a l l i s m a d e a u t o m a t i c a l l y .
* T h i s s e r v i c e i s s u b j e c t t o c o n d i t i o n s a n d a v a i l a b i l i t y . Consult a PEUGEOT dealer.
P r e s s t h i s b u t t o n f o r m o r e t h a n 2 s e c o n d s t o r e q u e s t assistance if the vehicle breaks down. A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e *
P r e s s i n g t h i s b u t t o n a g a i n i m m e d i a t e l y c a n c e l s t h e r e q u e s t . T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
When the ignition is switched on, the green i n d i c a t o r l a m p c o m e s o n f o r 3 s e c o n d s i n d i c a t i n g t h a t t h e s y s t e m i s o p e r a t i n g correctly.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a s y s t e m m a l f u n c t i o n . I f t h e o r a n g e i n d i c a t o r l a m p i s l i t c o n t i n u o u s l y : t h e b a c k u p b a t t e r y m u s t b e r e p l a c e d . In both cases, consult a PEUGEOT dealer.
