Page 8 of 207
i
!
FAMILIARISATION
Also...
5. Access to the rear seats.
Front seat adjustment
Steering wheel adjustment
1. F o r w a r d s - b a c k w a r d s a d j u s t m e n t .
2. H e i g h t a d j u s t m e n t .
3. S e a t b a c k a n g l e a d j u s t m e n t .
4. H e a d r e s t r a i n t h e i g h t a d j u s t m e n t .
50
1.
U n l o c k i n g t h e s t e e r i n g w h e e l a d j u s t m e n t .
2. H e i g h t a n d r e a c h a d j u s t m e n t .
3.
L o c k i n g t h e s t e e r i n g w h e e l a d j u s t m e n t .
A s a s a f e t y p r e c a u t i o n , i t i s i m -
p e r a t i v e t h a t t h e s e o p e r a t i o n s a r e
c a r r i e d o u t w h e n s t a t i o n a r y .
52

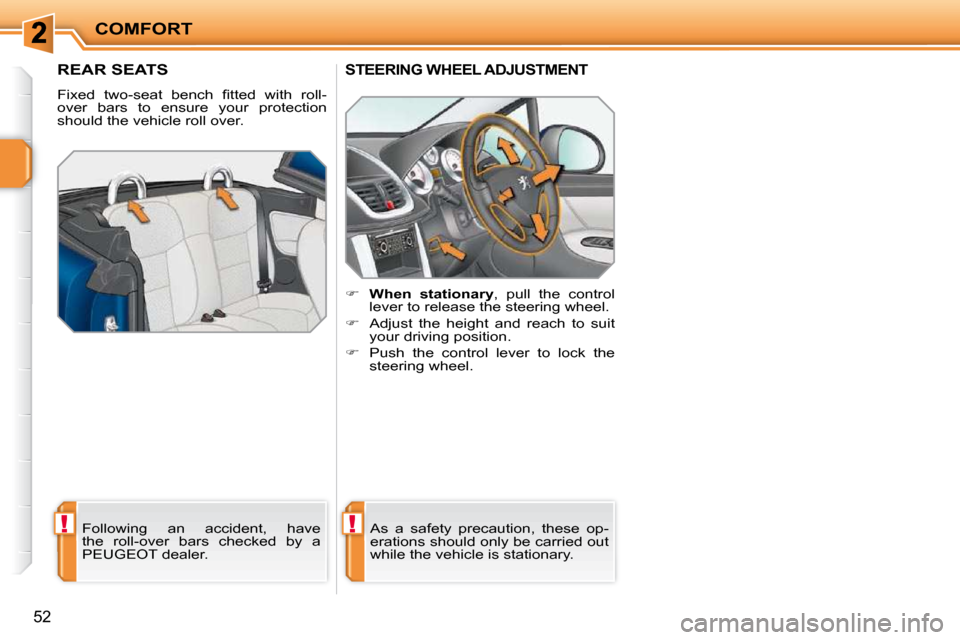

Page 53 of 207
!!
COMFORT
52
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Page 54 of 207
!!
COMFORT
52
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.
Page 87 of 207
i
VISIBILITY
80
STATIC DIRECTIONAL LIGHTING
When the dipped or main beam headlam-
ps are on, this function enables the beam
to light the inside of the turn with an addi-
tional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driving,
w i n d i n g r o a d s , . . . ) .
with directional lighting
without directional lighting Programming
Switching on
The system is switched on from a certain
speed and a certain angle of rotation of the
steering wheel.
Operating fault The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated
by default.
In the event of a malfunction,
t h i s w a r n i n g l a m p fl a s h e s o n
the instrument panel, accom-
panied by a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
2. 4 people + maximum authorised
load.
3. Driver + maximum authorised load.
Switching off
The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.
